2008 MERCEDES-BENZ G-Class Comand Manual

25 At a glance
Navigation operating elements
FunctionPage
1b
Navigation main menu
During route guidance:
Change over to navigation
display
Cancelling route guidance
108
131
139
2c
Switches to map display
Changing the map display
(split and full view)
131
133
3Soft keys
(multifunction keys)
4Color screen with
Navigation main menu
108
5Entering a house or street
number
Entering a POI by phone
number114,
115
161
6Push the joystick to
H,h,g,G,F,f
Function selection,
Scrolling on map
Press E to confirm
7l
Updating software/
changing map data
i
There are two l
buttons. One is on the
display unit. The other is
located left of the DVD
NAVIGATION slot behind
the display.
166
FunctionPageFunctionPage
8J
During a voice instruction:
Muting current voice
instruction
Switching off voice
instructions
130
130
9j
Repeating current voice
instruction
Switching on voice
instructions
130
130
aVolume control35
be Switching on and off34

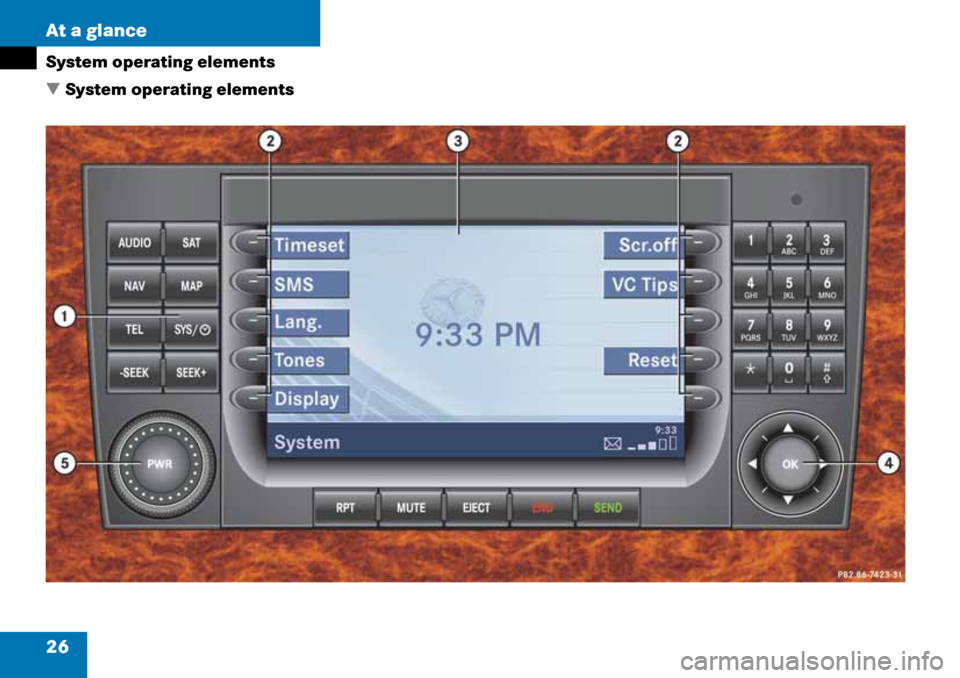

26 At a glance
System operating elements

System operating elements

27 At a glance
System operating elements
FunctionPage
1{
System main menu
170
2Soft keys
(multifunction keys)
3Color screen with System
main menu
i
The SMS soft key appears
if the vehicle is equipped
for phone operation and a
Mercedes-Benz specified
mobile telephone* is
inserted in phone cradle*.
The VC Tips soft key
appears if the vehicle is
equipped with the Voice
Control system.
170
4Push the joystick to
g,G
Function selection
Press E to confirm
5e Switching on and off34
FunctionPage

28 At a glance
Multifunction steering wheel

Multifunction steering wheel
FunctionPage
1Multifunction display
2Volume setting:
ç Volume down
æ Volume up
34
34
3Making calls:
s
Accepting calls,
Redialing
t
Ending or rejecting calls
94
96
96
4Multifunction display
menu change:
è forward
ÿ back
29
FunctionPage
5Radio mode:
j Next station
k Previous station
46
46
Single CD and CD changer
mode:
j Next track
k Previous track
60
60
MP3 CD mode:
j Next track
k Previous track
71
71
Satellite radio mode
j Next station
k Previous station
79
79
Telephone* mode
j Next list entry
k Previous list entry
102
102

29 At a glance
Multifunction steering wheel
Switch the multifunction display to the
respective system if you wish to
operate the system using the buttons
on the multifunction steering wheel.
On the multifunction steering wheel,
press è or ÿ repeatedly until
one of the following, Radio, Single CD
or MP3 CD, CD changer, Satellite radio
or Telephone* display appears in the
multifunction display of the instrument
cluster.Radio operation
1Waveband
2Station frequencySingle CD/ CD changer operation
1Current CD
2Current track
Selecting the multifunction display

30 At a glance
Multifunction steering wheel
MP3 CD operation
1MP3 mode
2Current MP3 trackSatellite radio operation
1SAT mode and preset channel number
2Channel nameTelephone* operation
List with a phone book entry
On display will appear either:
the main display with the READY
message
a list with either a phone book entry or
one of the last 10 outgoing calls
In order to close the list display,
press t.
This switches to the telephone main
display.

31 At a glance
Menu system

Menu system
The menu system allows for easy
operation of COMAND.
Main menus are provided for the following
main functions:
Audio (AM/FM radio, CD, CD changer,
MP3 CD)
Satellite radio
Telephone*
Navigation
SystemCalling up main menus Menu display
A display may consist of three areas.
Example: FM menu
1Soft keys area
2Main area
3Status bar
The functions currently assigned to the
soft keys are displayed in the soft key
sections 1.
Main functionActivating main
menu
Audio
(
page 42)
Press A.
Satellite radio
(
page 78)
Press B.
Telephone*
(
page 92)
Press a.
Navigation
(
page 108)
Press b.
System
(
page 170)
Press {.
i
A maximum of five soft keys may be
displayed on each side of the main
area2.

32 At a glance
Menu system
The main area 2 shows messages and
settings.
You can change the settings by operating
the system.
The status bar 3 is divided into three
areas.
Left side:
The current operating mode is indicated. In
this example: Radio
Center:
The status of the current operating mode
or other selectable functions are indicated.
In this example:
FM = current waveband
1 = memory location of station,
e.g. “1”
Right side:
9:33 = actual time (page 33)
 = reception strength of the
mobile phone*
n = text message in the inbox
(
page 215)
G = phone call active
Menu functions and submenus
Using the soft keys, functions can be
switched ON or OFF, or submenus can be
called up.
E.g. the radio menu:
The FM/AM soft key switches between
FM and AM band.
The Scan soft key starts/stops the
channel scan.
In some situations, soft keys may not have
any function and are not operational. A soft key without function appears
shaded out.
E.g.: Soft keys on the left and right side
Exiting from submenus
Use the
Back soft key 1 to exit a
submenu. The display switches to the next
higher menu level.
The system does not accept setting
modifications which have not been stored.
There are exceptions where pressing the
Back soft key will also store new settings.
These exceptions, whenever applicable,
are referenced on the following pages.
