2008 MERCEDES-BENZ G-Class Comand Manual

81 Satellite radio
Satellite radio operation
On the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The SAT preset memory will appear.
Satellite preset memory
Push the joystick to gor G to se-
lect a memory preset.
or
Press j or k at the multifunc-
tion steering wheel.
Press E longer than 2 seconds.You will hear a verification beep if the
beep tones option was activated in the
system settings (
page 184).
The satellite radio saves the current
station at the memory preset selected.
You will see the Satellite radio main menu
automatically after 8 seconds
if you press s.Selecting a station on the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The Satellite preset memory
(
page 80) will appear.
Push the joystick to gor G to high-
light a memory preset.
or
Press j or k at the multifunc-
tion steering wheel.
Press E.
The Satellite radio main menu will then
appear automatically after 8 seconds,
indicating the memory preset number
in the status line.
i
An existing entry is overwritten in the
memory list when a new input is given.
If the message
Updating station list
appears the presets may be overwrit-
ten.

82 Satellite radio
Satellite radio operation
In the Satellite radio main menu, press
the
Info soft key.
The information display will appear.
You will see (if available)
the full station name
additional program information
Switching back to the Satellite radio main
menu
Press the Back soft key.
or
Press the Info soft key again.You can call the provider service center for
questions or releases, whenever you need.
Press the Service soft key.
The Service information display will ap-
pear.
1Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2The Electronical Serial Number (ESN)
of your satellite receiver
Press the Back soft key to switch back
to the Satellite radio main menu.While receiving a new channel list the mes-
sage
Updating station list will appear.
The station last tuned will be muted until
the update is completed. You cannot ope-
rate the satellite radio.
After completion of the update, the
Satellite radio main menu will appear.
The station last tuned to will begin to play.
Refer to chapter “At a glance” on how to
adjust sound settings.
Volume (page 35)
Balance control and fader (page 36)
Bass and treble control (page 37)
Sound functions (page 38)
Displaying informationDisplaying service informationStation list updates
Sound settings

83 Telephone*
Important notes
Telephone operation

84 Telephone*
Important notes

Important notes
In chapter “Telephone”, you will find de-
tailed information regarding the telepho-
ne*, including emergency call.
1 Observe all legal requirements

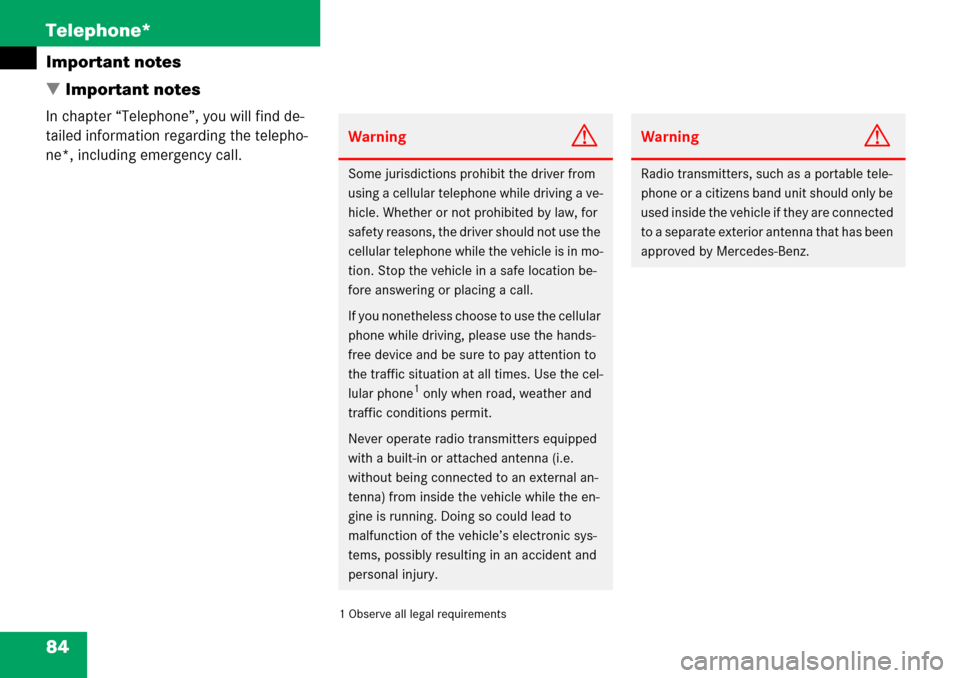

WarningG
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle. Whether or not prohibited by law, for
safety reasons, the driver should not use the
cellular telephone while the vehicle is in mo-
tion. Stop the vehicle in a safe location be-
fore answering or placing a call.
If you nonetheless choose to use the cellular
phone while driving, please use the hands-
free device and be sure to pay attention to
the traffic situation at all times. Use the cel-
lular phone
1 only when road, weather and
traffic conditions permit.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e.
without being connected to an external an-
tenna) from inside the vehicle while the en-
gine is running. Doing so could lead to
malfunction of the vehicle’s electronic sys-
tems, possibly resulting in an accident and
personal injury.
WarningG
Radio transmitters, such as a portable tele-
phone or a citizens band unit should only be
used inside the vehicle if they are connected
to a separate exterior antenna that has been
approved by Mercedes-Benz.

85 Telephone*
Important notes
Please read the chapter “Telephone”
first before attempting to operate your
telephone.
Please also read the important notes in
the telephone operating manual.
Always drive with extreme caution
when you operate the telephone
hands-free.
For safety reasons, you should not use
the mobile telephone handset to make
a call while driving the vehicle.
If the signal strength is very weak (dis-
play in the symbol bar of all menus):
Wait until reception improves before
making a call.
Close the windows and reduce all out-
side noise as much as possible when
you use hands-free operation.
i
If you have a Mercedes-Benz specified
integrated mobile telephone (TDMA,
CDMA or GSM) and the telephone is
inserted in the cradle, the telephone
functions can be used as follows:
at the COMAND
at the multifunction steering wheel
by Voice Control
This instruction manual describes the
operation at the COMAND. Unless
otherwise indicated, the descriptions
and illustrations refer to the COMAND.
Operation of the mobile phone and
Voice Control is described in separate
operating guides. Refer to the vehicle
Operator’s Manual for operation of the
telephone using the multifunction
steering wheel.
i
In certain menus, the COMAND can
display date and time of the calls.
The COMAND can display phone
number and name of the other party
(e.g. if the COMAND detects an
incoming call, but also in other menus).
For the number to be displayed, the
number information must be
transmitted with the incoming call. The
same goes for the name display which
additionally requires that the caller’s
number and name are saved in the
phone book.

86 Telephone*
Important notes
Also make sure that the air vents are
not pointed in the direction of the
microphones located in the overhead
control panel near the rear view mirror.
Adjust air vents and/or reduce blower
speed if necessary.
A brief disconnection from the cellular
network is not a malfunction, as this
can occur when the network switches
areas. The phone will automatically try
to sign on to a network again.
If the message Enter Unlock Code ap-
pears, enter the unlock code to enable
all telephone functions (
page 91). If
you do not do so, only the emergency
call (911) is available.
GSM mobile phone
If the message Please enter PIN Code
on the mobile phone appears, enter the
PIN-code to enable the telephone func-
tions (
page 91). If you do not do so,
only the emergency (911) call is avai-
lable on the mobile phone.In the following situations, it is not possible
or not yet possible to use the telephone:
The telephone is already unlocked but
is not or not yet registered in the net-
work.
The message
No Serv. appears in the
status bar. The telephone will try to re-
gister into an existing network. If the
network is available, the telephone will
be ready for use.
The above message also appears
if the network is no longer available
due to weak signals
The message Telephone being activa-
ted, please wait
appears.
COMAND prepares the telephone for
use. Select other system functions, e.g.
radio, by pressing the corresponding
button or wait until the telephone is ac-
tive.
The message Phone not inserted ap-
pears.
Please connect the mobile phone.
The message Phone not available ap-
pears.
Please contact an authorized
Mercedes-Benz Center.
GSM mobile phone
If the message Please insert SIM card
(Emergency Call 911 only possible
with phone)
appears:
Insert the SIM card into the mobile
phone (Telephone Operating
Manual).
The message Call failed may appear
if you place an outgoing call
(
page 95).
Try again later.

87 Telephone*
Important notes
Notes about COMAND telephone fea-
tures using a Bluetooth® connection
Many of the Mercedes-Benz approved mo-
bile phones, cradles and adaptors avail-
able for use in your vehicle utilize
Bluetooth® technology to communicate
with each other and the vehicle. Depend-
ing on your phone brand and model, the
number of in-vehicle or on-display
COMAND telephone features supported
via Bluetooth® communication, and thus
available for your use, may vary.
The descriptions and illustrations in this
section are based on the use of fully com-
patible Mercedes-Benz approved mobile
phones and cradles that do not utilize Blue-
tooth® technology to communicate with
each other. If your vehicle is equipped with
integrated Bluetooth® functionality, a
Bluetooth® capable mobile phone, head-
set, Laptop, PDA, etc. is required to utilize
those features.For additional information about Mer-
cedes-Benz approved Bluetooth® mobile
phones and related accessories please
contact the Mercedes-Benz Customer As-
sistance Center at 1-800-FOR-MERCedes
or your nearest authorized Mercedes-Benz
Center.

88 Telephone*
Telephone operation

Telephone operation
Automatically
The telephone* is automatically activated
when the COMAND is switched on. The
mobile phone must be inserted in the
mobile phone cradle* at the time
COMAND is switched on.
Manually
Press a.
The menu to enter the unlock code
(
page 91) will appear (only if phone
has been locked before).GSM mobile phone
Enter the PIN on the mobile phone
or at the COMAND.
If no SIM card is in the telephone,
the message
Please insert SIM
card (Emergency Call 911 only
possible with phone)
appears.
Insert a SIM card. Refer to the mo-
bile phone operator’s manual.
Switch the COMAND off (page 34) or
turn off the engine.
The telephone* is switched off with a
time-lag of around 10 minutes. If you
make a call within that time, the
telephone will be switched off around
10 minutes after you end the call. or
In the Telephone menu (page 92),
press a longer than two seconds.
The message
Telephone being activa-
ted, please wait
will appear followed
by
Phone off.
Switching telephone operation on
Switching telephone operation off
