2008 MERCEDES-BENZ CLS63AMG Owner's Manual

32 At a glance
Storage compartments

33 At a glance
Storage compartments
ItemPage
1Glove box243
2Front passenger seat storage
compartment with first aid kit393
3Door pocket
4Ashtray249
5Ruffled storage bag245
6Door pocket
7Side storage pocket in trunk
8Luggage box under the trunk
floor397
9Door pocket
aRuffled storage bag 245
bAshtray249
cDoor pocket
dDriver’s seat storage compart-
ment244
ItemPage
eSun visor card clip184
fCD changer, see separate
COMAND operating instruc-
tions
gParcel net in front passenger
footwell245
hAshtray with cigarette lighter248
jCup holders246
kStorage compartment/tele-
phone* compartment under
the center armrest243
lCup holder in the rear center
console247
mRear storage compartment in
the rear center console244
nCup holder in the rear armrest248
oStorage compartment in the
rear armrest244

34 At a glance

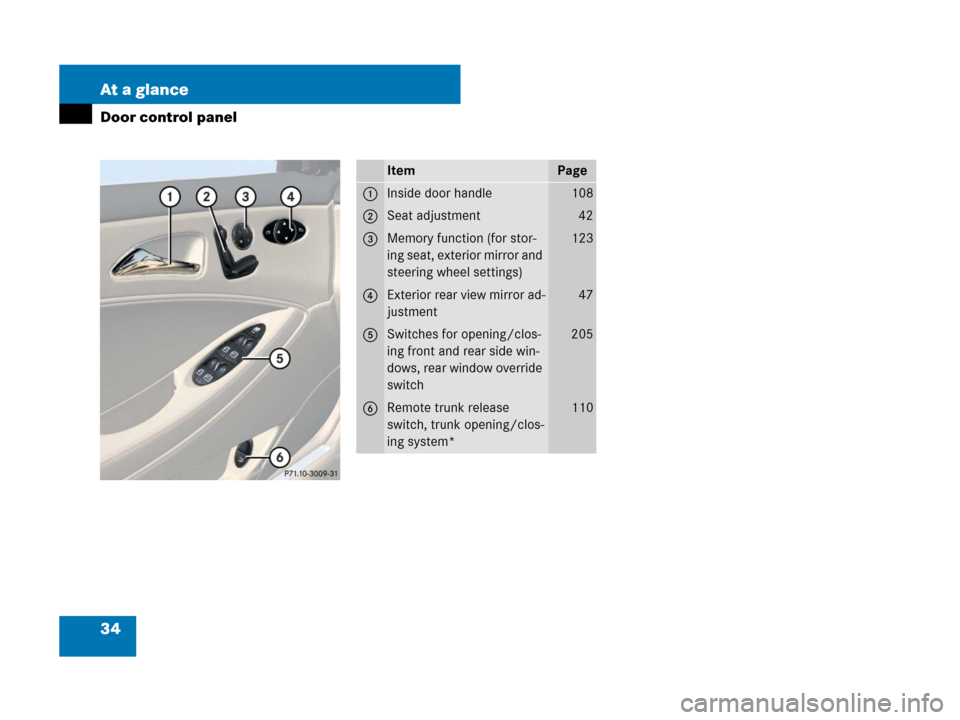

Door control panel
ItemPage
1Inside door handle108
2Seat adjustment42
3Memory function (for stor-
ing seat, exterior mirror and
steering wheel settings)123
4Exterior rear view mirror ad-
justment47
5Switches for opening/clos-
ing front and rear side win-
dows, rear window override
switch 205
6Remote trunk release
switch, trunk opening/clos-
ing system*110

35 Getting started
Unlocking
Adjusting
Driving
Parking and locking

36 Getting started
The “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page refer-
ences are located at the end of each seg-
ment.
Unlocking
Unlocking with the SmartKey
SmartKey with remote control
1‹Lock button
2ŠOpening button for trunk
3ŒUnlock button
4ÂPanic buttonPress unlock buttonŒ on the
SmartKey.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Get in the vehicle and insert the
SmartKey in the starter switch.
Warning!G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s un-
supervised access to a vehicle could result
in an accident and/or serious personal
injury.

37 Getting started
Unlocking
For more information, see “Locking and
unlocking” (
page 100).
Unlocking with KEYLESS-GO*
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch. Pull an outside door handle.

All turn signal lamps flash once.

An acoustic signal sounds once.

The locking knobs in the doors
move up.

The anti-theft alarm system is dis-
armed.
Get in the vehicle.
For more information, see “SmartKey with
KEYLESS-GO*” (
page 103).
iOpening a door causes the window on that
door to open slightly. They will return to the up
position when the door is closed.
!The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iTo unlock the vehicle, the SmartKey with
KEYLESS-GO must be outside the vehicle, no fur-
ther than approximately 3 feet (1 meter) away
from the door.
iOpening a door causes the window on that
door to open slightly. They will return to the up
position when the door is closed.
!The side windows will not open or close if
the battery is discharged or the windows are cov-
ered with ice. As a result, you may no longer be
able to properly close the door. Do not attempt
to force the door shut. Doing so may damage the
door or the side window. Correct the condition
that prevents the windows from operating before
attempting to close the door.

38 Getting started
Unlocking
Starter switch positions SmartKey
Starter switch
0For removing SmartKey
1Power supply for some electrical con-
sumers2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, see “Lamps in
instrument cluster” (page 344).
3Starting position
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iWhen you switch on the ignition, the
indicator and warning lamps (except high beam
headlamp indicator lamp and turn signal indica-
tor lamps unless activated) in the instrument
cluster come on. The indicator and warning
lamps (except high beam headlamp indicator
lamp and turn signal indicator lamps if activated)
should go out when the engine is running. This in-
dicates that the respective systems are opera-
tional.

39 Getting started
Unlocking
For information on starting the engine with
the SmartKey, see “SmartKey”
(
page 100).SmartKey with KEYLESS-GO*
I f t h e S m a r t K e y w i t h K E Y L E S S - G O i s i n s i d e
the vehicle, pressing the KEYLESS-GO
start/stop button on the gear selector le-
ver corresponds to turning the SmartKey
to the various starter switch positions.
If you firmly depress the brake pedal dur-
ing pressing the KEYLESS-GO start/stop
button, the engine starts automatically.
KEYLESS-GO start/stop button
1USA only
2Canada only
The SmartKey with KEYLESS-GO must be
located in the vehicle.
Make sure the gear selector lever is set
toP.
Do not depress the brake pedal.
iThe SmartKey can only be removed from the
starter switch with the gear selector lever in
position P.
iIf the SmartKey is left in starter switch posi-
tion 0 for an extended period of time, it can no
longer be turned in the switch. In this case, the
steering is locked. To unlock, remove SmartKey
from the starter switch and reinsert.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.

Check the battery and charge it if necessary
(
page 420).

Get a jump start (page 423).
To prevent accelerated vehicle battery discharge
or a completely discharged vehicle battery, al-
ways remove the SmartKey from the starter
switch when the engine is not in operation.
iThe function of the SmartKey overrules the
KEYLESS-GO function.
