2008 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (385,1)

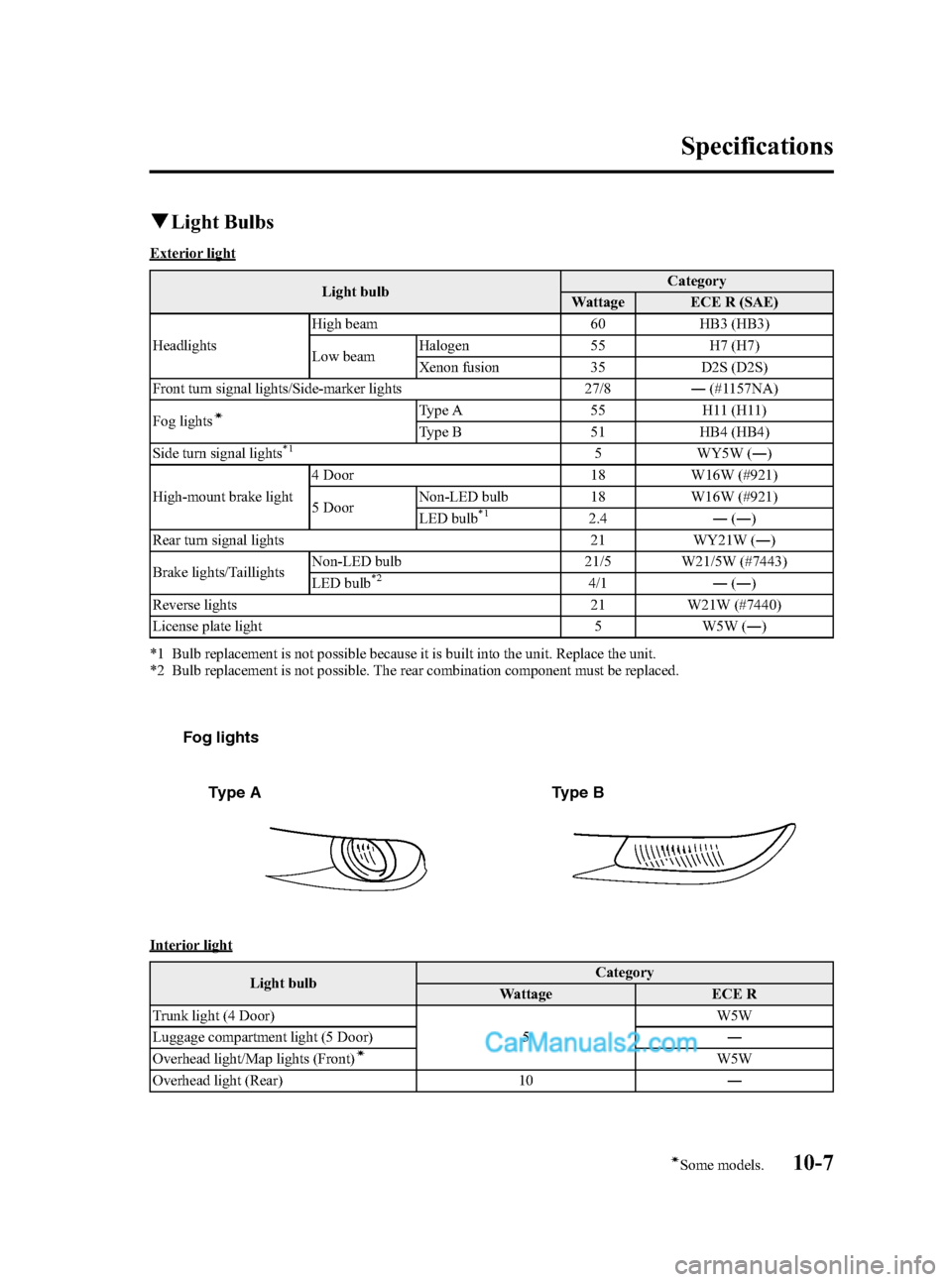

qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHigh beam 60 HB3 (HB3)
Low beamHalogen 55 H7 (H7)
Xenon fusion 35 D2S (D2S)
Front turn signal lights/Side-marker lights 27/8―(#1157NA)
Fog lights
íType A 55 H11 (H11)
Type B 51 HB4 (HB4)
Side turn signal lights
*15 WY5W (―)
High-mount brake light4 Door 18 W16W (#921)
5 DoorNon-LED bulb 18 W16W (#921)
LED bulb
*12.4―(―)
Rear turn signal lights 21 WY21W (―)
Brake lights/TaillightsNon-LED bulb 21/5 W21/5W (#7443)
LED bulb
*24/1―(―)
Reverse lights 21 W21W (#7440)
License plate light 5 W5W (―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Bulb replacement is not possible. The rear combination component must be replaced.
Fog lights
Type A Type B
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (4 Door)
5W5W
Luggage compartment light (5 Door)―
Overhead light/Map lights (Front)
íW5W
Overhead light (Rear) 10―
Specifications
10-7íSome models. Mazda3_8X41-EA-07F_Edition1 Page385
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (386,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire sizeInflation pressure
Front Rear
P195/65R15 89H 230 kPa (34 psi) 230 kPa (34 psi)
P205/55R16 89H 220 kPa (32 psi) 220 kPa (32 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
215/45R18 93Y 230 kPa (34 psi) 220 kPa (32 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M
420 kPa (60 psi) T125/70D16 96M
T125/70D17 98M
qFuses
Refer to the fuse rating on page 8-50.
10-8
Specifications
Mazda3_8X41-EA-07F_Edition1 Page386
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (387,1)
11Index
11-1
Mazda3_8X41-EA-07F_Edition1 Page387
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (388,1)
A
Accessory Socket .............................. 6-64
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-40
Ambient Temperature Display .......... 6-54
Antenna ............................................. 6-15
Anti-Lock Brake System (ABS) ......... 5-7
Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-58
Audio System ................................... 6-15
Audio control switch .................. 6-44
Audio set .................................... 6-27
Auxiliary Input ........................... 6-46
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-49
Automatic Transaxle
Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
Battery
Emergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds
Ignition key reminder ................. 5-49
Lights-on reminder ..................... 5-49
Tire inflation pressure warning
beep ............................................ 5-49
Beeps
Seat belt warning beep Sounds ... 5-49
B
Before Starting the Engine .................. 4-6
After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-60
Brake/Clutch
Fluid ........................................... 8-23
Brakes
Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-61
Cargo Sub-Compartment .................. 6-61
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-17
Center Console .................................. 6-61
Child Restraint
Child restraint precautions ......... 2-25
Installing child-restraint
systems ....................................... 2-29
LATCH child-restraint
systems ....................................... 2-35
Child Safety Locks for Rear Doors ... 3-10
Cigarette Lighter ............................... 6-58
Climate Control System ...................... 6-2
Gas specifications ...................... 10-6
Clock ................................................. 6-54
Cruise Control ................................... 5-19
Cup Holder ........................................ 6-59
11-2
Index
Mazda3_8X41-EA-07F_Edition1 Page388
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (389,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-35
Daytime Running Lights ................... 5-53
Defroster
Rear window .............................. 5-58
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-11
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-12
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-24
DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-24
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-21
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-34
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher
Hazard warning .......................... 5-60
Headlights .................................. 5-50
Flat Tire ............................................... 7-3
Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-62
Fluids
Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-54
Foot Brake .......................................... 5-5
Front Seats .......................................... 2-2
Fuel
Filler lid and cap ........................ 3-20
Gauge ......................................... 5-35
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Fuses ................................................. 8-50
Panel description ........................ 8-53
Replacement ............................... 8-50
Index
11-3
Mazda3_8X41-EA-07F_Edition1 Page389
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (390,1)
G
Glove Box ......................................... 6-60
H
Hazard Warning Flasher .................... 5-60
Hazardous Driving .............................. 4-8
Headlights
Control ....................................... 5-50
Flashing ...................................... 5-52
High-low beam .......................... 5-52
Leveling ..................................... 5-52
On reminder ............................... 5-52
Hood Release .................................... 3-21
Horn .................................................. 5-59
I
Ignition
Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-50
Immobilizer System .......................... 3-25
Indicator Lights ................................. 5-37
Cruise ......................................... 5-47
DSC OFF .................................... 5-47
Headlight high-beam .................. 5-46
Power steering malfunction ........ 5-48
Security ...................................... 5-46
Shift position .............................. 5-46
TCS/DSC ................................... 5-47
Turn-signal/hazard warning ....... 5-48
Information Display .......................... 6-53
Ambient temperature display ..... 6-54
Audio display ............................. 6-55
Climate control display .............. 6-55
Clock .......................................... 6-54
Information display functions .... 6-53
Trip computer ............................. 6-55
I
Inside Trunk Release Lever ............... 3-16
Instrument Cluster ............................. 5-32
Instrument Cluster Dimmer Select
Button ............................................... 5-35
Interior Care ...................................... 8-63
Interior Lights ................................... 6-50
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-53
Liftgate .............................................. 3-11
Luggage compartment ............... 3-12
Light Bulbs
Replacement ............................... 8-39
Specifications ............................. 10-7
Lighter ............................................... 6-58
Lighting Control ............................... 5-50
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-51
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
11-4
Index
Mazda3_8X41-EA-07F_Edition1 Page390
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (391,1)
M
Manual Transaxle Operation ............... 5-9
Recommendations for shifting.... 5-10
Map Lights ........................................ 6-51
Mirrors
Outside mirrors .......................... 3-29
Rearview mirror ......................... 3-30
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-23
O
Odometer and Trip Meter .................. 5-33
Outside Mirrors ................................. 3-29
Overhead Lights ................................ 6-51
Overheating ....................................... 7-14
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-58
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks .............................. 3-9
Power Steering .................................. 5-18
Fluid ........................................... 8-24
Power steering malfunction indicator
light ............................................ 5-18
Power Windows ................................ 3-18
Push-Starting ..................................... 7-20
R
Rear Door Child Safety Locks .......... 3-10
Rear Seat ............................................. 2-5
Rear Window Defroster .................... 5-58
Rear Window Washer ....................... 5-58
Rear Window Wiper .......................... 5-58
Rearview Mirror ................................ 3-30
R
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 9-15
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-42
Seat Belt System
Automatic locking ...................... 2-13
Belt minder ................................. 2-23
Center-rear lap/shoulder ............. 2-19
Emergency locking .................... 2-12
Except center-rear position ......... 2-14
Extender ..................................... 2-21
Pregnant women ........................ 2-12
Pretensioner and load limiting .... 2-16
Seat belt precautions .................. 2-10
Warning light/beep ..................... 2-23
Seats
Front seat ...................................... 2-2
Rear seat ....................................... 2-5
Seat warmer .................................. 2-5
Security System
Immobilizer system .................... 3-25
Theft-deterrent system ............... 3-27
Service Publications .......................... 9-44
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-33
SRS Air Bags
How the Air Bags Work ............. 2-47
Supplemental restraint systems
precautions ................................. 2-40
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-29
Horn ........................................... 5-59
Index
11-5
Mazda3_8X41-EA-07F_Edition1 Page391
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (392,1)
S
Storage Compartments ...................... 6-60
Cargo securing loops .................. 6-61
Cargo sub-compartment ............. 6-61
Center console ............................ 6-61
Flexible Floor Board .................. 6-62
Glove box ................................... 6-60
Sunshade ........................................... 3-24
Sunvisors .......................................... 6-50
T
Tachometer ........................................ 5-34
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-27
Tiedown
Hook .......................................... 7-22
Tire Information ................................ 9-22
Tire Pressure Monitoring System ...... 5-26
System error activation .............. 5-30
Tire pressure monitoring system
warning light .............................. 5-28
Tires and wheels ......................... 5-30
Tires
Inflation pressure ........................ 8-35
Replacement ............................... 8-36
Rotation ...................................... 8-36
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-8
Flat Tire ........................................ 7-3
Tire chains .................................. 4-10
Uniform tire quality grading system
(UTQGS) ................................... 9-20
Tool ..................................................... 7-3
T
Towing
Description ................................. 7-21
Emergency towing ..................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-13
Traction Control System (TCS) ........ 5-23
TCS/DSC indicator light ............ 5-23
Trailer Towing .................................. 4-13
Trip Meter ......................................... 5-33
Trunk Lid .......................................... 3-14
Inside trunk release lever ............ 3-16
Trunk Light ....................................... 3-15
Turn and Lane-Change Signals ......... 5-53
V
Vanity Mirrors ................................... 6-50
Vehicle Information Labels ............... 10-2
W
Warning Lights ................................. 5-37
ABS ............................................ 5-39
Air bag system ........................... 5-41
Automatic transaxle ................... 5-44
Brake system .............................. 5-39
Charging system ......................... 5-40
Check engine .............................. 5-41
Door-ajar .................................... 5-43
Engine oil pressure ..................... 5-40
Front seat belt pretensioner
system ........................................ 5-41
Low fuel ..................................... 5-42
Low washer fluid level ............... 5-43
Seat belt ...................................... 5-42
Tire pressure monitoring
system ........................................ 5-44
Warranty ............................................ 9-12
11-6
Index
Mazda3_8X41-EA-07F_Edition1 Page392
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F
