2008 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (209,1)
NOTE
If you continue to press and hold the button,
the frequency will continue changing without
stopping.
Scan tuning
Press the scan button (
)to
automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press the scan
button (
) again during this interval.
Preset channel tuning
The 6 preset channels can be used to store
6 AM and 12 FM stations.
1. To set a channel first select AM, FM1,
or FM2. Tune to the desired station.
2. Depress a channel preset button for
about 2 seconds until a beep sound is
heard. The preset channel number and
station frequency will be displayed.
The station is now held in the memory.
3. Repeat this operation for the other
stations and bands you want to store.
To tune one in the memory, select AM,
FM1, or FM2 and then press its
channel preset button. The station
frequency and the channel number will
be displayed.
NOTE
If the power supply is interrupted (fuse blows
or the battery is disconnected), the preset
channels will be canceled.
Auto memory tuning
This is especially useful when driving in
an area where the local stations are not
known. Additional AM/FM stations can
be stored without disturbing the
previously set channels.Press and hold the auto memory button
(
) for about 2 seconds until a beep
sound is heard; the system will
automatically scan and temporarily store
up to 6 stations with the strongest
frequencies in each selected band in that
area.
After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed.
Press and release the auto memory button
(
) to recall stations from the auto-
stored stations. One stored station will be
selected each time; its frequency and
channel number will be displayed.
NOTE
If no stations can be tuned after scanning
operations,“A”will be displayed.
SATELLITE RADIO (SAT)
Vehicles equipped with the separately
purchased SIRIUS digital satellite radio
unit have the ability to receive up to 100
channels of digital quality programming
coast to coast via satellite. For information
on use, read the Satellite Radio Kit
manual accompanying the SIRIUS digital
satellite radio unit. A subscription to
SIRIUS digital satellite radio service is
required (available in the U.S. - Except
Alaska and Hawaii) to enable this feature
once the separately purchased SIRIUS
digital satellite radio unit has been
installed. For subscription information or
digital satellite radio technical issues
contact SIRIUS directly at:
- Web: www.siriusradio.com
- Phone (24 hrs/day, 7 days/week): 888-
539-SIRI (7474)
- E-mail: [email protected]
- Mailing Address: Sirius Satellite Radio
Interior Comfort
Audio System
6-31
Mazda3_8X41-EA-07F_Edition1 Page209
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (210,1)

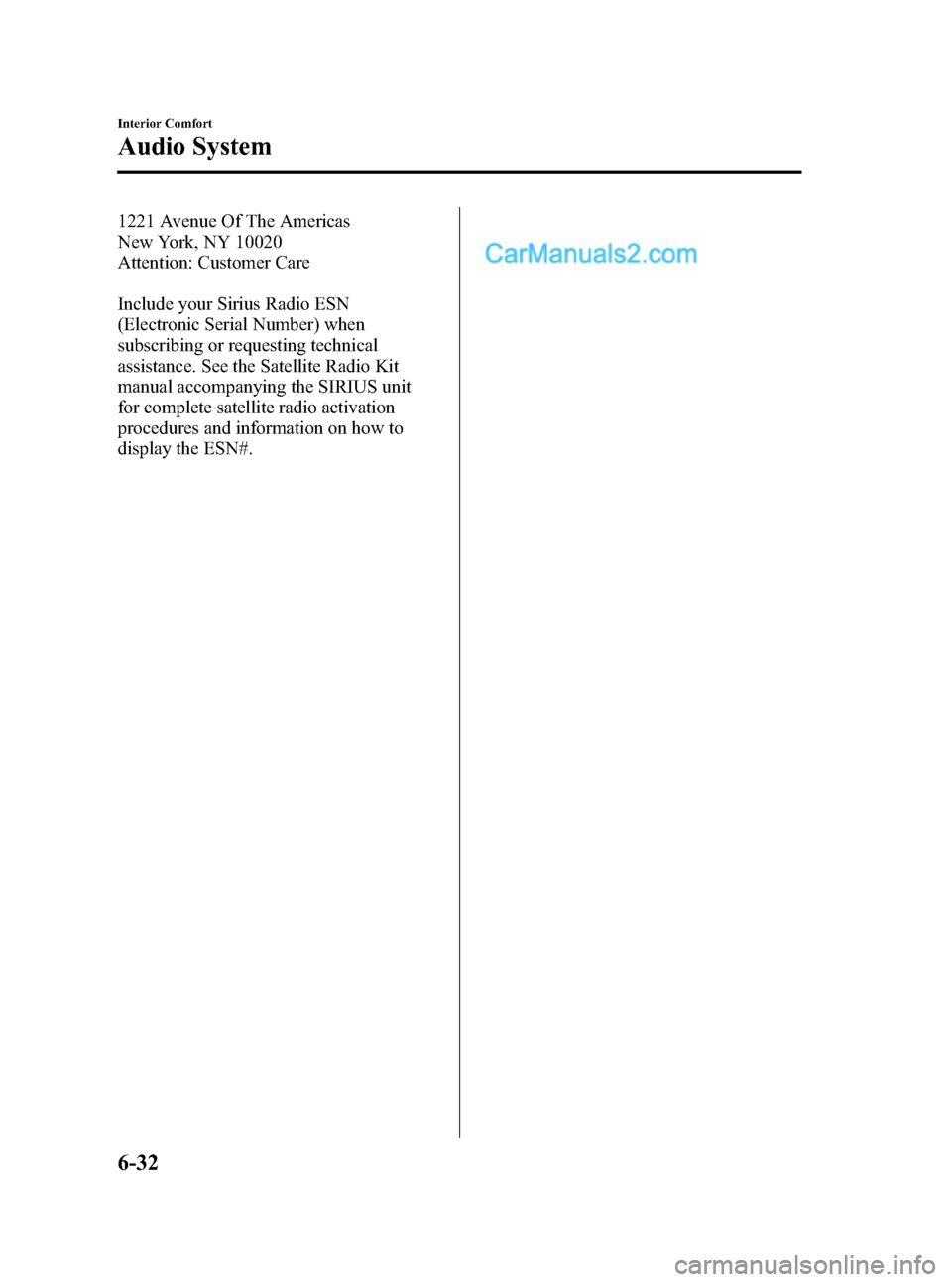

1221 Avenue Of The Americas
New York, NY 10020
Attention: Customer Care
Include your Sirius Radio ESN
(Electronic Serial Number) when
subscribing or requesting technical
assistance. See the Satellite Radio Kit
manual accompanying the SIRIUS unit
for complete satellite radio activation
procedures and information on how to
display the ESN#.
6-32
Interior Comfort
Audio System
Mazda3_8X41-EA-07F_Edition1 Page210
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (211,1)
MEMO
6-33
Mazda3_8X41-EA-07F_Edition1 Page211
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (212,1)
qOperating the Cassette Tape Playerí
Fast-forward
button
Rewind
buttonAPC button:
(next program)
(one being
played)Repeat button Cassette tape play button
Program button
Dolby NR buttonCassette tape slot
Cassette tape eject button
Cassette tape insert
Insert the cassette tape into the slot, open
edge to the right and cassette tape will
begin play, and“TAPE PLAY”will be
displayed. At the end of the cassette tape,
the unit automatically reverses cassette
tape play. When
is lit, the cassette
tape's top side is playing. When
is lit,
the bottom side is on.
Playing
Press the cassette tape play button
(
) to start play when a cassette tape
is in the unit. If there isn't a cassette tape
in the unit when the cassette tape play
button (
) is pressed,“NO TAPE”
will flash on and off.
Dolby noise reduction
When using a tape with Dolby NR
*, push
the Dolby NR button (
). The
symbol will be displayed. To play a tape
without Dolby NR, push the button once
again.
* Noise reduction system manufactured
under license from Dolby Laboratories
Licensing Corporation.
Dolby and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Ejecting the cassette tape
Press the cassette tape eject button (
)to
eject the cassette tape.
NOTE
The cassette tape can be ejected when the
ignition switch is in the OFF position.
6-34
Interior Comfort
íSome models.
Audio System
Mazda3_8X41-EA-07F_Edition1 Page212
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (213,1)
Fast-forward/Rewind
Press the fast-forward button (
)to
fast-forward.
Press the rewind button (
) to rewind.
To stop this operation and play the
cassette tape, press the button again.
NOTE
When the cassette tape ends during fast-
forward or rewind, it automatically stops and
starts playing.
Reversing
Press the program button (
)to
change cassette tape-play direction.
NOTE
When the cassette tape ends, the unit
automatically reverses play.
Automatic program control (APC)
APC is used to find the beginning of
either the next program or the one being
played.
Press the APC button (
) to the
beginning of the next selection.
Press the APC button (
) to the
beginning of the one being played. To
stop this operation and play the cassette
tape, press the button again.
NOTE
APC may not operate properly if:lA tape was recorded at a low level.lA tape has long, silent intervals.lA tape is a live recording.lA tape has very short intervals of less than
3 seconds.
Repeat play
This operation makes it possible to listen
to a selection repeatedly.Press the repeat button (
) during play.
The current selection playing will be
repeated (“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat play.
NOTE
RPT may not operate properly if:lA tape was recorded at a low level.lA tape has long, silent intervals.lA tape is a live recording.lA tape has very short intervals of less than
3 seconds.
Interior Comfort
Audio System
6-35
Mazda3_8X41-EA-07F_Edition1 Page213
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (214,1)
qOperating the Compact Disc (CD) Playerí
Track up
button
Track down
buttonLoad buttonScan button
Repeat buttonCD slot
CD play button CD eject button
Random button
Reverse buttonFast-forward button
Type Playable data
Music CD player
(non-MP3 compatible)· Music data (CD-DA)
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
Ejecting the CD
Press the CD eject button (
) to eject the
CD.
Playback
Press the CD play button (
) to start
play when a CD is in the unit.
If a CD is not in the unit when the CD
play button (
) is pressed,“NO DISC”
will flash on and off.NOTE
When the load button () is pressed, the
CD will load and play even if the CD eject
button (
) had been previously pressed.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
)onceto
skip back to the beginning of the current
track.
6-36
Interior Comfort
íSome models.
Audio System
Mazda3_8X41-EA-07F_Edition1 Page214
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (215,1)
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button (
) during
playback to start the scan play operation
(the track number will flash).
Press the scan button (
) again to
cancel scan playback.
NOTE
If the unit is left in scan, normal playback will
resume where scan was selected.
Repeat playback
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button (
) during
playback. The current selection will be
repeated (“RPT”will be displayed).
Press the repeat button (
) once again
to cancel repeat playback.
Random playback
This feature allows the CD player to
randomly select the order of the songs.
Press the random button (
) during
playback. The next selection will be
randomly selected (“RDM”will be
displayed).
Press the random button (
) once
again to cancel random playback.
Message display
If“CHECK CD”is displayed, it means
that there is some CD malfunction. Check
the CD for damage, dirt, or smudges, and
then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
Interior Comfort
Audio System
6-37
Mazda3_8X41-EA-07F_Edition1 Page215
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F

Black plate (216,1)
qOperating the In-Dash CD Changerí
Track up
buttonDisc
up/Folder
up button
Disc
down/Folder
down button Track down
buttonLoad button
Scan buttonRepeat button
CD slotCD eject button CD play button
Display buttonRandom button
Reverse buttonFast-forward button
Channel preset buttons
Display feed
dial
Music CD player (non-MP3 compatible)
Music CD/MP3 CD player (MP3 compatible)
There are two types of In-dash CD
changers. Check which In-dash CD
changer your vehicle is equipped with.
Type Playable data
Music CD player
(non-MP3 compatible)· Music data (CD-DA)
Music CD/MP3 CD
player
(MP3 compatible)· Music data (CD-DA)
· MP3 file
NOTE
If a disc has both music data (CD-DA) and
MP3 files, playback of the two file types differs
depending on how the disc was recorded.
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.
NOTE
The CD will begin playback automatically
after insertion.
A CD cannot be inserted while the display
reads“WAIT”. A beeping sound can be heard
during this waiting time. Simultaneously
pressing the power/volume dial and the load
button (
) for about 2 seconds will turn
this beeping sound ON or OFF.
6-38
Interior Comfort
íSome models.
Audio System
Mazda3_8X41-EA-07F_Edition1 Page216
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
