2008 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (177,1)
Fully Automatic Type Air-Conditioning
Indicator light
CAUTION
Don't use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
Horn
To sound the horn, press themark on
the steering wheel.
Driving Your Mazda
Switches and Controls
5-59
Mazda3_8X41-EA-07F_Edition1 Page177
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (178,1)
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
5-60
Driving Your Mazda
Switches and Controls
Mazda3_8X41-EA-07F_Edition1 Page178
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (179,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Types of the Climate Control System ....................................... 6-5
Manual Type
í.......................................................................... 6-6
Fully Automatic Typeí.......................................................... 6-10
Audio System ............................................................................... 6-15
Antenna ................................................................................... 6-15
Operating Tips for Audio System ........................................... 6-16
Audio Set ................................................................................ 6-27
Audio Control Switch Operation (Steering Wheel)
í............. 6-44
Auxiliary Input ........................................................................ 6-46
Safety Certification ................................................................. 6-49
Interior Equipment ..................................................................... 6-50
Sunvisors ................................................................................. 6-50
Interior Lights ......................................................................... 6-50
Information Display ................................................................ 6-53
Lighter ..................................................................................... 6-58
Ashtray .................................................................................... 6-58
Cup Holder .............................................................................. 6-59
Bottle Holder ........................................................................... 6-60
Storage Compartments ............................................................ 6-60
Accessory Sockets
í................................................................ 6-64
6-1íSome models.
Mazda3_8X41-EA-07F_Edition1 Page179
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (180,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switch in the
ACC position when the engine is not running.
qClearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.
6-2
Interior Comfort
Climate Control System
Mazda3_8X41-EA-07F_Edition1 Page180
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (181,1)
Vent Operation
Center vents
Side vents
qAdjusting the Vents
Directing airflow
Side Vents
To adjust the direction of airflow, open the
vents and rotate them left and right.
Push
Center Vents
To adjust the direction of airflow, move
the adjustment knob.
Knob
NOTE
When using the air conditioner, mist may come
out from the vents. This is not a sign of trouble
but a result of humid air being suddenly
cooled.
Interior Comfort
Climate Control System
6-3
Mazda3_8X41-EA-07F_Edition1 Page181
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (182,1)

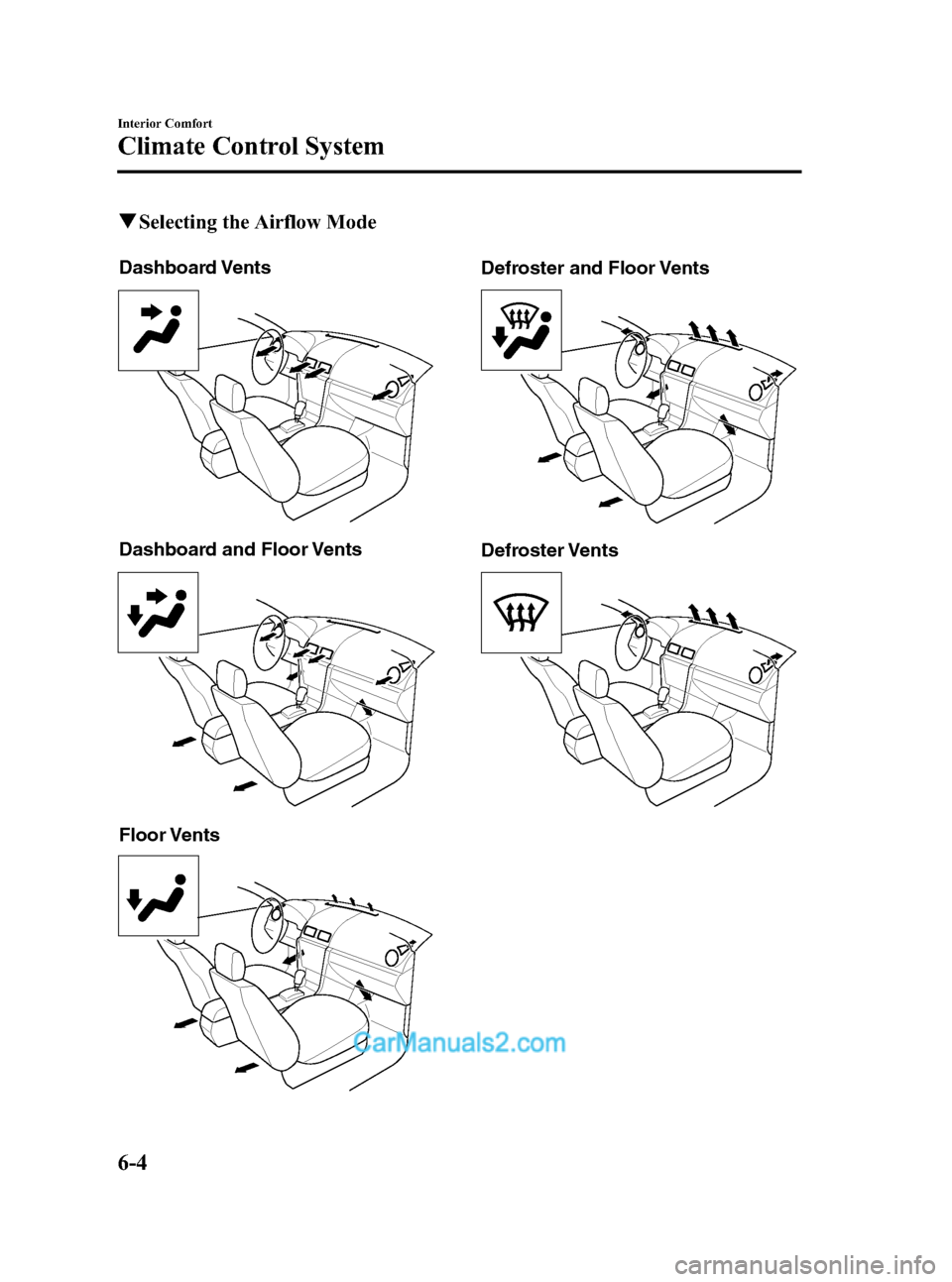

qSelecting the Airflow Mode
Floor Vents Dashboard and Floor Vents Dashboard Vents
Defroster and Floor Vents
Defroster Vents
6-4
Interior Comfort
Climate Control System
Mazda3_8X41-EA-07F_Edition1 Page182
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (183,1)
Types of the Climate Control System
Manual type and fully automatic type climate control systems are explained separately.
Check your vehicle's climate control type and read the appropriate pages.
Manual Type ............................................................................................................ page 6-6
Fully Automatic Type ............................................................................................ page 6-10
Interior Comfort
Climate Control System
6-5
Mazda3_8X41-EA-07F_Edition1 Page183
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (184,1)
Manual Typeí
Air intake selector
A/C switch Mode selector dialTemperature control dial
Fan control dial
Some models.
qControl Switches
Temperature control dial
ColdHot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
This dial allows variable fan speeds.
0―Fan off
1―Low speed
2―Medium low speed
3―Medium high speed
4―High speed
6-6
Interior Comfort
íSome models.
Climate Control System
Mazda3_8X41-EA-07F_Edition1 Page184
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F
