2008 LEXUS RX400H warning

5
When trouble arises
417

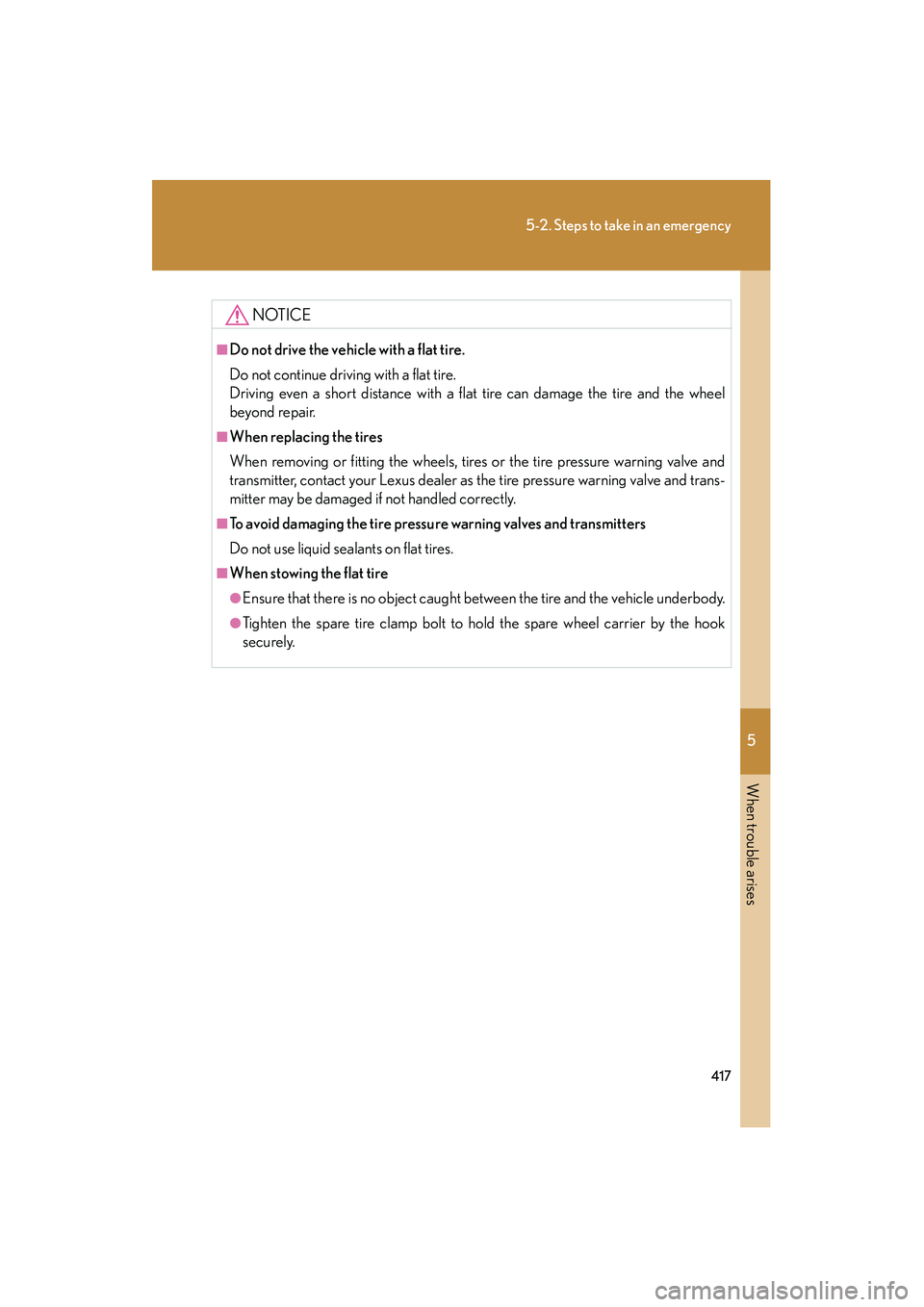

5-2. Steps to take in an emergency
RX400h_U
NOTICE
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair.
■When replacing the tires
When removing or fitting the wheels, tires or the tire pressure warning valve and
transmitter, contact your Lexus dealer as the tire pressure warning valve and trans-
mitter may be damaged if not handled correctly.
■To avoid damaging the tire pressure warning valves and transmitters
Do not use liquid sealants on flat tires.
■When stowing the flat tire
●Ensure that there is no object caught between the tire and the vehicle underbody.
●Tighten the spare tire clamp bolt to hold the spare wheel carrier by the hook
securely.

450

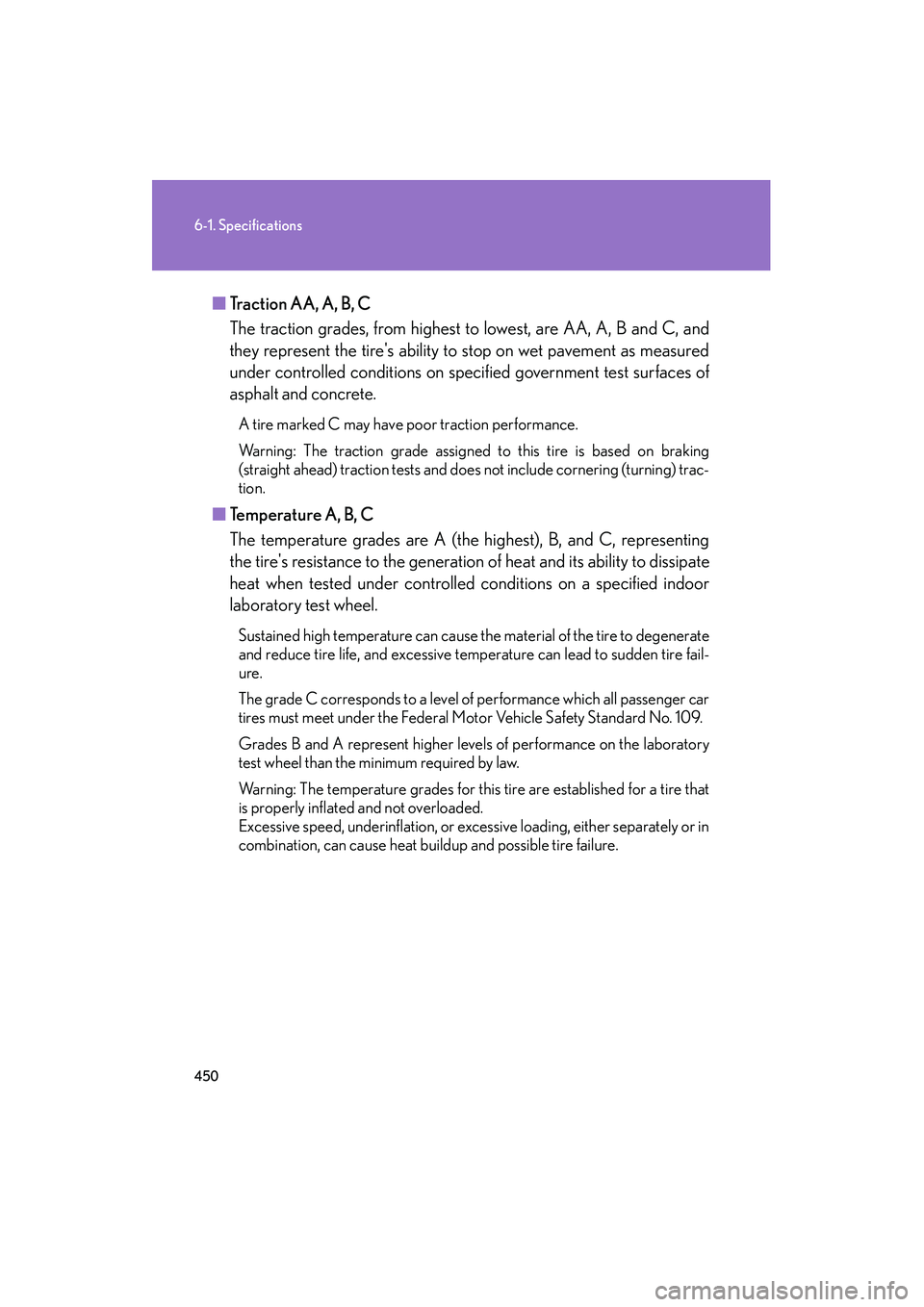

6-1. Specifications
RX400h_U■
Traction AA, A, B, C
The traction grades, from highest to lowest, are AA, A, B and C, and
they represent the tire's ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete.
A tire marked C may have poor traction performance.
Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turning) trac-
tion.
■ Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.

471
Abbreviation list
RX400h_U
TINTire Identification Number
TWITreadwear Indicators
TPMSTire Pressure Warning System
VDIMVehicle Dynamics Integrated Management
VINVehicle Identification Number
VSCVehicle Stability Control
2WD2-Wheel Drive
ABBREVIATIONSMEANING

472
RX400h_U
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS.............................................................. 169
Adaptive front lighting system ......... 149
AFS .............................................................. 149
Air conditioning filter ..........................346
Air conditioning systemAir conditioning filter ....................... 346
Automatic air conditioning system ................................................... 198
Air bags
Air bag operating conditions ......... 93
Air bag precautions for your child.......................................................... 98
Air bag warning light .......................389
Curtain shield airbag operating conditions.............................................. 94
Curtain shield airbag precautions .......................................... 98
Front passenger occupant classification system....................... 103
General airbag precautions ........... 98
Locations of airbags.............................. 91
Modification and disposal of airbags ...................................................102
Proper driving posture .............89, 98
Side airbag operating conditions.............................................. 94
Side airbag precautions .................... 98
SRS airbags ............................................... 91
Alarm ............................................................85
Antenna ....................................................... 211
Anti-lock brake system ....................... 169
Armrest .....................................................282
Audio system
Antenna ......................................................211 Audio visual input................................ 251
A/V input adapter .............................. 251
CD player/changer ........................... 214
MP3/WMA disc............................... 220
Optimal use ......................................... 228
Radio ........................................................207
Steering wheel audio switch.......... 231
Audio visual input ...................................251
Automatic air conditioning system ..................................................... 198
Automatic headlight leveling system ..................................................... 150
Automatic light control system........ 148
A/V input adapter..................................251
Back door Back door ................................................. 44
Wireless remote control ...................36
Back-up lights Replacing light bulbs ....................... 365
Wattage ................................................... 441
Battery
Checking................................................327
If the 12-volt battery is discharged ......................................... 421
Preparing and checking
before winter...................................... 182
Brake
Fluid.......................................................... 325
Parking brake........................................ 137
Brake assist ...............................................169
Break-in tips..............................................123
Brightness control Multi-display light control .............. 276A
B

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

480
Alphabetical index
RX400h_U
Traction control ...................................... 169
Trailer towing........................................... 187
TransmissionTransmission ..........................................135
Trip information display....................... 146
Trip meter ................................................. 138
Turn signal lights Replacing light bulbs........................365
Switch ........................................................136
Wattage.................................................... 441
Valet key...................................................... 34
Vanity lights Vanity lights .......................................... 273
Wattage.................................................... 441
Vanity mirrors ........................................ 273
Vehicle identification number .......... 431
Vehicle stability control....................... 169
Video mode ............................................. 251
VDIM .......................................................... 169
VSC ............................................................. 169
Warning buzzers Brake system ...................................... 388
Key reminder ....................................... 393
Open door ............................................391
Open moon roof reminder ............391
Seat belt reminder...............................391

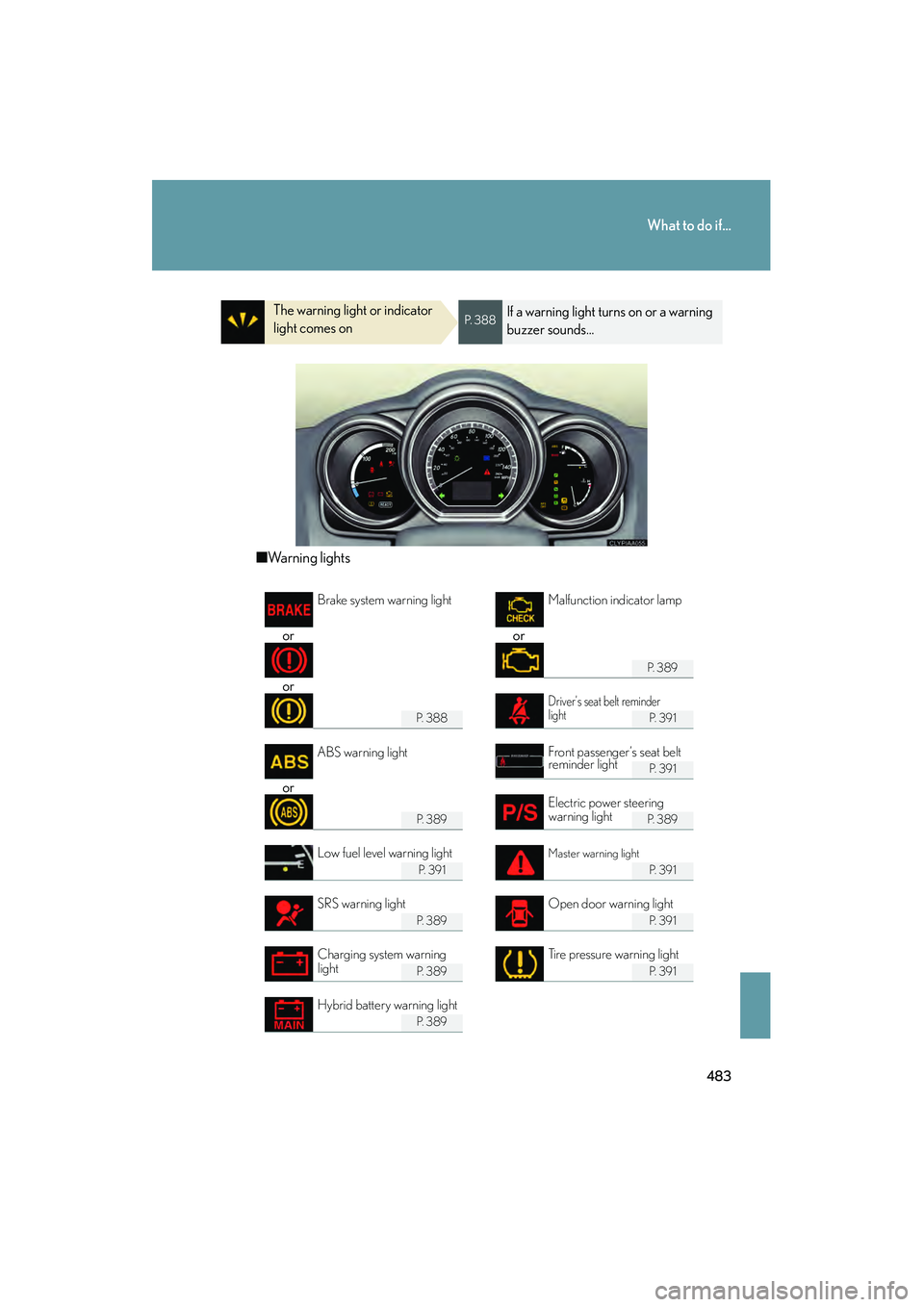

Warning lights Anti-lock brake system...................389
Automatic headlight leveling system ..................................................389
Brake assist system...........................389
Brake system ...................................... 388
Charging system ...............................389 Electric power steering
control system ................................. 389
Hybrid battery system .................... 389
Low fuel level......................................... 391
Low tire pressure warning light.......................................................... 391
Master warning light.......................... 391
Open door ............................................. 391
Pretensioners ...................................... 389
Seat belt reminder light .................... 391
SRS airbags.......................................... 389
Warning messages
AWD system....................................... 398
Dynamic laser cruise control ..................................... 399, 402
Engine oil maintenance.................. 402
Engine oil pressure........................... 398
Fuel lid..................................................... 407
Head light level................................... 399
Hybrid system..................................... 398
Moon roof............................................. 402
Open door ........................................... 402
Parking brake...................................... 402
Vehicle stability control........399, 401
Washer fluid ........................................ 402
Water temp.......................................... 398
Transmission selector lever ......... 402
Washer
Checking................................................329
Preparing and checking before winter...................................... 182
Switch........................................................ 152
Washing and waxing........................... 298
Weight Cargo capacity .................................... 178
Load limits.................................................181
Weight .................................................... 430
V
W

483
What to do if...
RX400h_U
The warning light or indicator
light comes onP. 3 8 8If a warning light turns on or a warning
buzzer sounds...
■Warning lights
or or
P. 3 8 9
or
P. 3 8 8P. 3 9 1
P. 3 9 1
or
P. 3 8 9P. 3 8 9
P. 3 9 1P. 3 9 1
P. 3 8 9P. 3 9 1
P. 3 8 9P. 3 9 1
P. 3 8 9
Brake system warning lightMalfunction indicator lamp
Driver’s seat belt reminder
light
ABS warning lightFront passenger’s seat belt
reminder light
Electric power steering
warning light
Low fuel level warning lightMaster warning light
SRS warning lightOpen door warning light
Charging system warning
lightTire pressure warning light
Hybrid battery warning light
