2008 LEXUS RX400H warning

396
5-2. Steps to take in an emergency
RX400h_U
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

398
5-2. Steps to take in an emergency
RX400h_U
If a warning message is displayed
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(Flashing)
Indicates an abnormal engine oil pressure. The warning light may turn on if the engine oil pres-
sure is too low.
Malfunction in the hybrid system.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
Multi-information display
If any of the warning light turns on again after performing the following
actions, contact your Lexus dealer.

5
When trouble arises
399
5-2. Steps to take in an emergency
RX400h_U
Have the vehicle inspected by your Lexus dealer immediately.
A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Indicates a malfunction in the AWD system.
(Flashing)
Indicates a hybrid system is over heating.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Wa r n i n g m e s s a g eDetails

400
5-2. Steps to take in an emergency
RX400h_U

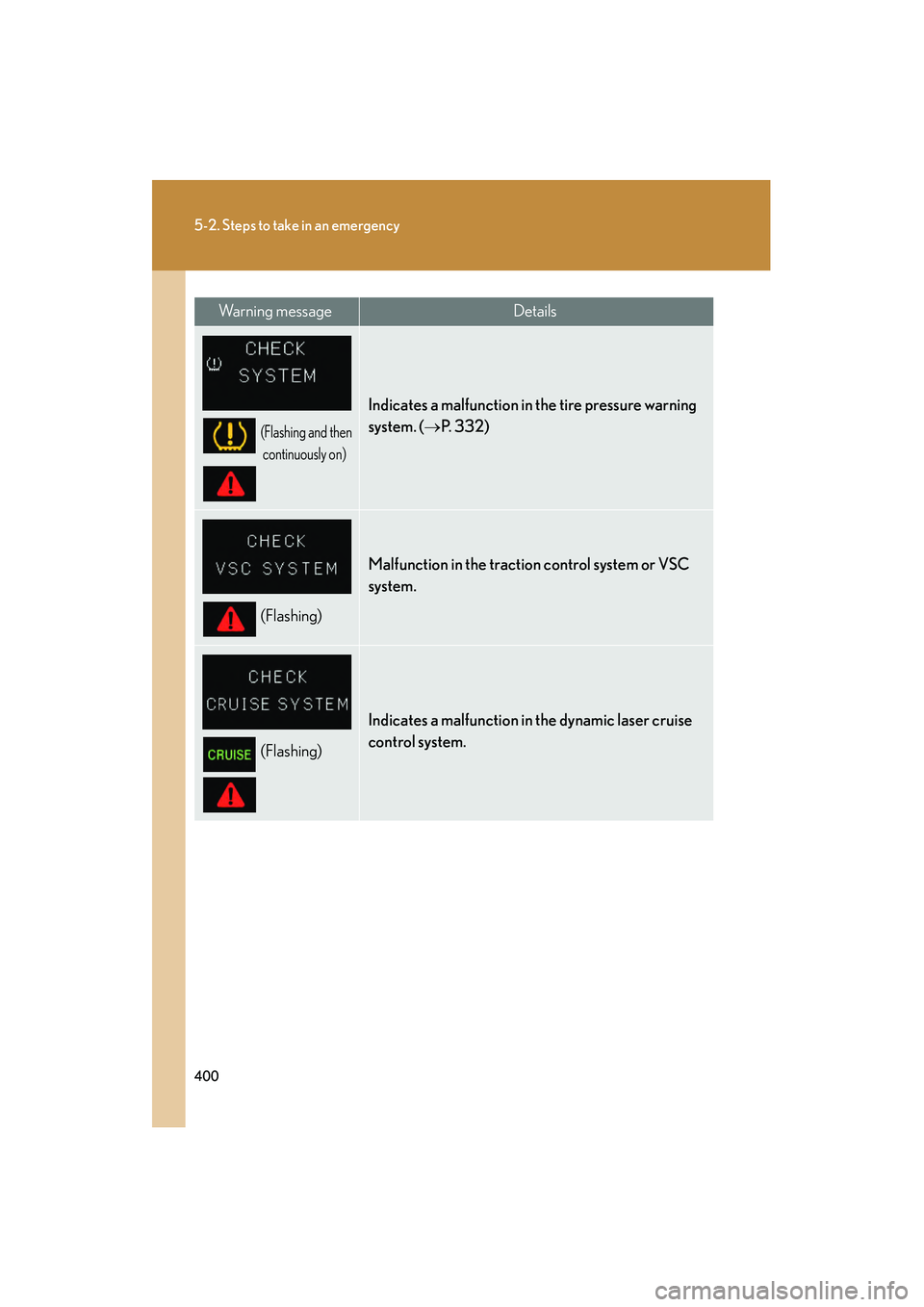

(Flashing and then
continuously on)
Indicates a malfunction in the tire pressure warning
system. (→P. 3 3 2 )
(Flashing)
Malfunction in the traction control system or VSC
system.
(Flashing)
Indicates a malfunction in the dynamic laser cruise
control system.
Wa r n i n g m e s s a g eDetails

5
When trouble arises
401
5-2. Steps to take in an emergency
RX400h_U

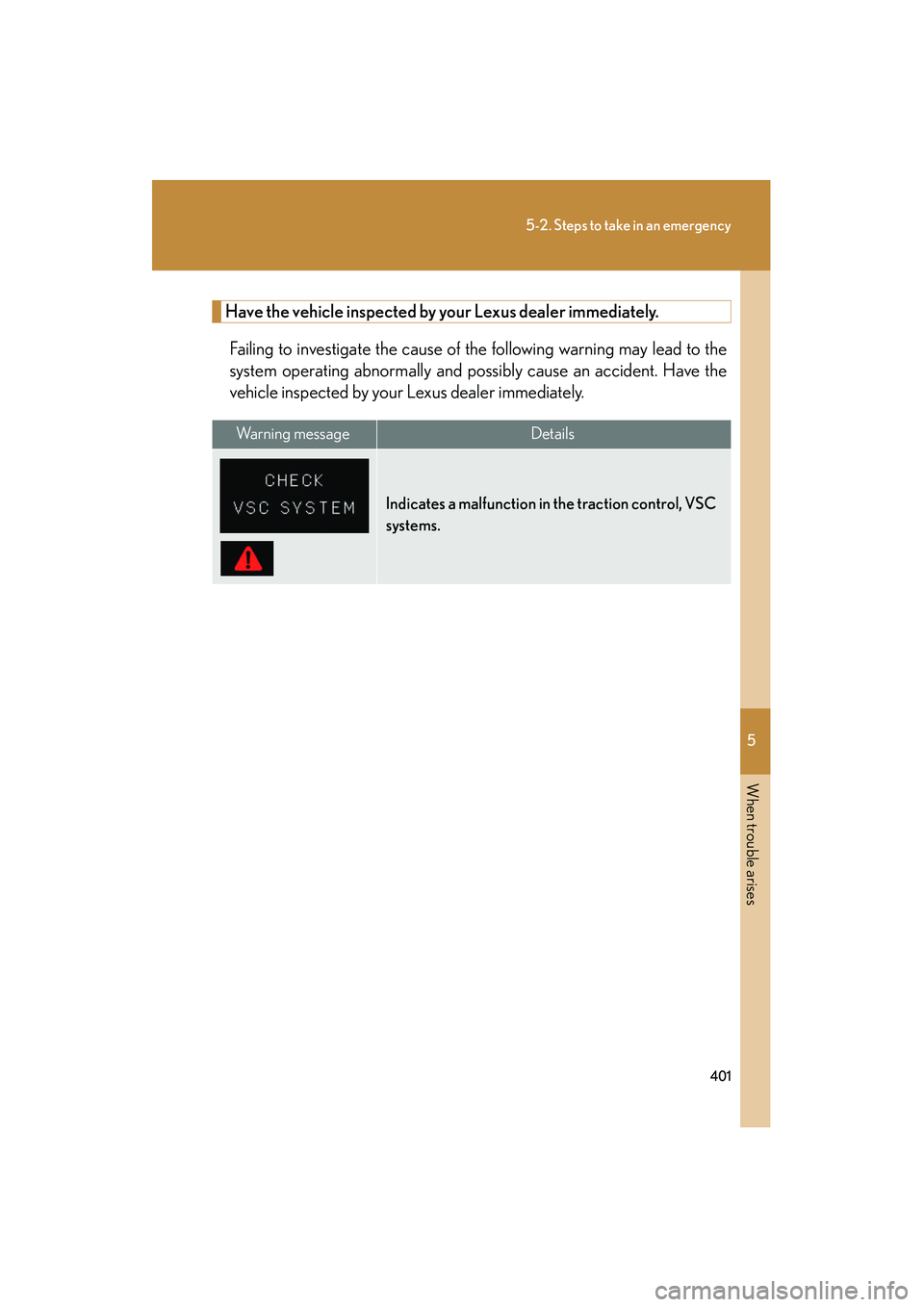

Have the vehicle inspected by your Lexus dealer immediately.
Failing to investigate the cause of the following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Indicates a malfunction in the traction control, VSC
systems.

402
5-2. Steps to take in an emergency
RX400h_U
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that one or
more of the doors is not
fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.

5
When trouble arises
407
5-2. Steps to take in an emergency
RX400h_U
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
■Changing the engine oil (U.S.A. only)
Make sure to reset the oil change system. ( →P. 3 2 1 )
■Warning light display in radar cruise mode
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance closes.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Wa r n i n g m e s s a g eDetailsCorrection
procedure
(Comes on for 8 seconds.)
Indicates that the fuel
door left open after refuel-
ing when start the vehicle/
leave the fuel door open
for more than 30 minutes
during refueling.
Close the fuel lid.

5
When trouble arises
415
5-2. Steps to take in an emergency
RX400h_U
Stowing the flat tire, jack and all toolsInstall the inside spare tire cover on the outer side of the spare tire
cover. Put the flat tire in the spare tire
cover with the outer side facing up
and install the holding bracket.
Turn the spare tire clamp bolt clockwise with a jack handle and
adapter socket until you hear a click.
Stow all the tools and jack securely.
STEP1
STEP2
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 3 3 2 )
STEP3
STEP4
