2008 Lancia Delta Owner handbook (in English)

184IN AN EMERGENCY
fig. 28L0E0167mfig. 30L0E0169m
fig. 29L0E0168m

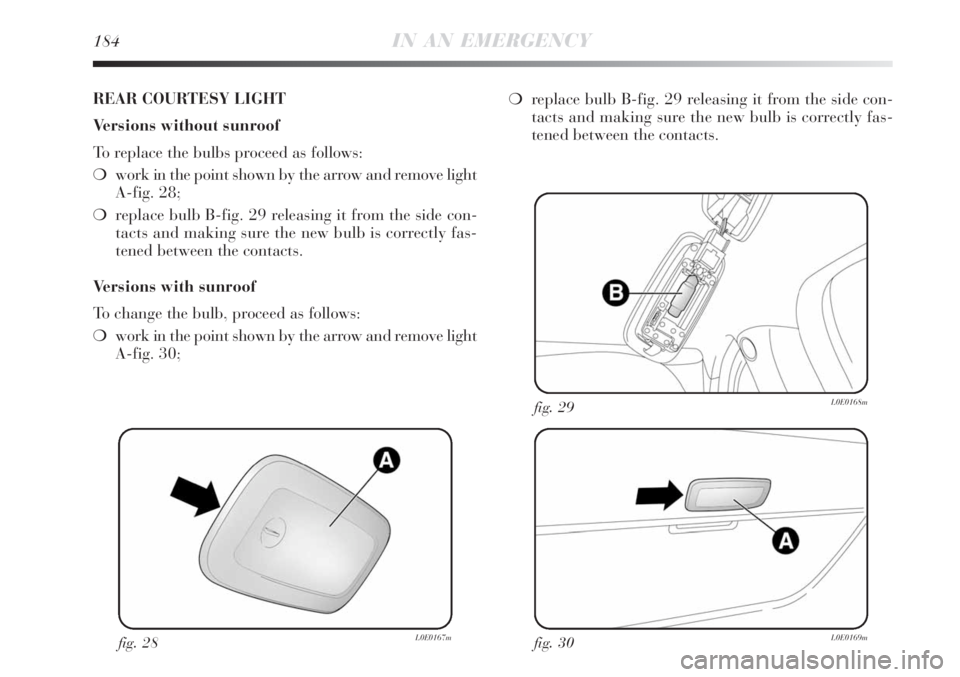

REAR COURTESY LIGHT
Versions without sunroof
To replace the bulbs proceed as follows:
work in the point shown by the arrow and remove light
A-fig. 28;
replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.
Versions with sunroof
To change the bulb, proceed as follows:
work in the point shown by the arrow and remove light
A-fig. 30;replace bulb B-fig. 29 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.

IN AN EMERGENCY185
4
fig. 32L0E0171mfig. 33L0E0172m
LUGGAGE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
open the luggage compartment;
remove the light A-fig. 32 levering in the point shown
by the arrow;
open protection B-fig. 33 and replace the press-fitted
bulb;close protection B onto the lens cover;
refit the light A inserting it into its correct position first-
ly on one side and then on the other until it clicks in-
to place.

186IN AN EMERGENCY
fig. 34L0E0173mfig. 36L0E0175m
fig. 35L0E0174m
GLOVE COMPARTMENT LIGHT
To change the bulb, proceed as follows:
open the glove compartment, and remove the light A-
fig. 34;
replace bulb B releasing it from the side contacts and
making sure the new bulb is correctly fastened between
the contacts.
SUN VISOR COURTESY LIGHT
(where provided)
To change the bulb, proceed as follows:
open the cover A-fig. 35 on the mirror;
levering in the points shown by the arrows, remove
light B;replace bulb C-fig. 36 releasing it from the side con-
tacts and making sure the new bulb is correctly fas-
tened between the contacts.

IN AN EMERGENCY187
4

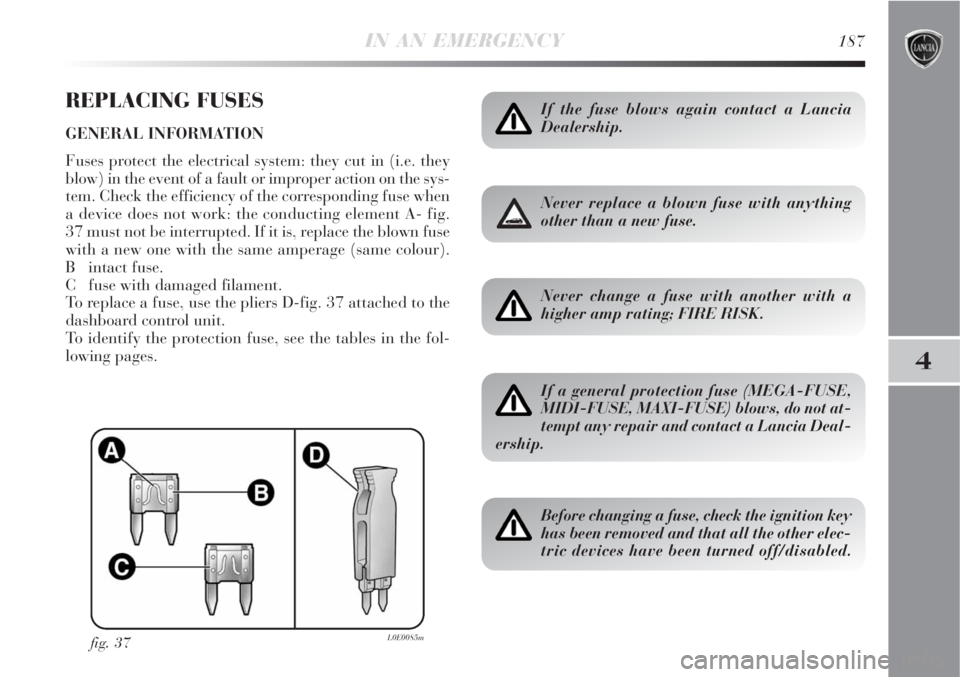

REPLACING FUSES
GENERAL INFORMATION
Fuses protect the electrical system: they cut in (i.e. they
blow) in the event of a fault or improper action on the sys-
tem. Check the efficiency of the corresponding fuse when
a device does not work: the conducting element A- fig.
37 must not be interrupted. If it is, replace the blown fuse
with a new one with the same amperage (same colour).
B intact fuse.
C fuse with damaged filament.
To replace a fuse, use the pliers D-fig. 37 attached to the
dashboard control unit.
To identify the protection fuse, see the tables in the fol-
lowing pages.
fig. 37L0E0085m
If the fuse blows again contact a Lancia
Dealership.
Never replace a blown fuse with anything
other than a new fuse.
Never change a fuse with another with a
higher amp rating; FIRE RISK.
If a general protection fuse (MEGA-FUSE,
MIDI-FUSE, MAXI-FUSE) blows, do not at-
tempt any repair and contact a Lancia Deal-
ership.
Before changing a fuse, check the ignition key
has been removed and that all the other elec-
tric devices have been turned off/disabled.

188IN AN EMERGENCY
fig. 38L0E0087m
FUSE LOCATION
Dashboard fuse box
To access the fuses you must remove the press-fitted cover A.
The fuse box shown in fig. 38 is located in the lower area next to the pedal unit.

IN AN EMERGENCY189
4
Engine compartment fuse box fig. 39 and 40
A second fuse box is located on the right side of the en-
gine compartment, next to the battery. To access this fuse
box release the side tabs and remove cover L. The ID num-
ber of the electrical component corresponding to each fuse
can be found on the back of this cover.
fig. 40L0E0089mfig. 39L0E0088m
If you need to wash the engine compartment,
take care not to directly hit the engine com-
partment control unit with the water jet.

190IN AN EMERGENCY
Luggage compartment fuse box fig. 41 and 42
To gain access to the fuse box located on the left side of
luggage compartment open the relevant inspection lid fig.
41.
fig. 42L0E0115mfig. 41L0E0114m

IN AN EMERGENCY191
4
FUSE SUMMARY TABLE - Dashboard control unit
F12
F12
F13
F13
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F417.5
15
7.5
15
5
–
20
20
5
20
7.5
10
10
30
7.538
38
38
38
38
–
38
38
38
38
38
38
38
38
38
CONSUMERS FUSE AMPERE DIAGRAM
Right dipped beam headlight
Right dipped beam headlight (Xenon gas discharge bulb)
Left dipped beam headlight, headlight alignment corrector
Left dipped beam headlight (Xenon gas discharge bulb)
Climate control system fan relay coil, body computer
Spare
Left rear electric window
Right rear electric window
Reversing lights, engine compartment control unit relay coils,
brake light pedal control (normally closed contact),
water in the diesel fuel sensor, air flow meter
Central locking system control unit, fuel
butterfly, dead lock, tailgate release
Third brake light, instrument panel, Adaptive Headlights Node,
control unit on left-hand gas discharge headlight
Rear and front courtesy ligths (where fitted), sun visor lights,
glove compartment ligtht and luggage compartment light
Radio, radio-navigator, Blue&Me Node, alarm siren,
alarm system on courtesy light, climate control unit, tyre
pressure detection control unit, diagnostic connector,
rear courtesy light
Heated rear window
Electric door mirror demisters, demisters
on windscreen jets
