104GETTING TO KNOW YOUR CAR

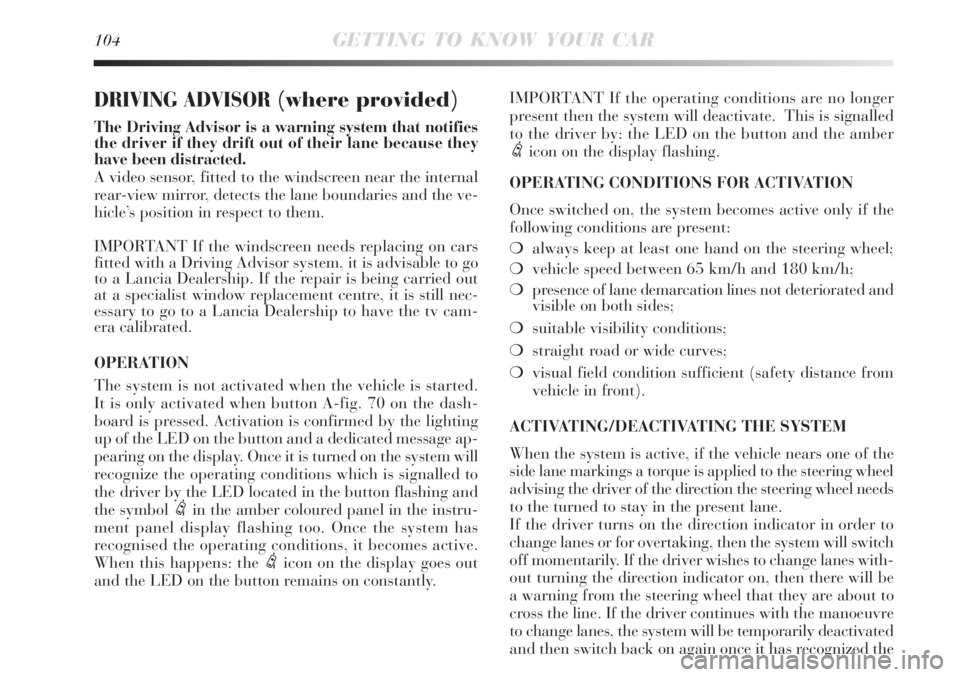

DRIVING ADVISOR(where provided)
The Driving Advisor is a warning system that notifies
the driver if they drift out of their lane because they
have been distracted.
A video sensor, fitted to the windscreen near the internal
rear-view mirror, detects the lane boundaries and the ve-
hicle’s position in respect to them.
IMPORTANT If the windscreen needs replacing on cars
fitted with a Driving Advisor system, it is advisable to go
to a Lancia Dealership. If the repair is being carried out
at a specialist window replacement centre, it is still nec-
essary to go to a Lancia Dealership to have the tv cam-
era calibrated.
OPERATION
The system is not activated when the vehicle is started.
It is only activated when button A-fig. 70 on the dash-
board is pressed. Activation is confirmed by the lighting
up of the LED on the button and a dedicated message ap-
pearing on the display. Once it is turned on the system will
recognize the operating conditions which is signalled to
the driver by the LED located in the button flashing and
the symbol
ein the amber coloured panel in the instru-
ment panel display flashing too. Once the system has
recognised the operating conditions, it becomes active.
When this happens: the
eicon on the display goes out
and the LED on the button remains on constantly. IMPORTANT If the operating conditions are no longer
present then the system will deactivate. This is signalled
to the driver by: the LED on the button and the amber
eicon on the display flashing.
OPERATING CONDITIONS FOR ACTIVATION
Once switched on, the system becomes active only if the
following conditions are present:
always keep at least one hand on the steering wheel;
vehicle speed between 65 km/h and 180 km/h;
presence of lane demarcation lines not deteriorated and
visible on both sides;
suitable visibility conditions;
straight road or wide curves;
visual field condition sufficient (safety distance from
vehicle in front).
ACTIVATING/DEACTIVATING THE SYSTEM
When the system is active, if the vehicle nears one of the
side lane markings a torque is applied to the steering wheel
advising the driver of the direction the steering wheel needs
to the turned to stay in the present lane.
If the driver turns on the direction indicator in order to
change lanes or for overtaking, then the system will switch
off momentarily. If the driver wishes to change lanes with-
out turning the direction indicator on, then there will be
a warning from the steering wheel that they are about to
cross the line. If the driver continues with the manoeuvre
to change lanes, the system will be temporarily deactivated
and then switch back on again once it has recognized the

GETTING TO KNOW YOUR CAR105
1
new driving lane. This temporary deactivation will be sig-
nalled to the driver by the LED in the button flashing and
by the symbol
ein the amber coloured panel in the in-
strument panel display also flashing.
SWITCHING OFF THE SYSTEM
Manual method
The system can be deactivated by pressing button A-fig.
70 on the dashboard.
Confirmation of system deactivation is signalled by the
LED on the button going out and a message 1-fig. 71 ap-
pearing on the display.
Automatic method
The system can be deactivated automatically (if the sys-
tem is required it will therefore need to be reactivated).
The driver is advised that the system has been turned off au-
tomatically by three consecutive acoustic signals and the mes-
sage 1 – fig. 71 in the instrument panel display after the fol-
lowing situations:
the driver does not keep his hands on the steering wheel
(indication 2-fig. 71 is shown on the instrument pan-
el and a buzzer sounds until the driver places his hands
back on the wheel. This is considered a dangerous con-
dition and the system is automatically deactivated);
triggering of the vehicle safety systems (ABS, ESP,
ASR, DST and TTC).SYSTEM FAILURE
In the event of a malfunction, the system reports the fault
via a message 3-fig. 71 appearing on the display and a
buzzer sounding.
IMPORTANT
The driving advisor is unable to operate following a malfunc-
tion in any of the following safety systems: ABS, ESP, ASR,
DST and TTC.
In the presence of indistinct, overlapping or
missing lane markings, the lane assistance
function is unable to aid the driver and the
system will be deactivated.
The driving advisor is not an automatic dri-
ving system and cannot replace the driver in
controlling the vehicle trajectory. The driver
is personally responsible for maintaining a suitable
level of concentration as traffic and road conditions
require, and for safely controlling the vehicle’s tra-
jectory.
The operation of the lane assistance function may be com-
promised by adverse visibility conditions (rain, fog, snow),
extreme lighting conditions (solar glare, darkness) or dirt
or damage, even partial, to the windscreen in the area
around the video camera.
The area of the windscreen by the TV camera should not
be partly or totally obscured by objects (e.g. stickers, pro-
tective film, etc.)

106GETTING TO KNOW YOUR CAR
fig. 70L0E1009g
fig. 71L0E1010g
123

GETTING TO KNOW YOUR CAR107
1
System not activated
The system searches
for the operating
conditions
System activated
and operating
conditions recognised
The system has been turned
on and is activated
The system has been turned
off manually
The system has been turned
off automatically
The system warns the
driver to place their hands
on the steering wheel
The system is faulty:
go to a
Lancia Dealership
TABLE SUMMARIZING SIGNALS DURING THE USE OF THE DRIVING ADVISOR
–
–
–
–
–
3 signals
Intermittent
warning
Single
and prolonged
warning–
Lit up, flashing
–
–
–
–
Lit up, constantly
Lit up, constantly –
–
–
fig. 70
1 - fig. 71
1 - fig. 71
2 - fig. 71
3 - fig. 71
Status of the LED Message Status of the warning lightAcoustic Meaning
in the button in the display in the instrument panel signal
Off
On, flashing
On, constantly
On, constantly
Off
Off
On, flashing
Off

108GETTING TO KNOW YOUR CAR
ADVANCED ESP SYSTEM
(ELECTRONIC STABILITY
PROGRAM)
This is an electronic system that controls car stability in
the event of tyre grip loss.
The Advanced ESP system is therefore particularly use-
ful when road surface grip conditions change.
With the ESP system as well as the ASR (traction control
with intervention on the brakes and the engine) plus the
HILL HOLDER (device for hill starts without using the
brakes) and also MSR (adjustment of engine braking force
with gear downshift), HBA (automatic increase in brak-
ing pressure during emergency braking), ABS (prevent-
ing the wheels from locking and slipping on all road sur-
faces during sharp braking and DST (application of force
on the steering wheel for steering correction) functions are
all available.SYSTEM INTERVENTION
This is signalled by the blinking of warning light áon the
instrument panel, to inform the driver that the car is in
critical stability and grip conditions.
Switching the system on
The Advanced ESP system is automatically activated when
the car is started and cannot be de-activated.
Failure indications
In the event of a failure, the Advanced ESP system will be
automatically switched off and warning light áwill appear
on the instrument panel along with a message on the re-
configurable multifunctional display. The LED on the ASR
OFF button will also light up (see “Instrument panel warn-
ing lights”). In this case contact a Lancia Dealership.
The performance of the Advanced ESP sys-
tem should not encourage the driver to take
unnecessary risks. Your driving style should
always take road conditions, visibility and traffic
into account. The driver is ultimately responsible
for road safety.

GETTING TO KNOW YOUR CAR109
1
Failure indications
System failure is indicated by warning light
álighting up
on the instrument panel together with a dedicated mes-
sage appearing on the reconfigurable multifunctional dis-
play; see “Instrument panel warning lights”.
IMPORTANT The Hill Holder system is not a parking
brake; therefore, never leave the car without having en-
gaged the handbrake, turned the engine off and engaged
first gear.
If the small spare wheel is used, the Advanced
ESP system is still operational. Be aware,
however, that as the small spare wheel is
smaller than the original wheel, it provides less grip.
In order for the Advanced ESP and ASR systems to
operate correctly, the tyres must be of the same brand
and type on all wheels, in perfect condition and,
above all, be of the specified type, brand and size.
HILL HOLDER SYSTEM
This is an integral part of the ESP system and automati-
cally cuts in if one or both drive wheels slip, helping the
driver to control the car:
uphill: car at a standstill on a road with a gradient
higher than 5%, engine running, clutch and brake ped-
al pressed, gearbox to neutral or gear engaged other
than reverse;
downhill: car at a standstill on a road with a gradient
higher than 5%, engine running, clutch and brake ped-
al pressed and reverse gear engaged.
At take-off the Advanced ESP system control unit will
maintain a brake force on the wheels until the torque re-
quired for setting off is reached, or in any case for a max-
imum of 2 seconds so that the right foot can be moved eas-
ily from the brake pedal to the accelerator pedal.
After two seconds without setting off, the system will de-
activate automatically, gradually releasing the brake force.
During the release stage, the typical brake disengagement
noise may be heard, indicating that the car is going to
move.

110GETTING TO KNOW YOUR CAR

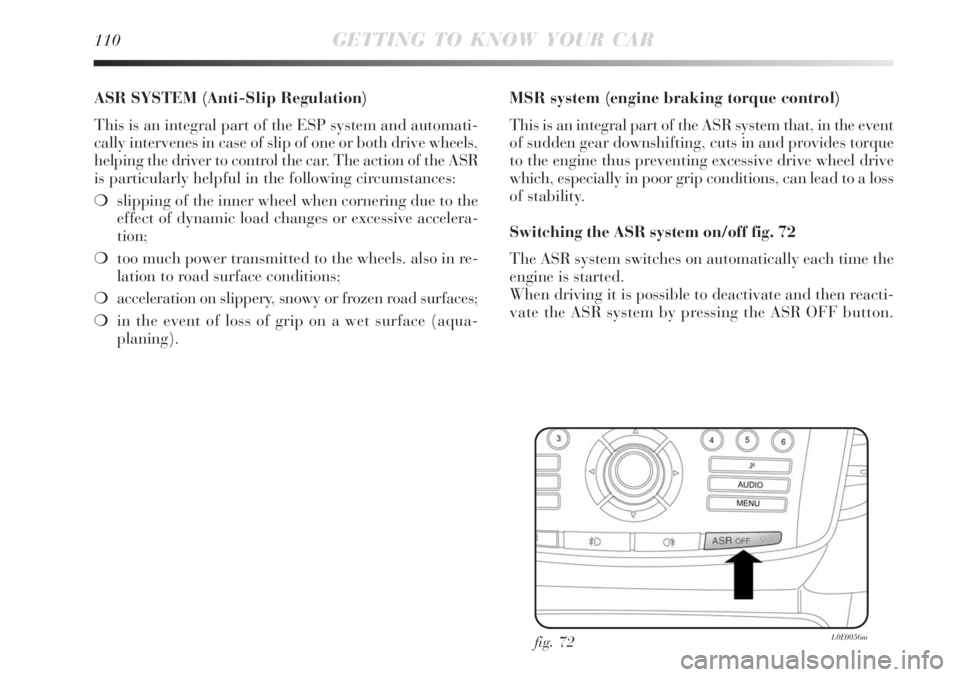

ASR SYSTEM (Anti-Slip Regulation)
This is an integral part of the ESP system and automati-
cally intervenes in case of slip of one or both drive wheels,
helping the driver to control the car. The action of the ASR
is particularly helpful in the following circumstances:
slipping of the inner wheel when cornering due to the
effect of dynamic load changes or excessive accelera-
tion;
too much power transmitted to the wheels. also in re-
lation to road surface conditions;
acceleration on slippery, snowy or frozen road surfaces;
in the event of loss of grip on a wet surface (aqua-
planing).MSR system (engine braking torque control)
This is an integral part of the ASR system that, in the event
of sudden gear downshifting, cuts in and provides torque
to the engine thus preventing excessive drive wheel drive
which, especially in poor grip conditions, can lead to a loss
of stability.
Switching the ASR system on/off fig. 72
The ASR system switches on automatically each time the
engine is started.
When driving it is possible to deactivate and then reacti-
vate the ASR system by pressing the ASR OFF button.
fig. 72L0E0056m

GETTING TO KNOW YOUR CAR111
1
System activation is signalled by a message on the recon-
figurable multifunctional display.
When the system is deactivated, the LED on the ASR OFF
button turns on and a message appears on the reconfig-
urable multifunctional display. If the ASR system is de-
activated when travelling, it is automatically turned on by
the system the next time the vehicle is started.
It may be useful to switch off the ASR system when dri-
ving on snow-covered roads with snow chains fitted: in
these conditions, slipping of the drive wheels during take-
off provides better traction.
TTC system
(Electronic self-locking differential)
THIS system is an integral part of the ASR system, which
cuts in when cornering to provide torque to the outside
wheel and braking action to the inside wheel.
In this way the effect of a self-locking differential is sim-
ulated, increasing the sportiness of the car and improv-
ing cornering.ABS SYSTEM
This is an integral part of the braking system, which pre-
vents the wheels from locking or slipping regardless of road
surface conditions and braking intensity, giving the best
control during emergency braking.
The system is completed by EBD (Electronic Braking
Force Distribution), which distributes the braking action
between front and rear wheels.
IMPORTANT To achieve maximum efficiency of the brak-
ing system, a settlement period of about 500 km is re-
quired: during this time, avoid sudden, repeated and pro-
longed braking.
