2008 KIA Sportage Owner's Manual

427
Driving your vehicle
1
2
3
4
5
6
7
8
9
Horn
To sound the horn, press the horn
symbol on your steering wheel.
Check the horn regularly to be sure it
operates properly.
CAUTION - Horn
•To sound the horn, press the
area indicated by the horn
symbol on your steering
wheel (see illustration).The
horn will operate only when
this area is pressed.
• Do not strike the horn severely
to operate it, or hit it with your
fist.Do not press on the horn
with a sharp-pointed object.
1KMA2088

Driving your vehicle
28 4
1
2
3
4
5
6
7
8
9
The cruise control system allows you
to program the vehicle to maintain a
constant speed without resting your
foot on the accelerator pedal.
With cruise control, you can set and
automatically maintain any speed of
between 40 km/h (24 mph) and
160 km/h (96 mph).
To set cruise control speed:
1. Push the CRUISE ON-OFF button
on the steering wheel, to turn the
system on. The CRUISE indicator
light in the instrument cluster will
illuminate.2. Accelerate to the desired speed,
which must be more than 40 km/h
(24 mph) and less than 160 km/h
(96 mph).
CRUISE CONTROL SYSTEM (IF EQUIPPED)
WARNING- Cruise
control
Do not use the cruise control
feature under the following con-
ditions:
• Heavy or unsteady traffic
•Slippery or winding roads
•Situations that involve varying
speeds
WARNING
If the cruise control is left on,
(CRUISE indicator light in the
instrument cluster illuminated)
the cruise control can be
switched on accidentally.Keep
the cruise control system off
(CRUISE indicator light OFF)
when cruise control is not in
use.
1KMB2186
8KMB2186
Type A
Type B

429
Driving your vehicle
1
2
3
4
5
6
7
8
9
3. Push down the SET/COAST ( - /
SET) switch, and release it at the
speed you want. The “SET” indica-
tor light in the instrument cluster will
illuminate. Release the accelerator
at the same time. The desired
speed will automatically be main-
tained.
The SET function cannot be activated
until approximately 2 seconds after the
CRUISE ON-OFF button has been
engaged.
On a steep grade, the vehicle may
momentarily slow down while going
downhill.
To cancel cruise control, do
one of the following:
• Press the brake pedal.
• Press the clutch pedal with a manu-
al transaxle or shift into N (Neutral)
with an automatic transaxle.
• Pull the CANCEL switch.
1KMB2187
8KMB2187
Type A
Type B
1KMB2188
8KMB2188
Type A
Type B

Driving your vehicle
30 4
1
2
3
4
5
6
7
8
9
Each of these actions will cancel
cruise control operation (the “SET”
indicator light in the instrument clus-
ter will go OFF), but it will not turn the
system off. If you wish to resume
cruise control operation, push up the
RES/ACC
( + / RES)switch located
on your steering wheel. You will
return to your previously preset
speed.
To turn cruise control off, do
one of the following:
• Push the CRUISE ON-OFF button
(the CRUISE indicator light in the
instrument cluster will go OFF).
• Turn the ignition off.
Both of these actions cancel cruise
control operation. If you want to
resume cruise control operation,
repeat the steps provided in “To Set
Cruise Control Speed” on the previ-
ous page.
To increase cruise control set
speed:
Follow either of these procedures:
• Push up the RES/ACC ( + / RES)
switch and hold it. Your vehicle will
accelerate. Release the switch at
the speed you want.• Push up the RES/ACC ( + / RES)
switch and release it immediately.
The cruising speed will increase 1.6
km/h (1 mph) by one touch and will
be memorized to the reset speed.
1KMB2189
8KMB2189
Type A
Type B

431
Driving your vehicle
1
2
3
4
5
6
7
8
9

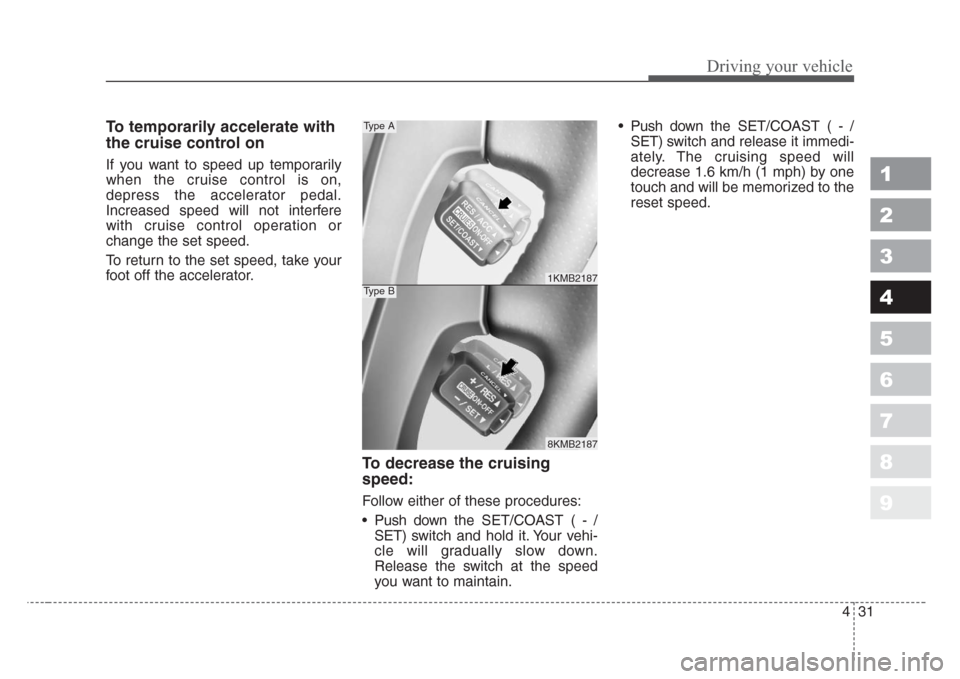

To temporarily accelerate with
the cruise control on
If you want to speed up temporarily
when the cruise control is on,
depress the accelerator pedal.
Increased speed will not interfere
with cruise control operation or
change the set speed.
To return to the set speed, take your
foot off the accelerator.
To decrease the cruising
speed:
Follow either of these procedures:
• Push downthe SET/COAST ( - /
SET) switch and hold it. Your vehi-
cle will gradually slow down.
Release the switch at the speed
you want to maintain.• Push downthe SET/COAST ( - /
SET) switch and release it immedi-
ately. The cruising speed will
decrease 1.6 km/h (1 mph) by one
touch and will be memorized to the
reset speed.
1KMB2187
8KMB2187
Type A
Type B

Driving your vehicle
32 4
1
2
3
4
5
6
7
8
9

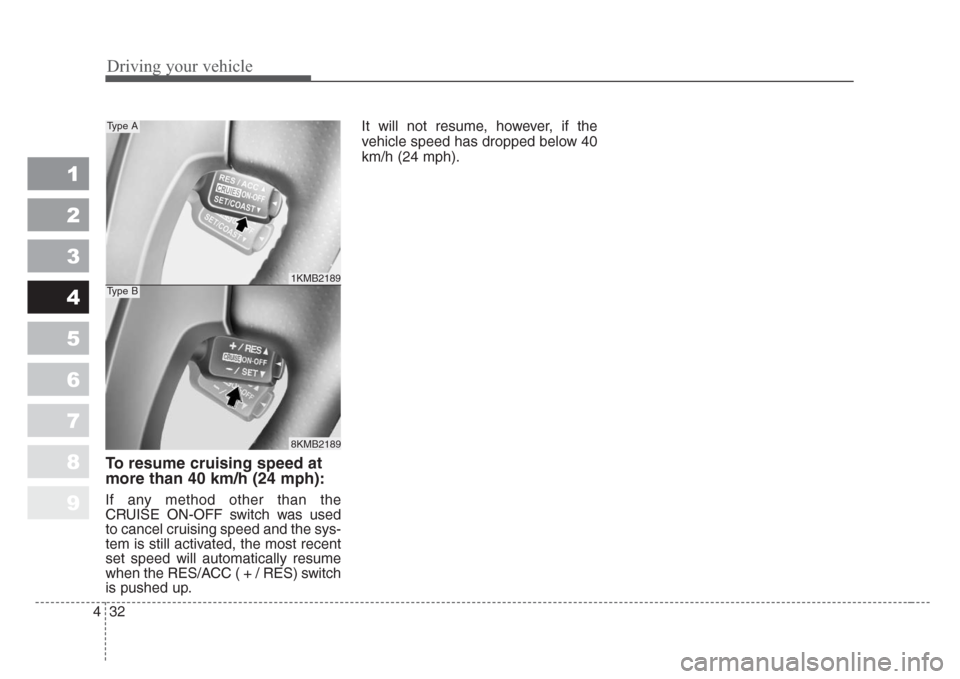

To r esume cruising speed at
more than 40 km/h (24 mph):
If any method other than the
CRUISE ON-OFF switch was used
to cancel cruising speed and the sys-
tem is still activated, the most recent
set speed will automatically resume
when the RES/ACC ( + / RES) switch
is pushed up.It will not resume, however, if the
vehicle speed has dropped below 40
km/h (24 mph).
1KMB2189
8KMB2189
Type A
Type B

433
Driving your vehicle
1
2
3
4
5
6
7
8
9
The Traction Control System (TCS)
helps the vehicle accelerate on slip-
pery road surfaces by preventing the
drive wheels from spinning exces-
sively. It also provides improved dri-
ving force and steering.
TCS operation
TCS ON condition
• When the ignition is turned
ON, TCS and TCS OFF
indicator light illuminate for
approximately 3 seconds,
then TCS is turned on.
• Press the TCS OFF button
to turn TCS off. (TCS OFF
indicator will illuminate). To
turn the TCS on, press the
TCS OFF button (TCS OFF
indicator light will go off).
• When starting the engine,
you may hear a slight tick-
ing sound. This is the TCS
performing an automatic
system self-check and does
not indicate a problem.
When operating
When the TCS is in opera-
tion, TCS indicator light
blinks.
• When the traction control
system is operating prop-
erly, you can feel a slight
pulsation in the vehicle.
This is only the effect of
brake control and indi-
cates nothing unusual.
• When moving out of mud
or driving on a slippery
road, pressing the accel-
erator pedal may not
cause the engine rpm
(revolutions per minute) to
increase.
TRACTION CONTROL SYSTEM (IF EQUIPPED)
1KMA2127
-TCS

Driving your vehicle
34 4
1
2
3
4
5
6
7
8
9
TCS operation off
TCS OFF state
• To cancel TCS operation,
press the TCS OFF button
(TCS OFF indicator light
illuminates).
• If the ignition switch is
turned to LOCK position
when TCS is off, TCS
remains off. Upon restart-
ing the engine, the TCS will
automatically turn on
again.
Indicator light
When ignition switch is turned to ON,
the indicator light illuminates, then
goes off if TCS system is operating
normally.
The TCS indicator light blinks when-
ever TCS is operating.
TCS OFF indicator light comes on
when either the TCS is turned off
with the button, or TCS malfunctions
when turned on.
TCS
OFFTCS
TCS
OFF
■TCS indicator light (blinks)
■ TCS OFF indicator light (comes on)WARNING
The Traction Control System is
only a driving aid; use precau-
tions for safe driving by slowing
down on curved,snowy, or icy
roads.Don't attempt to acceler-
ate excessively just because the
TCS indicator light is blinking.
