2008 KIA Sportage Owner's Manual

Knowing your vehicle
80 3
1
2
3
4
5
6
7
8
9

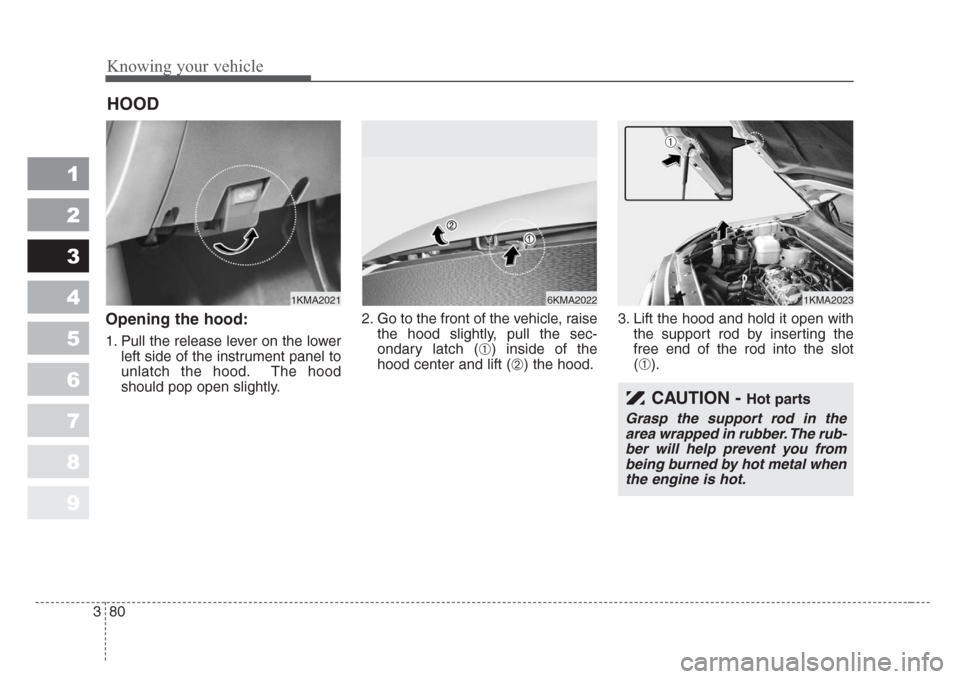

Opening the hood:
1. Pull the release lever on the lower
left side of the instrument panel to
unlatch the hood. The hood
should pop open slightly.2. Go to the front of the vehicle, raise
the hood slightly, pull the sec-
ondary latch (➀) inside of the
hood center and lift (
➁) the hood.3. Lift the hood and hold it open with
the support rod by inserting the
free end of the rod into the slot
(➀).
HOOD
1KMA20216KMA20221KMA2023
CAUTION - Hot parts
Grasp the support rod in the
area wrapped in rubber.The rub-
ber will help prevent you from
being burned by hot metal when
the engine is hot.
➀

381
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Closing the hood
1. Before closing the hood, check the
following:
• All filler caps in engine compart-
ment must be correctly installed.
• Gloves, rags or any other com-
bustible material must be
removed from the engine com-
partment.
2. Secure the support rod in its clip.
3. Lower the hood to about 30 cm
(12 inches) height and then let it
drop to properly lock in place.
Make sure the hood is properly
locked before driving.
CAUTION - Hood
• Before closing the hood, make
sure that all engine parts and
tools have been removed from
the engine area and that no
one’s hands are near the hood
opening.
• Do not leave gloves,rags or
any other combustible materi-
al in the engine compartment.
Doing so may cause a heat-
induced fire.

Knowing your vehicle
82 3
1
2
3
4
5
6
7
8
9
1. Stop the engine.
2. To open the fuel filler lid, pull the
release lever.3. Pull the fuel filler lid out to open.
4. To remove the cap, turn the fuel
tank cap counter-clockwise.
5. Refuel as needed.
6. To install the cap, turn it clockwise
until it “clicks”. This indicates that
the cap is securely tightened.
7. Close the fuel filler lid and push it
lightly and make sure that it is
securely closed.
FUEL FILLER LID
1KMA20191KMB2020
WARNING - Refueling
If pressurized fuel sprays out,it
can cover your clothes or skin
and thus subject you to the risk
of fire and burns.Always
remove the fuel cap carefully
and slowly.If the cap is venting
fuel or if you hear a hissing
sound, wait until the condition
stops before completely remov-
ing the cap.
CAUTION
To a v oid injury from sharp
edges,it is recommended that
protective gloves be worn if
there is a need to open the fuel
filler door manually.

383
1
2
3
4
5
6
7
8
9
Knowing your vehicle
WARNING - Refueling
dangers
Automotive fuels are flammable
materials.When refueling,
please note the following guide-
lines carefully.Failure to follow
these guidelines may result in
severe personal injury,severe
burns or death by fire or explo-
sion.
• Before refueling note the loca-
tion of the Emergency
Gasoline Shut-Off,if available,
at the gas station facility.
• Before touching the fuel noz-
zle, you should eliminate
potentially dangerous static
electricity discharge by touch-
ing another metal part of the
vehicle, a safe distance away
from the fuel filler neck, noz-
zle, or other gas source.
(Continued)
(Continued)
• Do not get back into a vehicle
once you have begun refuel-
ing since you can generate
static electricity by touching,
rubbing or sliding against any
item or fabric (polyester,satin,
nylon, etc.) capable of produc-
ing static electricity.Static
electricity discharge can
ignite fuel vapors resulting in
rapid burning.If you must re-
enter the vehicle, you should
once again elimi
nate poten-
tially dangerous static elec-
tricity discharge by touching a
metal part of the vehicle, away
from the fuel filler neck, nozzle
or other gasoline source.
• When using a portable fuel
container be sure to place the
container on the ground prior
to refueling.Static electricity
discharge from the container
can ignite fuel vapors causing
a fire.Once refueling has
begun, contact with the vehi-
cle should be maintained until
the filling is complete.
(Continued)
(Continued)
Use only portable plastic fuel
containers designed to carry
and store gasoline.
• Do not use cellular phones
while refueling.Electric cur-
rent and/or electronic interfer-
ence from cellular phones can
potentially ignite fuel vapors
causing a fire.
• When refueling, always shut
the engine off.Sparks pro-
duced by electrical compo-
nents related to the engine
can ignite fuel vapors causing
a fire.Once refueling is com-
plete, check to make
sure the
filler cap and filler door are
securely closed, before start-
ing the engine.
(Continued)

Knowing your vehicle
84 3
1
2
3
4
5
6
7
8
9
✽
NOTICE
• Make sure to refuel with unleaded
fuel only.
• Check to make sure the fuel filler
cap is securely closed after refuel-
ing. A loose fuel filler cap may
cause the "Check Engine"
(Malfunction Indicator) light in
the instrument panel to illuminate
unnecessarily.
• If the fuel filler cap requires
replacement, use only a genuine
Kia cap or the equivalent specified
for your vehicle. An incorrect fuel
filler cap can result in a serious
malfunction of the fuel system or
emission control system.
• Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces
may damage the paint.
(Continued)
• DO NOT use matches or a
lighter and DO NOT SMOKE or
leave a lit cigarette in your
vehicle while at a gas station
especially during refueling.
Automotive fuel is highly flam-
mable and can, when ignited,
result in fire.
• If a fire breaks out during refu-
eling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station and then contact the
local fire department.

385
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Outside rearview mirror
Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the control
levers or remote switch, depending
on the type of mirror control installed.
The mirror heads can be folded back
to prevent damage during an auto-
matic car wash or when passing in a
narrow street.
✽
NOTICE
Do not scrape ice off the mirror
face; this may damage the surface of
the glass. If ice should restrict move-
ment of the mirror, do not force the
mirror for adjustment. To remove
ice, use a deicer spray, or a sponge
or soft cloth with very warm water.
Manual remote control
(if equipped)
To adjust an outside mirror, move the
control lever located at the forward
inside area of the window frame.
MIRRORS
CAUTION - Rearview mir-
rors
• The right outside rearview
mirror is convex.Objects seen
in the mirror are closer than
they appear.
•Use your interior rearview mir-
ror or direct observation to
determine the actual distance
of following vehicles when
changing lanes.
1KMB3081

Knowing your vehicle
86 3
1
2
3
4
5
6
7
8
9
Electric remote control
(if equipped)
The electric remote control mirror
switch allows you to adjust the posi-
tion of the left and right outside
rearview mirrors. To adjust the posi-
tion of either mirror, move the lever
(
➀) to R or L to select the right side
mirror or the left side mirror, then
press a corresponding point ( ) on
the mirror adjustment control to posi-
tion the selected mirror up, down, left
or right.
After adjustment, put the lever into
neutral position to prevent the inad-
vertent adjustment.
✽
NOTICE
• The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch is
depressed. Do not depress the
switch longer than necessary, the
motor may be damaged.
• Do not attempt to adjust the out-
side rearview mirror by hand.
Doing so may damage the parts.
Folding the outside rearview
mirror
To fold outside rearview mirror, grasp
the housing of mirror and then fold it
toward the rear of the vehicle.
1KMB2092
➀
1KMA2093

387
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Outside rearview mirror heater
(if equipped)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push the but-
ton for the rear window defroster.
The rearview mirror heater (and rear
window defroster) will not operate
unless the engine is running.
The outside rearview mirror glass will
be heated for defrosting or defogging
and will give you improved rear
vision in inclement weather condi-
tions. Push the button again to turn
the heater off. The outside rearview
mirror heater automatically turns off
after 20 minutes.
Inside rearview mirror
Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.
Day/night rearview mirror
(if equipped)
Manual type (if equipped)
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night dri-
ving.
Remember that you lose some
rearview clarity in the night position.
CAUTION - Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
1KMA2089 Day
Night
Day/Night lever
