2008 KIA PICANTO Owners Manual

Features of your vehicle
90
4
✽✽
NOTICE

491
Features of your vehicle
CAUTION IN USING
USB DEVICE
To use the external USB device, make sure the device is notmounted when starting the vehi-
cle. Mount the device after start-ing.
If you start the vehicle when the USB device is mounted, it maydamage the USB device. (USB is
not ESA)
If the vehicle is started or turned off while the external USB deviceis connected, the external USB
device may not work.
It may not play inauthentic MP3 or WMA files.
1) It can only play MP3 files with the compression rate between8Kbps~320Kbps.
2) It can only play WMA music files with the compression ratebetween 8Kbps~320Kbps.
Take cautions for static electricity when mounting or dismountingthe external USB device.
Encoded MP3 PLAYER is not rec- ognizable.
(Continued)
(Continued) Depending on the condition of the external USB device, the con-nected external USB device can
be unrecognizable.
When the VHAPTTL byte/sector setting of External USB devices isnot either 512byte or 2048byte,
then the device will not be recog-nized.
The USB device should only be formatted to FAT 12/16/32.
USB device without USB I/F (IMPLEMENTERS FORUM) authen-tication may not be recognizable.
Make sure the USB connection terminal does not come in contactwith human body or any object.
If you repeat mounting or dis- mounting USB device in a shortperiod of time, it may break thedevice.
You might hear a strange noise when mounting or dismounting aUSB device.
(Continued)(Continued) If you dismount the external USB device during playback in USBmode, the external USB device can
be damaged or malfunction.Therefore, mount the external USBdevice when the engine is turned
off or in another mode.
Depending on the type and capac- ity of the external USB device orthe type of files stored in the
device, there is a difference in thetime taken for recognition of the device, so you may have to wait.
Do not use the USB device for other purposes than playing music files.
Use of USB accessories such as recharger or heater using USB I/F(IMPLEMENTERS FORUM) maylower the performance or cause trouble.
If you use devices such as a USB hub you purchased separately,the vehicle’s audio system maynot recognize the USB device.
Connect the USB device directly to the multimedia terminal of thevehicle.

Features of your vehicle
92
4
1. AUX(USB) Selection Button
2. Track Moving Button
3. INFO Button
4. Folder moving Button
5. ENTER/TUNE Button
6. RANDOM Button
7. REPEAT Button
8. SCAN Button
SA-PA710C
USB (PA710) (if equipped)

493
Features of your vehicle
The USB is connected to the multiple ter-
minal inside the consol. When the USB is
connected, the ‘USB’ icon will be dis-
played on the top right corner of the dis-
play screen.
1. AUX(USB) Selection Button
If the USB is connected, it switches to the
USB mode from the CD mode to play the
song files stored in the USB. If there are no CD and USB in the RADIO
mode, it displays "NO MEDIA".
If there are no AUX(USB) in the RADIO
or CD mode, it displays "NO MEDIA".
2. Track Moving Button
Press the [SEEK ] button for lessthan 0.8 seconds to play from the
beginning of the song currently played.
Press the button for less than 0.8 sec- onds and press it again within 1 second
to play the previous track.
Press the button for 0.8 seconds or
longer to play the song in reverse
direction in fast speed. Press the [SEEK ] button for
less
than 0.8 seconds to move to the next
track. Press the button for 0.8 seconds
or longer to play the song in forward
direction in fast speed.
3. INFO Button
Displays the information of the file cur-
rently played in the order of FILE NAME➟ TITLE ➟ARTIST ➟ALBUM ➟FOLDER ➟
TOTAL FILE ➟FILE NAME ➟… (Displays
no information if the file has no song
information.)
4. Folder moving Button
If [FLDR ] button is pressed, it
moves to the child folder of the current
folder and displays the first song in the
folder. Press ENTER/TUNE button to
move to the folder displayed. It will play
the first song in the folder.
If [FLDR ] is button pressed, it moves to the parent folder and displays
the first song in the folder. Press
ENTER/TUNE button to move to the
folder displayed. It will play the first
song in the folder.
5. ENTER/TUNE Button
Turn this button clockwise to display the
songs next to the currently played song.
Turn the button counterclockwise to dis-
play the songs before the currently
played song.
Press the button to skip to the selected song.
6. RANDOM Button
Press the button for less than 0.8 sec-
onds to start or stop the random play-
back of the songs in the current folder.
Press the button for more than 0.8 sec-
onds to randomly play the entire songs in
the USB device.
Press the button again to cancel the mode.
7. REPEAT Button
Press the button for less than 0.8 sec-
onds to repeat the song currently played.
Press the button for more than 0.8 sec- onds to repeat the entire songs in the
USB device.

Features of your vehicle
94
4
8. SCAN Button
Plays 10 seconds of each song in the
USB device.
Press the button once again to cancel scanning.
✽✽
NOTICE FOR USING i-Pod
DEVICE

495
Features of your vehicle
1. AUX(i-Pod) Selection Button
2. Track Moving Button
3. INFO Button
4. Category Selection Button
5. ENTER/TUNE Button
6. RANDOM Button
7. REPEAT ButtonSA-PA710D
RUNNING i-Pod (PA710) (if equipped)

Features of your vehicle
96
4
The i-Pod exclusive cable is connected to
the multiple terminal inside the consol.
When the i-Pod is connected, the ‘i-Pod’
icon will be displayed on the top right cor-
ner of the display screen.
1. AUX(USB) Selection Button
If the USB is connected, it switches to the
USB mode from the CD mode to play the
song files stored in the USB. If there are no CD and USB in the RADIO
mode, it displays "NO MEDIA".
If there are no AUX(USB) in the RADIO
or CD mode, it displays "NO MEDIA".
2. Track Moving Button
Press the [SEEK ] button for less
than 0.8 seconds to play from the
beginning of the song currently played.
Press the button for less than 0.8 sec- onds and press it again within 1 second
to play the previous track.
Press the button for 0.8 seconds or
longer to play the song in reverse
direction in fast speed. Press the [SEEK ] button for
less
than 0.8 seconds to move to the next
track. Press the button for 0.8 seconds
or longer to play the song in forward
direction in fast speed.
3. INFO Button
Displays the information of the file cur-
rently played in the order of FILE NAME➟ TITLE ➟ARTIST ➟ALBUM ➟FOLDER ➟
TOTAL FILE ➟FILE NAME ➟… (Displays
no information if the file has no song
information.)
4. Category Selection Button
Moves to the upper category from cur-
rently played category of the i-Pod.
To move to (play) the category (song)
displayed, press ENTER/TUNE button.
You will be able to search through the
lower category of the selected category.
The order of the i-Pod’s category is
SONG, ALBUMS, ARTISTS, GENRES,
and i-Pod.
5. ENTER/TUNE Button
Turn this button clockwise to display the
songs next to the currently played song.
Turn the button counterclockwise to dis-
play the songs before the currently
played song.
Press the button to skip to the selected song.
6. RANDOM Button
Press the button for less than 0.8 sec-
onds to start or stop the random play-
back of the songs in the current folder.
Press the button for more than 0.8 sec-
onds to randomly play the entire songs in
the USB device.
Press the button again to cancel the mode.
7. REPEAT Button
Repeats the song currently played.

497
Features of your vehicle

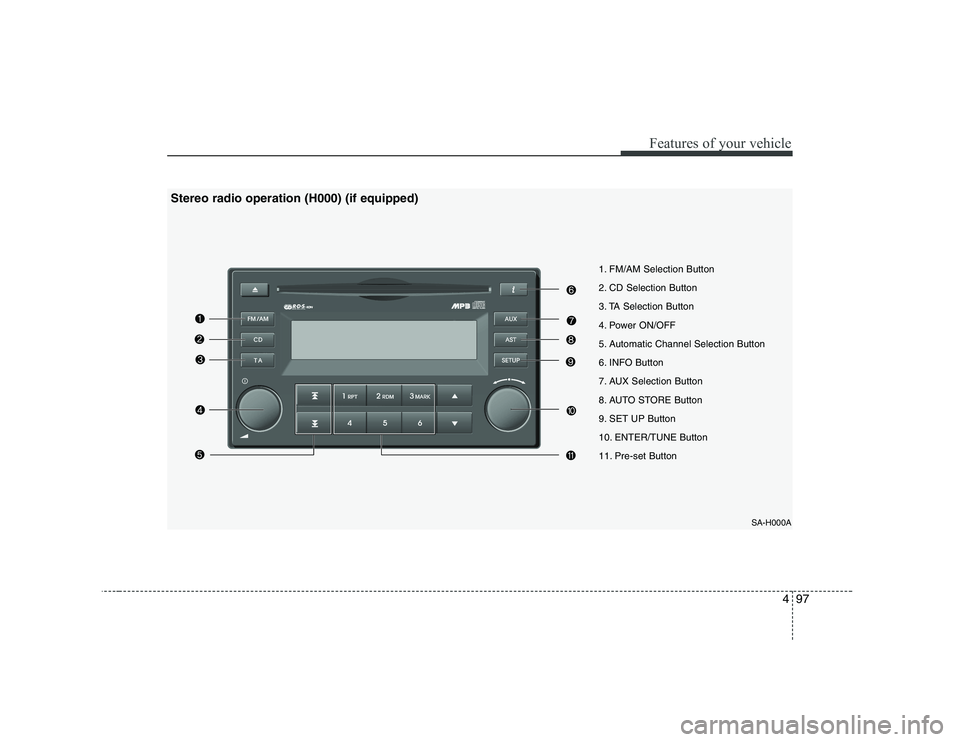

SA-H000A
1. FM/AM Selection Button
2. CD Selection Button
3. TA Selection Button
4. Power ON/OFF
5. Automatic Channel Selection Button
6. INFO Button
7. AUX Selection Button
8. AUTO STORE Button
9. SET UP Button
10. ENTER/TUNE Button
11. Pre-set Button
Stereo radio operation (H000) (if equipped)
