2008 JEEP WRANGLER UNLIMITED Owners Manual

Putting Up The Soft Top

3

1. Unclip and move the sun visors to the side.
2. Install door frames, if removed. Refer to “Door Frame”
in this section.
3. Make sure the plastic sleeve is slid rearward over
Sunrider link (Sunrider Models Only).4. Standing on the side of the vehicle, lift the top by the
side bow and the 2–bow (middle bow) up and over the
sports bar until the header rests on the top of the
windshield frame.
5. Before attaching the header latches, be sure that the
top retainers above the door are not trapped between the
top and the door frame.

3

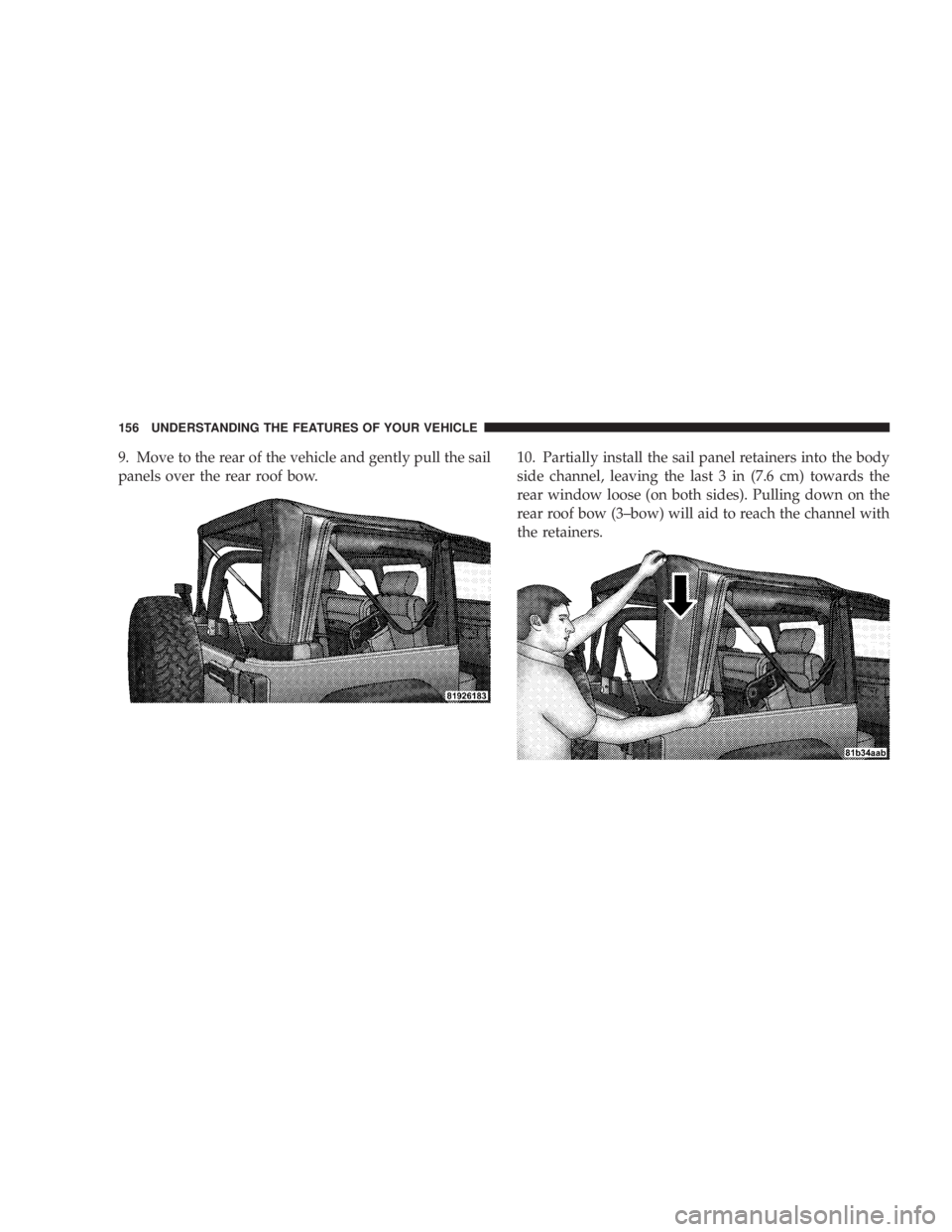

9. Move to the rear of the vehicle and gently pull the sail
panels over the rear roof bow.10. Partially install the sail panel retainers into the body
side channel, leaving the last 3 in (7.6 cm) towards the
rear window loose (on both sides). Pulling down on the
rear roof bow (3–bow) will aid to reach the channel with
the retainers.

3

13. Continue closing the zipper only along the top edge
of the window.14. Insert the retainer along the bottom edge of the
window into the bottom side channel, beginning at the
front and working to the rear of the vehicle. Finish by
closing the zipper completely and attaching the Velcro
along the top and rear of the window. Repeat this step for
the opposite side.

3
