INSIDE MIRROR
Wiring DiagramINFOID:0000000001737088
AWLWA0019GB
Revision: March 2010 2008 QX56

MIR-6
< COMPONENT DIAGNOSIS >
INSIDE MIRROR

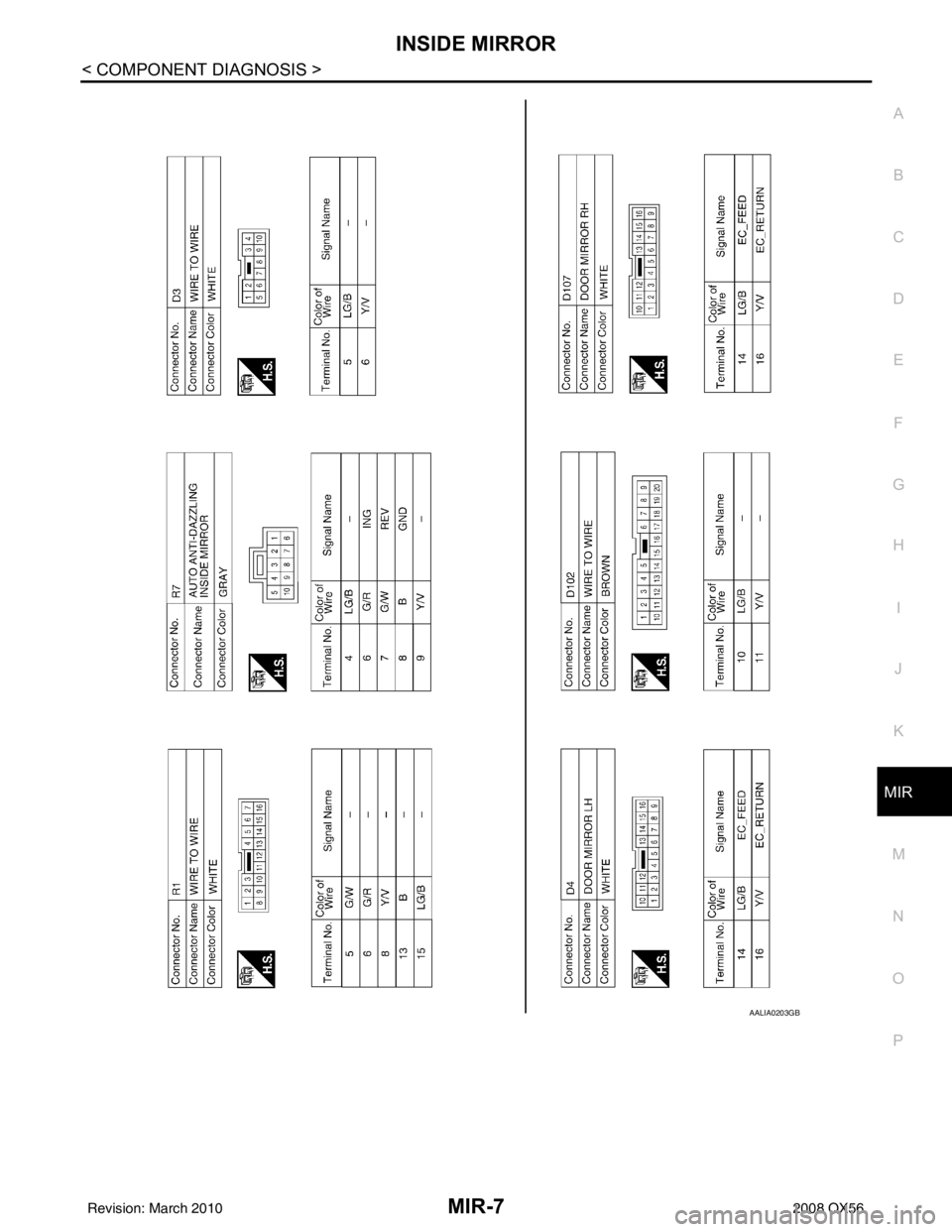

AALIA0202GB
Revision: March 20102008 QX56

INSIDE MIRRORMIR-7
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P

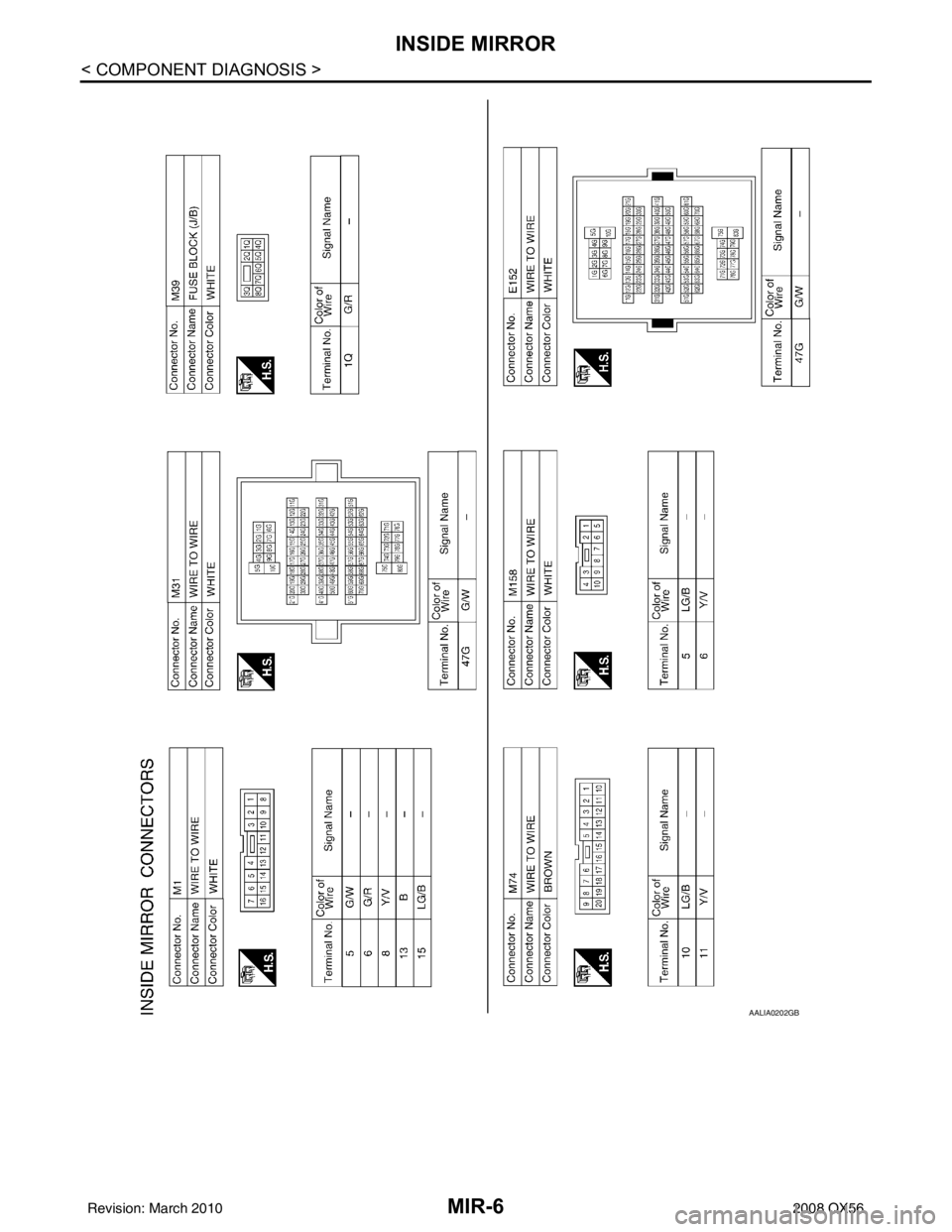

AALIA0203GB
Revision: March 2010 2008 QX56

MIR-10
< REMOVAL AND INSTALLATION >
INSIDE MIRROR
REMOVAL AND INSTALLATION
INSIDE MIRROR
Removal and InstallationINFOID:0000000001608219
1. Remove inside mirror finisher.
2. Slide the mirror upward to remove.
3. Disconnect the connector.
Installation is in the reverse order of removal.
1. Inside mirror2. Inside mirror finisher
LIIA0277E
Revision: March 2010 2008 QX56

DOOR MIRRORMIR-11
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
DOOR MIRROR
Door Mirror AssemblyINFOID:0000000001608222
STANDARD MIRROR
Removal
1. Remove the adhesive front door sash cover.
2. Disconnect the mirror connector.
3. Remove the door mirror assembly.
Installation
Installation is in the reverse order of removal.
WIIA0944E
Revision: March 2010 2008 QX56

MIR-12
< REMOVAL AND INSTALLATION >
DOOR MIRROR
TRAILER TOW MIRROR
Removal
1. Remove the front door sash cover.
2. Remove the door mirror connector.
3. Remove the door mirror bolts and nut, and remove the door mirror assembly.
Installation
Installation is in the reverse order of removal.
Door Mirror GlassINFOID:0000000001608223
REMOVAL
1. Set mirror assembly mirror glass upward.
2. Apply protective tape to mirror housing.
3. Insert a suitable tool at notch and gently pry mirror glass and
holder from mirror holder bracket.
4. Disconnect two electrical connectors from mirror glass and holder.
INSTALLATION
WIIA0945E
LIIA1591E
Revision: March 2010 2008 QX56

DOOR MIRRORMIR-13
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
MIR
N
O P
1. Set mirror holder bracket and mirror glass and holder in the hor- izontal position.
2. Connect the two connectors to the back of the mirror holder.
3. Align mirror glass and holder with mirror holder bracket and push mirror glass and holder onto mirror holder bracket.
4. Rotate mirror to ensure proper installation.
Mirror ActuatorINFOID:0000000004333952
DISASSEMBLY AND ASSEMBLY
Disassembly
1. Remove the mirror glass. Refer to MIR-12, "Door Mirror Glass"
2. Remove the center screw (A) and release the actuator hooks
from housing (B).
3. Disconnect the connector (A) and remove the actuator (1).
Assembly
Assembly is the reverse order of disassembly.
LIIA1592E
ALIIA0317GB
