2008 INFINITI FX35 sensor

DTC P0335 CKP SENSOR (POS)EC-321
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
CAUTION:
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326146
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK CRANKSHAFT POSITION SENS OR (POS) POWER SUPPLY CIRCUIT
TER-
MI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
13 Y Crankshaft position sensor
(POS) [Engine is running]

Warm-up condition
 Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle Approximately 1.6V
[Engine is running]
 Engine speed: 2,000 rpm Approximately 1.4V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
 For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
 More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B
Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1041E
PBIB1042E
PBIB2625E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-322
< SERVICE INFORMATION >[VQ35DE]
DTC P0335 CKP SENSOR (POS)
1. Disconnect crankshaft position (CKP) sensor (POS) harness
connector.
2. Turn ignition switch ON.
3. Check voltage between CKP sensor (POS) terminal 1 and
ground with CONSULT-III or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E211, M41
 Harness connectors F102, M82
 Harness for open or short between cran kshaft position sensor (POS) and ECM
 Harness for open or short between crankshaf t position sensor (POS) and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK CRANK SHAFT POSITION SENSOR (POS) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between CK P sensor (POS) terminal 3 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors F102, M82
 Harness for open or short between CKP sensor (POS) and ground
>> Repair open circuit or short to power in harness or connectors.
6.CHECK CRANK SHAFT POSITION SENSOR (POS) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 13 and CKP sensor (POS) terminal 2. Refer to Wiring Diagram.
PBIB1575E
Voltage: Battery voltage
PBIB0664E
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0335 CKP SENSOR (POS)EC-323
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK CRANKSHAFT POSI
TION SENSOR (POS)
Refer to EC-323, "
Component Inspection".
OK or NG
OK >> GO TO 8.
NG >> Replace crankshaft position sensor (POS).
8.CHECK GEAR TOOTH
Visually check for chipping signal plate gear tooth.
OK or NG
OK >> GO TO 9.
NG >> Replace the signal plate.
9.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
Component InspectionINFOID:0000000001326147
CRANKSHAFT POSITION SENSOR (POS)
1. Loosen the fixing bolt of the sensor.
2. Disconnect crankshaft position sensor (POS) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.
5. Check resistance as shown in the figure.
Removal and InstallationINFOID:0000000001326148
CRANKSHAFT POSITION SENSOR (POS)
Refer to AT-243, "Removal and Installation (AWD Models)".
PBIB0563E
Terminal No. (Polarity) Resistance Ω [at 25 °C (77 °F)]
1 (+) - 2 (-) Except 0 or ∞
1 (+) - 3 (-)
2 (+) - 3 (-)
PBIB0564E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-324
< SERVICE INFORMATION >[VQ35DE]
DTC P0340, P0345
CMP SENSOR (PHASE)
DTC P0340, P0345 CMP SENSOR (PHASE)
Component DescriptionINFOID:0000000001326149
The camshaft position (CMP) sensor (PHASE) senses the retraction
of camshaft (INT) to identify a particular cylinder. The camshaft posi-
tion sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizi ng timing of cylinder identification
signals.
The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326150
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326151
DTC Confirmation ProcedureINFOID:0000000001326152
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following pro cedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
1. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
2. Check 1st trip DTC.
PBIB0562E
PBIB2744E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED  Run engine and compare CONSULT-III value with the ta-
chometer indication. Almost the same speed as the tachometer
indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340
(Bank 1) Camshaft position sen-
sor (PHASE) circuit  The cylinder No. signal is not sent to ECM for
the first few seconds during engine cranking.
 The cylinder No. signal is not sent to ECM
during engine running.
 The cylinder No. signal is not in the normal pattern during engine running.  Harness or connectors
[Camshaft position sensor (PHASE) cir-
cuit is open or shorted]
 Camshaft position sensor (PHASE)
 Camshaft (INT)
 Starter motor (Refer to SC-8
.)
 Starting system circuit (Refer to SC-8
.)
 Dead (Weak) battery
P0345
0345
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0340, P0345 CMP SENSOR (PHASE)EC-325
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. If 1st trip DTC is detected, go to
EC-328, "Diagnosis Procedure".
If 1st trip DTC is not detected, go to next step.
4. Maintaining engine speed at more than 800 rpm for at least 5 seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-328, "
Diagnosis Procedure".
Wiring DiagramINFOID:0000000001326153
BANK 1
TBWM1388E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-326
< SERVICE INFORMATION >[VQ35DE]
DTC P0340, P0345
CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
33 R/L Camshaft position sensor
(PHASE) (bank 1) [Engine is running]

Warm-up condition
 Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]
 Engine speed: 2,000 rpm 1.0 - 4.0V
111 W / B ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
 For a few seconds after turning ignition
switch OFF 0 - 1.5V
[Ignition switch: OFF]
 More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14V)
11 9
120 R
R/B
Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1039E
PBIB1040E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0340, P0345 CMP SENSOR (PHASE)EC-327
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

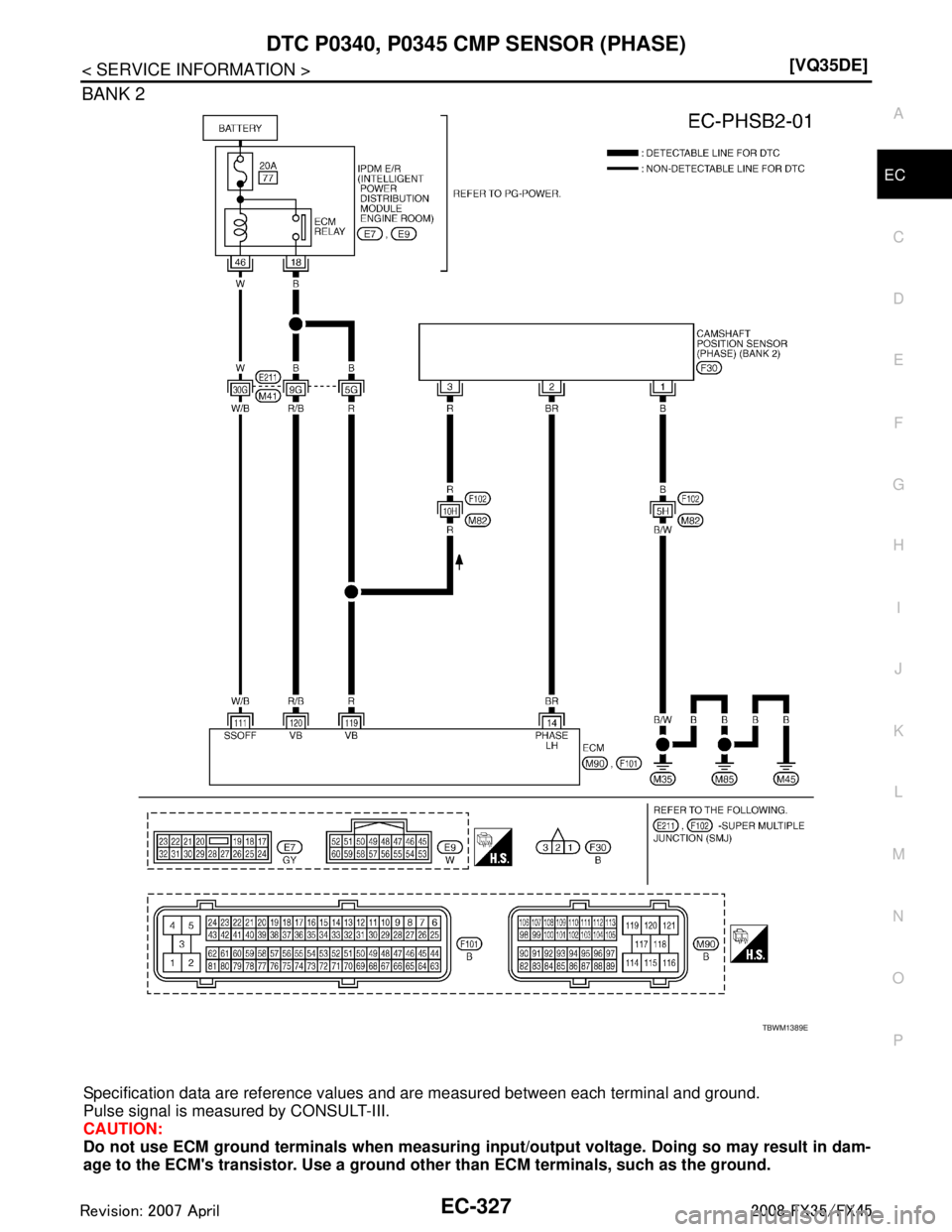

BANK 2
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1389E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-328
< SERVICE INFORMATION >[VQ35DE]
DTC P0340, P0345
CMP SENSOR (PHASE)
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis ProcedureINFOID:0000000001326154
1.CHECK STARTING SYSTEM
Turn ignition switch to START position.
Ye s o r N o
Ye s > > G O T O 2 .
No >> Check starting system. (Refer to SC-8
.)
2.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
3.CHECK CAMSHAFT POSITION (CMP) SENS OR (PHASE) POWER SUPPLY CIRCUIT
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
14 BR Camshaft position sensor
(PHASE) (bank 2) [Engine is running]

Warm-up condition
 Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle 1.0 - 4.0V
[Engine is running]
 Engine speed: 2,000 rpm 1.0 - 4.0V
11 9
120 R
R/B
Power supply for ECM
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
PBIB1039E
PBIB1040E
Does the engine turn over?
Does the starter motor operate?
PBIB2625E
