2008 INFINITI FX35 engine stall

EM-10
< SERVICE INFORMATION >[VQ35DE]
PREPARATION
(—)
TORX socketRemoving and installing flywheel
Size: T55
(—)
Manual lift table caddy Removing and installing engine
(J24239-01)
Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and used with the angle wrench [SST:
KV10112100 (BT8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
(—)
1.Compression tester
2.Adapter Checking compression pressure
(—)
Spark plug wrench Removing and installing spark plug
(—)
Valve seat cutter set Finishing valve seat dimensions
(—)
Piston ring expander Removing and installing piston ring
(Kent-Moore No.)
Tool name
Description
PBIC1113E
ZZA1210D
NT583
ZZA0008D
NT047
NT048
NT030
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-14
< SERVICE INFORMATION >[VQ35DE]
DRIVE BELTS
DRIVE BELTS
Checking Drive BeltsINFOID:0000000001429496
WARNING:
Be sure to perform when engine is stopped.
1. Inspect belts for cracks, fraying,
wear and oil. If necessary, replace.
2. Inspect drive belt deflection or tension at a point on belt midway between pulleys.
 Inspection should be done only when engine is cold, or over30 minutes after engine is stopped.
 Measure the belt tension with belt tension gauge (Commercial service tool: BT3373-F or equivalent) (A) at points marked
shown in the figure.
 When measuring the deflection, apply 98 N (10 kg, 22 lb) at
the marked point.
 Adjust if the belt deflection exc eeds the limit or if the belt ten-
sion is not within specifications.
CAUTION:
• When checking the belt deflect ion or the tension immedi-
ately after installation, first ad just it to the specified value.
Then, after turning crankshaft two turns or more, re-adjust
to the specified value to avo id variation in deflection
between pulleys.
 Tighten idler pulley lock nut by hand and measure the deflection or the tension without loose-
ness.
Belt Deflection and Tension
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on belt.
Tension AdjustmentINFOID:0000000001429497
CAUTION:
1 : Power steering oil pump
2: Alternator
3 : Idler pulley
4 : Crankshaft pulley
5: A/C compressor
JPBIA0421ZZ
JPBIA0422ZZ
Items Deflection adjustment Unit: mm (in) Tension adjustment* Unit: N (kg, lb)
Used belt New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump belt 12 (0.47)
7 - 8
(0.28 - 0.31) 6 - 7
(0.24 - 0.28) 294 (30, 66) 730 - 818
(74.5 - 83.4, 164 - 184) 838 - 926
(85.5 - 94.5, 188 - 208)
A/C compressor
belt 12 (0.47)9 - 10
(0.35 - 0.39) 8 - 9
(0.31 - 0.35) 196 (20, 44) 348 - 436
(35.5 - 44.5, 78 - 98) 470 - 559
(47.9 - 57.0, 106 - 126)
Applied pushing
force 98 N (10 kg, 22 lb) —
Portion
Belt tightening method for adjustment
Alternator and power steering oil pump belt Adjusting bolt on idler pulley
A/C compressor belt Adjusting bolt on idler pulley
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DRIVE BELTSEM-15
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
 When belt is replaced with a new one, adjust it
to value for “New belt” to accommodate for insuffi-
cient adaptability with pulley grooves.
 When deflection or tension of belt being used exceeds “Limit”, adjust it to value for “After adjust-
ment”.
 When checking belt deflection or tension immediately af ter installation, first adjust it to the specified
value. Then, after turning crankshaft two turns or mo re, re-adjust to the specified value to avoid vari-
ation in deflection between pulleys.
 When installing belt, make sure that it is correctly engaged with pulley grooves.
 Keep engine oil, working fl uid and engine coolant away from belt and pulley grooves.
 Do not twist or bend belt excessively.

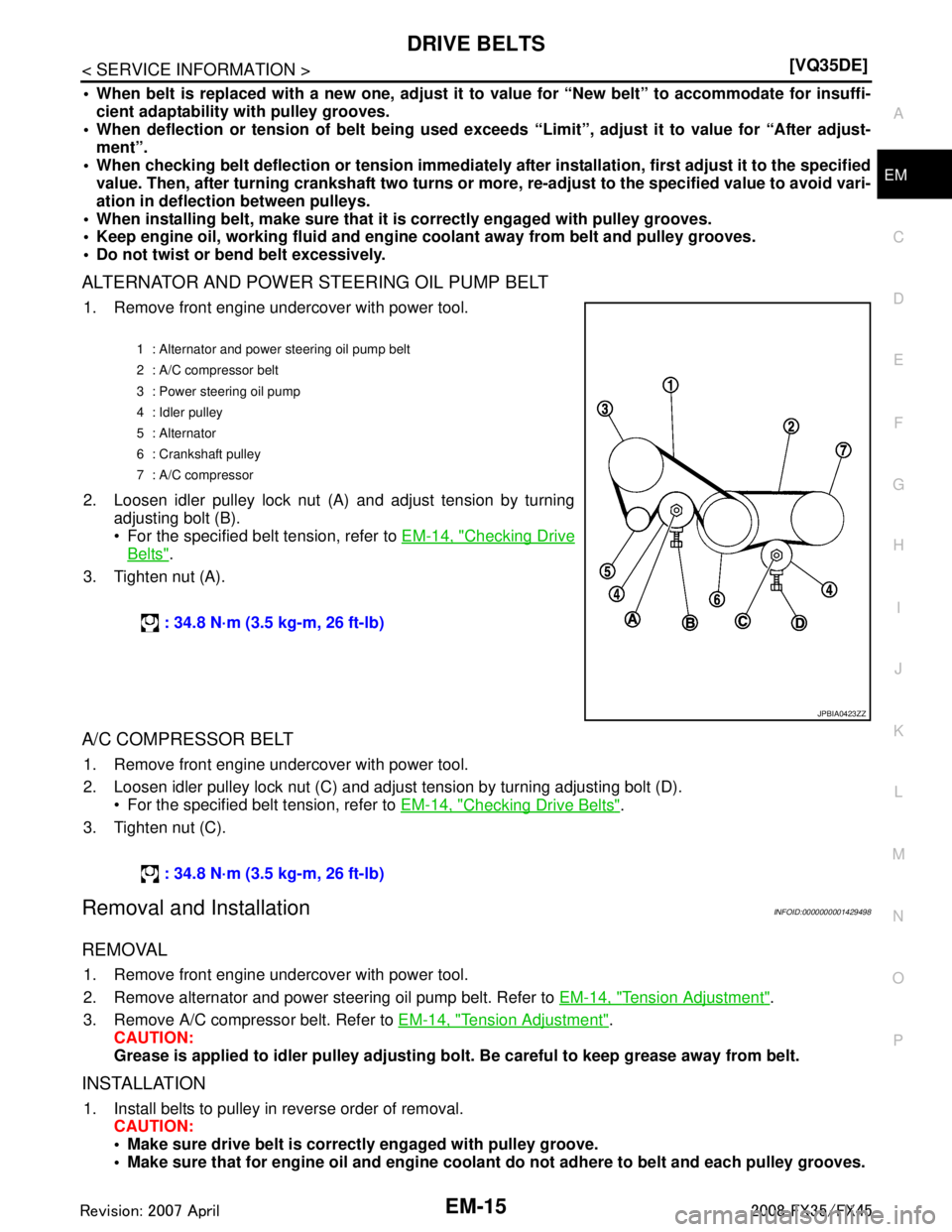

ALTERNATOR AND POWER STEERING OIL PUMP BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (A ) and adjust tension by turning
adjusting bolt (B).
 For the specified belt tension, refer to EM-14, "
Checking Drive
Belts".
3. Tighten nut (A).
A/C COMPRESSOR BELT
1. Remove front engine undercover with power tool.
2. Loosen idler pulley lock nut (C) and adjust tension by turning adjusting bolt (D).  For the specified belt tension, refer to EM-14, "
Checking Drive Belts".
3. Tighten nut (C).
Removal and InstallationINFOID:0000000001429498
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove alternator and power steering oil pump belt. Refer to EM-14, "
Tension Adjustment".
3. Remove A/C compressor belt. Refer to EM-14, "
Tension Adjustment".
CAUTION:
Grease is applied to idler pulley adjusting bol t. Be careful to keep grease away from belt.
INSTALLATION
1. Install belts to pulley in reverse order of removal.
CAUTION:
 Make sure drive belt is correctly engaged with pulley groove.
 Make sure that for engine oil and engine cool ant do not adhere to belt and each pulley grooves.
1 : Alternator and power steering oil pump belt
2 : A/C compressor belt
3 : Power steering oil pump
4 : Idler pulley
5 : Alternator
6 : Crankshaft pulley
7: A/C compressor
: 34.8 N·m (3.5 kg-m, 26 ft-lb)
JPBIA0423ZZ
: 34.8 N·m (3.5 kg-m, 26 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

AIR CLEANER AND AIR DUCTEM-17
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
AIR CLEANER AND AIR DUCT
ComponentINFOID:0000000001325707
Removal and InstallationINFOID:0000000001325708
REMOVAL
1. Remove engine cover with power tool. Refer to
EM-19, "Component".
 This work is unnecessary when parts located forward of mass air flow sensor are removed/installed.
2. Remove air duct (inlet) and power duct.
3. Disconnect mass air flow sensor harness connector.
4. Disconnect PCV hose.
5. Remove air cleaner case/mass air flow sensor and air duct disconnecting their joints.  Add marks as necessary for easier installation.
6. Remove mass air flow sensor from air cleaner case. CAUTION:
Handle mass air flow senso r with the following cares.
 Do not shock it.
 Do not disassemble it.
 Do not touch its sensor.
7. Remove resonator in fender, lifting left fender protector.
INSPECTION AFTER REMOVAL
Inspect air hoses for cracks or tear.
 If anything found replace air hose.
1. Air hose 2. PCV hose 3. Air duct
4. Air hose 5. Power duct 6. Clip
7. Air duct (inlet) 8. Resonator 9. Grommet
10. Air cleaner case 11. Air cleaner filter 12. Air cleaner case
13. O-ring 14. Mass air flow sensor
SBIA0462E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INTAKE MANIFOLD COLLECTOREM-19
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

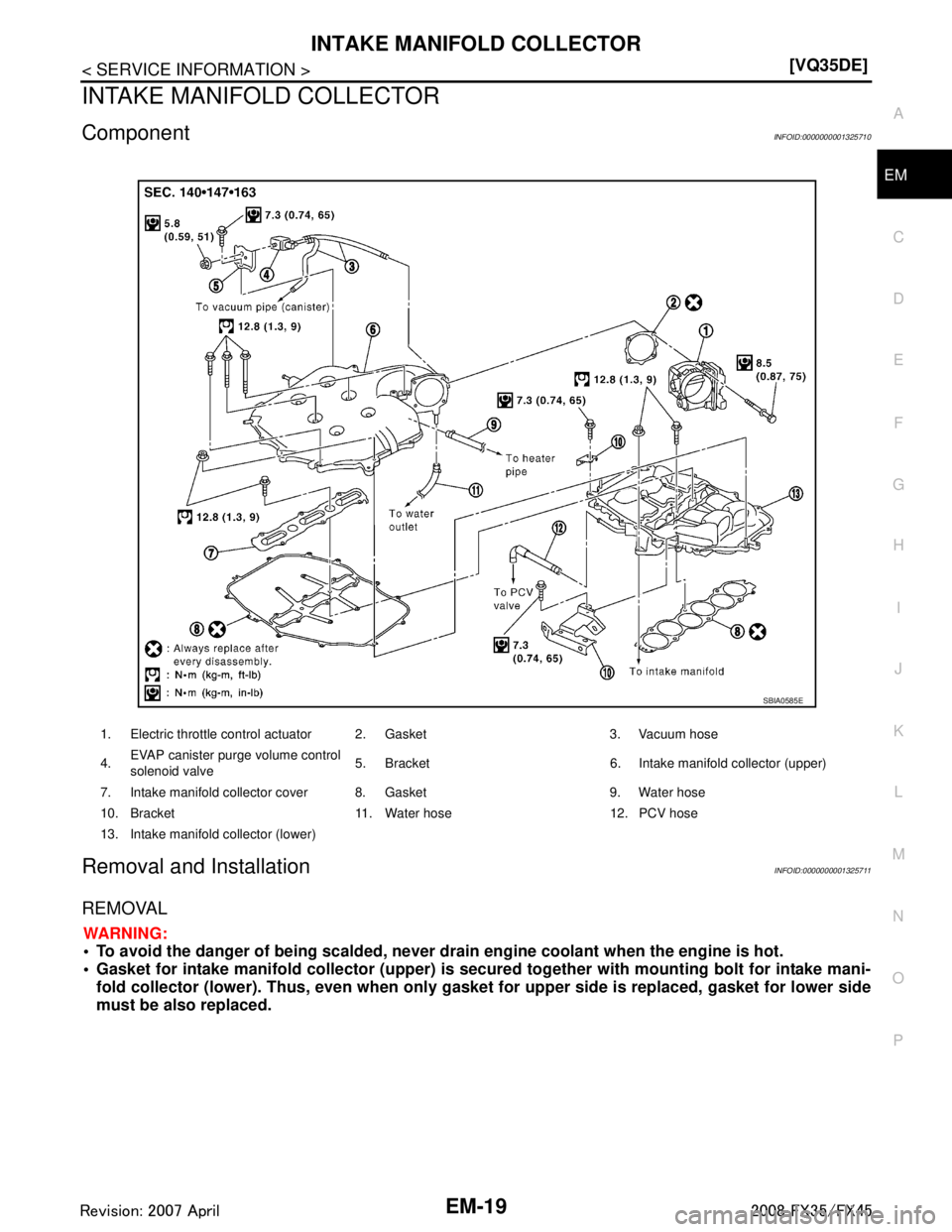

INTAKE MANIFOLD COLLECTOR
ComponentINFOID:0000000001325710
Removal and InstallationINFOID:0000000001325711
REMOVAL
WARNING:
 To avoid the danger of being scalded, never dr
ain engine coolant when the engine is hot.
 Gasket for intake manifold collector (upper) is secu red together with mounting bolt for intake mani-
fold collector (lower). Thus, even when only gasket for upper side is replaced, gasket for lower side
must be also replaced.
1. Electric throttle control actuator 2. Gasket 3. Vacuum hose
4. EVAP canister purge volume control
solenoid valve
5. Bracket 6. Intake manifold collector (upper)
7. Intake manifold collector cover 8. Gasket 9. Water hose
10. Bracket 11. Water hose 12. PCV hose
13. Intake manifold collector (lower)
SBIA0585E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

INTAKE MANIFOLD COLLECTOREM-21
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
8. Loosen mounting bolts in reverse order of illustration to remove
intake manifold collector (upper) with power tool.
9. Remove PCV hose [between intake manifold co llector (lower) and rocker cover (right bank)].
10. Loosen mounting bolts in reverse order as shown in the figure, and remove intake manifold collector cover, gasket, intake man-
ifold collector (lower) and gasket with power tool.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
 Check the surface distortion of both the intake manifold collector
(upper and lower) mating surfaces with a straightedge and a feeler
gauge.
 If it exceeds the limit, replace intake manifold collector (upper and/ or lower).
INSTALLATION
Note the following, and install in the reverse order of removal.
Part Installation Direction
PBIC0773E
PBIC0774E
Limit : 0.1 mm (0.004 in)
PBIC0775E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-24
< SERVICE INFORMATION >[VQ35DE]
INTAKE MANIFOLD
INTAKE MANIFOLD
ComponentINFOID:0000000001325712
Removal and InstallationINFOID:0000000001325713
REMOVAL
1. Release fuel pressure. Refer to
EC-87, "Fuel Pressure Check".
2. Remove intake manifold colle ctors (upper and lower). Refer to EM-19, "
Component".
3. Remove fuel tube and fuel injector assembly. Refer to EM-45, "
Component".
4. Loosen mounting bolts and nuts in reverse order as shown in the figure to remove intake manifold with power tool.
5. Remove gaskets. CAUTION:
Cover engine openings to avoid entry of foreign materials.
INSPECTION AFTER REMOVAL
Surface Distortion
1. Harness bracket 2. Intake manifold 3. Gasket
SBIA0487E
PBIC0778E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EM-26
< SERVICE INFORMATION >[VQ35DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
EXHAUST MANIFOLD AND THREE WAY CATALYST
ComponentINFOID:0000000001325714
 Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325715
REMOVAL
WARNING:
Perform the work when the exhaust and co oling system have completely cooled down.
1. Remove engine cover with power tool. Refer to EM-19, "
Component".
2. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
 Perform this step when the engine is cold.
 Do not spill engine coolant on drive belts.
3. Remove air cleaner case and air duct. Refer to EM-17, "
Component".
4. Remove front and rear engine undercover and front cross bar with power tool.
5. Disconnect heated oxygen sensors 2 ( bank 1 and bank 2) harness connectors.
1. Heated oxygen sensor 2 (bank 1) 2. Three way catalyst (right bank) 3. Gasket
4. Air fuel ratio sensor 1 (bank 1) 5. Exhaust manifold cover (right bank) 6. Exhaust manifold (right bank)
7. Exhaust manifold (left bank) 8. Exhaust manifold cover (left bank) 9. Three way catalyst (left bank)
10. Air fuel ratio sensor 1 (bank 2) 11. Heated oxygen sensor 2 (bank 2)
JPBIA0829GB
