2008 HONDA PILOT Owners Manual

Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle. Do not use
the extended sun visor over the rear
view mirror.None of the sockets will power an
automotive type cigarette lighter
element. When both sockets are
being used, the combined power
rating of the accessories should be
120 watts or less (10 amps).
The light comes on when you pull up
the cover.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip and swing it out. Slide
the extension out to get more
coverage on the side window. To use the vanity mirror on the back
of the sun visor, pull up the cover.
The vanity mirror light will not come
on if the sun visor is slid outward.Each socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
Sun Visor A ccessory Power Sockets
Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
101
SUN VISOR
EXTENSION
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

Always run the engine when you use
the AC power outlet.The maximum capacity f or this
power outlet is 115 volt AC at 100
watts or less. If you use an appliance
which requires more than 100 watts,
it automatically stops supplying the
power. If this happens, turn the
ignition switch of f and turn it on
again.
The AC power outlet is not
designed f or electric appliances
which require high initial peak
wattage such as cathode-ray tube
type televisions, ref rigerators,
electric pumps, etc. It is also not
suitable f or devices that process
precise data such as medical
equipment or measuring instruments.
Any appliances that require an
extremely stable power supply such
as microcomputer-controlled electric
blankets, touch sensor lamps, etc.,
should not be connected to this
outlet. All the individual map lights come
onandstayonaslongasthe
switch remains in the ON position.
The individual map lights in the
f ront can be turned on and of f with
the switches next to the lights.
None of the lights come on when a
door or the tailgate is opened.
There is a 115 volt AC power outlet
in the console compartment. To use
the AC power outlet, open the
console compartment lid and open
the outlet cover. Insert the plug into
the receptacle slightly, turn it 90°
clockwise, then push in the plug all
the way.
When this switch is in the ON position:
If equipped
When the switch is in the OFF position:
Interior Convenience Items, Interior L ights
AC Power Outlet Light Control Switch
102
NOTE:
DOOR
ACTIVATED
POSITIONOFF
ON
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

The individual map lights in the
second and third rows cannot be
turned on.The courtesy light between the map
lights comes on when you turn the
parking lights on. To adjust its
brightness, turn the select/reset
knob on the instrument panel.
The individual map lights come on
whenanydoororthetailgateis
opened, or when the remote
transmitter is used to unlock the
doors.
The individual map lights in the
second and third rows can be
turned on and of f by pressing the
lens.
The tailgate light comes on when
you open the tailgate if the light
switch is in the ON position.
The lights go out about 6 seconds
after all the doors and the tailgate
are closed. With any door or the
tailgate lef t open, the lights stay
on about 3 minutes, then go out. The light in the tailgate has an on-of f
switch to control if the light comes
on when the tailgate is opened.
The courtesy lights in the f ront
doors and around the ignition switch
come on when you open any door.
Af ter you close the door, the ignition
switch light stays on f or several
seconds.
Turn on the f ront and rear individual
map lights by pushing the lens of
each light. Push the lens again to
turn it off. You can also operate
these lights with the light control
switch (see page ).
102
When the switch is in the door activated
position:
Interior Lights
Courtesy Lights
Individual Map L ights
Tailgate Light
Individual Interior L ights
Inst rument s and Cont rols
103
\f—\f—\fy

y
(+\fy\f
\fy
2008 Pilot

104
\f—\f—\fy

\fy
(+\fy\f
\fy
2008 Pilot

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and thef t of your
vehicle..............
Vents, Heating, and A/C .106
......
Automatic Climate Control .112
.........
Using the Rear A/C Unit .113
................................
Audio System .115
..........................
Playing the Radio .117
............................
Radio Reception .122
.
Playing the XM
Satellite Radio .124
................................
Playing a Disc .130
........................
Disc Changer .131,134
..................
Protecting Your Discs .135
.......
Disc Player Error Messages .138
Disc Changer Error
...................................
Messages .139
................
Remote Audio Controls .140
.................
Radio Thef t Protection .141
..........................
Setting the Clock .142
........
Rear Entertainment System .144
............................
Security System .176
...............................
Cruise Control .177
.........................................
Compass .179
.
Rear View Camera and Monitor .182
HomeLink Universal
................................
Transceiver .183
Except f or LX models
Features
Features
105
\f—\f—\fy

y
(+\fy\f

\fy
2008 Pilot

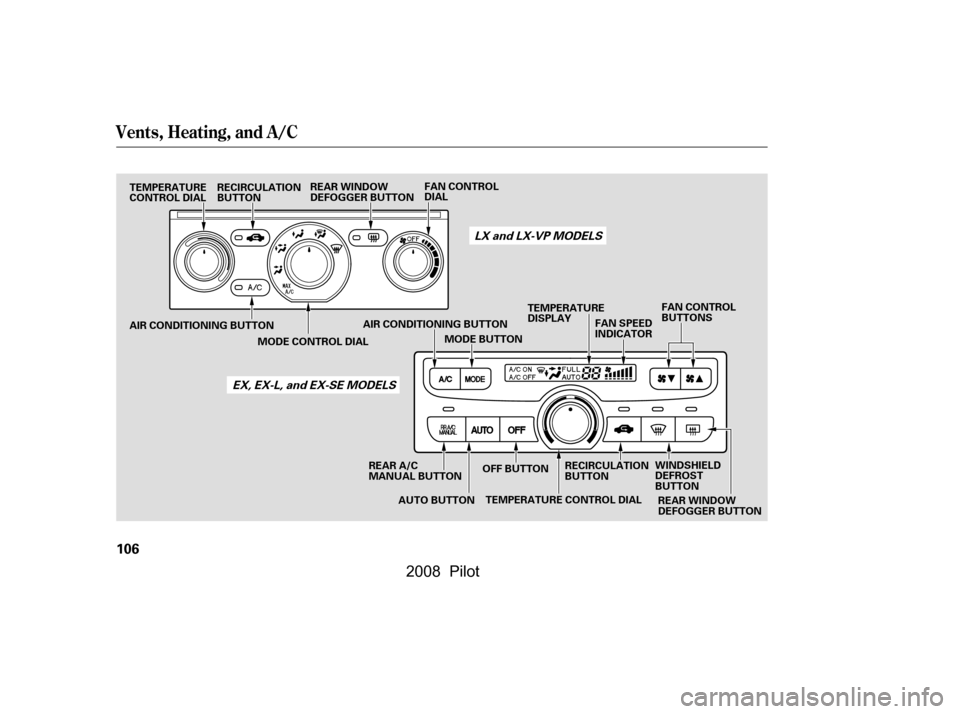

Vents, Heating, and A/C
106
TEMPERATURE
CONTROL DIALRECIRCULATION
BUTTON FAN CONTROL
DIAL
REAR WINDOW
DEFOGGER BUTTON
MODE CONTROL DIAL AIR CONDITIONING BUTTON
MODE BUTTON FAN SPEED
INDICATORFAN CONTROL
BUTTONS
TEMPERATURE CONTROL DIAL
AUTO BUTTON
REAR WINDOW
DEFOGGER BUTTON
OFF BUTTON
RECIRCULATION
BUTTON WINDSHIELD
DEFROST
BUTTON
AIR CONDITIONING BUTTON
TEMPERATURE
DISPLAY
REAR A/C
MANUAL BUTTON
LX and LX-VP MODELS
EX, EX-L, and EX-SE MODELS
\f—\f—\fy

\f
y
(+\fy\f


y
2008 Pilot

Press the RR A/C MANUAL button
to adjust the temperature of the rear
passenger compartment
independently. See page f or
inf ormation using the rear A/C unit.
This button turns the air
conditioning on and of f . On LX and
LX-VP models, the indicator in the
buttonisonwhentheA/Cison.On
EX, EX-L, and EX-SE models, you
will see A/C ON or A/C OFF in the
display.
The temperature setting is shown in
the display.
Turning this dial clockwise increases
the temperature of the airflow.
Select the f an speed by pressing the
fan control buttons ( or ).
The f an speed is shown in vertical
bars on the display.
Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it.
The climate control system can also
be operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
On EX, EX-L and EX-SE models, see
page f or inf ormation on
automatic climate control and semi-
automatic operation. When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the dial below
the outside air temperature. 113
112
On vehicles with navigation system
On LX and LX-VP models On EX, EX-L, and EX-SE models
On EX, EX-L, and EX-SE models On EX, EX-L, and EX-SE models
On EX, EX-L, and EX-SE models
Vents, Heating, and A/C
RR A/C MANUAL Button
Air Conditioning (A/C) Button
T emperature Control Dial
Fan Control
Voice Control System
Features
107
\f—\f—\fy


y
(+\fy\f

y
2008 Pilot

Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield.
Air f lows f rom the def roster
vents at the base of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C.
In this case, you cannot turn the A/C
of f .
When you select , the system
automatically switches to f resh air
mode and turns on the A/C.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C.
This button turns the rear window
def ogger of f and on (see page ).
Use the mode control dial or button
to select the vents the air flows from.
Some air will flow from the
dashboard corner vents in all modes.
Each time you press the MODE
button, the display shows the mode
selected.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents.
When the indicator in the button is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
77
On EX, EX-L, and EX-SE models
On LX and LX-VP models
On EX, EX-L, and EX-SE models
Vents, Heating, and A/C
Rear Window Def ogger Button
Mode Control
Recirculation Button
108
