2008 HONDA PILOT Owners Manual

Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected (LX and LX-VP models),
or the display shows A/C ON (EX,
EX-L, and EX-SE models).
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center and side vents in the
dashboard. In this mode, you cannot
turn of f the A/C and also cannot
switch to f resh air mode.
When you switch to f rom
, the A/C stays on, and you
can turn it on and of f manually.
When you switch to another mode,
the A/C returns to its original setting,
either on or of f , as displayed by the
A/C indicator. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then discharges
it through vents near the tailgate.
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system. Select and fresh air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3. 5.71On LX and LX-VP models
Vents, Heating, and A/C
Using the A/C
Ventilation
MA X A /C
Using the Heater
Features
109
\f—\f—\fy

y
(+\fy\f

y
2008 Pilot

To remove f og f rom the inside of the
windows:Set the f an to the desired speed, or
high f or f aster def rosting.
Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator (LX and LX-VP
models) or the A/C ON indicator
in the display (EX, EX-L, and
EX-SE models) will not be
displayed if it was previously of f .
Adjust the temperature control
dial so the airflow feels warm.
Select to help clear the
rear window.
Turn the fan on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature control
dial to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
The vehicle has two A/C
units, one is in the f ront, and the
other is in the rear. The LX and
LX-VP units are independently
controlled. The EX, EX-L, and EX-SE
units are controlled by the f ront
panel controls, unless the RR A/C
MANUAL button is selected.
Set the f an to the desired speed.
Select MAX A/C.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool.
To cool the interior with MAX A/C: 1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
If the interior is very warm,
On LX and LX-VP modelsTo Def og and Def rost
To Dehumidify the Interior
Vents, Heating, and A/C
110
NOTE:
\f—\f—\fy

y
(+\fy\f

y
2008 Pilot

When you switch to , f romor , the A/C stays on.
This helps prevent the windows f rom
rapidly f ogging up when the air is
suddenly routed away f rom the
windshield. If you want to turn the
A/C off, press and release the A/C
button until the indicator in the
buttoncomesonandthengoesoff.
When you press again or the
MODE button, the A/C returns to its
original setting, either on or of f , as
displayed by the A/C ON or A/C
OFF indicator. If the original setting
is A/C OFF, the system switches to
AUTO. Select . The system
automatically switches to f resh air
mode and turns on the A/C. The
A/C indicator (LX and LX-VP
models) or the A/C ON indicator
in the display (EX, EX-L, and
EX-SE models) will not be
displayed if it was previously of f .
Select .
Set the f an and temperature
controls to maximum level.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents.
Continuous use of the recirculation
mode can cause humidity to build up
inside the vehicle. Once the
windshield is clear, select the f resh
air mode to avoid fogging the
windows.
1.
2.
3.
On LX and LX-VP models
On EX, EX-L, and EX-SE models
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Features
111
\f—\f—\fy

\f\fy
(+\fy\f

y
2008 Pilot

µYou can manually select various
f unctions of the climate control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled. Making any
manual selection causes the word
FULL in the display to go out.
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
Press the AUTO button.
Set the desired temperature by
turning the temperature control
dial. You will see FULL AUTO in
the system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your pref erence. When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
When the
system is in FULL AUTO, the rear
A/C passenger control dial cannot
be used. Pressing the button disables
the FULL AUTO f unction. Turning the fan control dial to the
off position shuts the system off.
If you press OFF, the climate control
system shuts of f completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
1.
2.Rear A/C Control
On EX, EX-L, and EX-SE models
On EX, EX-L, and EX-SE models
On LX and LX-VP models
Semi-automatic Operation
Automatic Climate Control
To Turn Everything Off
Lo
Hi
Vents, Heating, and A/C
112
\f—\f—\fy



y
(+\fy\f

y
2008 Pilot

µ
µ
µ
A passenger in the second row can
use the rear fan control dial to adjust
the amount of airf low to the rear
passenger compartment.
Press the RR A/C MANUAL button
to enable the rear temperature
control dial; a second row passenger
can now adjust the temperature in
the rear passenger compartment
with the rear temperature control
dial. OFF (center) The rear A/C unit
shuts off.
Cool Air Turn this dial
counterclockwise to increase the
airflow.
Warm Air Turn this dial clockwise
to increase the airflow.When the RR A/C MANUAL button
is on, you can adjust the temperature
of the rear passenger compartment
manually f rom the second row seat.
When the RR A/C MANUAL button
is off, the temperature in the rear
passenger compartment is controlled
by the f ront passenger with f ront
control panel.
CONT INUED
On LX and LX-VP models
On LX and LX-VP models
On EX, EX-L, and EX-SE models On EX, EX-L, and EX-SE models
Using the Rear A/C Unit
Vents, Heating, and A/C
Features
113
COOL AIR
WARM AIR
REAR A/C MANUAL BUTTON
\f—\f—\fy

\fy
(+\fy\f

y
2008 Pilot

µ
µ
µ
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
OFF (center) The rear A/C unit
shuts off.
Warm Air Turn this dial clockwise
to increase the temperature.
Cool Air Turn this dial
counterclockwise to decrease the
temperature.
On EX, EX-L, and EX-SE models
Sunlight and T emperature
Sensors
Vents, Heating, and A/C
114
SUNLIGHT SENSOR TEMPERATURE SENSOR
COOL AIR WARM AIR
\f—\f—\fy

y
(+\fy\f

y
2008 Pilot

Some models may have one of the
audio systems described in this
section.
Read the appropriate pages in this
section f or operation of the audio
systems installed in your models.See page to f or playing the
Radio.
See page to f or playing a
Disc. See page to f or playing the
XM
Satellite Radio. 121
117
129
124
139
130
CONT INUED
Only U.S. LX-VP, EX-L, and EX-SE
models
Audio System
Features
115
AM/FM/CD Audio System
AM/FM/CD Changer Audio System
(EX models)
On U.S. models On U.S. models
(EX-L models)
On Canadian models
(LX models)
(LX-VP and EX-L models)
On Canadian models
——y

y
(+y
y
2008 Pilot

Audio System
116
On U.S. models(EX-L models)
On Canadian models

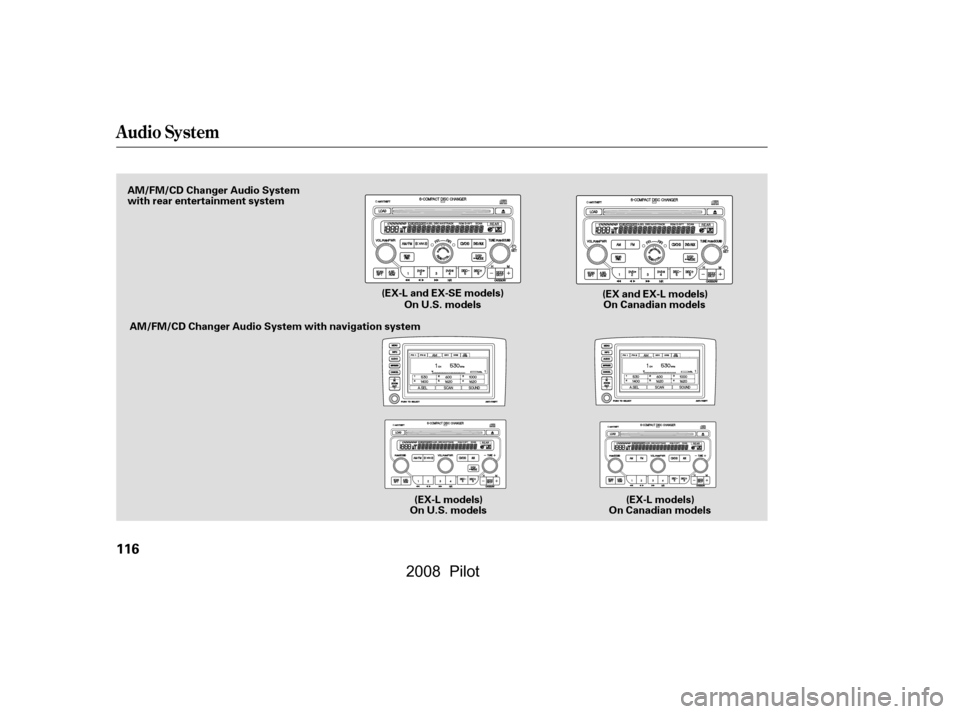

AM/FM/CD Changer Audio System
with rear entertainment system
On U.S. modelsOn Canadian models
AM/FM/CD Changer Audio System with navigation system
(EX-L models)
(EX-L and EX-SE models)
(EX and EX-L models)
\f—\f—\fy

y
(+\fy\f

y
