2008 HONDA PILOT Owners Manual

µ
CONT INUED
XMis a registered trademark of
XM Satellite Radio, Inc.
Your audio system is capable of
receiving XM
Satellite Radio
anywhere in the United States,
except Hawaii and Alaska.
XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
allows you to view channel and
category selections in the display.
The navigation system screen also
shows all XM inf ormation when the
AUDIO button is pressed.
To listen to XM radio, turn the
ignition switch to the ACCESSORY
(I) or the ON (II) position. Push the
PWR/VOL knob to turn on the audio system, and press the ‘‘XM’’ button.
Adjust the volume by turning the
PWR/VOL knob. The last channel
you listened to will show in the
display.
You can also change to the XM radio
while you are listening to an FM
station, AM station, CD, etc., by
touching the XM1 or XM2 icon on
the audio display (navigation system
screen).
To switch between
channel mode and category mode,
press and hold the DISP/MODE
button until the mode changes.
In channel mode, you can select all
of the available channels. In category
mode, such as Jazz, Rock, Classical,
etc., you can select all of the
channels within that category.
Each time you press and release the
DISP/MODE button, the display
changes in the f ollowing sequence:
Channel name, channel number,
category, artist name, and music title. On the audio display, you will see the
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
U.S. LX-VP, EX-L, and EX-SE models
only
Playing the XMSatellite Radio
Operating the XM Radio MODE
Features
125
On vehicles with navigation system
\f—\f—\fy

\f\fy
(+\fy\f
\fy
2008 Pilot

µ
µ µ
µ
´
µ Pick a preset number (icon) you
want f or that channel. Press and
hold the bar (icon) until you hear a
beep.
Repeat steps 2 and 3 to store the
f irst six channels.
To store a channel:
Press the XM button. Either XM1
or XM2 will show in the display. Press the XM button again or
touch the other XM icon (XM1 or
XM2) on the audio display. Store
the next six channels using steps 2
and 3.
Press either side of the CATEGORY
bar ( or ) to select another
category.
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
scan, press the SCAN/RPT button or
touch the SCAN icon on the audio
display. The system plays each
channel in numerical order f or a f ew
seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again. Youcanstoreupto12
preset channels using the six preset
buttons or preset icons on the audio
display. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
Once a channel is stored, press and
release the proper preset button
(icon) to tune to it.
Turn the TUNE knob lef t
or right to select channels. In the
category mode, you can only select
channels within that category.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.Use the TUNE knob, the
CATEGORY bar, or the SCAN
buttons to tune to a desired
channel.
1.
2. 3.
4.
5.
Playing the XMSatellite Radio
SEEK /SK IP (CA T EGORY)
SCAN
Preset
TUNE
126
\f—\f—\fy

\f
y
(+\fy\f

y
2008 Pilot

µµ
µ
µ
µ
µ
The encryption
code is being
updated. Wait
until the
encryption code is
f ully updated.
Channels 0 and 1
should still work
normally. The signal is
currently too
weak. Move the
vehicle to an area
away from tall
buildings, and
with an
unobstructed view
of the southern
horizon.
The selected channel
number does not exist, or
isnotpartofyour
subscription, or this
channel has no artist or
title information at this
time.
The channel
currently selected is
no longer
broadcasting. XM is loading the
audio or program
inf ormation.
There is a problem
with the XM
antenna. Please
consult your dealer.
Playing the XMSatellite Radio
XM Radio Display Messages
‘‘UPDA T ING’’ ‘‘NO SIGNA L ’’
‘‘----’’
‘‘OFF A IR’’
‘‘L OA DING’’
‘‘A NT ENNA ’’
Features
127
\f—\f—\fy

\f
y
(+\fy\f
y
2008 Pilot

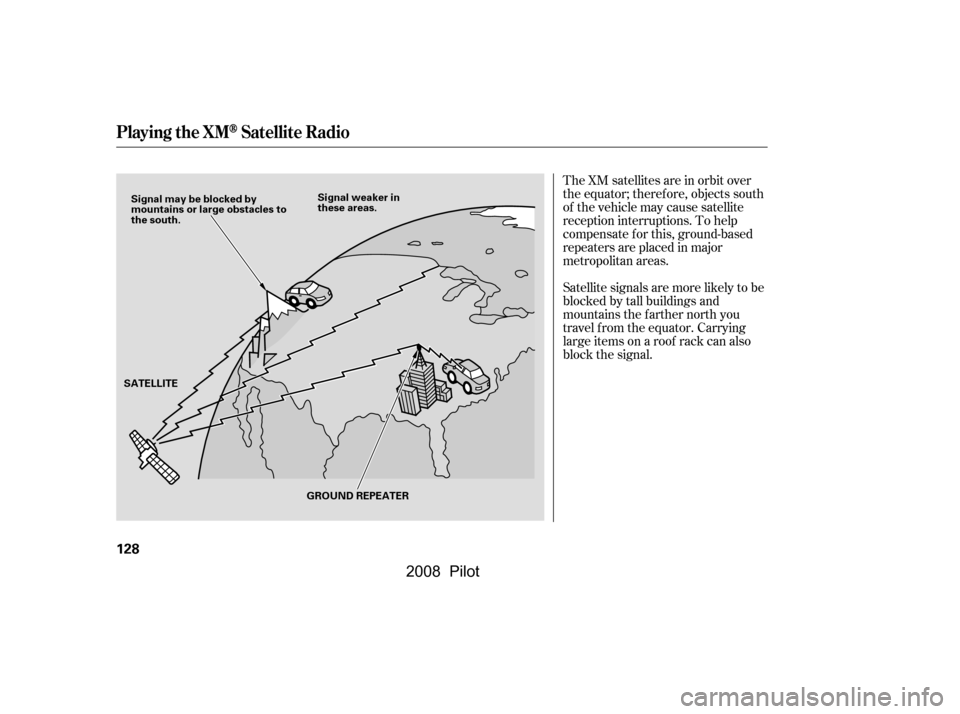

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Playing the XMSatellite Radio
128
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
\f—\f—\fy

\fy
(+\fy\f
y
2008 Pilot

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you. After you’ve registered with XM
Radio, keep your audio system in the
satellite radio mode while you wait
f or activation. This should take about
30 minutes.
Driving on the north side of an
east/west mountain road.
Large items carried on a roof rack.
There may be other geographic
situations that could af f ect XM radio
reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM satellite radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
PWR/VOL knob to turn on the audio
system and press the XM RADIO
button. A variety of music types and
styles will play.
If you decide to purchase XM
satellite radio service, contact XM
Radio at , or at
1-800-852-9696. You will need to give
them your radio I.D. number and
your credit card number. To get your
radio I.D. number, turn the TUNEknob until ‘‘0’’ appears in the display.
Your I.D. will appear in the display.
Though it is not equipped with an
XM satellite radio system, your
vehicle is ‘‘XM Ready.’’ If you
purchase an XM radio receiver, you
can connect it to your vehicle’s audio
system to receive XM broadcasts.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, you’ll be
able to listen to XM radio broadcasts.
XM Radio will continue to send an
activation signal to your vehicle f or
at least 12 hours from the activation
request. If the service has not been
activated after 36 hours, contact XM
Radio.As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.com U.S. EX models
Receiving Satellite Radio Service
Playing the XMSatellite Radio
Features
129
\f—\f—\fy

\fy
(+\fy\f
y
2008 Pilot

Playing a Disc
130
PWR/VOL KNOBREPEAT INDICATOR
CD SLOT
CD EJECT
BUTTON
CD SLOT
PWR/VOL
KNOB SEEK/SKIP BAR
RANDOM INDICATOR
CD BUTTON
CD EJECT
BUTTON
RANDOM BUTTON
RANDOM
BUTTON
REPEAT
BUTTON REPEAT BUTTON
CD LOAD INDICATOR
LOAD
BUTTON
CD
BUTTON
PRESET BUTTONS CD SLOT
PWR/VOL
KNOB RANDOM
BUTTON
REPEAT
BUTTON CD LOAD INDICATOR
LOAD
BUTTON
CD
BUTTON
PRESET BUTTONS
SKIP BAR
SKIP BAR
(Canadian LX models)
U.S. EX model is shown
(U.S. LX-VP, EX, EX-L, and
Canadian EX-L models)
CD EJECT BUTTON
(U.S. EX-L, EX-SE, and Canadian EX, EX-L models
with rear entertainment system)
\f—\f—\fy

\fy
(+\fy\f
y
2008 Pilot

µ
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD player/CD
changer with the same controls used
for the radio. To select the CD
player/CD changer, press the CD
button. The number of the track
playing is shown in the display. With
the in-dash CD changer, the disc and
track numbers are displayed. The
system will continuously play a CD
until you change modes.
Insert a CD about half way into the
CD slot. The drive will pull the CD in
the rest of the way and begin to play
it. When the system reaches the end
of the disc, it will return to the
beginning and play the disc again.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
To listen to satellite radio when a CD
is playing, press the AUX/XM or XM
button.
To play the radio when a CD is
playing, press the AM/FM button
(AM or FM button). Press the CD
button again to switch back to the
CD player.
To select a dif f erent disc, press the
appropriate preset button (1 6). On
models with navigation system,
touch the appropriate disc icon. If
youselectanemptypositioninthe
CD changer, the system will go into
the loading sequence.
On models with Satellite Radio
LX models
Playing a Disc, Disc Changer
To Play a CD
Features
131
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
\f—\f—\fy

\f\fy
(+\fy\f
y
2008 Pilot

µ´
µ
´
µ
µ
µ
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button.
To load only one CD, press and
release the LOAD button.
Insert the CD into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD loaded indicator
turns red and blinks as the CD is
loaded.
Ontheupperleftsideof the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on. When ‘‘LOAD’’ appears again in
the display, insert the next CD into
the CD slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
If you are not loading CDs into all six
positions, press the LOAD button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, the system will
wait f or 10 seconds, then stop the
load operation and begin playing the
last CD loaded. Each time you press and
release /( ), the player skips
f orward to the beginning of the next
track. Press and release /( )
to skip backward to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe /( )or /
( ). You will see CUE or REW in
the display.
To continuously replay
a track, press and release the RPT
button. You will see RPT in the
display. Press it again to turn it of f .
This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. This continues until you
press the RDM button again.
1.
2.
3.
4.
5.
Except f or LX model
L oading CDs in the In-dash CD
Changer
SK IP
REPEAT
RANDOM
Playing a Disc, Disc Changer
132
\f—\f—\fy


\f\fy
(+\fy\f
y
2008 Pilot
