2008 HONDA FIT Owners Manual

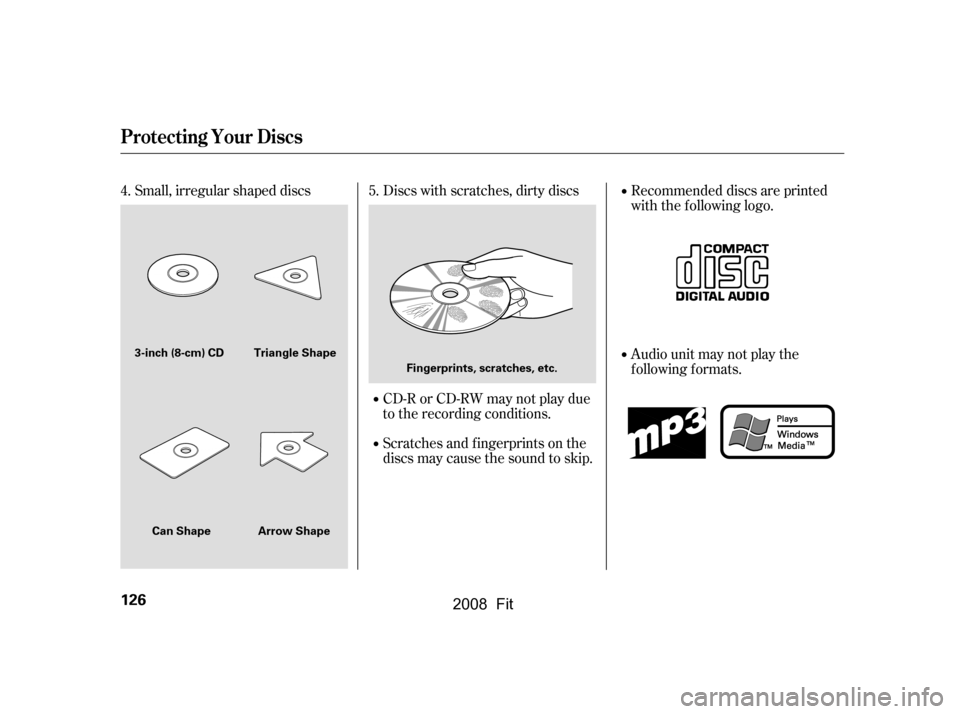

Small, irregular shaped discs Discs with scratches, dirty discsCD-R or CD-RW may not play due
to the recording conditions.
Scratches and f ingerprints on the
discs may cause the sound to skip.Recommended discs are printed
with the f ollowing logo.
Audio unit may not play the
following formats.
4. 5.
Protecting Your Discs
126
Fingerprints, scratches, etc.
3-inch (8-cm) CD Triangle Shape
Arrow Shape
Can Shape
\f—\f—y\fy
(
\fy\f

y
2008 Fit

The auxiliary input jack is
underneath the accessory power
socket in the center pocket. The
system will accept auxiliary input
f rom standard audio accessories.
When a compatible audio unit is
connected to the jack, press the AUX
button to select it.
U.S. Sport and all Canadian models
Auxiliary Input Jack
Features
127
\f—\f—y\fy
(
\fy\f
y
2008 Fit

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘ENTER
CODE’’ in the f requency display the
nexttimeyouturnonthesystem.
Use the preset buttons to enter the
code. The code is on the radio code
card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have 10 tries to
enter the correct code. If you are
unsuccessf ul in 10 attempts, you
must then leave the system on for 1
hour bef ore trying again.
Radio T hef t Protection
128
\f—\f—y\f\fy
(
\fy\f
y
2008 Fit

Press and hold the CLOCK
(SOUND) button until you hear a
beep. The displayed time begins to
blink. Change the hours by pressing
the H (preset 4) button until the
numbers advance to the desired time.
Change the minutes by pressing the
M (preset 5) button until the
numbers advance to the desired time.For example:
1:06 will reset to 1:00
1:53 will reset to 2:00
Press the CLOCK (SOUND) button
again to enter the set time.
You can quickly set the time to the
nearest hour. If the displayed time
is bef ore the half hour, press the
CLOCK (SOUND) button until
you hear a beep, then press the R
(preset 6) button to set the clock
back to the previous hour. If the
displayed time is af ter the half
hour, the clock sets f orward to the
beginning of the next hour.
Setting the Clock
Features
129
CLOCK
H BUTTON CLOCK
H BUTTON
M BUTTON RESET
BUTTON
RESET
BUTTON
M BUTTON
All models except Sport Sport model
CLOCK BUTTON
(SOUND) CLOCK BUTTON
(SOUND)
\f—\f—y\f
y
(
\fy\f
y
2008 Fit

Once the security system is set,
opening any door, the tailgate, or the
hood without using the key or the
remote transmitter, will cause it to
alarm. It also alarms if the radio is
removed f rom the dashboard or the
wiring is cut.The security system will not set if
the hood, tailgate, or any door is not
f ully closed. If the system will not set,
check the door and tailgate open
indicator on the instrument panel
(see page ) to see if the doors and
tailgatearefullyclosed.Sinceitis
notpartofthemonitordisplay,
manually check the hood.
To see if the system is set
af ter you exit the vehicle, press the
LOCK button on the remote
transmitter within 5 seconds. If the
system is set, the horn will beep
once.
Do not attempt to alter this system
or add other devices to it.
The security system helps to protect
your vehicle and valuables f rom thef t.
The horn sounds and a combination
of headlights, position lights, side
marker lights and taillights f lashes if
someone attempts to break into your
vehicle or remove the audio unit.
This alarm continues f or 2 minutes,
then the system resets. To reset an
alarming system before the 2
minutes have elapsed, unlock the
driver’s door with the key or the
remote transmitter.
The alarm will also be activated if
the passenger inside the locked
vehicle turns the ignition switch on.
The security system automatically
sets 15 seconds after you lock the
doors, hood, and the tailgate. For the
system to activate, you must lock the
doorsandthetailgatefromthe
outside with the key, driver’s lock
tab, door lock master switch, or

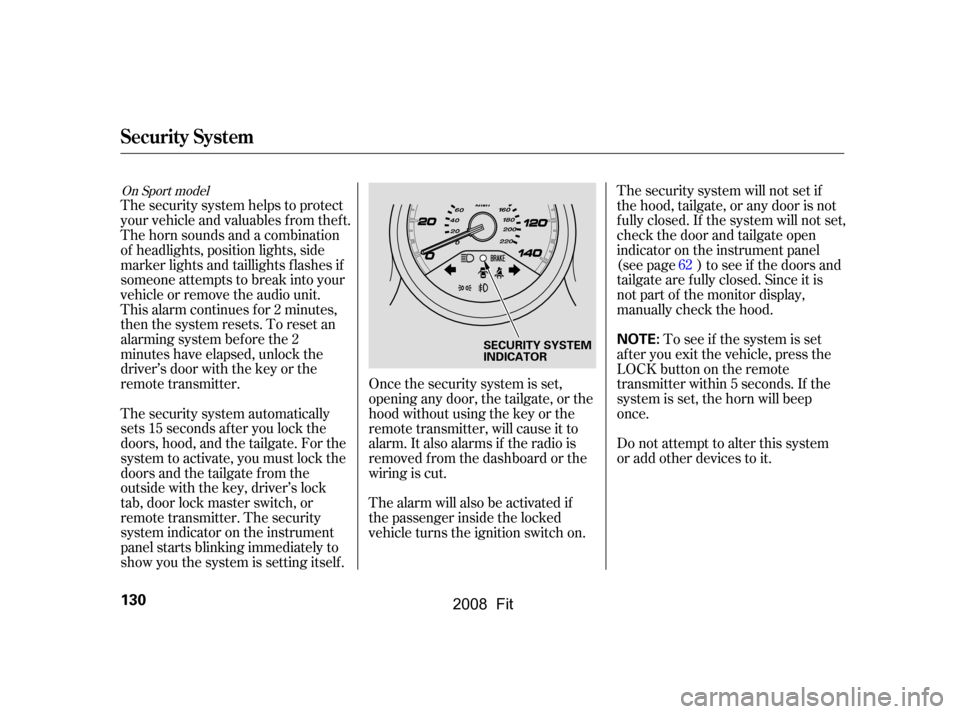

remote transmitter. The security
system indicator on the instrument
panel starts blinking immediately to
show you the system is setting itself . 62
On Sport model
Security System
130
NOTE:SECURITY SYSTEM
INDICATOR
\f—\f—y\f
y
(
\fy\f
y
2008 Fit

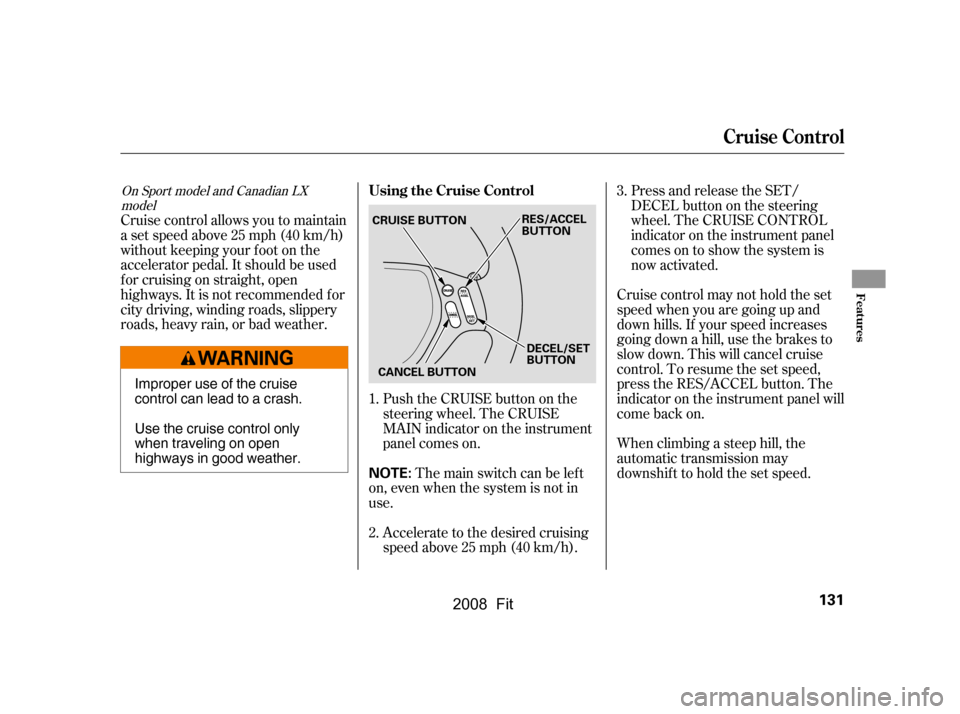

Push the CRUISE button on the
steering wheel. The CRUISE
MAIN indicator on the instrument
panel comes on.Press and release the SET/
DECELbuttononthesteering
wheel. The CRUISE CONTROL
indicator on the instrument panel
comes on to show the system is
now activated.
Cruise control may not hold the set
speed when you are going up and
down hills. If your speed increases
going down a hill, use the brakes to
slowdown.Thiswillcancelcruise
control. To resume the set speed,
press the RES/ACCEL button. The
indicator on the instrument panel will
come back on.
When climbing a steep hill, the
automatic transmission may
downshifttoholdthesetspeed.
Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.
Accelerate to the desired cruising
speedabove25mph(40km/h).The main switch can be left
on,evenwhenthesystemisnotin
use.
1.
2. 3.
On Sport model and Canadian LX
model
Cruise Control
Using the Cruise Control
Features
131
NOTE:
DECEL/SET
BUTTON
CRUISE BUTTON
RES/ACCEL
BUTTON
CANCEL BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
\f—\f—y\fy
(
\fy\f
y
2008 Fit

You can increase the set cruising
speed in any of these ways:Press and hold the RES/ACCEL
button. When you reach the
desired cruising speed, release the
button.
To increase your speed in very
small amounts, tap the RES/
ACCEL button. Each time you do
this, the vehicle will speed up
about 1 mph (1.6 km/h). Press and hold the SET/DECEL
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/DECEL
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the DECEL/
SET button.
You can decrease the set cruising
speed in any of these ways:
Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your f oot on the brake or
clutch pedal causes the cruise
control to cancel.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, then press the SET/
DECEL button.
Cruise Control
Changing the Set Speed
132
\f—\f—y\fy
(
\fy\f
y
2008 Fit

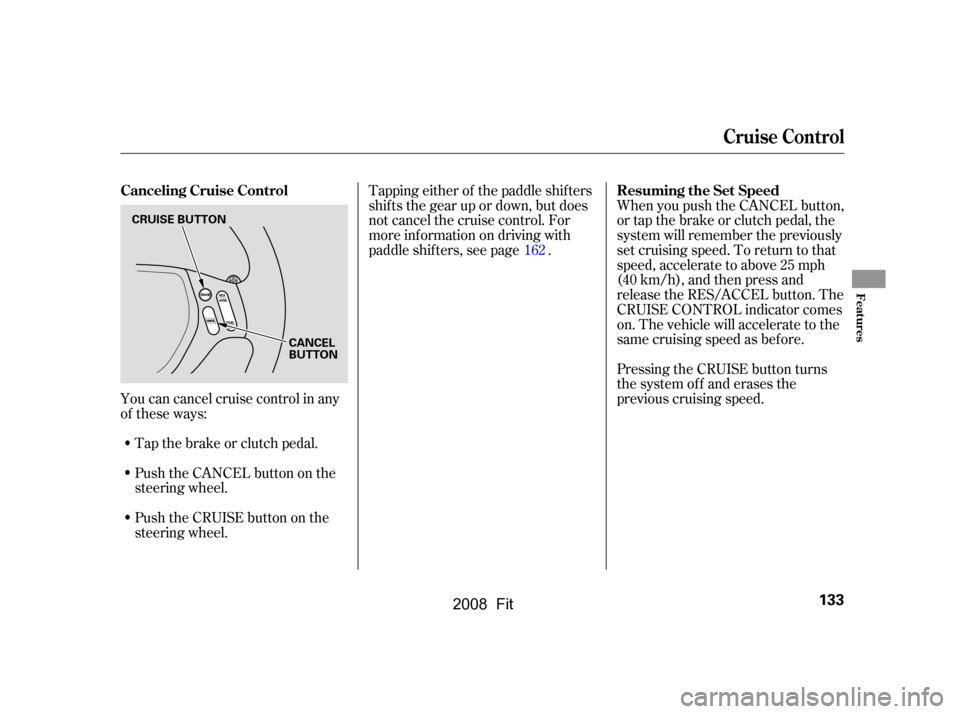

You can cancel cruise control in any
of these ways:Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
Push the CRUISE button on the
steering wheel. When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remember the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), and then press and
release the RES/ACCEL button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as bef ore.
Pressing the CRUISE button turns
the system off and erases the
previous cruising speed.
Tapping either of the paddle shif ters
shif ts the gear up or down, but does
not cancel the cruise control. For
more information on driving with
paddle shif ters, see page .
162
Cruise Control
Canceling Cruise Control Resuming the Set Speed
Features
133
CRUISE BUTTON
CANCEL
BUTTON
\f—\f—y\fy
(
\fy\f
y
2008 Fit
