2008 HONDA FIT Owners Manual

µTo open the driver’s
window f ully, push the window
switch f irmly down to the second
detent, and release it. The window
will automatically go down all the
way. To stop the window, pull back
on the window switch briefly.
Turn the ignition switch to the ON
(II) position to raise or lower any
window. To open the window, push
the switch down and hold it. Release
the switch when you want to stop the
window. To close the window, pull
back on the switch and hold it.

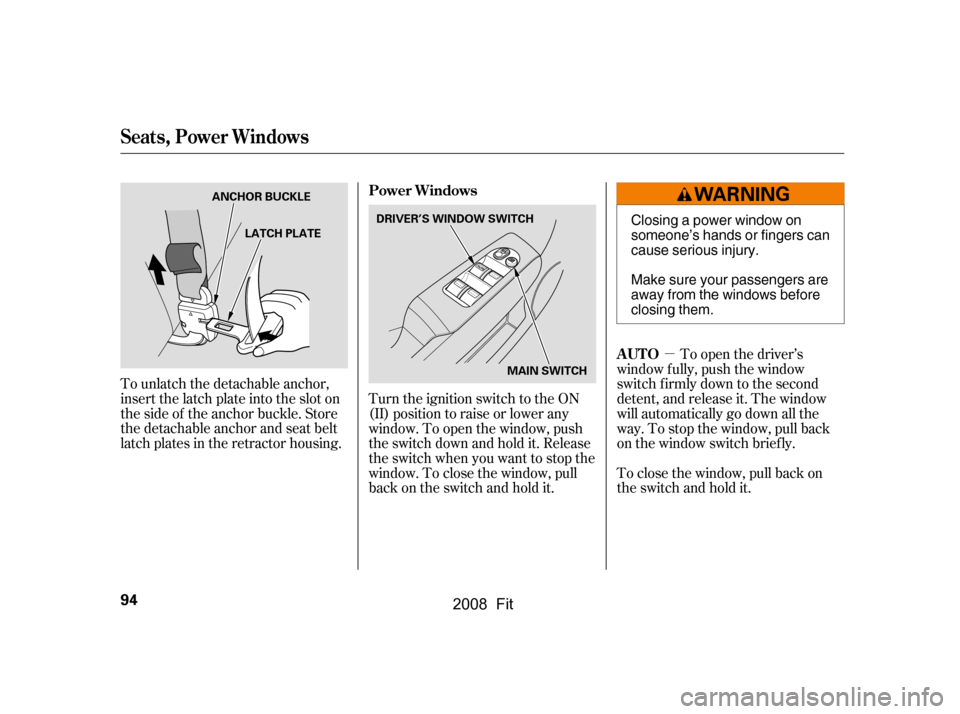

To unlatch the detachable anchor,
insert the latch plate into the slot on
the side of the anchor buckle. Store
the detachable anchor and seat belt
latch plates in the retractor housing.
To close the window, pull back on
the switch and hold it.
AUTO
Power Windows
Seats, Power Windows
94
DRIVER’S WINDOW SWITCH
MAIN SWITCH
ANCHOR BUCKLE
LATCH PLATEClosing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
\f—\f—y\fy
(
\fy\f\fy
2008 Fit

Turn the ignition switch to the ON
(II) position.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.

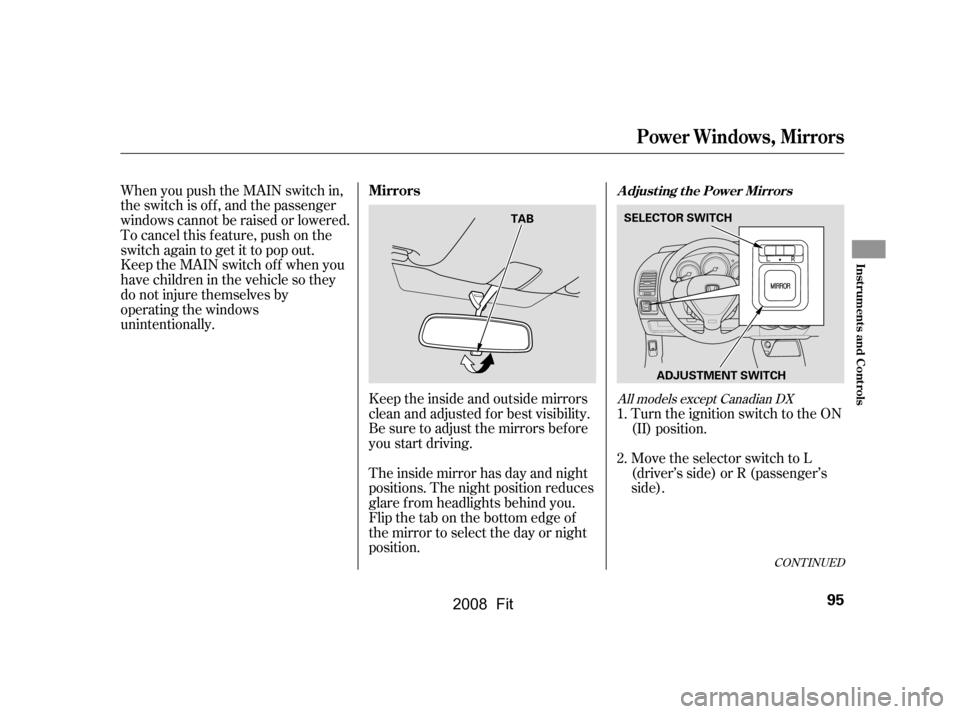

The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
When you push the MAIN switch in,
the switch is off, and the passenger
windows cannot be raised or lowered.
To cancel this f eature, push on the
switch again to get it to pop out.
Keep the MAIN switch of f when you
have children in the vehicle so they
do not injure themselves by
operating the windows
unintentionally.
2.
1.
CONT INUED
All models except Canadian DX
Adjusting the Power Mirrors
Mirrors
Power Windows, Mirrors
Inst rument s and Cont rols
95
SELECTOR SWITCH
ADJUSTMENT SWITCH
TAB
\f—\f—y\fy
(
\fy\f
\f\fy
2008 Fit

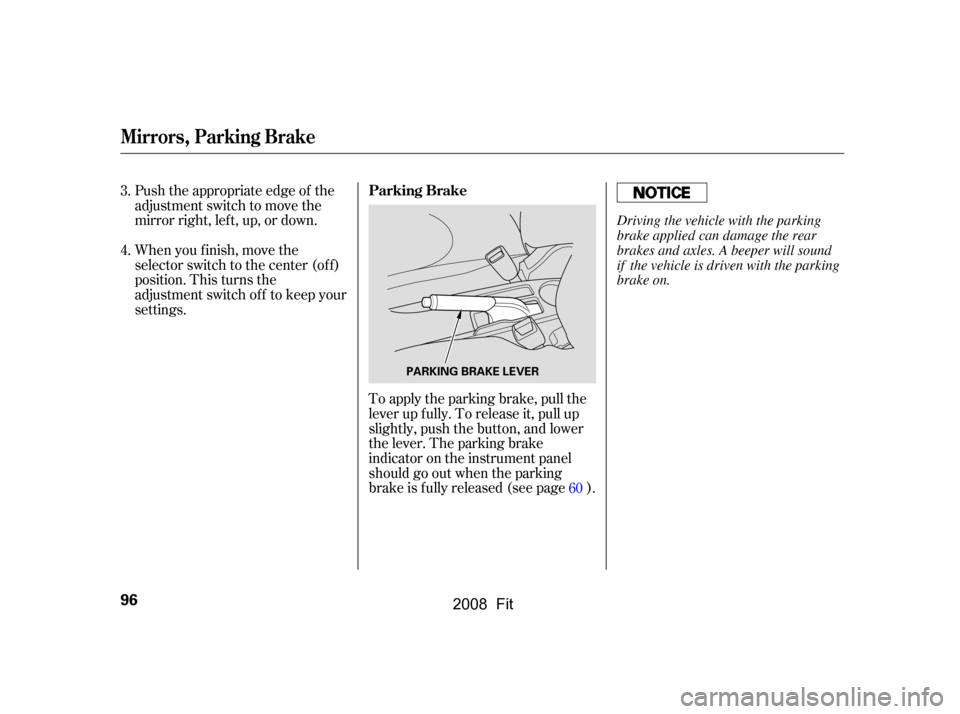

To apply the parking brake, pull the
lever up f ully. To release it, pull up
slightly, push the button, and lower
the lever. The parking brake
indicator on the instrument panel
should go out when the parking
brake is f ully released (see page ).
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
60
3.
4.
Parking Brake
Mirrors, Parking Brake
96
PARKING BRAKE LEVER
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles. A beeper will sound
if the vehicle is driven with the parking
brake on.
\f—\f—y\f\f\fy
(
\fy\f
\f
y
2008 Fit

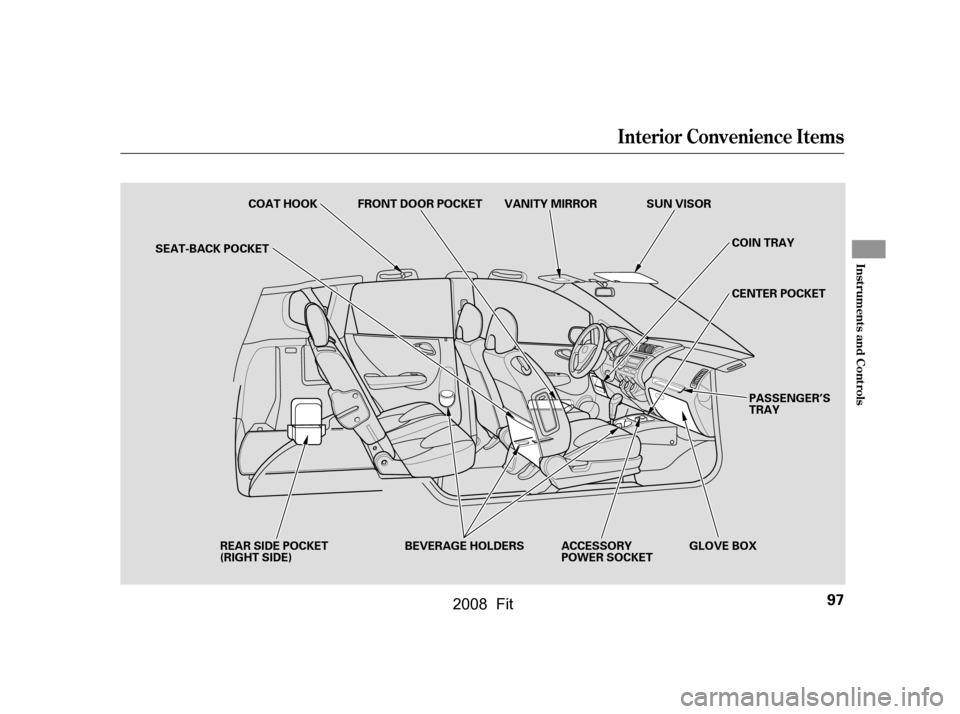

Interior Convenience Items
Inst rument s and Cont rols
97
ACCESSORY
POWER SOCKET
VANITY MIRROR
SEAT-BACK POCKET SUN VISOR
PASSENGER’S
TRAY
BEVERAGE HOLDERS
REAR SIDE POCKET
(RIGHT SIDE) COAT HOOK
GLOVE BOXCOIN TRAY
CENTER POCKET
FRONT DOOR POCKET
\f—\f—y\f\fy
(
\fy\f
\fy
2008 Fit

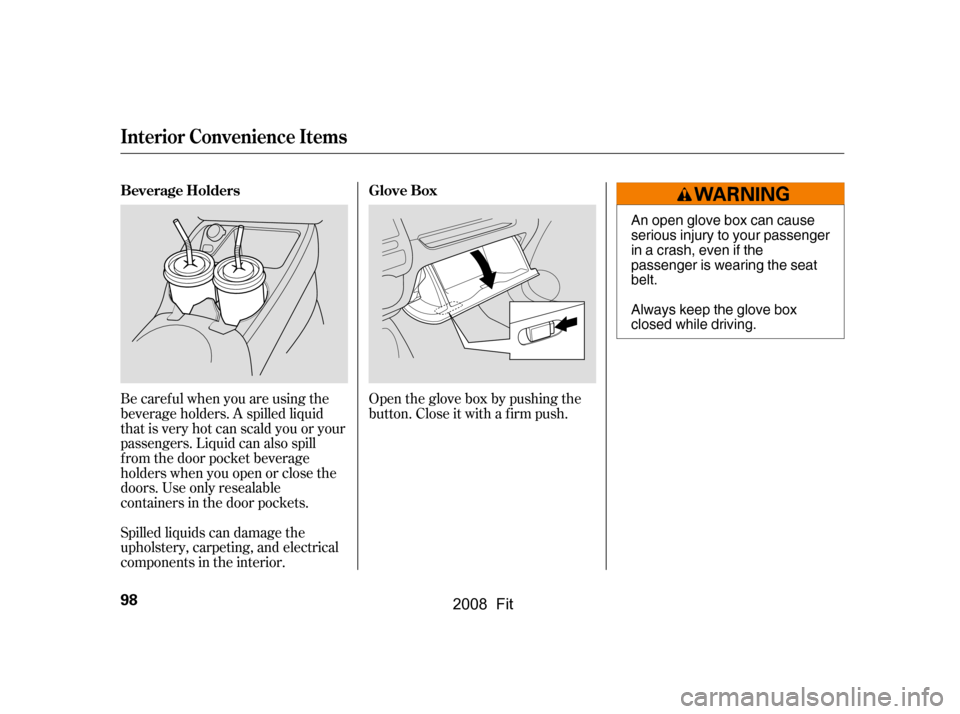

Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Liquid can also spill
f rom the door pocket beverage
holders when you open or close the
doors. Use only resealable
containers in the door pockets.
Spilled liquids can damage the
upholstery, carpeting, and electrical
components in the interior.Open the glove box by pushing the
button. Close it with a f irm push.
Glove Box
Beverage Holders
Interior Convenience Items
98
An open glove box can cause
serious injury to your passenger
inacrash,evenifthe
passenger is wearing the seat
belt.
Always keep the glove box
closed while driving.
\f—\f—y\f

y
(
\fy\f
\fy
2008 Fit

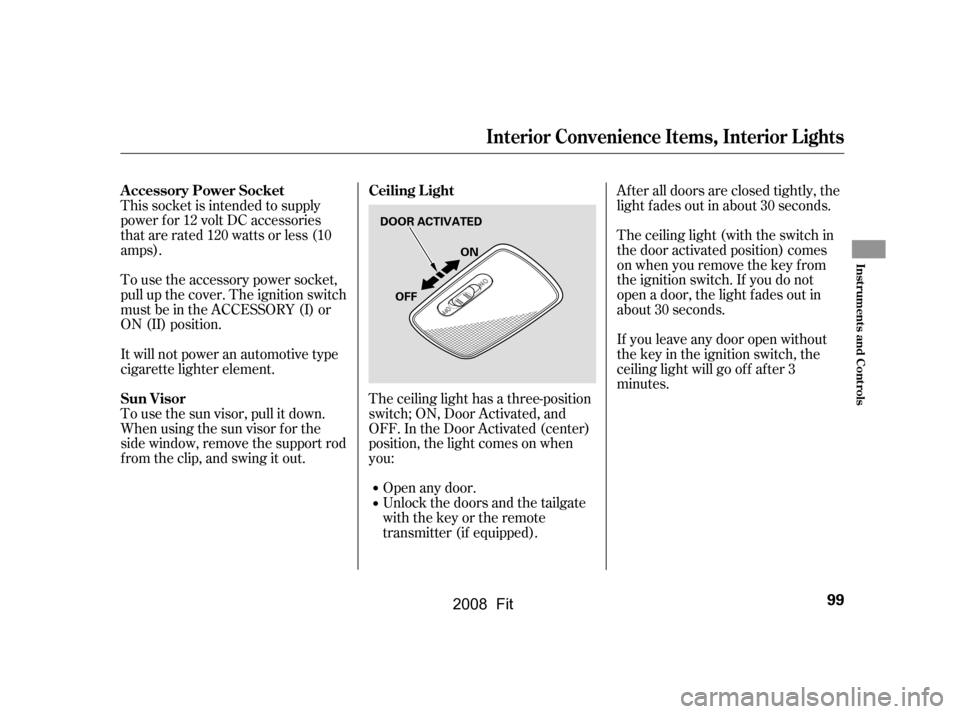

The ceiling light has a three-position
switch; ON, Door Activated, and
OFF. In the Door Activated (center)
position, the light comes on when
you:Open any door.
Unlock the doors and the tailgate
with the key or the remote
transmitter (if equipped). After all doors are closed tightly, the
light f ades out in about 30 seconds.
The ceiling light (with the switch in
the door activated position) comes
on when you remove the key f rom
the ignition switch. If you do not
open a door, the light f ades out in
about 30 seconds.
To use the accessory power socket,
pull up the cover. The ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
It will not power an automotive type
cigarette lighter element.
To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out.
This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
If you leave any door open without
the key in the ignition switch, the
ceiling light will go of f af ter 3
minutes.
Ceiling L ight
A ccessory Power Socket
Sun Visor
Interior Convenience Items, Interior L ights
Inst rument s and Cont rols
99
DOOR ACTIVATED
OFF ON
\f—\f—y\fy
(
\fy\f
\fy
2008 Fit

100
\f—\f—y\fy
(
\fy\f
\fy
2008 Fit

The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it..............
Vents, Heating, and A/C .102
..........
Playing the AM/FM Radio .107
............
AM/FM Radio Reception .112
.................................
Playing a Disc.114
.......
Disc Player Error Messages .123
..................
Protecting Your Discs .124
......................
Auxiliary Input Jack .127
.................
Radio Thef t Protection .128
..........................
Setting the Clock .129
............................
Security System .130
...............................
Cruise Control .131
The security system helps to dis-
courage vandalism and thef t of your
vehicle.
Features
Features
101
