2008 HONDA FIT Owners Manual

Î
Î: If equipped

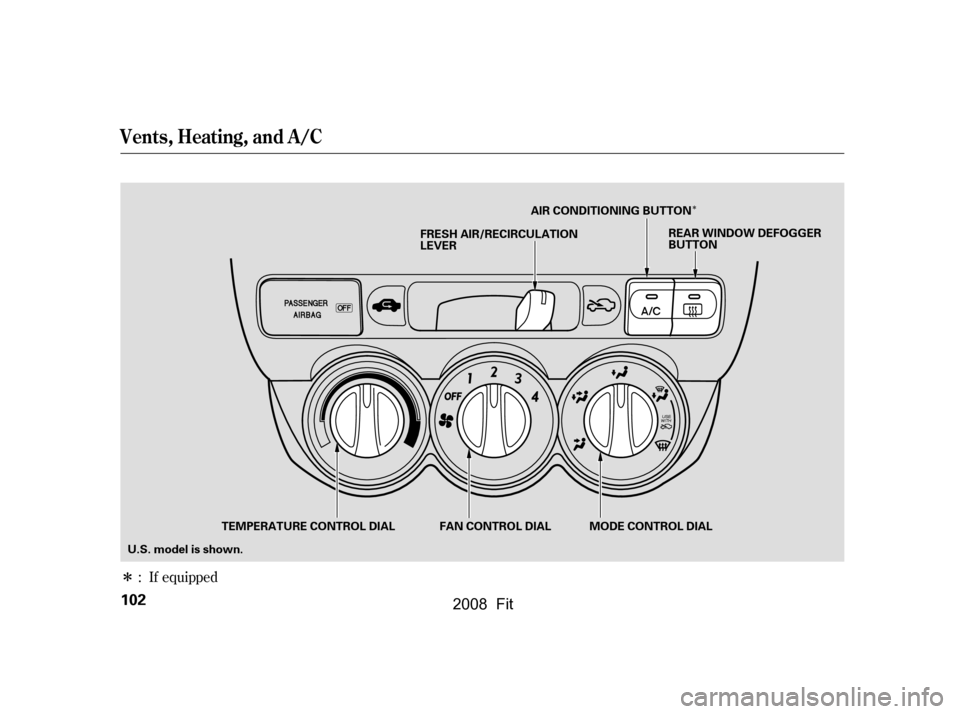

Vents, Heating, and A/C
102
REAR WINDOW DEFOGGER
BUTTON
TEMPERATURE CONTROL DIAL AIR CONDITIONING BUTTON
MODE CONTROL DIAL
FAN CONTROL DIAL
FRESH AIR/RECIRCULATION
LEVER
U.S. model is shown.
\f—\f—y\fy
(
\fy\f
\fy
2008 Fit

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Turning this dial clockwise increases
the temperature of the airflow.
Turn this dial to increase or decrease
the fan speed and airflow.
This button turns the air
conditioning on and of f . The
indicatorinthebuttonisonwhen
the A/C is on.
This lever controls the source of the
air going into the system. When you
slide the lever to the side, air is
brought in f rom outside the vehicle
(f resh air mode). When you select
the side, air f rom the vehicle’s
interior is sent through the system
again (recirculation mode).
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
corner vents in all modes. Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air f lows f rom the f loor
vents. Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the def roster
vents at the base of the windshield. Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield.
When you select or ,
the system automatically turns on
the A/C (if equipped). You cannot
turn the A/C of f in this mode.
This button turns the rear window
def ogger on and of f (see page ).
74
If equipped
Rear Window Def ogger Button
Air Conditioning (A/C) Button
T emperature Control Dial
Fan Control Dial
Fresh A ir/Recirculation L ever
Mode Control Dial
A irf low Controls
Vents, Heating, and A/C
Features
103
\f—\f—y\f
y
(
\fy\f
\fy
2008 Fit

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then discharges
it through vents near the tailgate.
Select and .
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.Air conditioning places an extra load
on the engine. Check the high
temperature indicator (see page
). If the indicator begins to blink,
turn of f the A/C until the indicator
goes of f .
Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and .
Set the f an to the desired speed.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in . Turn on the A/C by pressing the
button. The indicator in the button
comesonwhenafanspeedis
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select .
Set the f an to the desired speed.
1.
2.
3.
4.
1.
2.
3.
4.
5.
1.
2.
3.
63If equipped
If the interior is very warm,
Using the Heater Using the A /C
Ventilation
Vents, Heating, and A/C
104
\f—\f—y\f\f\fy
(
\fy\f
\fy
2008 Fit

This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C).To remove f og f rom the inside of the
windows:
Set the f an to the desired speed or
high f or f aster def rosting.
Select by sliding the lever.
Select . The system
automatically turns on the A/C
(if equipped). The A/C indicator
willnotcomeonifitwas
previously of f .
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry and
can prevent the windows f rom
f ogging up.
When you select or ,
the system automatically turns on
the A/C. This helps to dehumidif y
the air and to defog the windshield.
In either mode, you cannot turn of f
the A/C. When you switch to
another mode, the A/C returns to its
original setting, either on or of f , as
indicated by the A/C indicator.
Turn the fan on.
If the A/C is of f , turn it on (if
equipped).
Select and .
Adjust the temperature to your
pref erence.
5.
1.
2.
3. 1.
2.
3.
4.
6.
Vents, Heating, and A/C
To Def og and Def rost
Dehumidif y the Interior
Features
105
\f—\f—y\f\f
\fy
(
\fy\f

\fy
2008 Fit

To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.Turning the f an speed control dial all
the way to the left shuts the system
off.
Keep the system of f f or short
periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
Set the f an and temperature
controls to maximum level.
Select . The system
automatically turns on the A/C (if
equipped). The A/C indicator does
not come on if it was previously of f .
Select .
1.
2.
3.
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
To Turn Everything Off
106
\f—\f—y\f\f
y
(
\fy\f


y
2008 Fit

Playing the AM/FM Radio
Features
107
AM/FM BUTTONSEEK BAR AUTO SELECT
BUTTON
PRESET BUTTONS
PWR/VOL KNOB
SOUND BUTTON
SEEK BAR AUTO SELECT
BUTTON
PRESET BUTTONS
SOUND BUTTON AM BUTTON
FM BUTTON SCAN BUTTON
PWR/VOL KNOB SCAN BUTTON
TUNE BAR TUNE BAR
All models except Sport
Sport model
\f—\f—y\f\fy
(
\fy\f

y
2008 Fit

µµ µ
µ
µ
µ
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN button again.
The seek f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK bar, then release it.
The scan f unction samples
all stations with strong signals on the
selected band. To activate it, press
the SCAN button, then release it.
You will see SCAN in the display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds. Repeat steps 1 through 3 to store a total of six stations on AM and
twelve stations on FM.
Pick a preset number (1 6), and
hold it until you hear a beep.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twelve stations.
Use the TUNE bar to tune
to a desired f requency. Press the side of the bar to tune to a
higher f requency, and the side
to tune to a lower f requency.
Each preset button
(1 6) can store one station on AM,
and two stations on FM.
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob or the AM/FM
button (AM or FM button except
Sport model). Adjust the volume by
turning the same knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM/FM
button (AM or FM button). On the
FM band, ST will be displayed if the
stationisbroadcastinginstereo.
Stereo reproduction in AM is not
available.
You can use any of f ive methods to
find radio stations on the selected
band: tune, seek, scan, the preset
buttons, and auto select. 1.
2.
3.
4.
SEEK
SCAN
To Play the AM/FM Radio TUNE
PRESET
To Select a Station
Playing the AM/FM Radio
108
\f—\f—y\f\fy
(
\fy\f

y
2008 Fit

µµµ
µ
µ
To turn of f auto select,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A. SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons. You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described.
Press the SOUND button repeatedly
to display the equalizer (EQ) [Sport
only], bass, treble, fader, balance,
and speed-sensitive volume
compensation (SVC) settings.
Adjusts the bass.Adjusts the treble.
Adjusts the front-to-back
strength of the sound.
Adjusts the side-to-
side strength of the sound.
Eachmodeisshowninthedisplayas
it changes. Turn the PWR/VOL
knob to adjust the setting to your
liking. When the level reaches the
center, you will see a ‘‘ ’’ in the
display.
For inf ormation on AM/FM radio
f requencies and reception, see page
.
112
CONT INUED
Adjusting the Sound
AUTO SELECT
BASS
TREBLE
FADER
BAL ANCE
Playing the AM/FM Radio
Features
109
\f—\f—y\f\fy
(
\fy\f

y
2008 Fit
