Step Action of operator Screen displayResult in normal conditionPump motor works
Wheel lockup
Wheel lockup
Wheels may rotate freely,
pedal rebounds, work noise
of pump motor may be heard
Wheels may rotate freely
Wheel lockup, pedal auto-
matically goes down slightlyHydraulic control unit diagnosis -- hydraulic pump testLeft front wheel -- step down brake pedal
Left front wheel -- normally open valve opens,
normally closed valve is closed, wheel lockup?
Left front wheel -- normally open valve is closed,
normally closed valve is closed, wheel lockup?
Left front wheel _ _ normally open valve is closed,
normally closed valve opens, wheels may rotate
freelyLeft front wheel _ _ normally open valve is closed,
normally closed valve is closed, wheels may rotate freelyLeft front wheel -- normally open valve opens,
normally closed valve is closed, wheel lockup?
Release brake pedal 01
02
03
04
05
06
07
08Step down brake
pedal and hold
* Perform testing of the above steps 2-8 for each wheel. Sequence is as follows: left front right front left
rear right back.
* If result of one of the above steps is different from the result in normal condition, it shows that corresponding
actuator fails to work normally, please check corresponding actuator.
* Here as long as "return " position appears on the screen, it may finish the testing via "ESC " key and returns
to function menu.VI. Troubleshooting quick index tableMK-60 ABS system - ABS Diagnosis5-100Diagnostic
codeFault description Diagnosis contentCheck
list No.Reference
page
65535
01276
00283
00285
00290
00287
01044
00668
01130Electronic control unit
ABS hydraulic pump
Left front wheel sensor
Right front wheel sensor
Left rear wheel sensor
Right rear wheel sensor
ABS coding error
Supply terminal 30
ABS works abnormallyDamaged
Motor cannot work
Electric and mechanical failure
Signal lacks of conformity5-103
5-104
5-106
5-106
5-107
5-107
5-108 1
2, 3, 4
5
6
7

VIII. Circuit diagramVII. Check list index of fault without fault codeMK-60 ABS system -ABS Diagnosis5-101Fault condition
When Ignition switch is turned to "ON " (engine stall condition), ABS
warning lamp does not illuminate
After Engine is started, warning lamp does not go outCheck list No.
1
2
3
4
5
6Reference page
5-109
5-110
5-111
5-112
5-112
5-113 ABS works
abnormallyBraking force on both sides is not even
Braking force is insufficient
When brake pedal is stepped on slightly, ABS works
(automobile in idle state)
When brake pedal is stepped on slightly, ABS works
(automobile in running state)
When ABS works, brake pedal vibrates excessively
Travel of brake pedal is too long
A very large force is needed to step on brake pedal
No fault code output (cannot communicate with fault diagnosis instrument)Please Refer to "MK WIRING DIAGRAM"

3317
247
1632

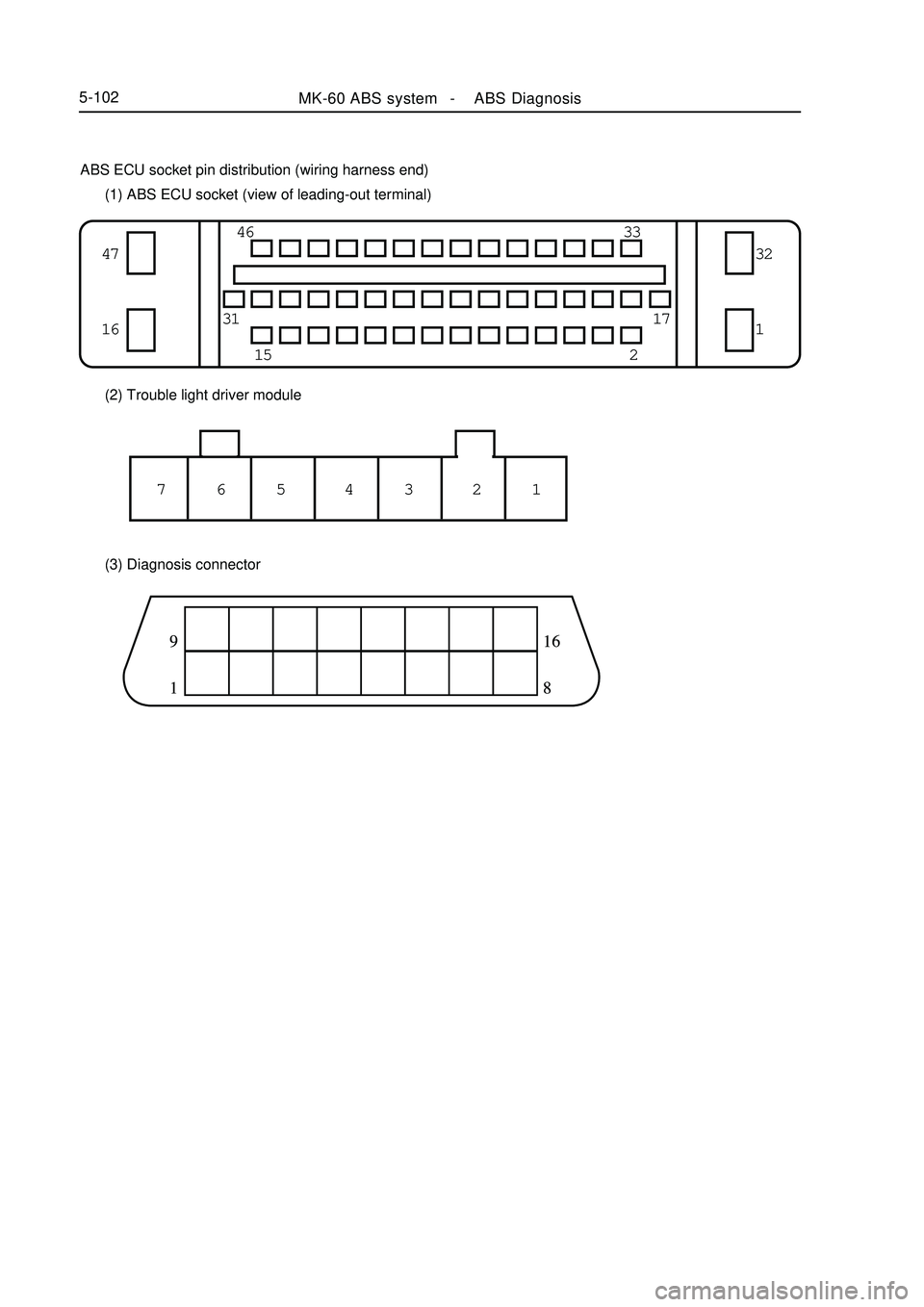

17 6 5 4 3 2 1ABS ECU socket pin distribution (wiring harness end)
(1) ABS ECU socket (view of leading-out terminal) (3) Diagnosis connector (2) Trouble light driver module46
31
15MK-60 ABS system -ABS Diagnosis5-102

Inspection item
V
V
V
V
V
Visual inspection
Visual inspection
Visual inspection
Visual inspection
V
V
ohm
k ohm
MV/Hz
MV/Hz
MV/Hz
MV/Hz Storage battery voltage (motor)
Storage battery voltage
(Solenoid valve)
Power supply insulating property
Earth insulating property
Supply voltage
ABS warning lamp
Brake light switch function pedal
is not stepped down
Brake light switch function pedal
is stepped down
Diagnostic interface
Left front wheel speed sensor
resistance value
Right front wheel speed sensor
resistance value
Left rear wheel speed sensor
resistance value
Right rear wheel speed sensor
resistance value
Left front wheel sensor output
voltage value
Right front wheel sensor output
voltage value
Left rear wheel sensor output
voltage value
Right rear wheel sensor output
voltage value
Speed sensor output voltage ratio10.1 ~ 14.5
10.1 ~ 14.5
0.00 ~ 0.5
0.00 ~ 0.5
10.1 ~ 14.5
Warning lamp goes out
Warning lamp illuminates
Warning lamp goes out
Warning lamp illuminates
for about 1.7s,then goes out
0.0 ~ 0.5
10.0 ~ 14.5
0.0 ~ 0.5
1.2 ~ 1.3
1.2 ~ 1.3
1.0 ~ 1.3
1.0 ~ 1.3
3.4 ~ 14.8
3.4 ~ 14.8
>12.2
>12.2 1-47
32-16
4-16
16-47
4-16
ECU is not
connected
Connect ECU
16-41
16-41
Diagnosis joint
K and 7
45-46
33-34
37-36
42-43
45-46
33-34
37-36
42-43 OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Maximum peak to peak value voltage
Minimum peak to peak value voltage2III. ABS system inspectionMK-60 ABS system -ABS System Check5-114Ignition switchpositionBinding post Standard value
Unitk ohmk ohmk ohm

No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
255-128 4. Eliminate fault code either by diagnosis instrument or manually. Manual operation method, specific
procedure: use engine data K-line (namely 9 # terminal of diagnostic interface) earth twice, earthing time is more
than 2. 5 s at each time.
Fault code tableFaulty part
No fault
Electronic control unit (unit) fault
Knocking control zero test
Knocking sensor
Storage battery voltage
Intake pressure sensor
Throttle position sensor
Idle speed control valve
Coolant temperature sensor
Intake temperature sensor
Engine maximum speed overrun
Fuel injector 1
Fuel injector 2
Fuel injector 3
Fuel injector 4
Fan relay
Oxygen sensor
Air fuel ratio control correction coefficient
? self-learning value 1
? self-learning value 2
? self-learning value 3
Fault caution light
Canister control valve
Air conditioner condenser temperature sensor
Phase sensorFault code
11
34
1
15
38
16
14
61
19
18
33
22
23
24
21
42
17
31
35
36
37
45
25
13
43Fault lamp
OFF
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
OFF
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
ON
OFF
ONFault type
-
2
-
2
2
1
1
1
1
1
2
1
1
1
1
1
1
2
2
2
2
1
1
1
1
Fault type: 1-open circuit 2-signal overrun
No. 18 to 21 in the table refers to air fuel ratio correction coefficient,?=actual air quantity/air need for
combustion, "? self-learning value" is also called learning air fuel ratio control value.Engine EFI System-
Engine EFI System

III. Troubleshooting:1.Whether power supply is normal or not.
2. Increase mobile phone output volume.
3. Confirm whether mobile phone interface line is correct, (replace
with new mobile phone interface line).
4. When mobile phone works, confirm whether there is relay
closing sound in hands-free telephone box.
5. If there is relay closing sound, check whether anything is wrong
with socket drop-out line.
Adjust mobile phone output volume.
Check receiving signal of mobile phone. No. Symptom Possible cause
1
2
3No voice can be heard from
hands-free telephone
Loudspeaker sound is light
Connection is interruptedOn Board Vehicle Telephone-On-board Vehicle Telephone5-130

III. Fault diagnosis 1. During detection, if there is no sound or display screen does not illuminate, please detect whether polarity
of power supply is connected in a wrong way, whether power cord is connected, whether supply voltage 9V,
whether display joint is inserted properly.
2. If clobber "0.0" or constant ringing occurs, please exit reverse gear, engage reverse gear again. If the
above symptom still exists, it may be deemed that principal machine is damaged, and should be replaced
completely.
3. If certain value is displayed, while there is no evident barrier at right ahead of probe. Prominence on or rear
might be detected (such as license plate, bumper bar etc). please check whether direction axis of the probe is
correct, horizontal axis of the probe should slightly upwarp.
4. When accelerating, the installed display shows irregular disordered frame, circuit interference might occur,
check earth wire of reversing radar.IV. Installation of reversing radar 1. Reversing radar system consists of reversing radar principal machine, reversing radar display screen, wiring
harness, buckle and reversing radar probe etc.Rear Parking Radar System-
Rear Parking Radar System5-132About 500 mm
About 265 mmRear parking radarsensor
Clip
Push Rear bumper bar

Centralized Controller System-
Function Inspectior5-133Chapter 12 Centralized Controller SystemSection 1 Function InspectiorI. Glass frame riser: 1. Glass frame riser may be operated to move within 60s after ignition switch is turned on or off; 60s after
ignition switch is turned off, glass frame riser cannot be operated to move;
2. Manual rise: press corresponding glass frame riser switch rise key, corresponding glass frame riser motor
works, glass frame rises, release rise key, it stops.
3. Manual fall: press corresponding glass frame riser switch fall key (hold time 300ms), corresponding glass
frame riser motor works, glass frame falls, release fall key, it stops.
4. Automatic fall: press corresponding glass frame riser switch fall key (hold time < 300 ms), corresponding
glass frame riser motor works, glass frame falls down to end; or fall down until rise key or fall key is pressed again.
Note:
During automatic fall of glass frame, if corresponding glass frame riser switch fall key is pressed down for more
than 300 ms, glass frame riser is changed to manual fall mode; if corresponding glass frame riser switch rise key
is pressed down for more than 300ms, glass frame riser stops work.
5. Remote window closing:
In case of remote protection, if a key is pressed down for more than 1s, perform glass frame riser automatic
rise action, left front, right front, left rear, right rear in turn.II. Central lock: 1. In case protection is deactivated, use a key to open left front door switch or press internal unlock switch to
open four door fasteners; close left front door switch, close four door fasteners.
2. Remote unlock /lock:
(1) Ignition switch opening
a. Press remote control unlock key to open four door fasteners;
b. Press remote lock key to close four door fasteners;
(2) Turn off ignition switch
a. Press remote unlock key to open four front door fasteners, at the same time turn light flashes once.
b. Press remote lock key to close four door fasteners, at the same time turn light flashes twice.
(3) When door is opened, press remote fastener, turn light will flash for three times, at the same time electric
horn beeps for three times.
(4) If the system is triggered in anti-theft condition, when remote unlock system exits protection state,
directional turn signal will flash for four times, at the same time, electric horn beeps for four times.
3. Automatic lock
When vehicle speed exceeds 30km/h, three doors will be closed.
4. Door lock priority
Central door lock should not act simultaneously with glass frame riser; when they conflict with each other,
central door lock acts with priority, while glass frame riser stops; after central door lock action is finished, glass
frame riser continue its work in previous condition.III. Front womdscreem wiper: After spray water signal is finished, the wiper acts twice.
