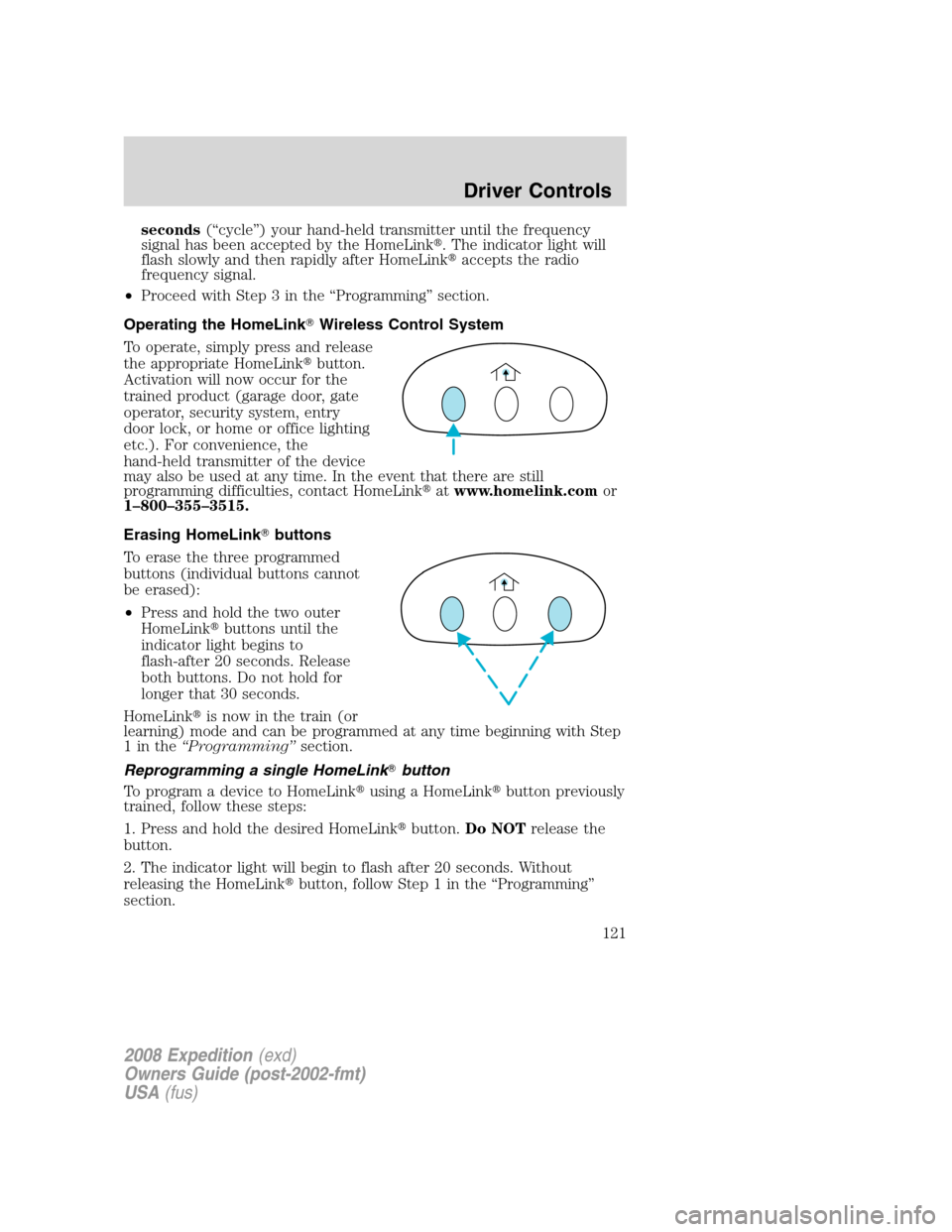

seconds(“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink
. The indicator light will
flash slowly and then rapidly after HomeLink
accepts the radio
frequency signal.
•Proceed with Step 3 in the “Programming” section.
Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLink
button.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLink
atwww.homelink.comor
1–800–355–3515.
Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLink
buttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLink
is now in the train (or
learning) mode and can be programmed at any time beginning with Step
1inthe“Programming”section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLink
using a HomeLink
button previously
trained, follow these steps:
1. Press and hold the desired HomeLink
button.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLink
button, follow Step 1 in the “Programming”
section.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
121

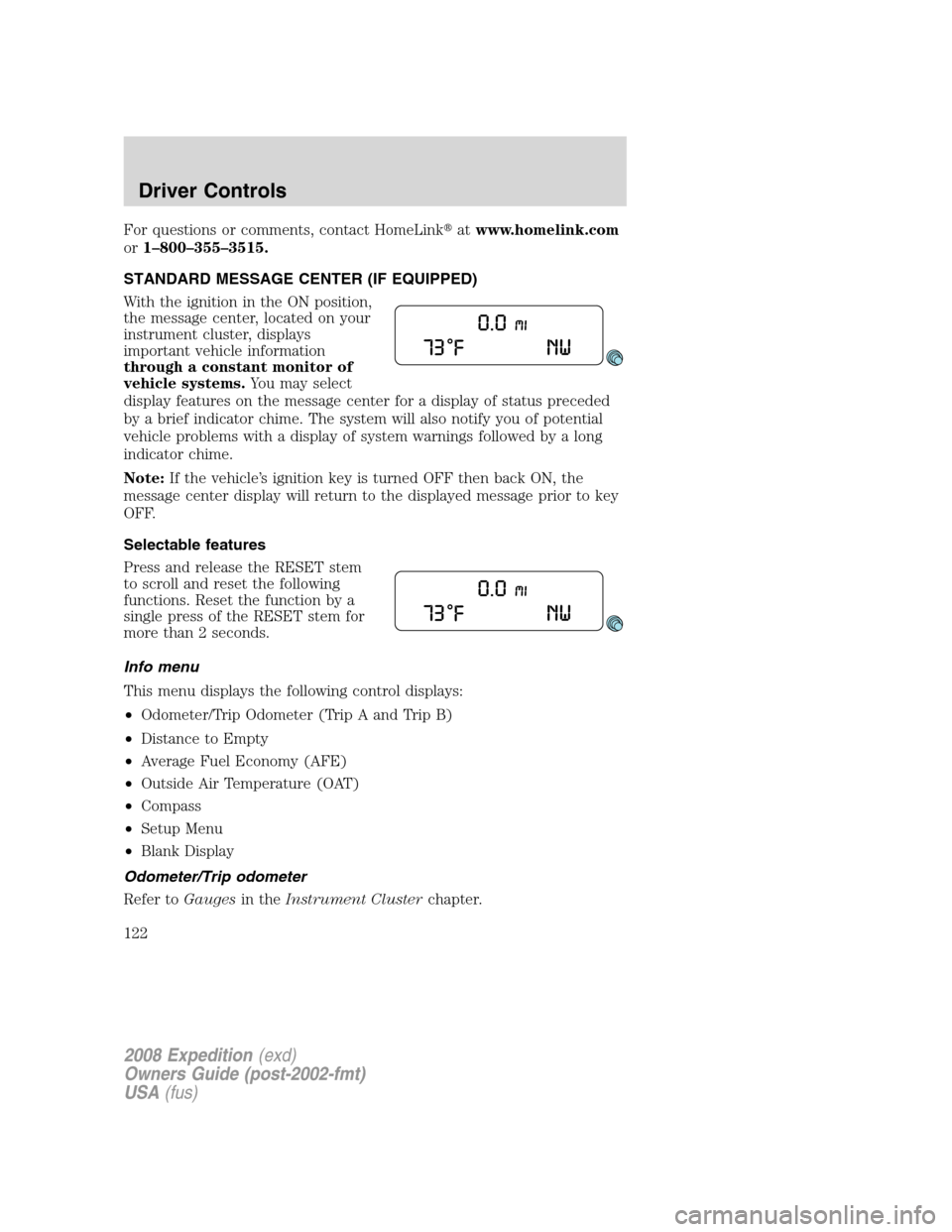

For questions or comments, contact HomeLink
atwww.homelink.com
or1–800–355–3515.
STANDARD MESSAGE CENTER (IF EQUIPPED)
With the ignition in the ON position,
the message center, located on your
instrument cluster, displays
important vehicle information
through a constant monitor of
vehicle systems.You may select
display features on the message center for a display of status preceded
by a brief indicator chime. The system will also notify you of potential
vehicle problems with a display of system warnings followed by a long
indicator chime.
Note:If the vehicle’s ignition key is turned OFF then back ON, the
message center display will return to the displayed message prior to key
OFF.
Selectable features
Press and release the RESET stem
to scroll and reset the following
functions. Reset the function by a
single press of the RESET stem for
more than 2 seconds.
Info menu
This menu displays the following control displays:
•Odometer/Trip Odometer (Trip A and Trip B)
•Distance to Empty
•Average Fuel Economy (AFE)
•Outside Air Temperature (OAT)
•Compass
•Setup Menu
•Blank Display
Odometer/Trip odometer
Refer toGaugesin theInstrument Clusterchapter.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
122

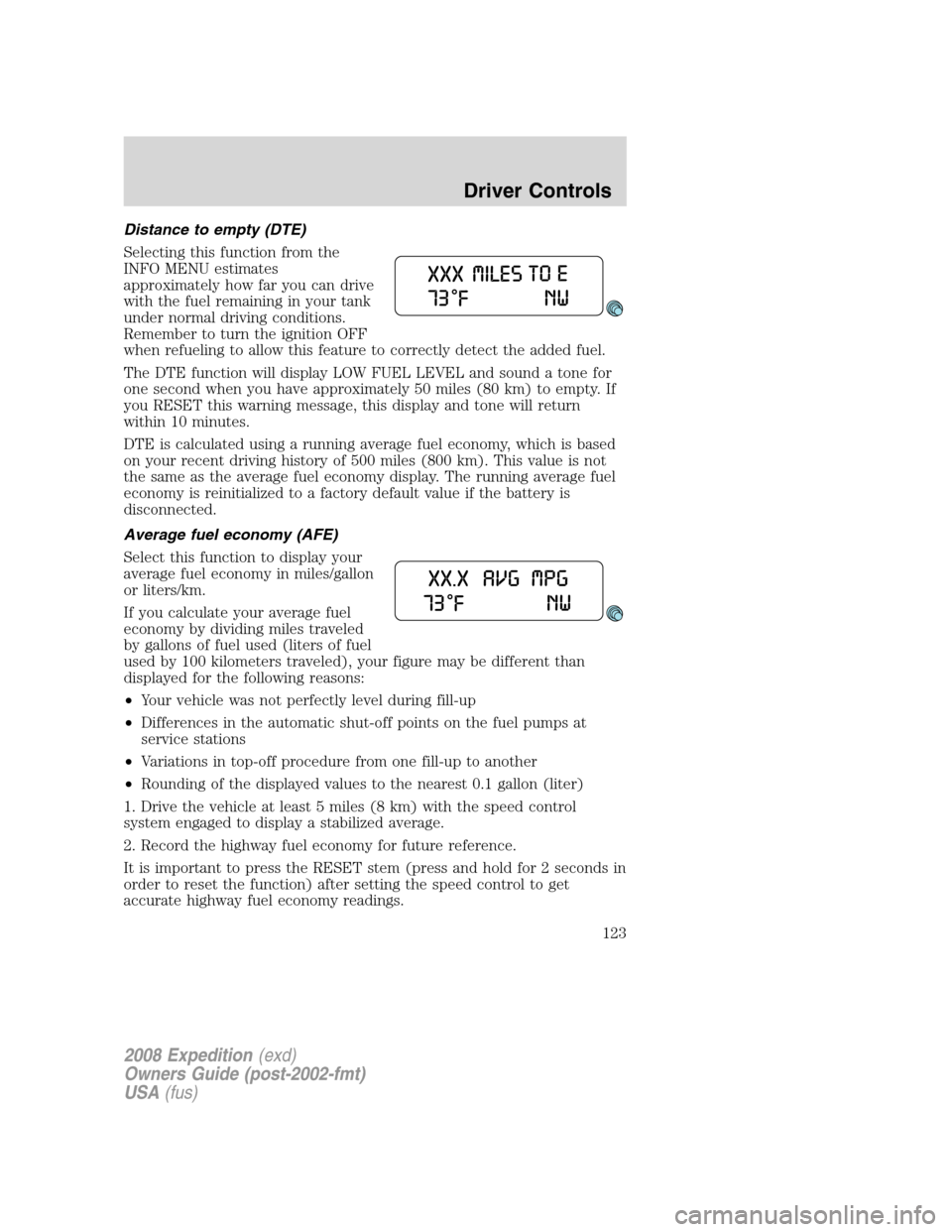

Distance to empty (DTE)
Selecting this function from the
INFO MENU estimates
approximately how far you can drive
with the fuel remaining in your tank
under normal driving conditions.
Remember to turn the ignition OFF
when refueling to allow this feature to correctly detect the added fuel.
The DTE function will display LOW FUEL LEVEL and sound a tone for
one second when you have approximately 50 miles (80 km) to empty. If
you RESET this warning message, this display and tone will return
within 10 minutes.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km). This value is not
the same as the average fuel economy display. The running average fuel
economy is reinitialized to a factory default value if the battery is
disconnected.
Average fuel economy (AFE)
Select this function to display your
average fuel economy in miles/gallon
or liters/km.
If you calculate your average fuel
economy by dividing miles traveled
by gallons of fuel used (liters of fuel
used by 100 kilometers traveled), your figure may be different than
displayed for the following reasons:
•Your vehicle was not perfectly level during fill-up
•Differences in the automatic shut-off points on the fuel pumps at
service stations
•Variations in top-off procedure from one fill-up to another
•Rounding of the displayed values to the nearest 0.1 gallon (liter)
1. Drive the vehicle at least 5 miles (8 km) with the speed control
system engaged to display a stabilized average.
2. Record the highway fuel economy for future reference.
It is important to press the RESET stem (press and hold for 2 seconds in
order to reset the function) after setting the speed control to get
accurate highway fuel economy readings.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
123

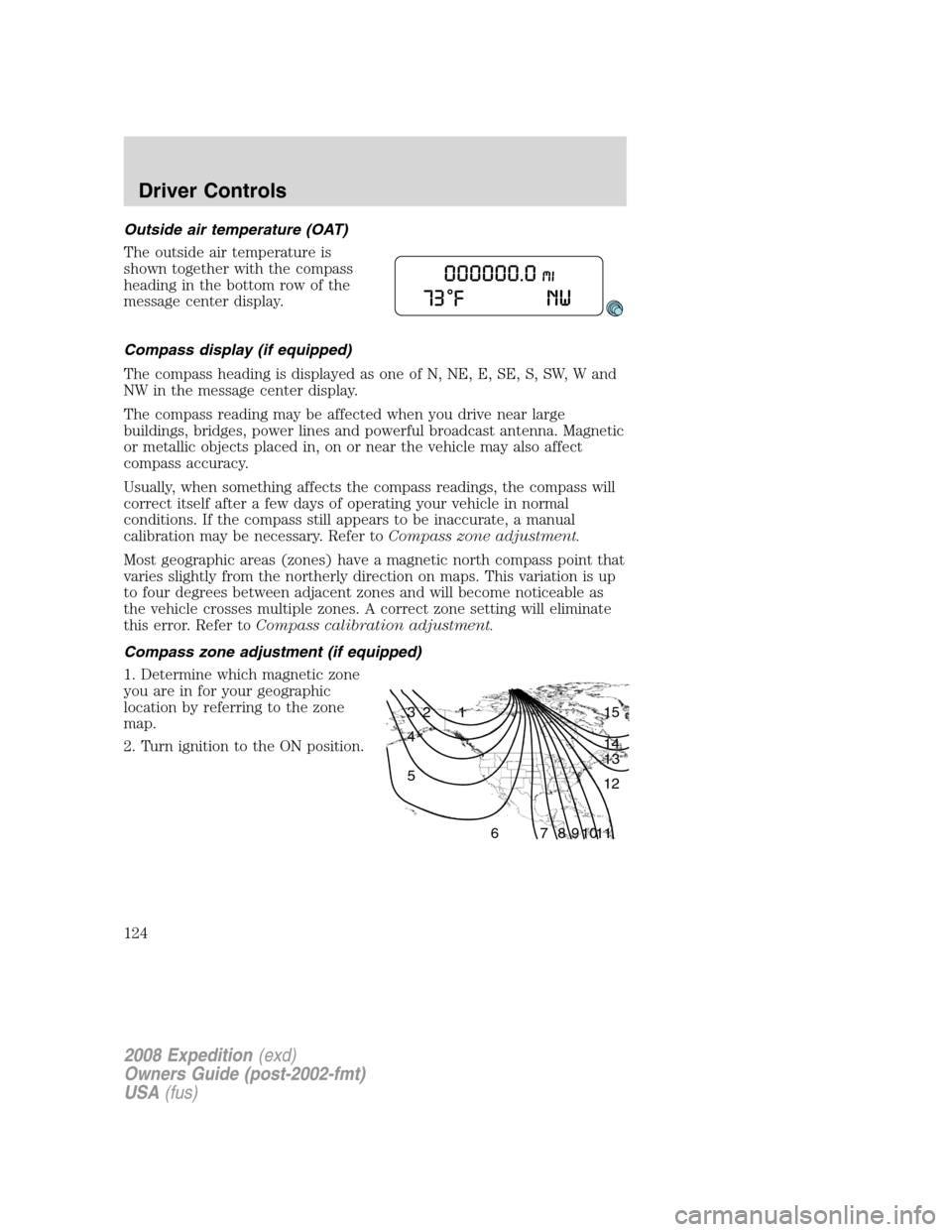

Outside air temperature (OAT)
The outside air temperature is
shown together with the compass
heading in the bottom row of the
message center display.
Compass display (if equipped)
The compass heading is displayed as one of N, NE, E, SE, S, SW, W and
NW in the message center display.
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer toCompass zone adjustment.
Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is up
to four degrees between adjacent zones and will become noticeable as
the vehicle crosses multiple zones. A correct zone setting will eliminate
this error. Refer toCompass calibration adjustment.
Compass zone adjustment (if equipped)
1. Determine which magnetic zone
you are in for your geographic
location by referring to the zone
map.
2. Turn ignition to the ON position.
1 2 3
4
5
6 7 8 9 101112 13 14 15
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
124

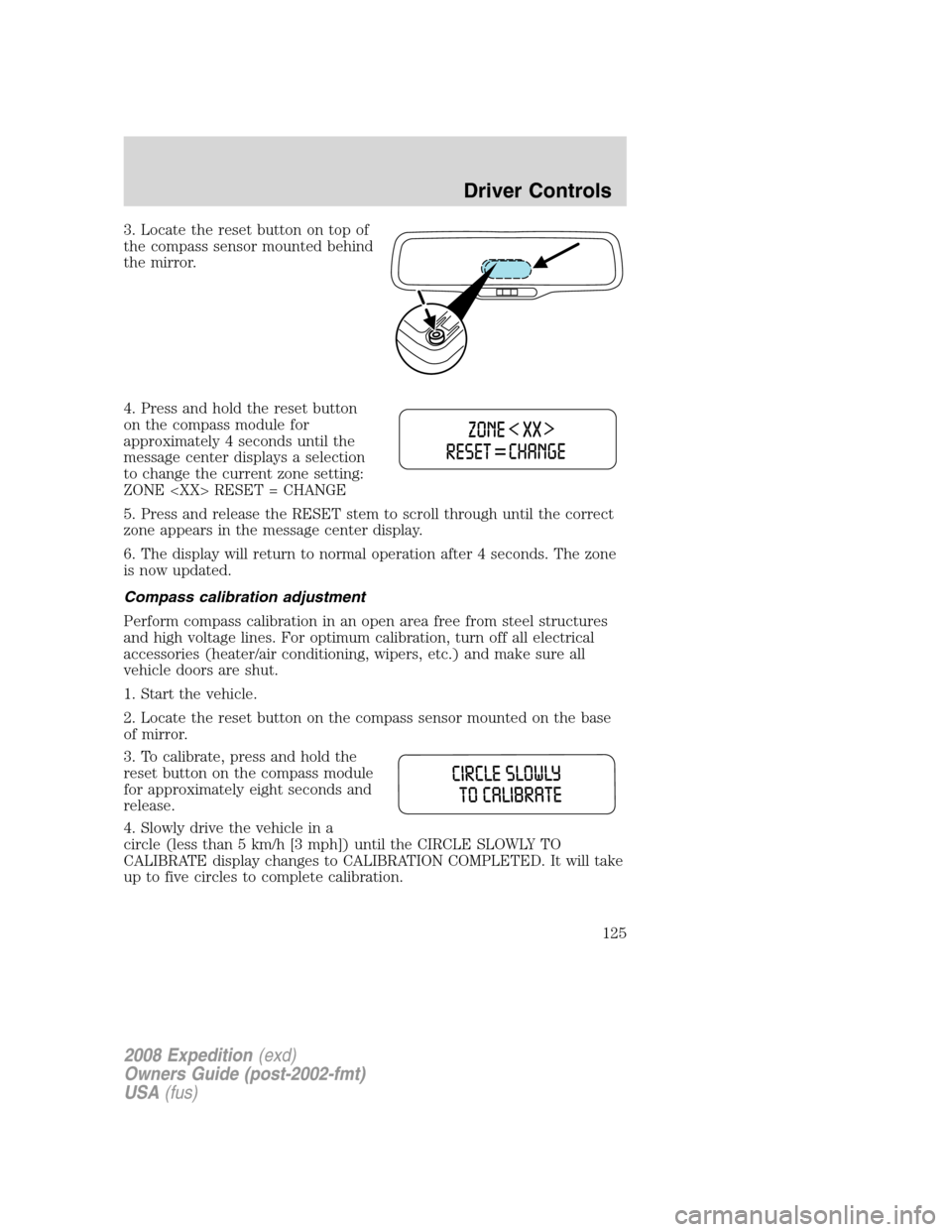

3. Locate the reset button on top of
the compass sensor mounted behind
the mirror.
4. Press and hold the reset button
on the compass module for
approximately 4 seconds until the
message center displays a selection
to change the current zone setting:
ZONE RESET = CHANGE
5. Press and release the RESET stem to scroll through until the correct
zone appears in the message center display.
6. The display will return to normal operation after 4 seconds. The zone
is now updated.
Compass calibration adjustment
Perform compass calibration in an open area free from steel structures
and high voltage lines. For optimum calibration, turn off all electrical
accessories (heater/air conditioning, wipers, etc.) and make sure all
vehicle doors are shut.
1. Start the vehicle.
2. Locate the reset button on the compass sensor mounted on the base
of mirror.
3. To calibrate, press and hold the
reset button on the compass module
for approximately eight seconds and
release.
4. Slowly drive the vehicle in a
circle (less than 5 km/h [3 mph]) until the CIRCLE SLOWLY TO
CALIBRATE display changes to CALIBRATION COMPLETED. It will take
up to five circles to complete calibration.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
125

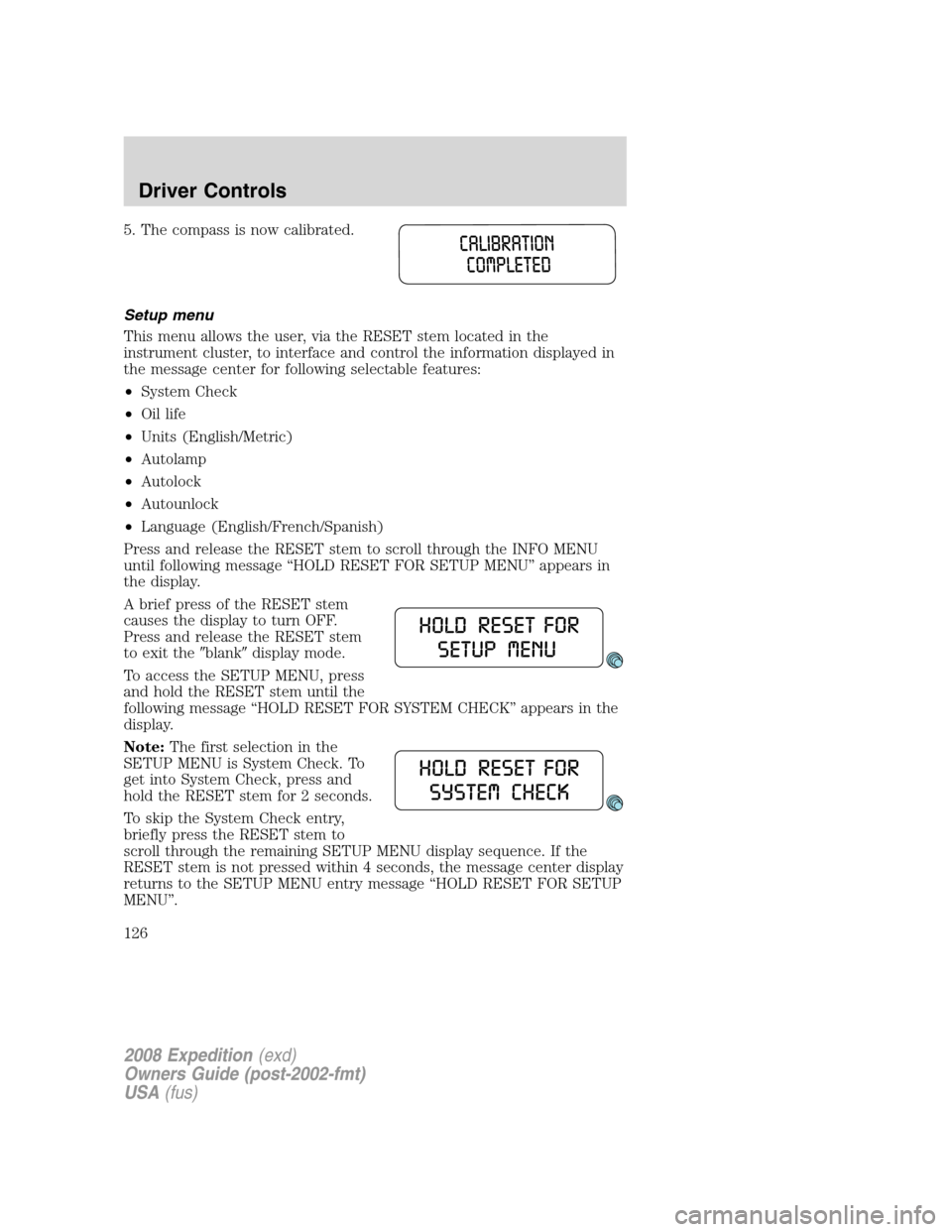

5. The compass is now calibrated.
Setup menu
This menu allows the user, via the RESET stem located in the
instrument cluster, to interface and control the information displayed in
the message center for following selectable features:
•System Check
•Oil life
•Units (English/Metric)
•Autolamp
•Autolock
•Autounlock
•Language (English/French/Spanish)
Press and release the RESET stem to scroll through the INFO MENU
until following message “HOLD RESET FOR SETUP MENU” appears in
the display.
A brief press of the RESET stem
causes the display to turn OFF.
Press and release the RESET stem
to exit theblankdisplay mode.
To access the SETUP MENU, press
and hold the RESET stem until the
following message “HOLD RESET FOR SYSTEM CHECK” appears in the
display.
Note:The first selection in the
SETUP MENU is System Check. To
get into System Check, press and
hold the RESET stem for 2 seconds.
To skip the System Check entry,
briefly press the RESET stem to
scroll through the remaining SETUP MENU display sequence. If the
RESET stem is not pressed within 4 seconds, the message center display
returns to the SETUP MENU entry message “HOLD RESET FOR SETUP
MENU”.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
126

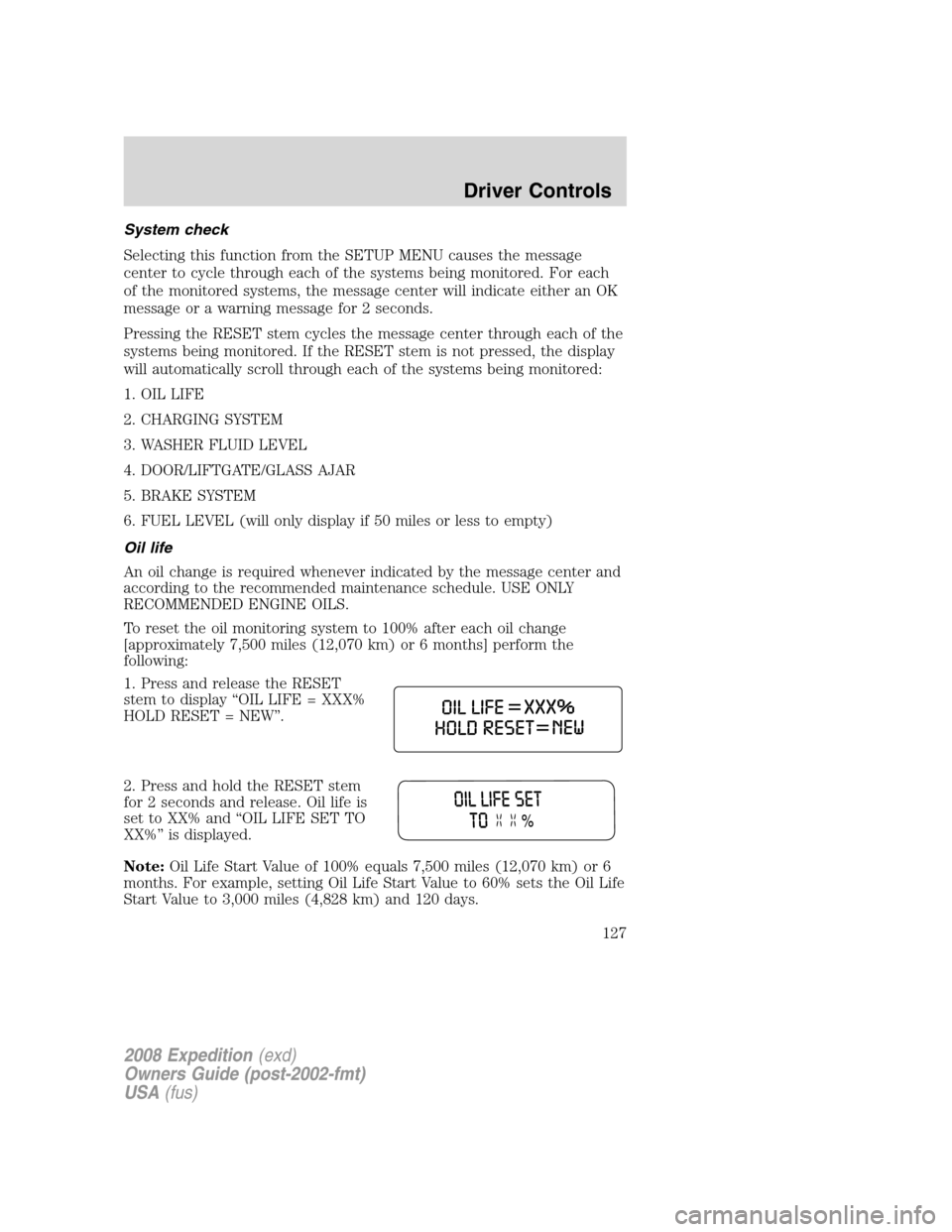

System check
Selecting this function from the SETUP MENU causes the message
center to cycle through each of the systems being monitored. For each
of the monitored systems, the message center will indicate either an OK
message or a warning message for 2 seconds.
Pressing the RESET stem cycles the message center through each of the
systems being monitored. If the RESET stem is not pressed, the display
will automatically scroll through each of the systems being monitored:
1. OIL LIFE
2. CHARGING SYSTEM
3. WASHER FLUID LEVEL
4. DOOR/LIFTGATE/GLASS AJAR
5. BRAKE SYSTEM
6. FUEL LEVEL (will only display if 50 miles or less to empty)
Oil life
An oil change is required whenever indicated by the message center and
according to the recommended maintenance schedule. USE ONLY
RECOMMENDED ENGINE OILS.
To reset the oil monitoring system to 100% after each oil change
[approximately 7,500 miles (12,070 km) or 6 months] perform the
following:
1. Press and release the RESET
stem to display “OIL LIFE = XXX%
HOLD RESET = NEW”.
2. Press and hold the RESET stem
for 2 seconds and release. Oil life is
set to XX% and “OIL LIFE SET TO
XX%” is displayed.
Note:Oil Life Start Value of 100% equals 7,500 miles (12,070 km) or 6
months. For example, setting Oil Life Start Value to 60% sets the Oil Life
Start Value to 3,000 miles (4,828 km) and 120 days.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
127

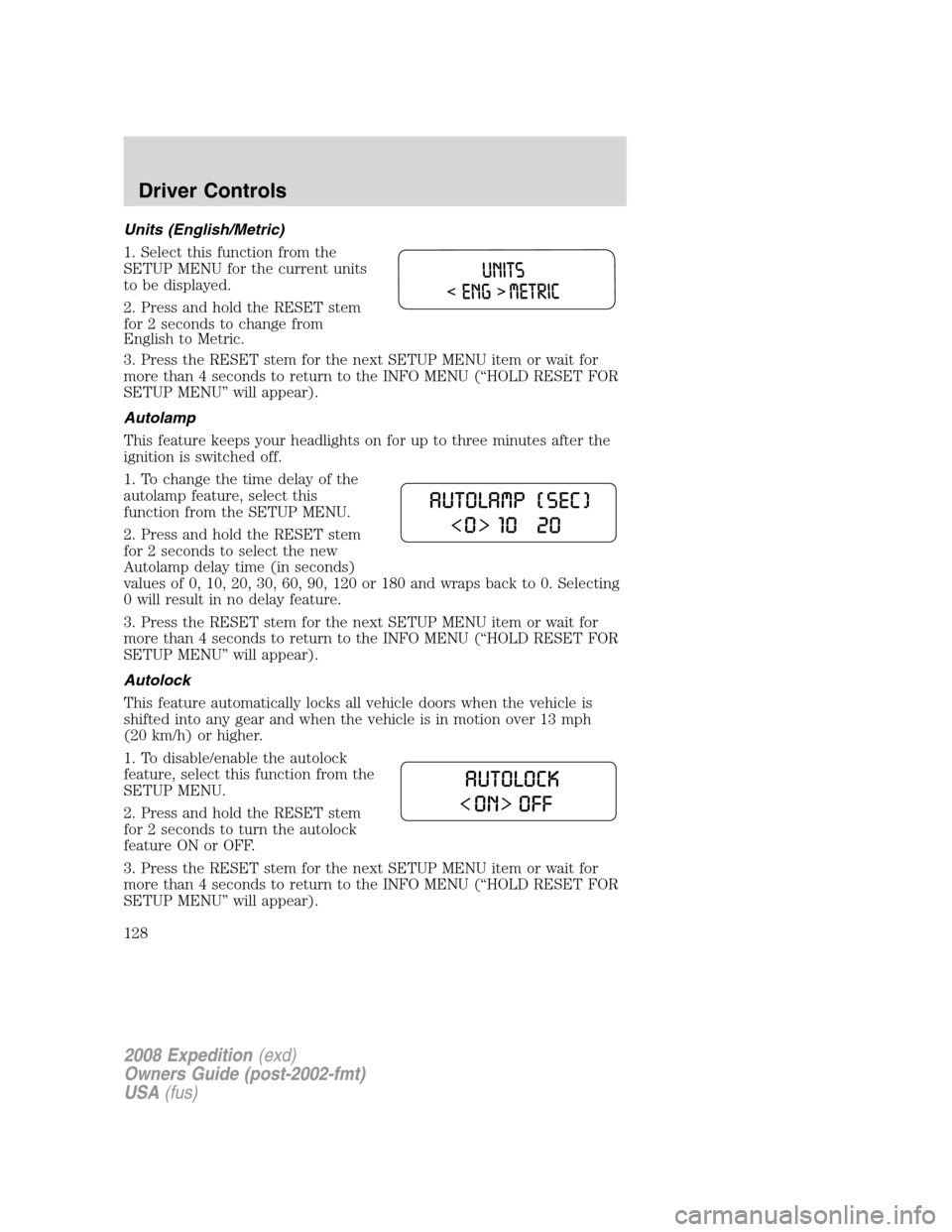

Units (English/Metric)
1. Select this function from the
SETUP MENU for the current units
to be displayed.
2. Press and hold the RESET stem
for 2 seconds to change from
English to Metric.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than 4 seconds to return to the INFO MENU (“HOLD RESET FOR
SETUP MENU” will appear).
Autolamp
This feature keeps your headlights on for up to three minutes after the
ignition is switched off.
1. To change the time delay of the
autolamp feature, select this
function from the SETUP MENU.
2. Press and hold the RESET stem
for 2 seconds to select the new
Autolamp delay time (in seconds)
values of 0, 10, 20, 30, 60, 90, 120 or 180 and wraps back to 0. Selecting
0 will result in no delay feature.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than 4 seconds to return to the INFO MENU (“HOLD RESET FOR
SETUP MENU” will appear).
Autolock
This feature automatically locks all vehicle doors when the vehicle is
shifted into any gear and when the vehicle is in motion over 13 mph
(20 km/h) or higher.
1. To disable/enable the autolock
feature, select this function from the
SETUP MENU.
2. Press and hold the RESET stem
for 2 seconds to turn the autolock
feature ON or OFF.
3. Press the RESET stem for the next SETUP MENU item or wait for
more than 4 seconds to return to the INFO MENU (“HOLD RESET FOR
SETUP MENU” will appear).
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
128
