2008 FORD EXPEDITION Owners Manual

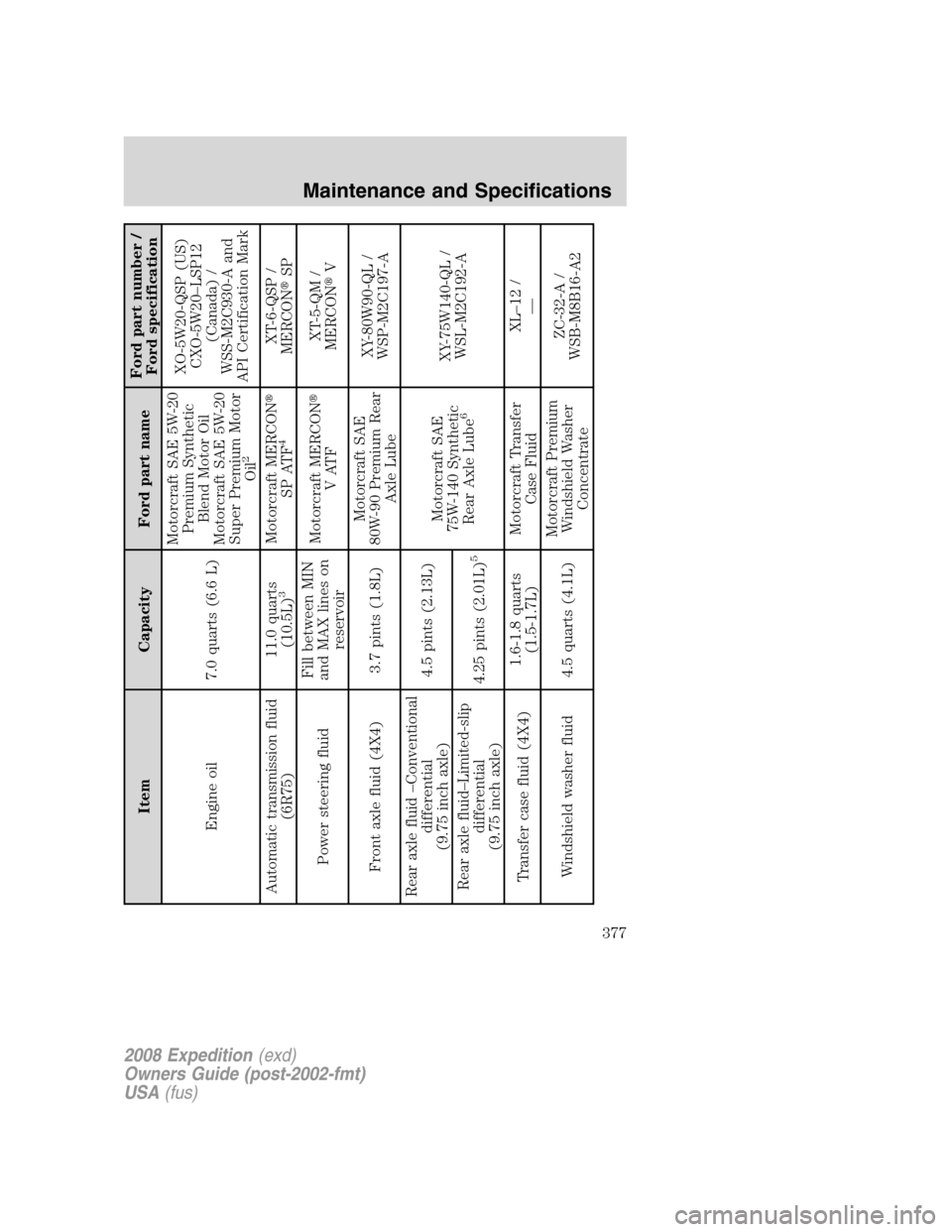

Item Capacity Ford part nameFord part number /
Ford specification
Engine oil 7.0 quarts (6.6 L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
Motorcraft SAE 5W-20
Super Premium Motor
Oil
2
XO-5W20-QSP (US)
CXO-5W20–LSP12
(Canada) /
WSS-M2C930-A and
API Certification Mark
Automatic transmission fluid
(6R75)11.0 quarts
(10.5L)
3
Motorcraft MERCON

SP ATF
4
XT-6-QSP /
MERCON
SP
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft MERCON

VATFXT-5-QM /
MERCON
V
Front axle fluid (4X4) 3.7 pints (1.8L)Motorcraft SAE
80W-90 Premium Rear
Axle LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid –Conventional
differential
(9.75 inch axle)4.5 pints (2.13L)
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lube
6
XY-75W140-QL /
WSL-M2C192-A
Rear axle fluid–Limited-slip
differential
(9.75 inch axle)4.25 pints (2.01L)
5
Transfer case fluid (4X4)1.6-1.8 quarts
(1.5-1.7L)Motorcraft Transfer
Case FluidXL–12 /
—
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
377

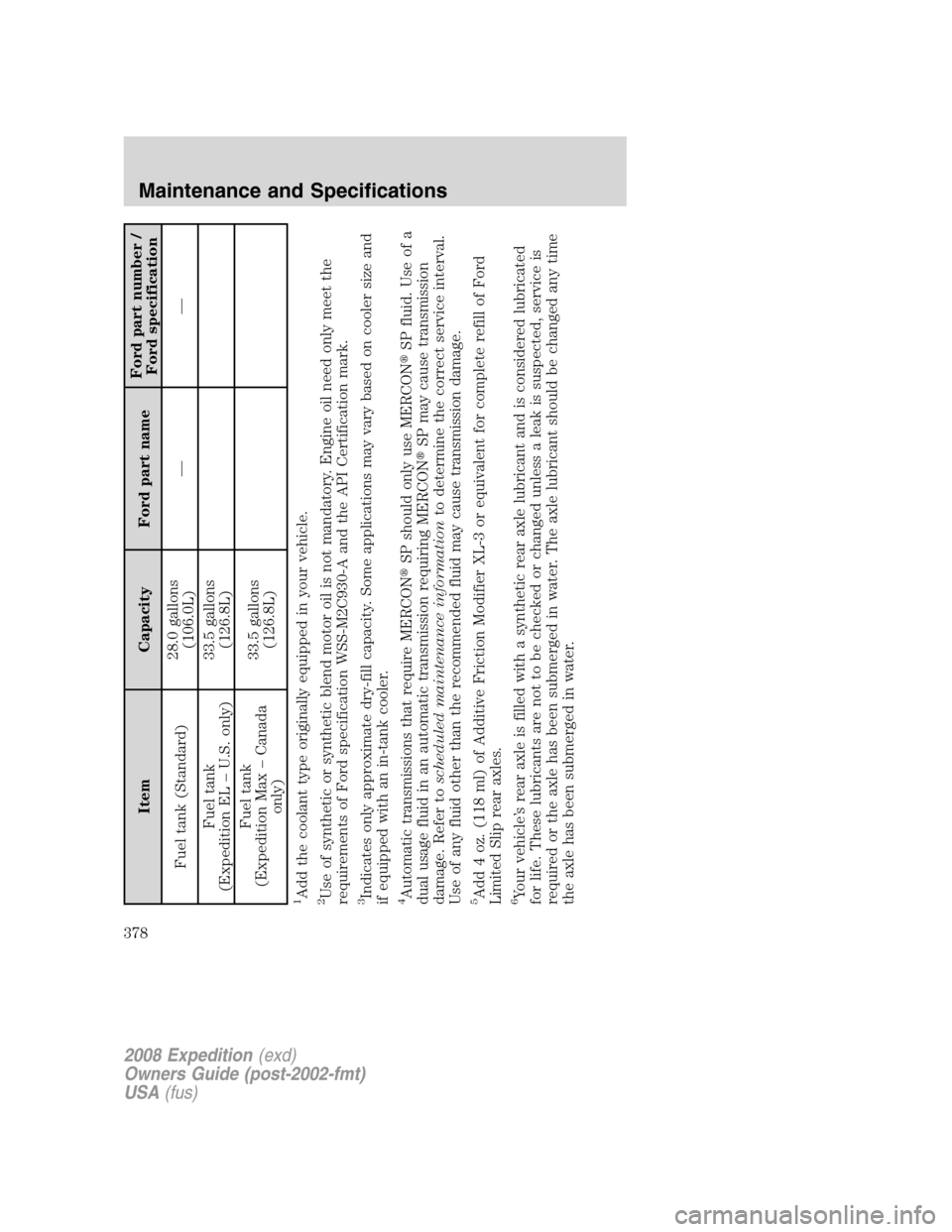

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank
(Expedition EL – U.S. only)33.5 gallons
(126.8L)
Fuel tank
(Expedition Max – Canada
only)33.5 gallons
(126.8L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.5Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for complete refill of Ford
Limited Slip rear axles.6Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
378

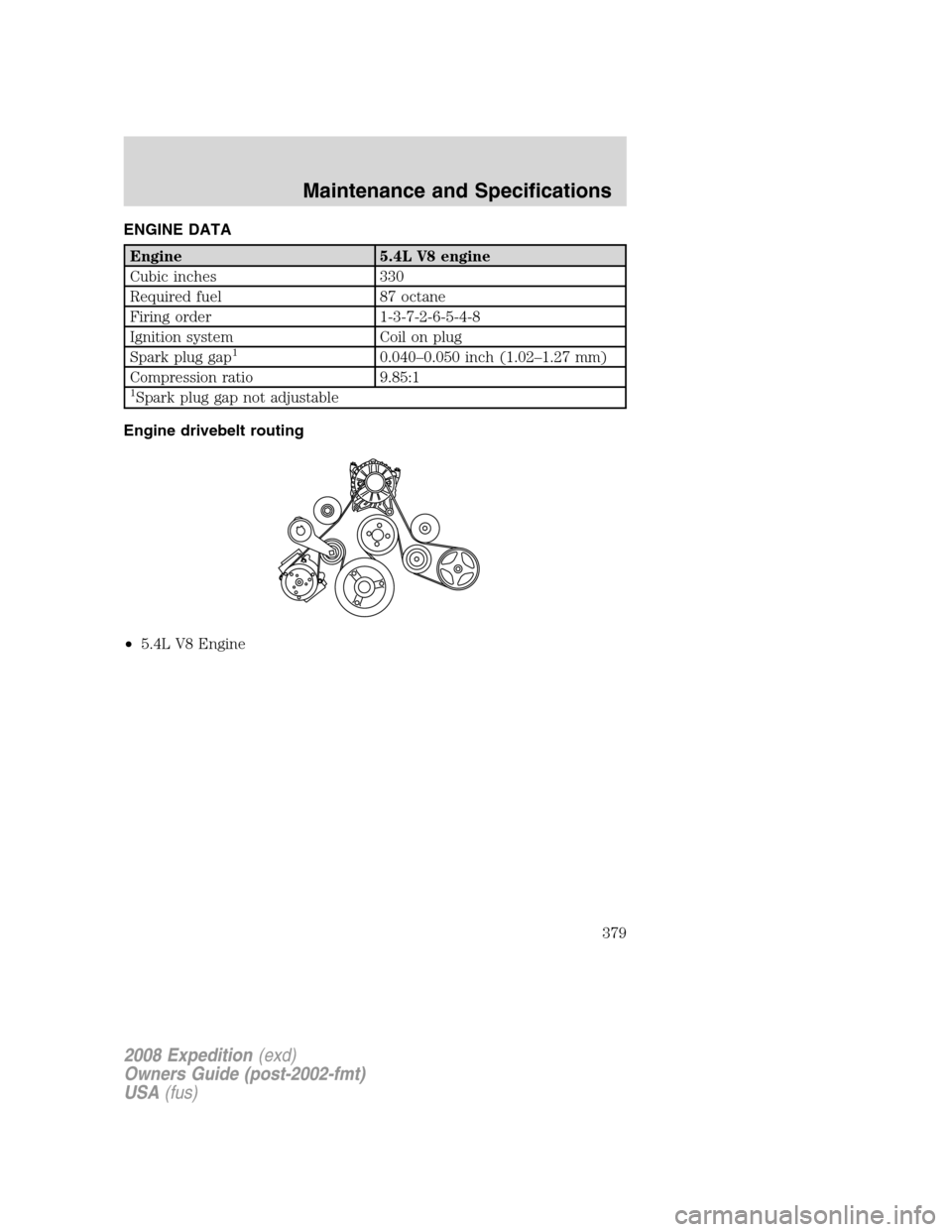

ENGINE DATA
Engine 5.4L V8 engine
Cubic inches 330
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap
10.040–0.050 inch (1.02–1.27 mm)
Compression ratio 9.85:1
1Spark plug gap not adjustable
Engine drivebelt routing
•5.4L V8 Engine
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
379

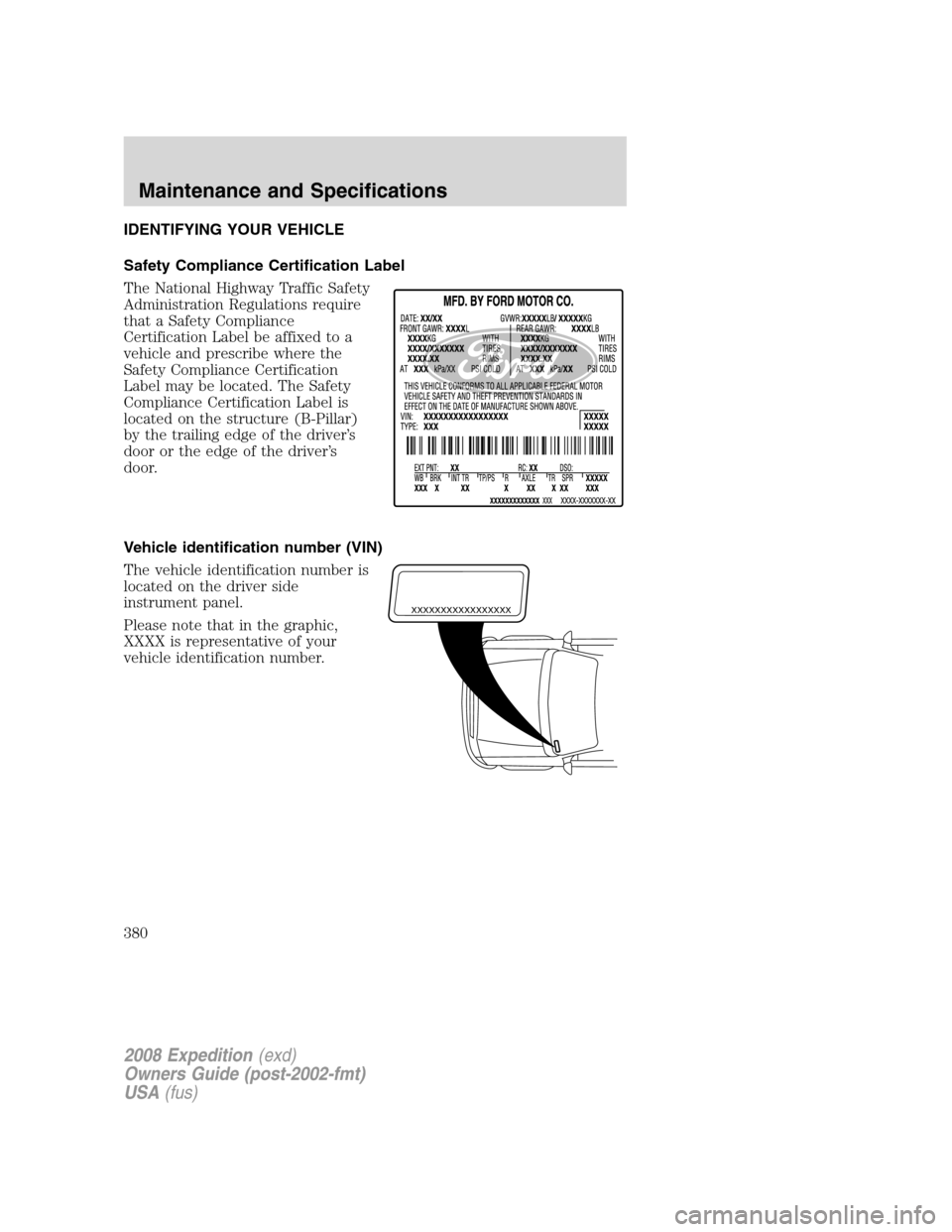

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
380

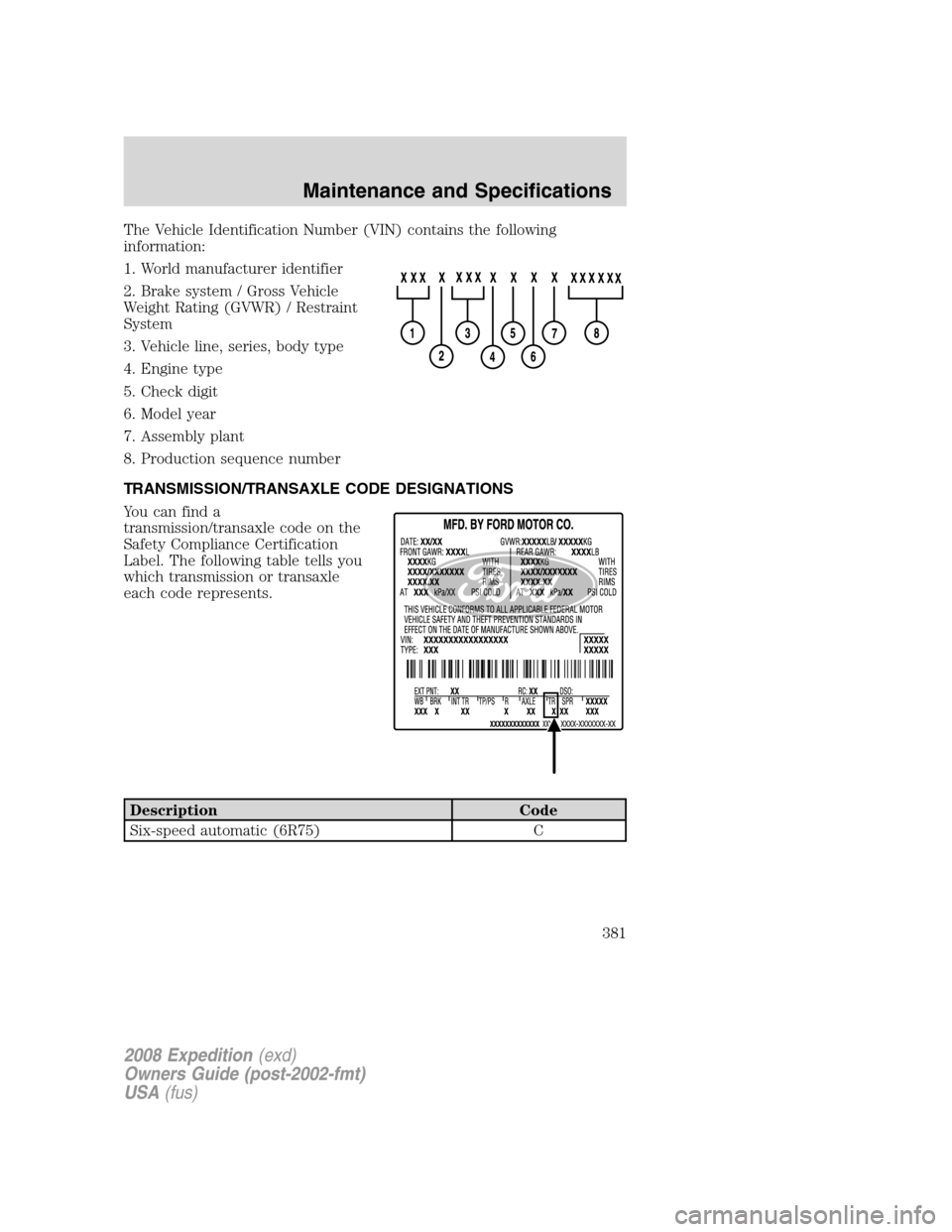

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Six-speed automatic (6R75) C
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
381

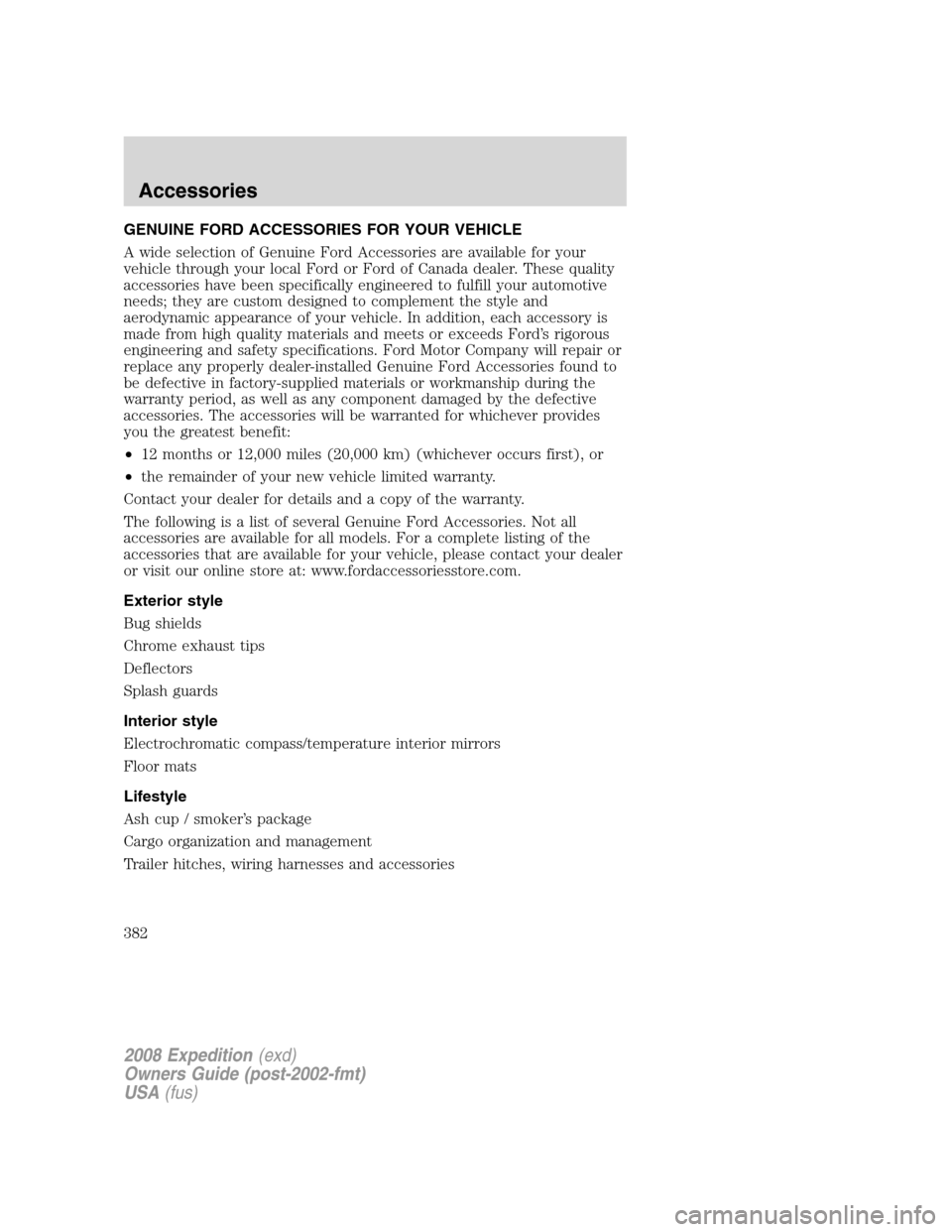

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
382

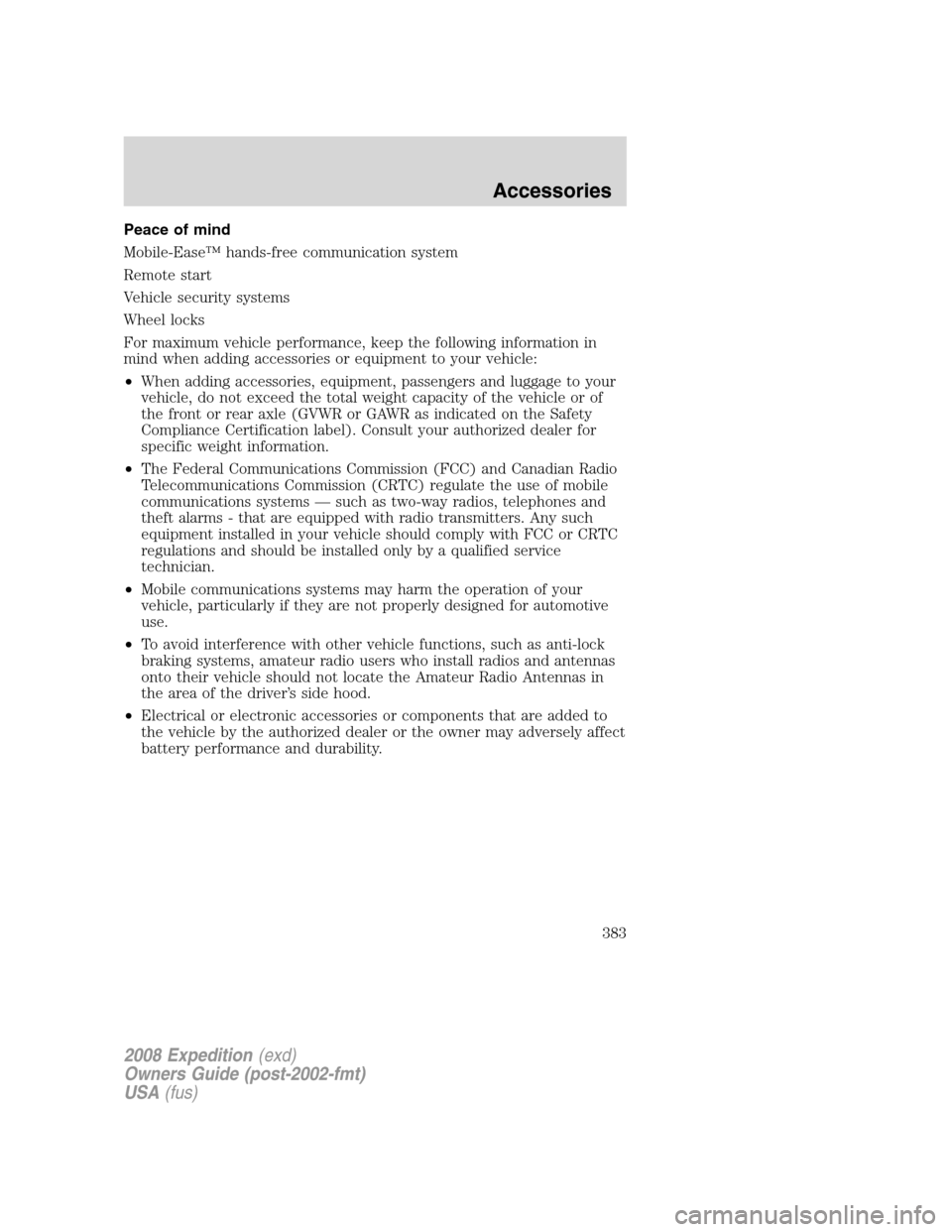

Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
383

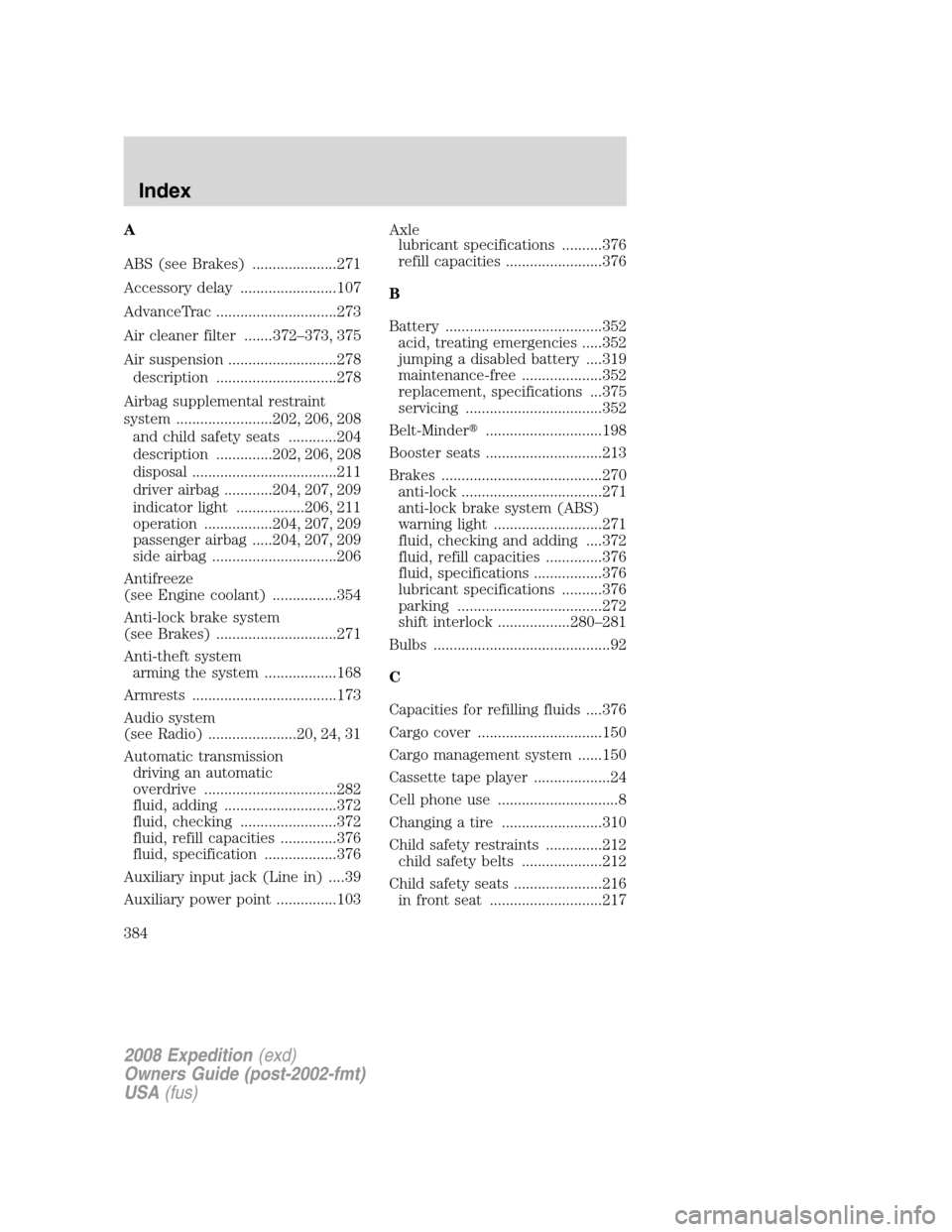

A
ABS (see Brakes) .....................271
Accessory delay ........................107
AdvanceTrac ..............................273
Air cleaner filter .......372–373, 375
Air suspension ...........................278
description ..............................278
Airbag supplemental restraint
system ........................202, 206, 208
and child safety seats ............204
description ..............202, 206, 208
disposal ....................................211
driver airbag ............204, 207, 209
indicator light .................206, 211
operation .................204, 207, 209
passenger airbag .....204, 207, 209
side airbag ...............................206
Antifreeze
(see Engine coolant) ................354
Anti-lock brake system
(see Brakes) ..............................271
Anti-theft system
arming the system ..................168
Armrests ....................................173
Audio system
(see Radio) ......................20, 24, 31
Automatic transmission
driving an automatic
overdrive .................................282
fluid, adding ............................372
fluid, checking ........................372
fluid, refill capacities ..............376
fluid, specification ..................376
Auxiliary input jack (Line in) ....39
Auxiliary power point ...............103Axle
lubricant specifications ..........376
refill capacities ........................376
B
Battery .......................................352
acid, treating emergencies .....352
jumping a disabled battery ....319
maintenance-free ....................352
replacement, specifications ...375
servicing ..................................352
Belt-Minder
.............................198
Booster seats .............................213
Brakes ........................................270
anti-lock ...................................271
anti-lock brake system (ABS)
warning light ...........................271
fluid, checking and adding ....372
fluid, refill capacities ..............376
fluid, specifications .................376
lubricant specifications ..........376
parking ....................................272
shift interlock ..................280–281
Bulbs ............................................92
C
Capacities for refilling fluids ....376
Cargo cover ...............................150
Cargo management system ......150
Cassette tape player ...................24
Cell phone use ..............................8
Changing a tire .........................310
Child safety restraints ..............212
child safety belts ....................212
Child safety seats ......................216
in front seat ............................217
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
384
