2008 FORD EXPEDITION Owners Manual

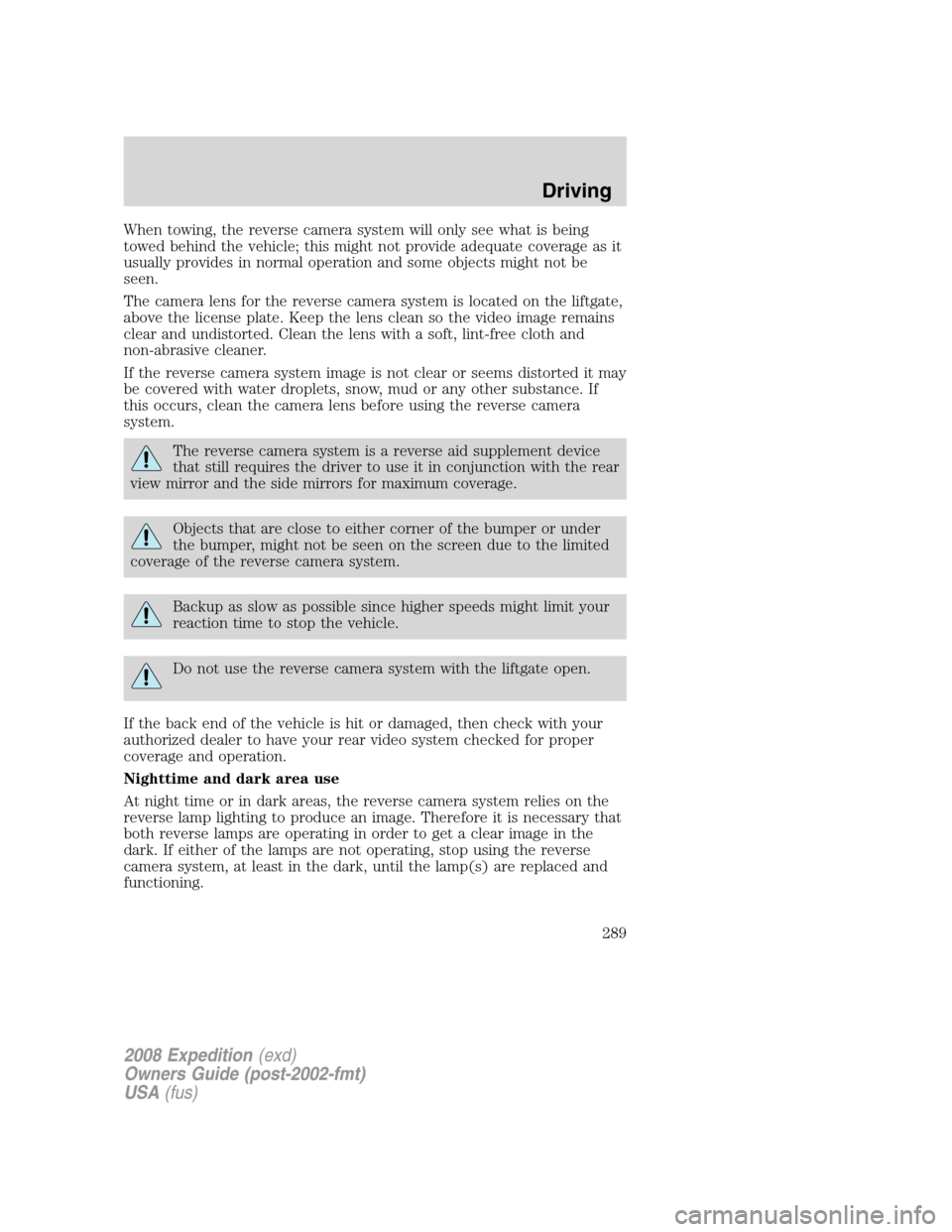

When towing, the reverse camera system will only see what is being
towed behind the vehicle; this might not provide adequate coverage as it
usually provides in normal operation and some objects might not be
seen.
The camera lens for the reverse camera system is located on the liftgate,
above the license plate. Keep the lens clean so the video image remains
clear and undistorted. Clean the lens with a soft, lint-free cloth and
non-abrasive cleaner.
If the reverse camera system image is not clear or seems distorted it may
be covered with water droplets, snow, mud or any other substance. If
this occurs, clean the camera lens before using the reverse camera
system.
The reverse camera system is a reverse aid supplement device
that still requires the driver to use it in conjunction with the rear
view mirror and the side mirrors for maximum coverage.
Objects that are close to either corner of the bumper or under
the bumper, might not be seen on the screen due to the limited
coverage of the reverse camera system.
Backup as slow as possible since higher speeds might limit your
reaction time to stop the vehicle.
Do not use the reverse camera system with the liftgate open.
If the back end of the vehicle is hit or damaged, then check with your
authorized dealer to have your rear video system checked for proper
coverage and operation.
Nighttime and dark area use
At night time or in dark areas, the reverse camera system relies on the
reverse lamp lighting to produce an image. Therefore it is necessary that
both reverse lamps are operating in order to get a clear image in the
dark. If either of the lamps are not operating, stop using the reverse
camera system, at least in the dark, until the lamp(s) are replaced and
functioning.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
289

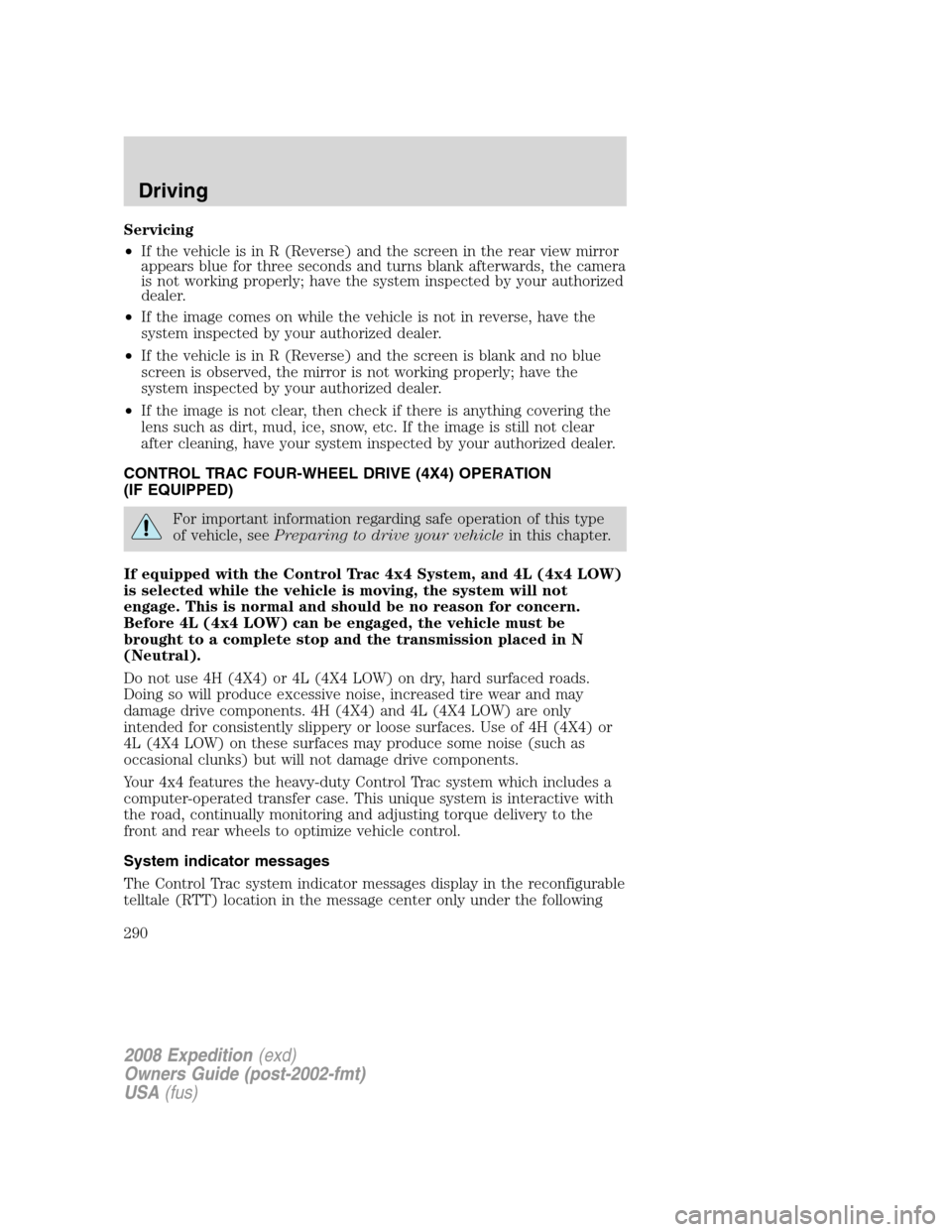

Servicing
•If the vehicle is in R (Reverse) and the screen in the rear view mirror
appears blue for three seconds and turns blank afterwards, the camera
is not working properly; have the system inspected by your authorized
dealer.
•If the image comes on while the vehicle is not in reverse, have the
system inspected by your authorized dealer.
•If the vehicle is in R (Reverse) and the screen is blank and no blue
screen is observed, the mirror is not working properly; have the
system inspected by your authorized dealer.
•If the image is not clear, then check if there is anything covering the
lens such as dirt, mud, ice, snow, etc. If the image is still not clear
after cleaning, have your system inspected by your authorized dealer.
CONTROL TRAC FOUR-WHEEL DRIVE (4X4) OPERATION
(IF EQUIPPED)
For important information regarding safe operation of this type
of vehicle, seePreparing to drive your vehiclein this chapter.
If equipped with the Control Trac 4x4 System, and 4L (4x4 LOW)
is selected while the vehicle is moving, the system will not
engage. This is normal and should be no reason for concern.
Before 4L (4x4 LOW) can be engaged, the vehicle must be
brought to a complete stop and the transmission placed in N
(Neutral).
Do not use 4H (4X4) or 4L (4X4 LOW) on dry, hard surfaced roads.
Doing so will produce excessive noise, increased tire wear and may
damage drive components. 4H (4X4) and 4L (4X4 LOW) are only
intended for consistently slippery or loose surfaces. Use of 4H (4X4) or
4L (4X4 LOW) on these surfaces may produce some noise (such as
occasional clunks) but will not damage drive components.
Your 4x4 features the heavy-duty Control Trac system which includes a
computer-operated transfer case. This unique system is interactive with
the road, continually monitoring and adjusting torque delivery to the
front and rear wheels to optimize vehicle control.
System indicator messages
The Control Trac system indicator messages display in the reconfigurable
telltale (RTT) location in the message center only under the following
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
290

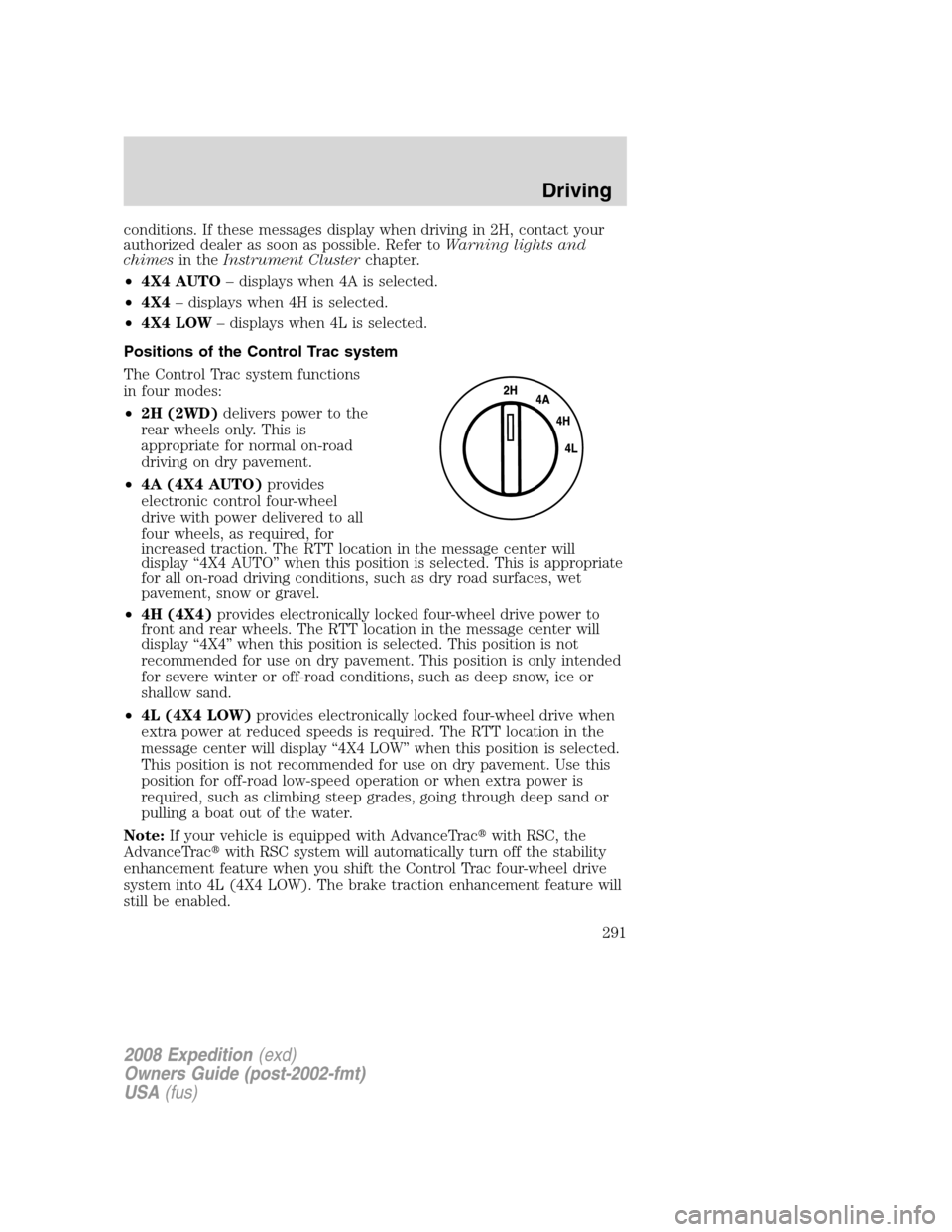

conditions. If these messages display when driving in 2H, contact your
authorized dealer as soon as possible. Refer toWarning lights and
chimesin theInstrument Clusterchapter.
•4X4 AUTO– displays when 4A is selected.
•4X4– displays when 4H is selected.
•4X4 LOW– displays when 4L is selected.
Positions of the Control Trac system
The Control Trac system functions
in four modes:
•2H (2WD)delivers power to the
rear wheels only. This is
appropriate for normal on-road
driving on dry pavement.
•4A (4X4 AUTO)provides
electronic control four-wheel
drive with power delivered to all
four wheels, as required, for
increased traction. The RTT location in the message center will
display “4X4 AUTO” when this position is selected. This is appropriate
for all on-road driving conditions, such as dry road surfaces, wet
pavement, snow or gravel.
•4H (4X4)provides electronically locked four-wheel drive power to
front and rear wheels. The RTT location in the message center will
display “4X4” when this position is selected. This position is not
recommended for use on dry pavement. This position is only intended
for severe winter or off-road conditions, such as deep snow, ice or
shallow sand.
•4L (4X4 LOW)provides electronically locked four-wheel drive when
extra power at reduced speeds is required. The RTT location in the
message center will display “4X4 LOW” when this position is selected.
This position is not recommended for use on dry pavement. Use this
position for off-road low-speed operation or when extra power is
required, such as climbing steep grades, going through deep sand or
pulling a boat out of the water.
Note:If your vehicle is equipped with AdvanceTrac
with RSC, the
AdvanceTrac
with RSC system will automatically turn off the stability
enhancement feature when you shift the Control Trac four-wheel drive
system into 4L (4X4 LOW). The brake traction enhancement feature will
still be enabled.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
291

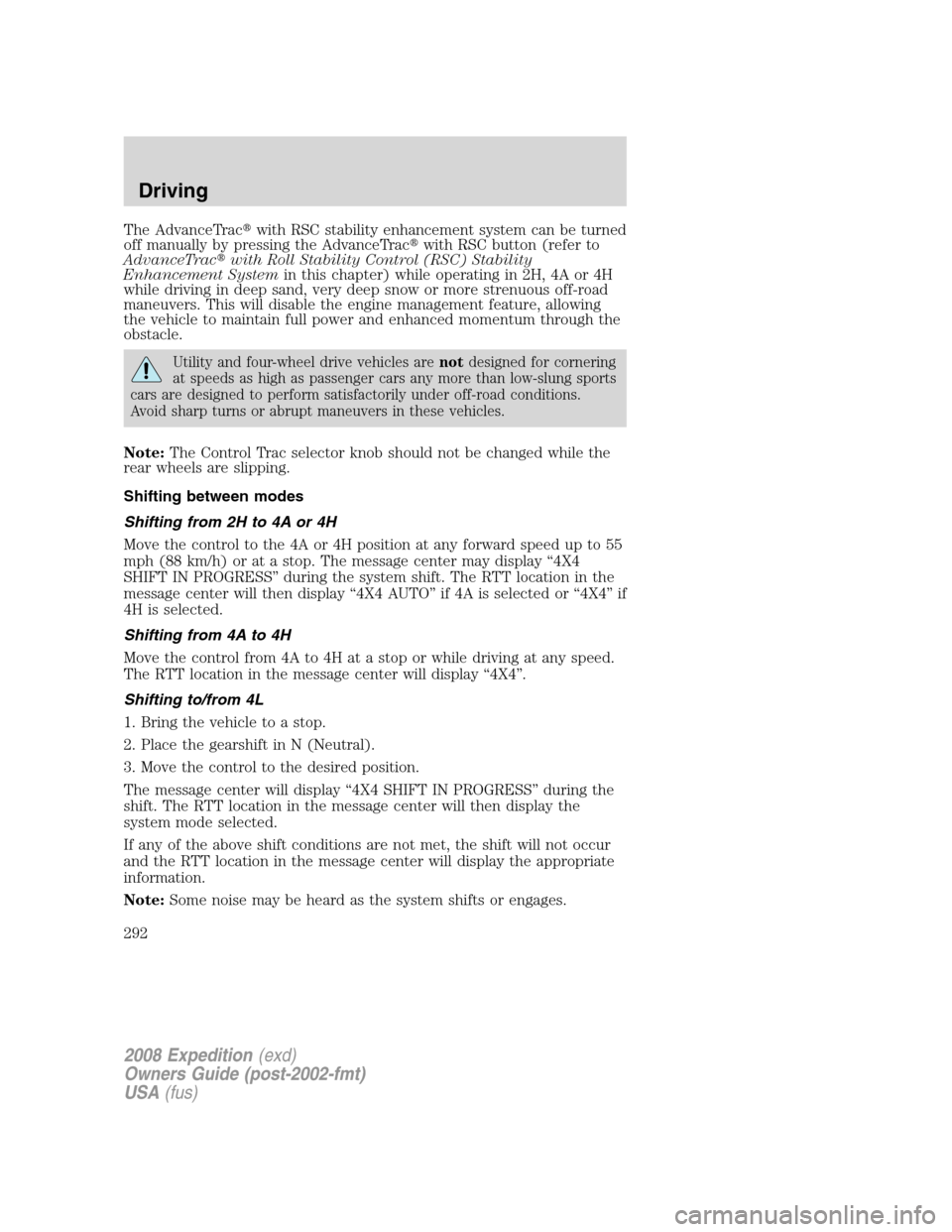

The AdvanceTrac
with RSC stability enhancement system can be turned
off manually by pressing the AdvanceTrac
with RSC button (refer to
AdvanceTrac
with Roll Stability Control (RSC) Stability
Enhancement Systemin this chapter) while operating in 2H, 4A or 4H
while driving in deep sand, very deep snow or more strenuous off-road
maneuvers. This will disable the engine management feature, allowing
the vehicle to maintain full power and enhanced momentum through the
obstacle.
Utility and four-wheel drive vehicles arenotdesigned for cornering
at speeds as high as passenger cars any more than low-slung sports
cars are designed to perform satisfactorily under off-road conditions.
Avoid sharp turns or abrupt maneuvers in these vehicles.
Note:The Control Trac selector knob should not be changed while the
rear wheels are slipping.
Shifting between modes
Shifting from 2H to 4A or 4H
Move the control to the 4A or 4H position at any forward speed up to 55
mph (88 km/h) or at a stop. The message center may display “4X4
SHIFT IN PROGRESS” during the system shift. The RTT location in the
message center will then display “4X4 AUTO” if 4A is selected or “4X4” if
4H is selected.
Shifting from 4A to 4H
Move the control from 4A to 4H at a stop or while driving at any speed.
The RTT location in the message center will display “4X4”.
Shifting to/from 4L
1. Bring the vehicle to a stop.
2. Place the gearshift in N (Neutral).
3. Move the control to the desired position.
The message center will display “4X4 SHIFT IN PROGRESS” during the
shift. The RTT location in the message center will then display the
system mode selected.
If any of the above shift conditions are not met, the shift will not occur
and the RTT location in the message center will display the appropriate
information.
Note:Some noise may be heard as the system shifts or engages.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
292

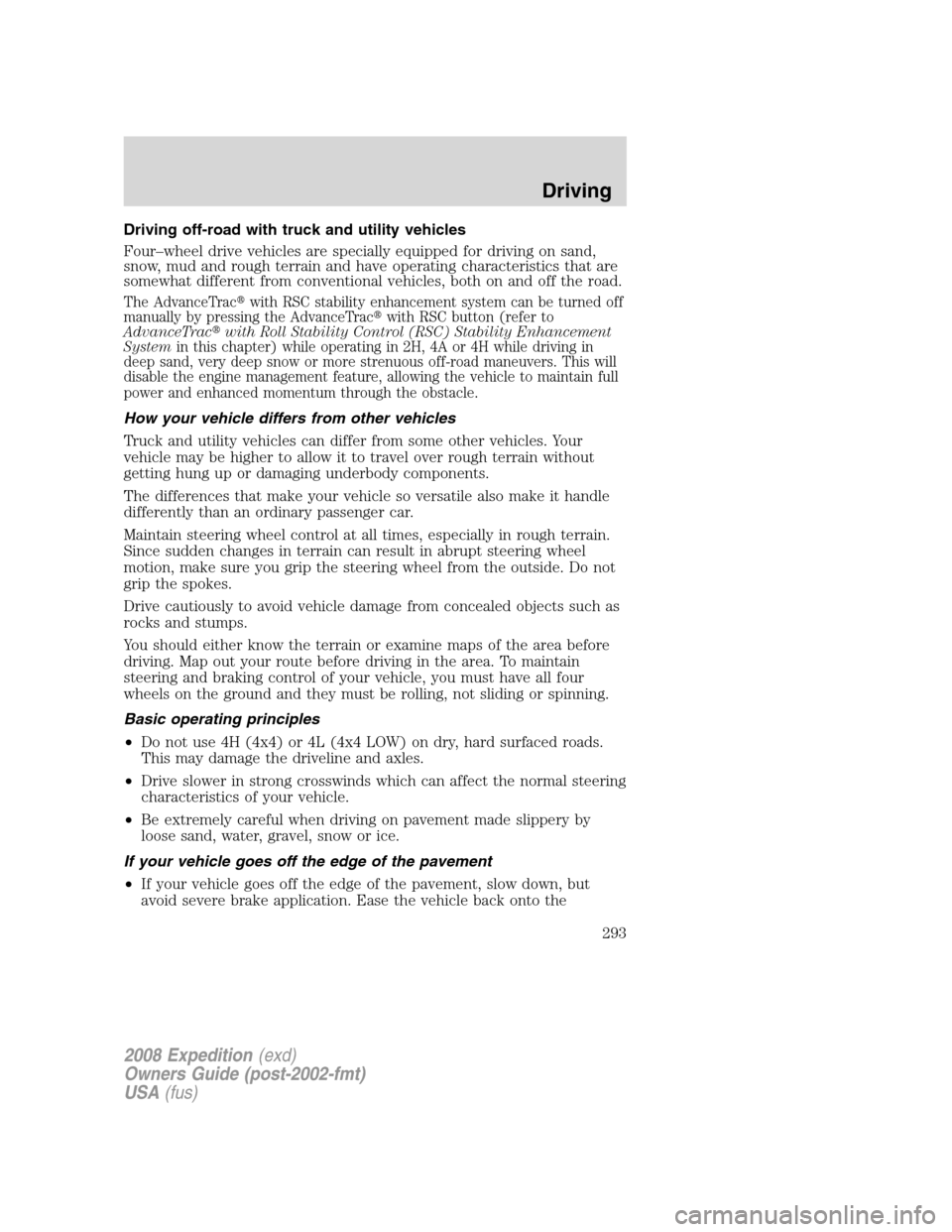

Driving off-road with truck and utility vehicles
Four–wheel drive vehicles are specially equipped for driving on sand,
snow, mud and rough terrain and have operating characteristics that are
somewhat different from conventional vehicles, both on and off the road.
The AdvanceTrac
with RSC stability enhancement system can be turned off
manually by pressing the AdvanceTrac
with RSC button (refer to
AdvanceTrac
with Roll Stability Control (RSC) Stability Enhancement
Systemin this chapter) while operating in 2H, 4A or 4H while driving in
deep sand, very deep snow or more strenuous off-road maneuvers. This will
disable the engine management feature, allowing the vehicle to maintain full
power and enhanced momentum through the obstacle.
How your vehicle differs from other vehicles
Truck and utility vehicles can differ from some other vehicles. Your
vehicle may be higher to allow it to travel over rough terrain without
getting hung up or damaging underbody components.
The differences that make your vehicle so versatile also make it handle
differently than an ordinary passenger car.
Maintain steering wheel control at all times, especially in rough terrain.
Since sudden changes in terrain can result in abrupt steering wheel
motion, make sure you grip the steering wheel from the outside. Do not
grip the spokes.
Drive cautiously to avoid vehicle damage from concealed objects such as
rocks and stumps.
You should either know the terrain or examine maps of the area before
driving. Map out your route before driving in the area. To maintain
steering and braking control of your vehicle, you must have all four
wheels on the ground and they must be rolling, not sliding or spinning.
Basic operating principles
•Do not use 4H (4x4) or 4L (4x4 LOW) on dry, hard surfaced roads.
This may damage the driveline and axles.
•Drive slower in strong crosswinds which can affect the normal steering
characteristics of your vehicle.
•Be extremely careful when driving on pavement made slippery by
loose sand, water, gravel, snow or ice.
If your vehicle goes off the edge of the pavement
•If your vehicle goes off the edge of the pavement, slow down, but
avoid severe brake application. Ease the vehicle back onto the
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
293

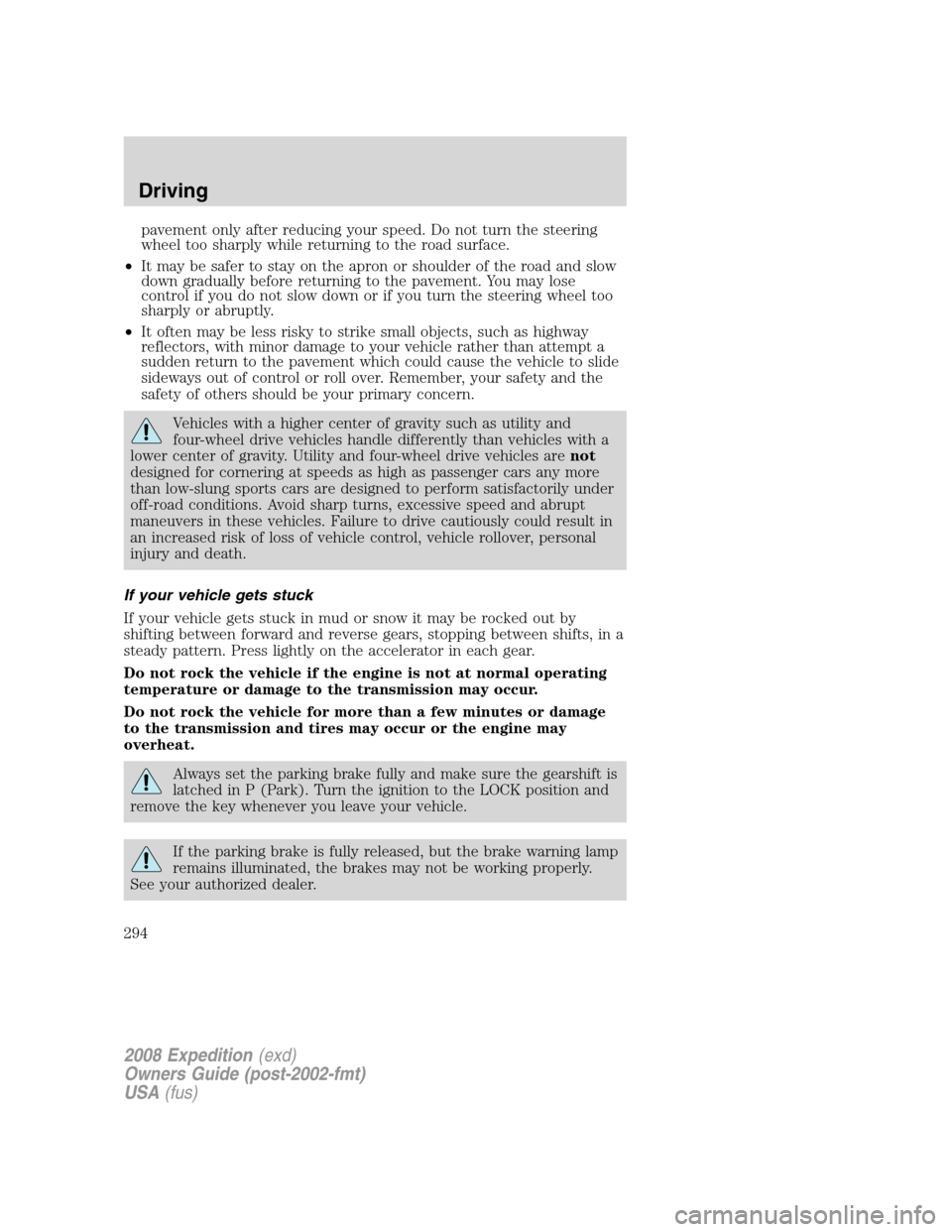

pavement only after reducing your speed. Do not turn the steering
wheel too sharply while returning to the road surface.
•It may be safer to stay on the apron or shoulder of the road and slow
down gradually before returning to the pavement. You may lose
control if you do not slow down or if you turn the steering wheel too
sharply or abruptly.
•It often may be less risky to strike small objects, such as highway
reflectors, with minor damage to your vehicle rather than attempt a
sudden return to the pavement which could cause the vehicle to slide
sideways out of control or roll over. Remember, your safety and the
safety of others should be your primary concern.
Vehicles with a higher center of gravity such as utility and
four-wheel drive vehicles handle differently than vehicles with a
lower center of gravity. Utility and four-wheel drive vehicles arenot
designed for cornering at speeds as high as passenger cars any more
than low-slung sports cars are designed to perform satisfactorily under
off-road conditions. Avoid sharp turns, excessive speed and abrupt
maneuvers in these vehicles. Failure to drive cautiously could result in
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
If your vehicle gets stuck
If your vehicle gets stuck in mud or snow it may be rocked out by
shifting between forward and reverse gears, stopping between shifts, in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a few minutes or damage
to the transmission and tires may occur or the engine may
overheat.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer.
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
294

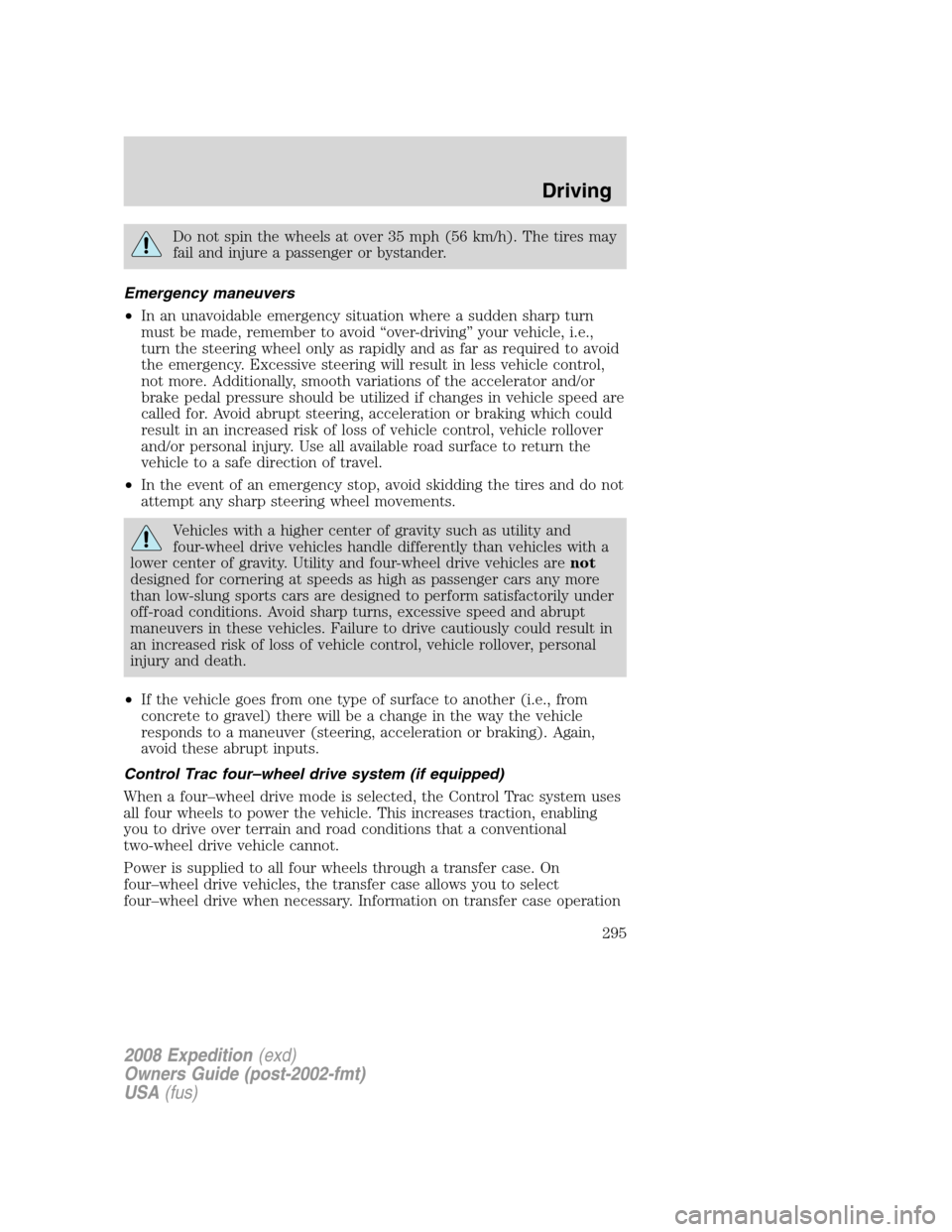

Do not spin the wheels at over 35 mph (56 km/h). The tires may
fail and injure a passenger or bystander.
Emergency maneuvers
•In an unavoidable emergency situation where a sudden sharp turn
must be made, remember to avoid “over-driving” your vehicle, i.e.,
turn the steering wheel only as rapidly and as far as required to avoid
the emergency. Excessive steering will result in less vehicle control,
not more. Additionally, smooth variations of the accelerator and/or
brake pedal pressure should be utilized if changes in vehicle speed are
called for. Avoid abrupt steering, acceleration or braking which could
result in an increased risk of loss of vehicle control, vehicle rollover
and/or personal injury. Use all available road surface to return the
vehicle to a safe direction of travel.
•In the event of an emergency stop, avoid skidding the tires and do not
attempt any sharp steering wheel movements.
Vehicles with a higher center of gravity such as utility and
four-wheel drive vehicles handle differently than vehicles with a
lower center of gravity. Utility and four-wheel drive vehicles arenot
designed for cornering at speeds as high as passenger cars any more
than low-slung sports cars are designed to perform satisfactorily under
off-road conditions. Avoid sharp turns, excessive speed and abrupt
maneuvers in these vehicles. Failure to drive cautiously could result in
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
•If the vehicle goes from one type of surface to another (i.e., from
concrete to gravel) there will be a change in the way the vehicle
responds to a maneuver (steering, acceleration or braking). Again,
avoid these abrupt inputs.
Control Trac four–wheel drive system (if equipped)
When a four–wheel drive mode is selected, the Control Trac system uses
all four wheels to power the vehicle. This increases traction, enabling
you to drive over terrain and road conditions that a conventional
two-wheel drive vehicle cannot.
Power is supplied to all four wheels through a transfer case. On
four–wheel drive vehicles, the transfer case allows you to select
four–wheel drive when necessary. Information on transfer case operation
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
295

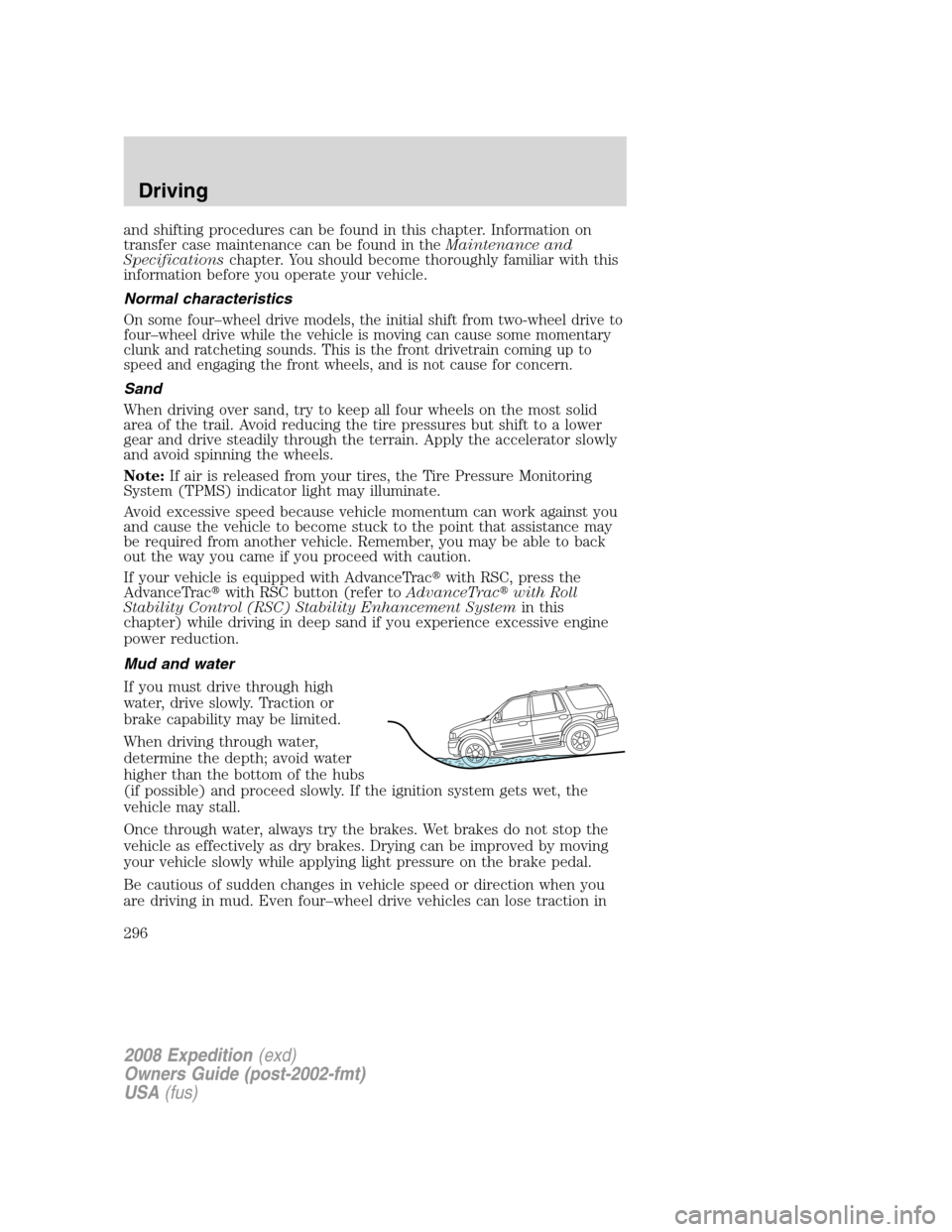

and shifting procedures can be found in this chapter. Information on
transfer case maintenance can be found in theMaintenance and
Specificationschapter. You should become thoroughly familiar with this
information before you operate your vehicle.
Normal characteristics
On some four–wheel drive models, the initial shift from two-wheel drive to
four–wheel drive while the vehicle is moving can cause some momentary
clunk and ratcheting sounds. This is the front drivetrain coming up to
speed and engaging the front wheels, and is not cause for concern.
Sand
When driving over sand, try to keep all four wheels on the most solid
area of the trail. Avoid reducing the tire pressures but shift to a lower
gear and drive steadily through the terrain. Apply the accelerator slowly
and avoid spinning the wheels.
Note:If air is released from your tires, the Tire Pressure Monitoring
System (TPMS) indicator light may illuminate.
Avoid excessive speed because vehicle momentum can work against you
and cause the vehicle to become stuck to the point that assistance may
be required from another vehicle. Remember, you may be able to back
out the way you came if you proceed with caution.
If your vehicle is equipped with AdvanceTrac
with RSC, press the
AdvanceTrac
with RSC button (refer toAdvanceTrac
with Roll
Stability Control (RSC) Stability Enhancement Systemin this
chapter) while driving in deep sand if you experience excessive engine
power reduction.
Mud and water
If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
When driving through water,
determine the depth; avoid water
higher than the bottom of the hubs
(if possible) and proceed slowly. If the ignition system gets wet, the
vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even four–wheel drive vehicles can lose traction in
2008 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
296
