2008 DODGE RAM 2500 GAS Owners Manual

storage area into separate compartments. Lift the lower
handle on the front of the armrest, and raise the armrest
for access to the lower storage bin. On Quad Cabtand
Mega Cabtmodels the rear of the floor console offers a
power outlet, and a tip out bin.
WARNING!
²This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or an accident. Only use the center
seating position when the armrest is fully upright.
²In an accident, the latch may open if the total
weight of the items stored exceeds about 10 lbs (4.5
kg). These items could be thrown about endanger-
ing occupants of the vehicle. Items stored should
not exceed a total of 10 lbs (4.5 kg).
CAUTION!
²Many accessories that can be plugged in draw
power from the vehicle's battery, even when not in
use (i.e., cellular phones, etc.). Eventually, if
plugged in long enough, the vehicle's battery will
discharge sufficiently to degrade battery life
and/or prevent engine starting.
²Accessories that draw higher power (i.e., coolers,
vacuum cleaners, lights, etc.), will degrade the
battery even more quickly. Only use these inter-
mittently and with greater caution.
²After the use of high power draw accessories, or
long periods of the vehicle not being started (with
accessories still plugged in), the vehicle must be
driven a sufficient length of time to allow the
generator to recharge the vehicle's battery.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 175
3

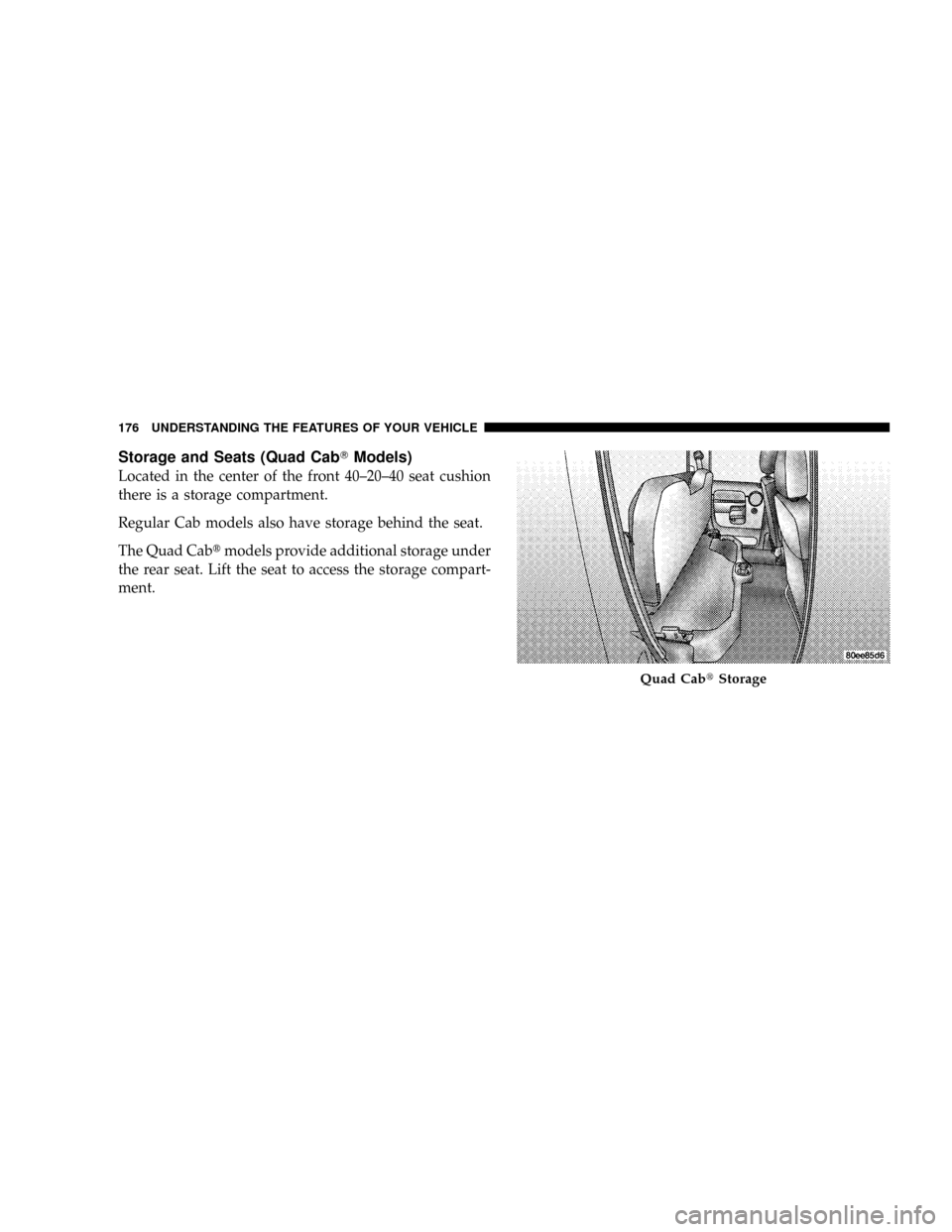

Storage and Seats (Quad CabTModels)
Located in the center of the front 40±20±40 seat cushion
there is a storage compartment.
Regular Cab models also have storage behind the seat.
The Quad Cabtmodels provide additional storage under
the rear seat. Lift the seat to access the storage compart-
ment.
Quad CabtStorage
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

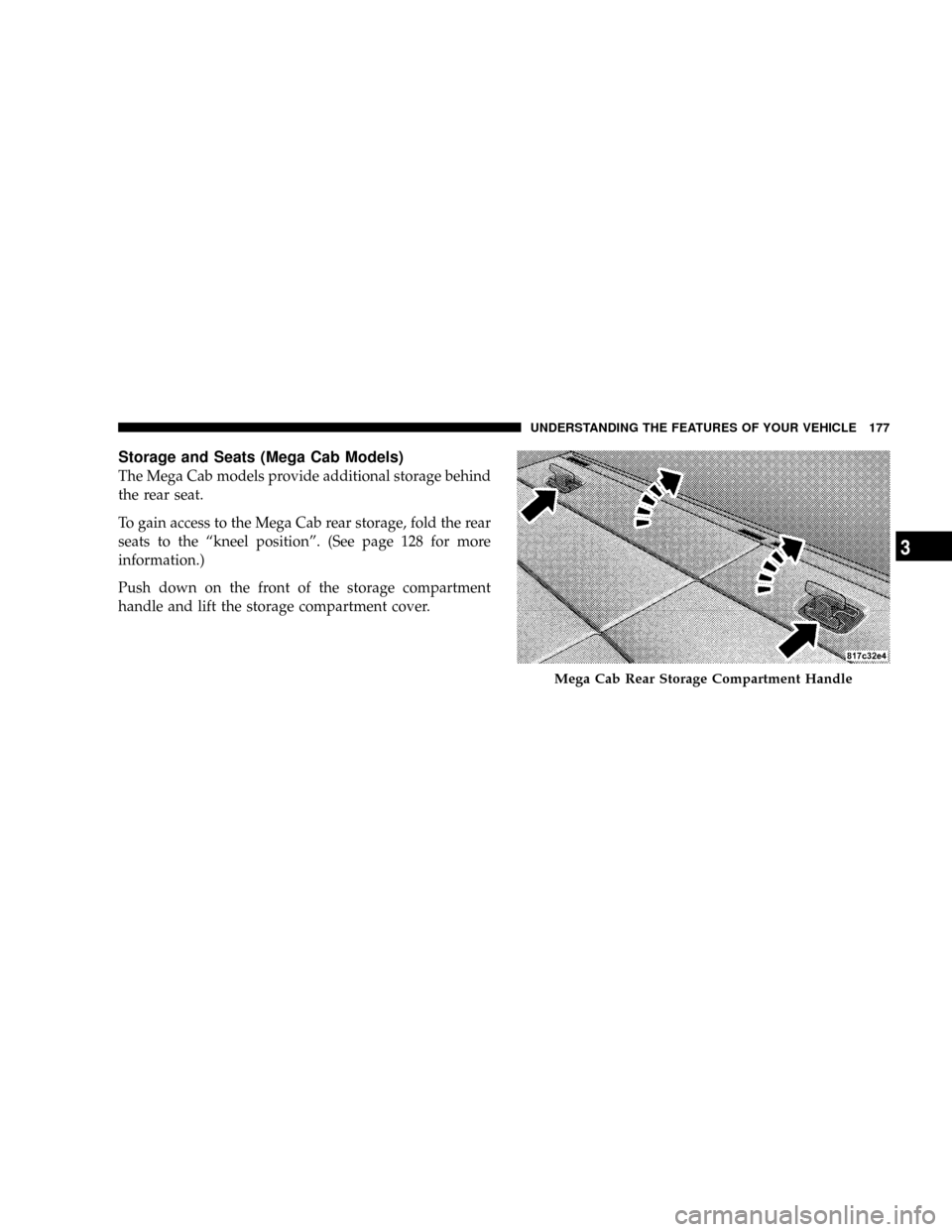

Storage and Seats (Mega Cab Models)
The Mega Cab models provide additional storage behind
the rear seat.
To gain access to the Mega Cab rear storage, fold the rear
seats to the ªkneel positionº. (See page 128 for more
information.)
Push down on the front of the storage compartment
handle and lift the storage compartment cover.
Mega Cab Rear Storage Compartment Handle
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177
3

The rear storage compartment can be divided into three
separate compartments by using the divider doors inside
the storage compartment.Plastic Grocery Bag Retainers (Mega Cab Models)
Retainer hooks which will hold plastic grocery bag
handles are built into the back panel of the cab, behind
the rear seat.
Mega Cab Rear Storage Dividers
Grocery Bag Hooks
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

FOLD FLAT LOAD FLOOR Ð IF EQUIPPED
Quad Cabtmodels with a 60/40 rear seat may be
equipped with a folding load floor.WARNING!
Do not operate the vehicle with loose items stored on
the load floor. While driving or in an accident you
may experience abrupt stopping, rapid acceleration,
or sharp turns. Loose objects stored on the load floor
may move around with force and strike occupants,
resulting in serious or fatal injury.
Quad CabtRear 60/40 Seat
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179
3

Unfolding the Load Floor
1. Lift the 60/40 seat cushion(s) to the upward position.2. Grasp the knob on the load floor and lift the knob until
the load floor unfolds into position.
3. Reverse the procedure to store the load floor.
Unfolding The Load FloorLoad Floor In Open Position
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Positioning the Load Floor for Storage Access Under
the Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the
load floor.
3. Lift the load floor up to access storage under the load
floor.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.4. Reverse the procedure to put the load floor back in the
secured down position before you operate the vehicle.Load Floor Securing Straps
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181
3

REAR WINDOW FEATURES
Electric Rear Window Defroster and Heated
Sideview Mirrors Ð If Equipped
The Electric Rear Window Defroster and Heated
Sideview Mirrors are activated by pressing the
heated grid button, located on the Climate Control panel,
with the ignition ON. Turning OFF the ignition will
deactivate the Electric Rear Window Defroster and
Heated Sideview Mirrors feature. These features also
turn off after activation, when 15 minutes have elapsed.
For ten more minutes of operation, push the button
again.
Power Sliding Rear Window Ð If Equipped
The power sliding rear window switch is located on the
instrument panel below the climate controls. Press the
right side of the switch to open the glass and the left side
of the switch to close the glass.
Power Sliding Rear Window Switch
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
