2008 DODGE RAM 2500 GAS Owners Manual

LIGHT BULBS Ð Exterior Bulb No.
Tail & Stop............................3057
Cab Clearance Lights...................... 168
Dual Rear Wheel Sidemarker Light............ 168
Dual Rear Wheel Tailgate ID Lights (3)......... 168
BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass with
your fingers. Reduced bulb life will result.1. Open the hood
2. Remove the two bolts from the front of the headlight
housing.
Front Headlight Housing Bolts
MAINTAINING YOUR VEHICLE 495
7

3. Remove the plug from the inner fender well and
remove the nut through the access hole.
4. Pull the housing out from the fender to allow room to
disconnect the electrical connectors.
NOTE:For easier removal, pull the headlight assembly
straight forward, applying the greatest amount of force to
the outer edge of the headlight assembly.
Inner Fender Plug
Rear Headlight Housing Nut Access
496 MAINTAINING YOUR VEHICLE

Headlight RemovalBulb Removal
MAINTAINING YOUR VEHICLE 497
7

5. Unlock and pull connector straight from the base of
the headlight halogen bulb.
6. Twist connector on the side marker/turn signal/park
light bulb
1¤4turn and remove connector and bulb from
housing.
7. Remove housing from vehicle with headlight halogen
bulb in housing.
8. Twist the headlight halogen bulb
1¤4turn and remove
headlight bulb from the housing.
9. Replace headlight or side marker/turn signal/park
light bulb. Do not touch the headlight halogen bulb.
10. Reverse procedure for installation of bulbs and hous-
ing.
Fog Lights
1. Reach under the vehicle, unlock and twist connector
counterclockwise1¤4turn and remove connector and bulb
from housing.
498 MAINTAINING YOUR VEHICLE

2. Pull bulb straight from the connector.
3. Reverse procedure for installation of bulbs and hous-
ing.Tail, Stop, Turn and Backup Lights
1. Remove the two screws that pass through the bed
sheetmetal.
Removing The Two Screws
MAINTAINING YOUR VEHICLE 499
7

2. Pull the housing straight out from the body, with a
quick motion, to separate the housing from the body. If
not pulled straight, locators may be damaged.3. Rotate the bulb socket counterclockwise to remove
from the housing.
Pulling Housing From Body
Rotating Bulb Socket From Housing
500 MAINTAINING YOUR VEHICLE

4. Pull bulb straight out of socket. 5. Reverse Procedure to install bulb and housing. Place
the two raised blocks past the body.
Pulling Bulb From Socket
Sliding Raised Blocks Past Body
MAINTAINING YOUR VEHICLE 501
7

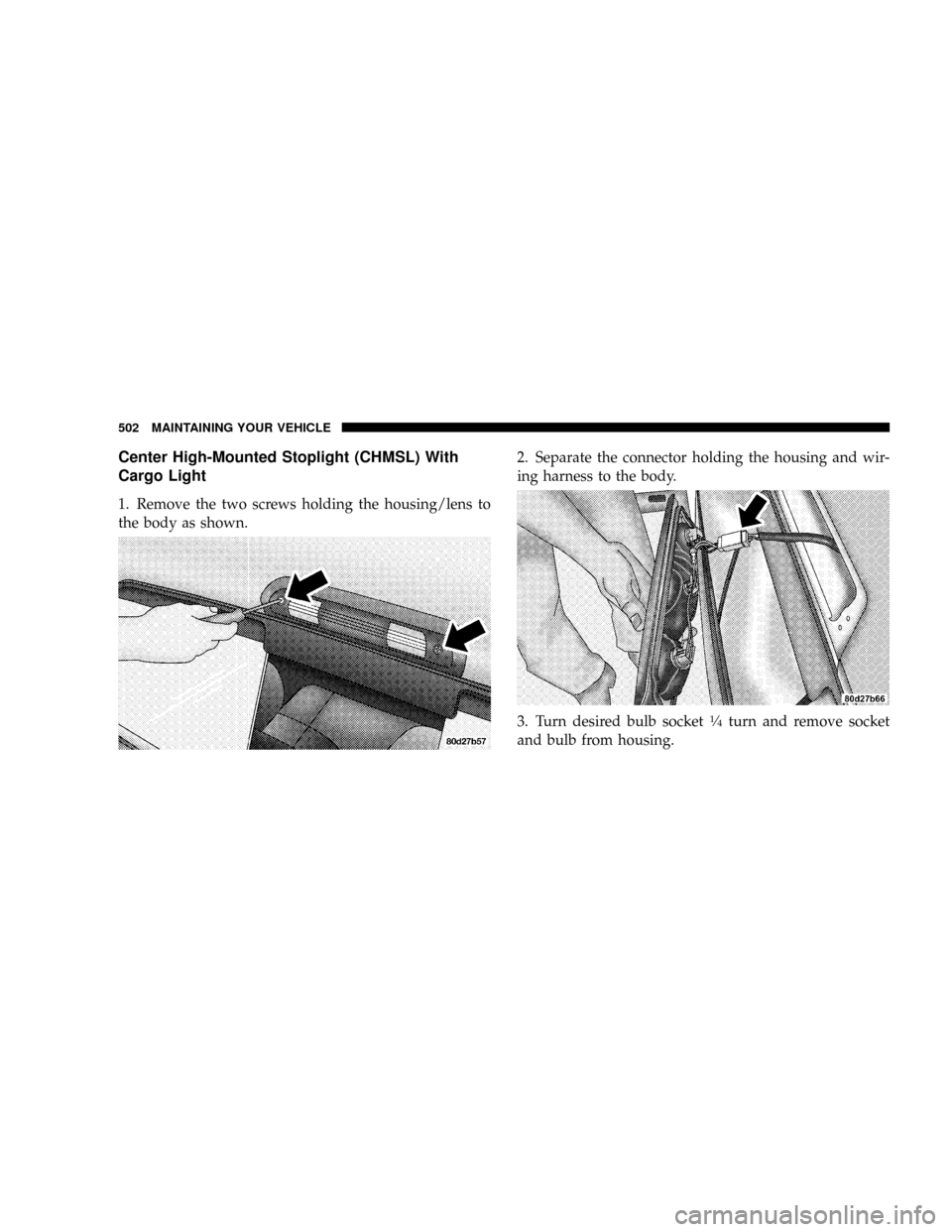

Center High-Mounted Stoplight (CHMSL) With
Cargo Light
1. Remove the two screws holding the housing/lens to
the body as shown.2. Separate the connector holding the housing and wir-
ing harness to the body.
3. Turn desired bulb socket
1¤4turn and remove socket
and bulb from housing.
502 MAINTAINING YOUR VEHICLE
