Page 33 of 114
35COMFORT-
VENTILATION
1. Windscreen de-icing or
demisting vents.
2. Front window de-icing or
demisting vents.
3. Side vents.
4. Centre vents.
5. Air outlets to front footwells. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water created by the air condi-
tioning condensation is discharged
via an opening provided for this pur-
pose. Therefore, a puddle of water
may form underneath the vehicle
when stationary.
If the system does not produce
cold air, do not use it and contact a
CITROËN dealer.
De-icing the rear windows and
mirrors
With the engine running, pressing
the control de-ices the rear windows
and mirrors.
It switches off automatically after
approximately twelve minutes.
Pressing the control again switches
the de-icing system on again for
twelve minutes.
It is possible to switch off the de-icing
by pressing the control before the
twelve minutes have elapsed.
Advice on operation
Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually adjust the temperature
setting for your comfort.
Position the air control in the ''Outside
Air'' position.
For perfectly even air distribution,
take care not to obstruct the exterior
air intake grille and the vents. Check
t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r
is in good condition.
When the engine is cold, to prevent
too great a distribution of cold air, the
ventilation will increase to its optimum
level gradually.
In order to be effective, the air condi-
tioning (
A/C button), should only be
used with the windows closed.
If the interior temperature remains
very high following a prolonged period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.
Page 34 of 114
COMFORT36 - Intake of exterior air.
HEATING
Turn the control from position 1
to position 4 to obtain an air
fl o w s u f fi c i e n t t o e n s u r e y o u r
comfort.
2 . A i r fl o w a d j u s t m e n t a n d a i r intake control
Turn the control from position 1
to position 4 to obtain an air
fl o w s u f fi c i e n t t o e n s u r e y o u r
comfort.
As soon as possible, position the
control in the exterior air intake
position to prevent misting of the
windows.
This is the normal operating position.
Passenger compartment isolation.
This position prevents exterior odours
and smoke entering the passenger
compartment.
1 . A i r fl o w a d j u s t m e n t
Page 35 of 114
37COMFORT-
These settings are recommended for
cold climates.
3 . T e m p e r a t u r e a d j u s t m e n t
To be adjusted to your requirements.
From blue (exterior temperature) to
red (hot).
4 . A i r d i s t r i b u t i o n a d j u s t m e n t
This setting is recommended for high
temperatures.
Windscreen and side windows
(de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:
- position the air intake control in the ''Outside Air" position,
- t u r n t h e t e m p e r a t u r e a n d a i r fl o w controls to maximum,
- close the centre vents. Windscreen, side windows
and footwells.
Footwells.
Centre and side vents.
Page 36 of 114
COMFORT38 - Press the switch to activate
the air conditioning. The indi-
cator light comes on. 2 . A i r fl o w a d j u s t m e n t a n d a i r
intake control
Turn the control from position 1
to position 4 to obtain an air
fl o w s u f fi c i e n t t o e n s u r e y o u r
comfort.
AIR CONDITIONING
The air conditioning does not
o p e r a t e w h i l e t h e a i r fl o w a d j u s t -
m e n t c o n t r o l i s i n t h e m i n i m u m
position.
Note: to optimise the operation of
the air conditioning, leave the vents
open.
1. Air conditioning control
The air conditioning is designed to
operate in all seasons. In summer,
it enables the temperature to be
lowered and in winter, above 0 °C,
it increases the effectiveness of the
demisting.
Page 37 of 114
39COMFORT-
Additional heater
V e h i c l e s w h i c h a r e fi t t e d w i t h a n H D I
e n g i n e m a y b e fi t t e d w i t h a u t o m a t i c
additional heating to improve your
comfort.
When the engine is idling or the vehi-
cle is stationary, it is quite normal to
notice a high-pitched whistling noise
and a slight emission of smoke and
odour.
Centre and side vents.
This setting is recommended for high
temperatures.
Recirculation of interior air.
This position prevents exterior odours
and smoke entering the passenger
compartment.
Used simultaneously with the air con-
ditioning, recirculation enables both
heating and cooling performance to
be improved.
Used without the air conditioning,
recirculation may result in misting of
the windows.
As soon as possible, position the
control in the exterior air intake posi-
tion.
3 . T e m p e r a t u r e a d j u s t m e n t
To be adjusted to your requirements.
From blue (cold when the air condi-
tioning is on) to red (hot). 4 . A i r d i s t r i b u t i o n a d j u s t m e n t
Windscreen and side windows
(de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:
- t u r n t h e t e m p e r a t u r e a n d a i r fl o w controls to maximum,
- close the centre vents,
- position the air intake control in the "Outside Air" position,
- start the air conditioning.
Footwells.
These settings are recommended for
cold climates. Windscreen, side windows
and footwells.
Intake of exterior air.
This is the normal operating position.
Page 38 of 114
Page 39 of 114
41SEATS-

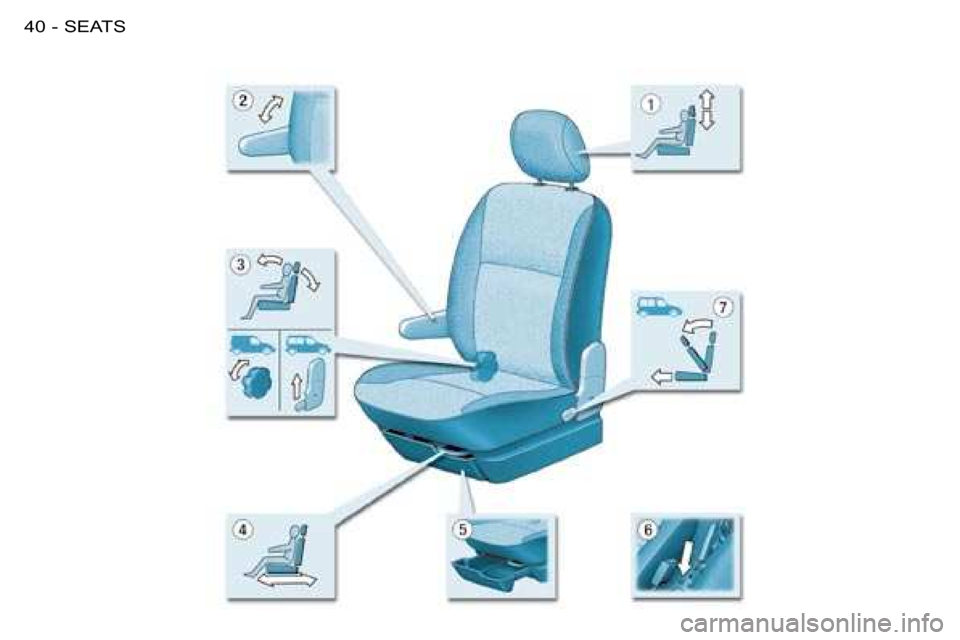

FRONT SEATS
The adjustment is correct when
the upper edge of the head
restraint is level with the top of
the head.
To remove the head restraint, place it
in the top position, press the tabs and
pull it upwards.
To put it back in position, locate the
stems of the restraint in the holes,
taking care to keep them in line with
the seat back.
No person or object must pre-
vent the seat from returning
to its initial position; return to
this position is necessary for
the seat to lock in place.
4. Forwards-backwards
adjustment
Lift the control and slide the seat
forwards or backwards.
1. Head restraint height
adjustment
To raise or lower the restraint, slide it.
2. Armrests
These can be folded back. 3. Seat back angle adjustment
5. Storage drawer (version with
passenger air bag)
There is a storage drawer under the
front passenger seat.
To open it, lift it and pull. 6. Heated seats switch
Press the switch. The temperature is
controlled automatically.
Pressing the switch again stops
operation.
Note: the command for activation
of heating of the seat(s) remains
memorised for two minutes after the
ignition has been switched off.
7. Access to rear seats (version with one
sliding side door only)
Lift the control to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to
its initial position (driver's side).
Do not place heavy objects
in the drawers.
A. Turn the knob.
B. Pull the lever (version
with one sliding side door
only).
Never drive with the head re-
straints removed; they must
be in place and correctly ad-
justed.
Page 40 of 114
SEATS42 -
MULTIFUNCTION PASSENGER SEAT
To fold the seat fully:
Pull the control 2 upwards and tilt the
whole seat.
It is not necessary to remove the
head restraint.
This provides access to a box which
enables you to store objects so that
they cannot be seen from outside the
vehicle. I f y o u r v e h i c l e i s n o t fi t t e d w i t h a l o a d
blocking partition, it can accommo-
date long objects (up to 2.10 m).
These must be placed on the front
e d g e o f t h e fl o o r a n d s e c u r e d u s i n g
the rear bar of the boot or using the
lashing rings.
To fold the seat back:
Pull the control
1 upwards and tilt the
seat back.
T h i s p r o v i d e s a fl a t s u r f a c e , r e c e s s e s
for drinks and a strap for retaining
documents.
