2008 Citroen BERLINGO FIRST DAG Owner's Manual

ACCESS and STARTING56 -
REAR DOORS
Side door child lock Opening the doors from outside
To open, pull the rear right door han-
dle
A towards you and open the rear
left door by pulling the lever B on the
inside.
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
door from the inside.
Turn the control a quarter turn using
the ignition key.

ACCESS and STARTING56 -
REAR DOORS
Side door child lock Opening the doors from outside
To open, pull the rear right door han-
dle
A towards you and open the rear
left door by pulling the lever B on the
inside.
You can unlock the rear doors by
inserting the key in the lock C .
This prevents opening of the side
door from the inside.
Turn the control a quarter turn using
the ignition key.

57ACCESS and STARTING-

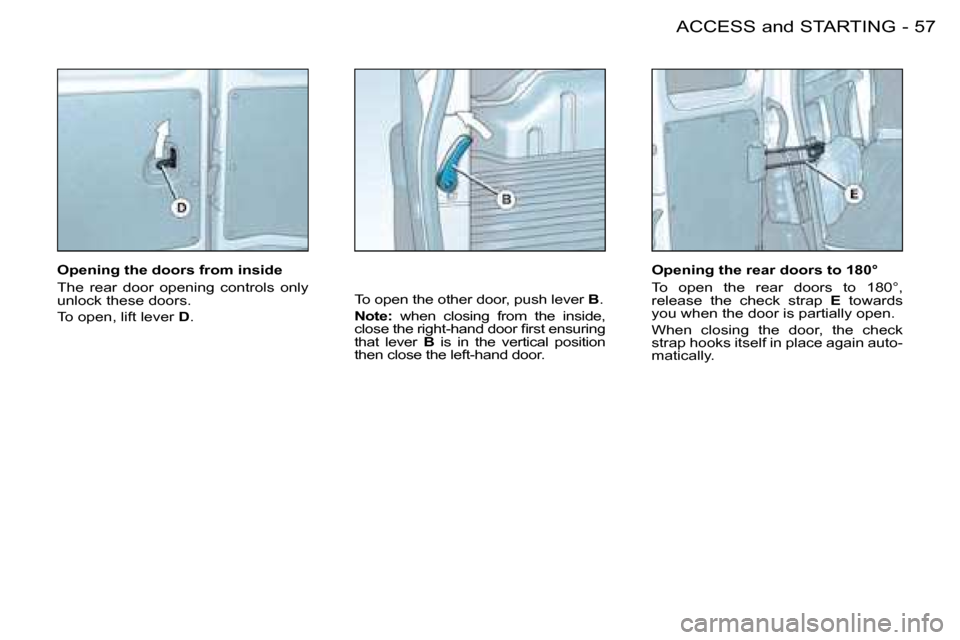

Opening the doors from inside
The rear door opening controls only
unlock these doors.
To open, lift lever D . To open the other door, push lever
B .

Note: when closing from the inside,
close the right-hand door fi rst ensuring
that lever B is in the vertical position
then close the left-hand door. Opening the rear doors to 180°
To open the rear doors to 180°,
release the check strap
E towards
you when the door is partially open.
When closing the door, the check
strap hooks itself in place again auto-
matically.

ACCESS and STARTING58 -
OPENING THE BONNET

Inside the vehicle: pull the handle on
the left-hand side, under the fascia.

Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
FILLING WITH FUEL
When the minimum
fuel level in the tank is
reached, this warning
light comes on. When the cap is removed,
the right-hand sliding side
door cannot be opened.
The key cannot be removed
from the lock until the cap
has been replaced on the
fuel tank.
A label reminds you which type of
fuel to use.
When you fi ll your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
To close
Lower the bonnet and release it at
the end of its travel.
Check that the bonnet is locked.
Low fuel level

You have enough fuel remaining
to drive for approximately 30 miles
(50 km).

The engine must be switched off
when fi lling with fuel.

 Insert the key then turn it to the left.

 Remove the cap.
The capacity of the tank is approxi-
mately 55 litres for petrol engines
and 60 litres for Diesel engines.

 After fi lling the tank, lock the cap.

59VISIBILITY-
Dipped/Main beam change
Pull the stalk towards you.

Note: with the ignition off, when the
driver's door is opened, a buzzer
sounds if you have left your lights on.
LIGHTS STALK
Lights off
Side lights
Dipped/Main beam
headlamps Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The status
is confi rmed by the indicator light on the
instrument panel.
"Follow-me-home" lighting
In poor light, or at night, if you leave
your vehicle, the side lights and
dipped headlamps may remain on for
approximately one minute.
To activate this function:
- place the key in the
STOP position,
- place the lights stalk in position 0 ,
- fl ash the headlamps,
- exit the vehicle and lock it.
In good or rainy weather,
both day and night, the front
fog lamps and the rear fog
lamp are dazzling and are
prohibited.
Do not forget to switch them off when
they are no longer needed. Left:
downwards.

Right: upwards.
Direction indicators (fl ashers)
Vehicles fi tted with a rear
fog lamp only (ring B)
Vehicles fi tted with
front fog lamps and
a rear fog lamp
(ring B)
Front fog lamps (fi rst rotation of the
ring forwards).
Front and rear fog lamps (2nd rotation
of the ring forwards).

Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
backwards twice in succession.
Front and rear lights
Selection is by turning ring
A.
Rotate the ring forwards.
This only operates with the dipped/
main beam headlamps.

VISIBILITY60 - Windscreen wipers

2 Fast wipe
(heavy rain).

1 Normal wipe
(moderate rain).

I Intermittent wipe.

0 Off.

 Single wipe
(press downwards).
WINDSCREEN WIPER STALK Windscreen and headlamp wash
(according to country)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp wash is also activated,

if the headlamps are on.
Rear windscreen wiper
Turn ring A to the fi rst notch.
The wiping speed is inversely
proportional to the speed of
the vehicle.
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear win-
dow demister. Once de-icing is
complete, remove the snow or
ice which has accumulated on the rear
wiper blade. You can now operate the
rear windscreen wiper. Rear windscreen wash
Turn ring
A past the fi rst
notch: the windscreen wash
then the windscreen wiper
operate for a fi xed time.
Operation
In position 1 or 2 , when the vehicle
stops, the windscreen wiper changes
to a lower wiping speed, then resumes
its initial speed when the vehicle starts
again.
In the I ntermittent position, the wiping
speed is proportional to the speed of
the vehicle. Automatic rear windscreen
wiping

 place the front wipers stalk in a
position other than 0 ,

 engage reverse gear,

 the rear wiper operates with
intermittent wiping.

Note : if a bicycle carrier is used, con-
tact a CITROËN dealer to have this
function disarmed.

61-
ELECTRIC WINDOWS
Always remove the ignition
key when leaving the vehicle,
even for a short time.


If an obstacle is encountered
while the electric windows
are in use, you must reverse
the movement of the window.
To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches, he
must ensure that no one is prevent-
ing correct closing of the windows.
The driver must ensure that passengers
use the electric windows correctly.
Be aware of children when operating
the windows.
1. Driver's electric window switch
2. Passenger electric window switch
You have two options:
- Manual operation:
Press switch 1 . The window stops
as soon as the switch is released.
- Automatic operation (driver):
Press and hold switch 1 . One
touch completely opens or closes
the window.
Automatic closing only operates when
the engine is running.
REAR WINDOWS
To partially open the rear windows,
tilt the lever and push it fully to lock
the windows in the open position.

VISIBILITY62 -
THE EXTERIOR MIRRORS Passenger side exterior
mirror electric control
From the driver's seat, move the con-
trol 1 in all four directions to adjust. THE MANUAL INTERIOR MIRROR
Manual mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the ex-
terior mirrors can be folded back
manually. The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
