However, the operating range may be less while the
vehicle is running. As a result, you may need to
be closer to your vehicle to turn it off than you were to
start it.
There are other conditions which can affect the
performance of the transmitter. See Remote Keyless
Entry (RKE) System on page 2-4 . The following functions may be available if your vehicle
has the RKE system:
Q (Lock): Press
Q to lock all the doors.
If enabled through the Driver Information Center (DIC),
the turn signal lamps will ash once to indicate locking
has occurred. If enabled through the DIC, the horn will
chirp when
Q is pressed again within three seconds of
the previous press of the lock button. See DIC Vehicle
Customization on page 3-61 for additional information.
Pressing
Q will arm the content theft-deterrent system.
See Content Theft-Deterrent on page 2-21 .
" (Unlock): Press
" to unlock the driver’s door. If
" is
pressed again within three seconds, all remaining
doors will unlock.
If it is dark enough outside, your interior lamps will come
on and stay on for 20 seconds or until the ignition is
turned on. If enabled through the DIC, the turn signal
lamps will ash twice to indicate unlocking has occurred.
See DIC Vehicle Customization on page 3-61 . If enabled
through the DIC, the exterior lights will turn on briey if it
is dark enough outside. See “APPROACH LIGHTING”
under DIC Vehicle Customization on page 3-61 .
Pressing
" on the RKE transmitter will disarm the content
theft-deterrent system. See Content Theft-Deterrent on
page 2-21 .With Remote Start and
Power Liftgate and
Liftglass (Without
Remote Start Similar)
2-5

/ (Remote Vehicle Start): If your vehicle has this
feature, press
/ to start the engine from outside the
vehicle using the RKE transmitter. See Remote
Vehicle Start on page 2-7 for additional information.
& (Power Liftgate): Press and hold
& on
the RKE transmitter to open and close the liftgate. The
taillamps will ash and a chime will sound to indicate
when the liftgate is opening and closing.
m (Liftglass): Press and hold
m on the RKE
transmitter to open the liftglass.
L (Vehicle Locator/Panic Alarm): Press and release
L to locate your vehicle. The turn signal lamps will
ash and the horn will sound three times.
Press and hold
L for more than two seconds to
activate the panic alarm. The turn signal lamps will ash
and the horn will sound repeatedly for 30 seconds.
The alarm will turn off when the ignition is moved
to ON/RUN or
L is pressed again. The ignition must
be in LOCK/OFF for the panic alarm to work. Matching Transmitter(s) to Your
Vehicle Each RKE transmitter is coded to prevent another
transmitter from unlocking your vehicle. If a transmitter
is lost or stolen, a replacement can be purchased
through your dealer/retailer. All transmitters need to be
re-coded to match the new transmitter. The lost
transmitter will no longer work after the new transmitters
are re-coded. The vehicle can have a maximum of
eight transmitters matched to it.
Battery Replacement Replace the battery if the REPLACE BATTERY IN
REMOTE KEY message displays in the DIC. See
“REPLACE BATTERY IN REMOTE KEY” under DIC
Warnings and Messages on page 3-53 for additional
information.
Notice: When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
2-6

The RKE transmitter with the remote start button,
provides an increased range of operation. However, the
range may be less while the vehicle is running. As a
result, you may need to be closer to your vehicle to turn
it off, than you were to turn it on.
There are other conditions which can affect the
performance of the transmitter, see Remote Keyless
Entry (RKE) System on page 2-4 for additional
information.
/ (Remote Start): This button will be on the RKE
transmitter if you have remote start.
To start the vehicle using the remote start feature:
1. Aim the transmitter at the vehicle.
2. Press and release the transmitter’s lock button. The
vehicle’s doors will lock. Immediately press and
hold the transmitter’s remote start button until the
turn signal lights ash. If you cannot see the
vehicle’s lights, press and hold the remote start
button for two to four seconds. Pressing the remote
start button again after the vehicle has started
will turn the engine off.
When the vehicle starts, the parking lamps will turn
on and remain on while the vehicle is running.
If the vehicle is left running it will automatically shut
off after 10 minutes unless a time extension has
been done. 3. If it is the rst remote start since the vehicle has been
driven, repeat these steps, while the engine is still
running, to extend the engine running time by
10 minutes. Remote start can be extended one time.
After entering the vehicle during a remote start, insert
and turn the key to ON/RUN to drive the vehicle.
To manually shut off a remote start, do any of the
following:
Aim the RKE transmitter at the vehicle and press
the remote start button until the parking lamps
turn off.
Turn on the hazard warning ashers.
Turn the ignition switch on and then off.
The vehicle can be remote started two separate times
between driving sequences. The engine will run for
10 minutes after each remote start.
Or, you can extend the engine run time by another
10 minutes within the rst 10 minute remote start time
frame, and before the engine stops.
For example, if the lock button and then the remote
start buttons are pressed again after the vehicle
has been running for ve minutes, 10 minutes are
added, allowing the engine to run for 15 minutes.
The additional ten minutes are considered a second
remote vehicle start.
2-8

Heated Mirrors The button to turn the heated mirrors on or off is located
on the climate control panel. Press this button to
warm the driver’s and passenger’s outside rearview
mirrors to help clear them of ice, snow, and
condensation.
See “Rear Window Defogger” under Dual Automatic
Climate Control System on page 3-26 for more
information. Convex Mirror
{ CAUTION: A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder
before changing lanes.
The passenger’s side mirror may have convex glass. A
convex mirror’s surface is curved so more can be
seen from the driver’s seat.
Your vehicle may also have a turn signal indicator on
the mirror. An arrow on the mirror will ash in the
direction of the turn or lane change.
2-47

When the System Does Not Seem to
Work Properly The driver disables the system.
The parking brake pedal is depressed.
The ultrasonic sensors are not clean. Keep your
vehicle’s rear bumper free of mud, dirt, snow,
ice and slush. For cleaning instructions, see
Washing Your Vehicle on page 5-102 .
A trailer was attached to your vehicle, or a bicycle
or an object was hanging out of your liftgate/liftglass
during your last drive cycle, the red light may
illuminate in the rear display. Once the attached
object is removed, URPA will return to normal
operation.
A tow bar is attached to your vehicle.
The vehicle’s bumper is damaged. Take the vehicle
to your dealer/retailer to repair the system.
Other conditions may affect system performance,
such as vibrations from a jackhammer or the
compression of air brakes on a very large truck.
If the system is still disabled, after driving forward at
least 15 mph (25 km/h), take your vehicle to your
dealer/retailer. OnStar ®
System OnStar uses several innovative technologies and live
advisors to provide you with a wide range of safety,
security, information, and convenience services. If your
airbags deploy, the system is designed to make an
automatic call to OnStar Emergency advisors who can
request emergency services be sent to your location.
If you lock your keys in the vehicle, call OnStar at
1-888-4-ONSTAR and they can send a signal to unlock
your doors. If you need roadside assistance, press
the OnStar button and they can contact Roadside
Service for you.
2-50

5. After entering all of the switch positions, again,
rmly press and release all three buttons at the
same time. The indicator lights will turn on.
6. Press and hold the button you would like to use to
control the garage door until the garage door
moves. The indicator light above the selected button
should slowly blink. You may need to hold the
button from ve to 55 seconds.
7. Immediately release the button when the garage
door moves. The indicator light will blink rapidly
until programming is complete.
8. Press and release the same button again. The
garage door should move, conrming that
programming is successful and complete.
To program another Fixed Code device such as an
additional garage door opener, a security device,
or home automation device, repeat Steps 1-8, choosing
a different button in Step 6 than what you used for
the garage door opener.
Using Universal Home Remote Press and hold the appropriate button for at least half of
a second. The indicator light will come on while the
signal is being transmitted. Reprogramming Universal Home
Remote Buttons You can reprogram any of the three buttons by repeating
the instructions.
Erasing Universal Home Remote
Buttons You should erase the programmed buttons when you
sell or terminate your lease.
To erase either Rolling Code or Fixed Code on the
Universal Home Remote device:
1. Press and hold the two outside buttons at the same
time for approximately 20 seconds, until the
indicator lights, located directly above the buttons,
begin to blink rapidly.
2. Once the indicator lights begin to blink, release both
buttons. The codes from all buttons will be erased.
For help or information on the Universal Home Remote
System, call the customer assistance phone number
under Customer Assistance Offices on page 7-5 .
2-59

Instrument Panel Overview .............................. .3-4
Hazard Warning Flashers ............................... .3-6
Other Warning Devices .................................. .3-6
Horn ............................................................ .3-6
Tilt Wheel .................................................... .3-6
Heated Steering Wheel .................................. .3-7
Turn Signal/Multifunction Lever ........................ .3-7
Turn and Lane-Change Signals ....................... .3-8
Headlamp High/Low-Beam Changer ................. .3-9
Windshield Wipers ......................................... .3-9
Rainsense™ II Wipers .................................. .3-10
Windshield Washer ...................................... .3-11
Rear Window Wiper/Washer .......................... .3-12
Cruise Control ............................................. .3-13
Exterior Lamps ............................................ .3-16
Headlamps on Reminder ............................... .3-19
Daytime Running Lamps (DRL) ...................... .3-20
Automatic Headlamp System ......................... .3-20
Fog Lamps ................................................. .3-21
Instrument Panel Brightness .......................... .3-21
Dome Lamps .............................................. .3-22
Dome Lamp Override ................................... .3-22
Entry Lighting .............................................. .3-22
Exit Lighting ................................................ .3-22
Reading Lamps ........................................... .3-22
Electric Power Management .......................... .3-23 Battery Run-Down Protection ......................... .3-23
Accessory Power Outlet(s) ............................ .3-24
Ashtray(s) and Cigarette Lighter ..................... .3-25
Analog Clock .............................................. .3-25
Climate Controls ........................................... .3-26
Dual Automatic Climate Control System .......... .3-26
Outlet Adjustment ........................................ .3-31
Rear Air Conditioning and Heating System and
Electronic Climate Controls ........................ .3-31
Warning
Lights, Gages, and Indicators ........... .3-33
Instrument Panel Cluster ............................... .3-34
Speedometer and Odometer .......................... .3-35
Trip Odometer ............................................. .3-35
Tachometer ................................................ .3-35
Safety Belt Reminders .................................. .3-35
Airbag Readiness Light ................................. .3-36
Passenger Airbag Status Indicator .................. .3-37
Charging System Light ................................. .3-39
Brake System Warning Light ......................... .3-40
Antilock Brake System Warning Light .............. .3-41
StabiliTrak ®
Indicator Light ............................. .3-41
Engine Coolant Temperature Gage ................. .3-42
Tire Pressure Light ...................................... .3-42
Malfunction Indicator Lamp ............................ .3-43
Oil Pressure Light ........................................ .3-46Section 3 Instrument Panel
3-1

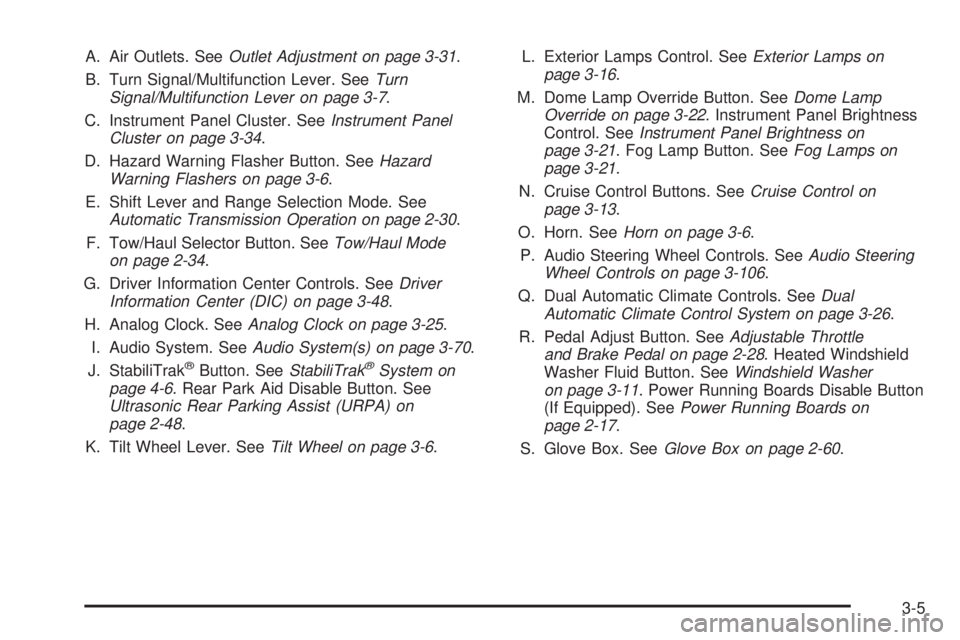

A. Air Outlets. See Outlet Adjustment on page 3-31 .
B. Turn Signal/Multifunction Lever. See Turn
Signal/Multifunction Lever on page 3-7 .
C. Instrument Panel Cluster. See Instrument Panel
Cluster on page 3-34 .
D. Hazard Warning Flasher Button. See Hazard
Warning Flashers on page 3-6 .
E. Shift Lever and Range Selection Mode. See
Automatic Transmission Operation on page 2-30 .
F. Tow/Haul Selector Button. See Tow/Haul Mode
on page 2-34 .
G. Driver Information Center Controls. See Driver
Information Center (DIC) on page 3-48 .
H. Analog Clock. See Analog Clock on page 3-25 .
I. Audio System. See Audio System(s) on page 3-70 .
J. StabiliTrak ®
Button. See StabiliTrak ®
System on
page 4-6 . Rear Park Aid Disable Button. See
Ultrasonic Rear Parking Assist (URPA) on
page 2-48 .
K. Tilt Wheel Lever. See Tilt Wheel on page 3-6 . L. Exterior Lamps Control. See Exterior Lamps on
page 3-16 .
M. Dome Lamp Override Button. See Dome Lamp
Override on page 3-22 . Instrument Panel Brightness
Control. See Instrument Panel Brightness on
page 3-21 . Fog Lamp Button. See Fog Lamps on
page 3-21 .
N. Cruise Control Buttons. See Cruise Control on
page 3-13 .
O. Horn. See Horn on page 3-6 .
P. Audio Steering Wheel Controls. See Audio Steering
Wheel Controls on page 3-106 .
Q. Dual Automatic Climate Controls. See Dual
Automatic Climate Control System on page 3-26 .
R. Pedal Adjust Button. See Adjustable Throttle
and Brake Pedal on page 2-28 . Heated Windshield
Washer Fluid Button. See Windshield Washer
on page 3-11 . Power Running Boards Disable Button
(If Equipped). See Power Running Boards on
page 2-17 .
S. Glove Box. See Glove Box on page 2-60 .
3-5
