2008 BMW MOTORRAD K 1200 R Rider's Manual (in English)

Underneath the seat1Filler neck, engine oil
( 94)
2 Overview, toolkit ( 92)
3 Anti-theft alarm (OE)
4 Helmet holder under-
neath seat ( 53)
215zGeneral views

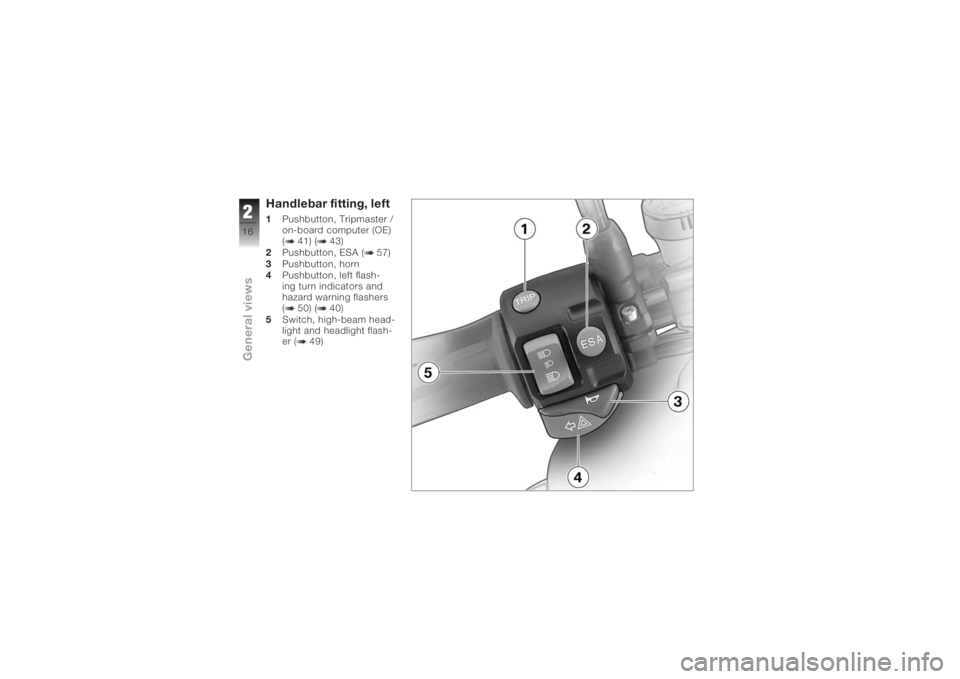

Handlebar fitting, left1Pushbutton, Tripmaster /
on-board computer (OE)
( 41) ( 43)
2 Pushbutton, ESA ( 57)
3 Pushbutton, horn
4 Pushbutton, left flash-
ing turn indicators and
hazard warning flashers
( 50) ( 40)
5 Switch, high-beam head-
light and headlight flash-
er ( 49)
216zGeneral views

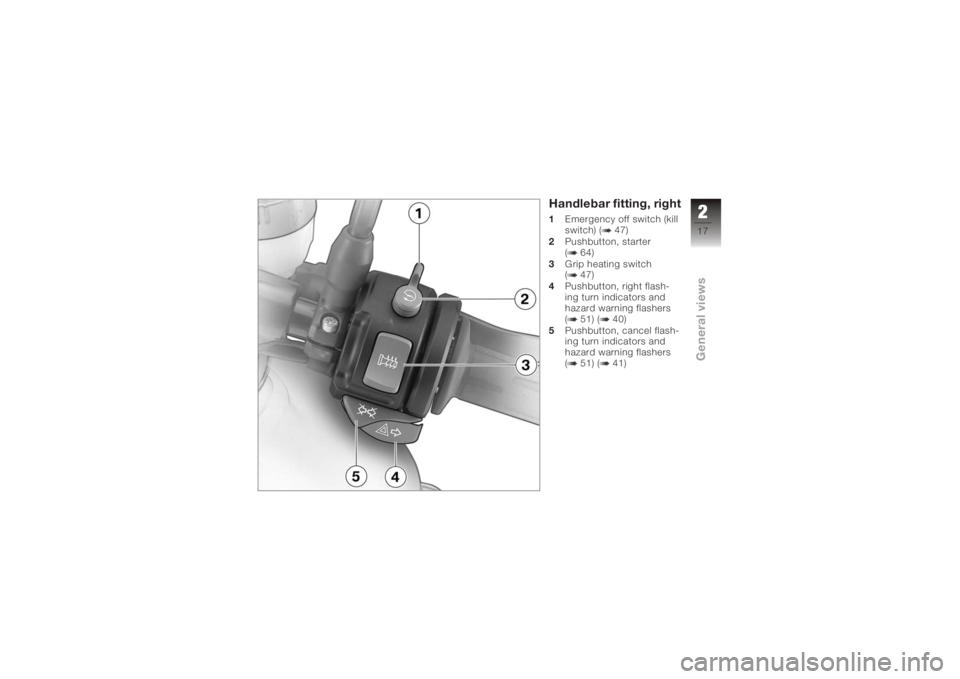

Handlebar fitting, right1Emergency off switch (kill
switch) ( 47)
2 Pushbutton, starter
( 64)
3 Grip heating switch
( 47)
4 Pushbutton, right flash-
ing turn indicators and
hazard warning flashers
( 51) ( 40)
5 Pushbutton, cancel flash-
ing turn indicators and
hazard warning flashers
( 51) ( 41)
217zGeneral views

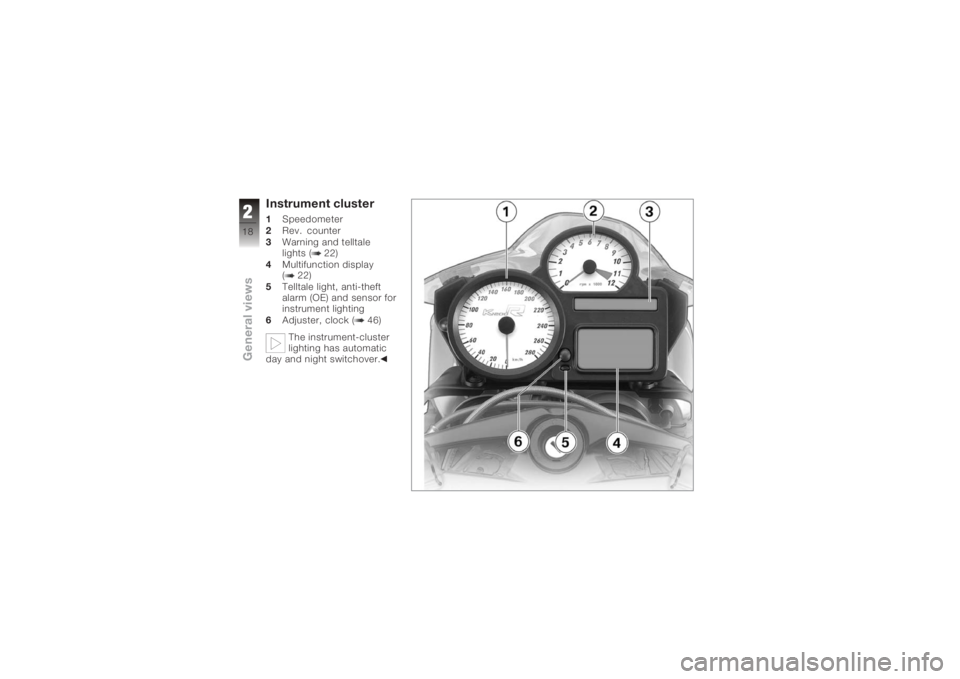

Instrument cluster1Speedometer
2 Rev. counter
3 Warning and telltale
lights ( 22)
4 Multifunction display
( 22)
5 Telltale light, anti-theft
alarm (OE) and sensor for
instrument lighting
6 Adjuster, clock ( 46)
The instrument-cluster
lighting has automatic
day and night switchover.
218zGeneral views

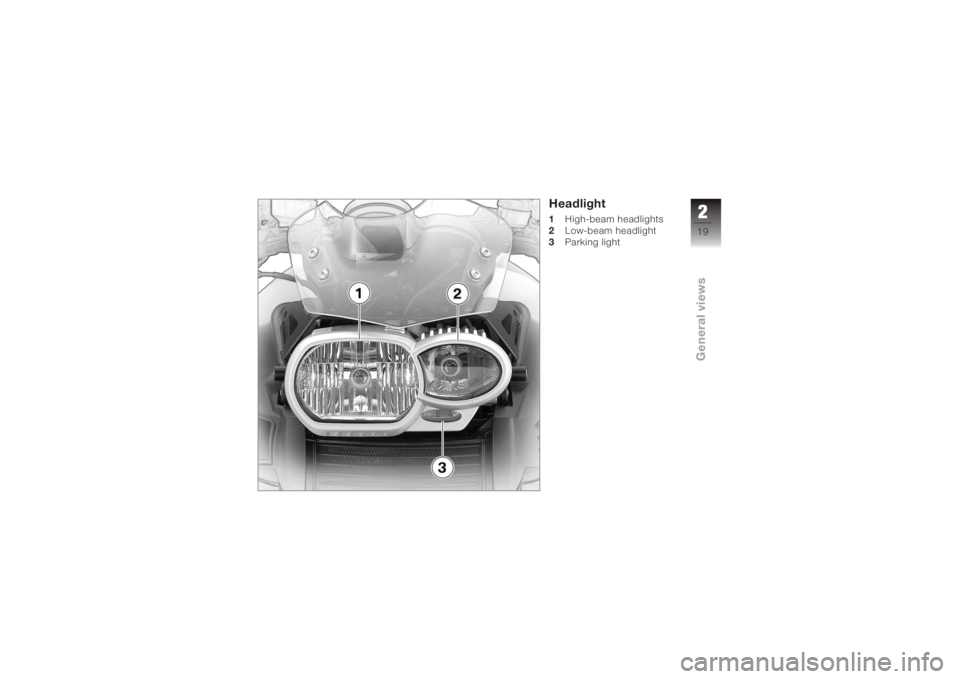

Headlight1High-beam headlights
2 Low-beam headlight
3 Parking light
219zGeneral views

220zGeneral views

Status indicators
Multifunction display . .......... 22
Warning and telltale lights . . .... 22
ABS warning light
OE
........... 22
Function indicators . . . ......... 22
Warnings, general ............. 23
ABS warning indicators ........ 30
321zStatus indicators

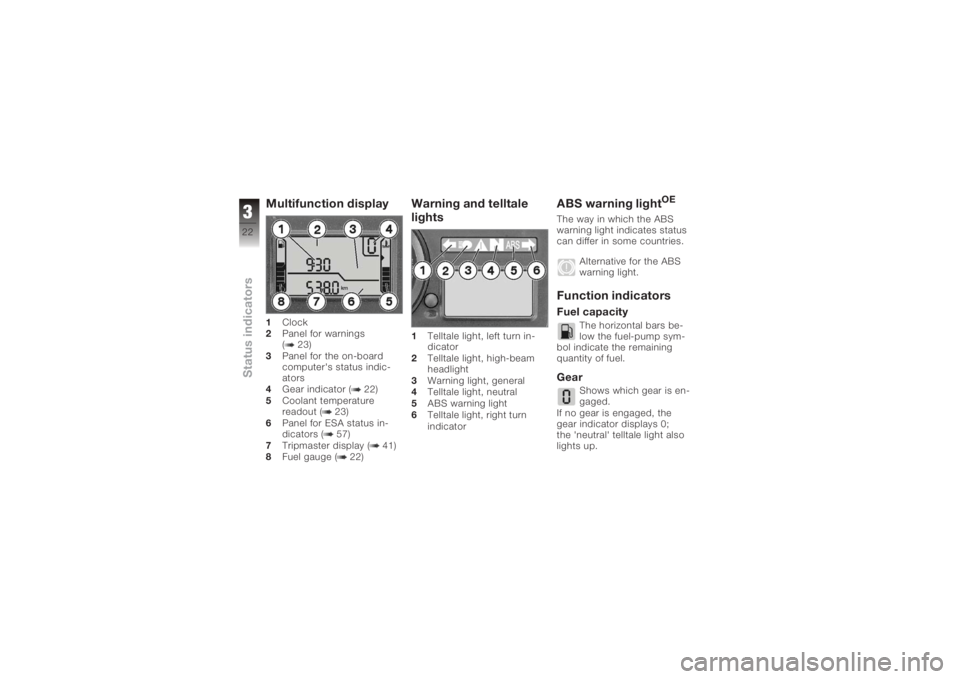

Multifunction display1Clock
2 Panel for warnings
( 23)
3 Panel for the on-board
computer's status indic-
ators
4 Gear indicator ( 22)
5 Coolant temperature
readout ( 23)
6 Panel for ESA status in-
dicators ( 57)
7 Tripmaster display ( 41)
8 Fuel gauge ( 22)
Warning and telltale
lights1Telltale light, left turn in-
dicator
2 Telltale light, high-beam
headlight
3 Warning light, general
4 Telltale light, neutral
5 ABS warning light
6 Telltale light, right turn
indicator
ABS warning light
OE
The way in which the ABS
warning light indicates status
can differ in some countries.
Alternative for the ABS
warning light.
Function indicatorsFuel capacity
The horizontal bars be-
low the fuel-pump sym-
bol indicate the remaining
quantity of fuel.
Gear
Shows which gear is en-
gaged.
If no gear is engaged, the
gear indicator displays 0;
the 'neutral' telltale light also
lights up.
322zStatus indicators
