2008 AUDI TT ROADSTER Owners Manual

Cigarette lighter/socket
Cigarette lighter
The socket of the cigarette lighter may be used for 12 volt
appliances.
Fig . 90 Open ashtray
with cigarette lighter
The cigarette lighter or socket only work with the ignition
on.
Using the cigarette lighter
- Slide the cover open to reach the c igarette lighter.
- Push the knob=> fig. 90 in .
- Wait until the cigarette lighter knob pops out.
- Remove the cigarette lighter immediately and use it.
- Reinsert cigarette lighter into the socket after use.
Connecting an appliance
- Slide the cover open to reach the cigarette lighter.
- Remove cigarette lighter.
- Plug in appliance to be used .
Contro ls and eq uip­
ment
Seats and storage
The socket of the cigarette lighter may be used for 12-volt appli­
ances with maximum consumption of up to 100 watts , such as a
flash ligh t, small vacuum cleaner, etc.
Before you purchase any accessories, always read and follow the
information in=>
page 296, "Additional accessories and parts
replacement" .
& WARNING
Improper use of the cigarette lighter can cause serious injury or
start a fire.
• Be careful when using the cigarette lighter. If you do not pay
attention to what you are doing when you are using the cigarette
lighter you can burn yourself.
0 Note
To avoid damaging the socket, only use plugs that fit properly.
[ i] Tips
• When the engine is off and accessories are still plugged in and
are on, the vehicle battery can still be drained.
• The vehicle battery must not be charged with a standard small
charger that plugs into the cigarette lighter or outlet .•
Storage
General
& WARNING
• Always remove objects from the instrument panel. Any items
not put away could slide around inside the vehicle while driving or
~
Vehicle care I I irechnical data

Seats and storage
& WARNING (continued)
when accelerating or when applying the brakes or when driving
around a corner.
• When you are driving make sure that anything you may have
placed in the center console or other storage locations cannot fall
out into the footwells . In case of sudden braking you would not be
able to brake, depress the clutch or accelerate. •
Glove compartment
The glove compartment is illuminated and can be locked .
To open glove compartment
Fig. 91 Glove compart­
ment
- Pull the handle=> fig. 91 in the direct ion of the arrow
push down lid to the fully open position.
To close glove compartment
Push the glove compartment lid upward until the lock
engages.
You will find a glass case in the lid .
CD changer*
The CD changer for the Sound System is located in the glove
compartmen t.
LJ}. WARNING
To reduce the risk of personal injury in an accident or sudden stop,
always keep the glove compartment closed while driving. •
App lies to veh icle s: w ith sto ra ge co mpart ment in the front seats
Storage compartment in the front seats
There is a fold-out storage compartment in the front of the
seats.
Opening
- Lift the handle and pull the drawer ou t.
Closing
- Push the drawer in completely until it latches.
[ i ] Tips
The maximum carrying capacity 2.2 lbs (1 kg). •

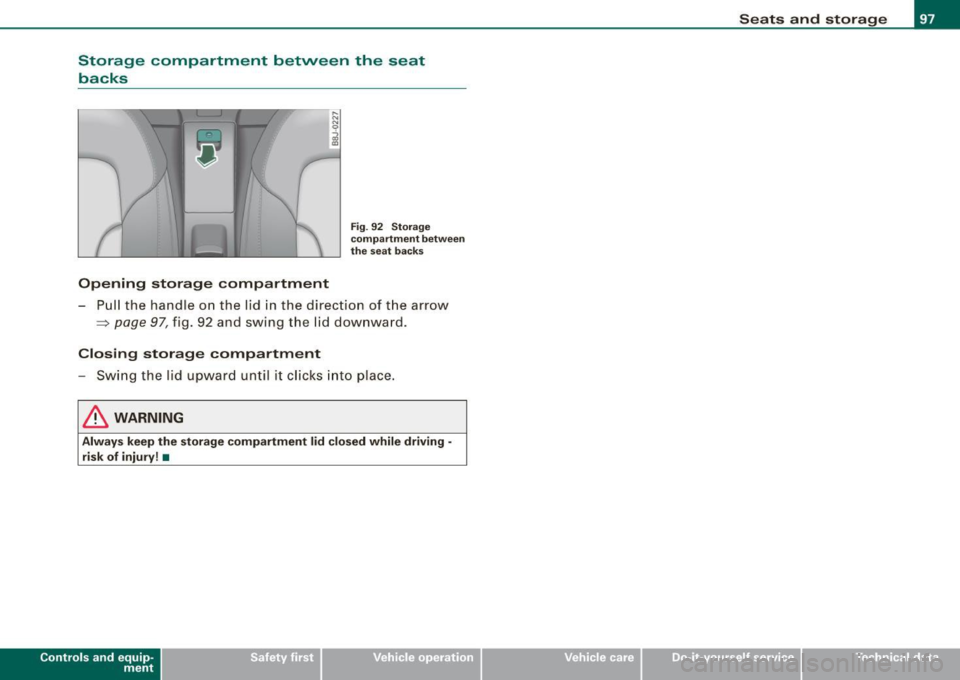

Storage compartment between the seat
backs
Opening storage compartment
.... N
N
'i'
i
Fig. 92 Storage
compartment between
the seat backs
-Pull the handle on the lid in the direction of the arrow
~ page 97, fig. 92 and swing the lid downward.
Closing storage compartment
-Swing the lid upward until it clicks into place.
& WARNING
Always keep the storage compartment lid closed while driving -
risk of injury! •
Con tro ls and eq uip­
ment
Seats and storage
Vehicle care I I irechnical data

Warm and cold
Warm and cold
Climate controls
Controls
The air conditioning automatically maintains the selected
temperature in the vehicleinterior throughout each
se aso n.
Fig . 93 C limate co ntro ls
We recomme nd the following setting:
Rotate the knob=> fig. 93 @to th e right to switch on the
air conditioning.
Set t he temperature to 72 °F ( 22 °Cl.
Press th e !AUTO ]=> fig . 93 button.
Using the previously recommended setting is the quickest way to
achieve a comfortable climate in the vehicle . T his setting should
therefore on ly be changed when persona l comfort levels or certain
circumstances require it .
The climate contr ols are a combination of automatic heating and
ventilation systems and a cooling system which dehumidifies and coo ls the a ir inside the veh ic le .
The climate controls automa tically ma intain a temperature once it
has been set . T he temperature of the air from the vents, fan speed
(air volume) and air dis tribution are also automa tica lly adjusted . The
system also takes into account strong sunshine so that manual
adjustment is no t necessary. So in al most a ll cases,
automatic mode
offers the best conditions for the comfort of the occupants at all
times of the year~
page 101.
Please note :
In cooling mode, relative humidity in the interior is reduced. This
prevents the w indows from fogging up.
When relative humidity and temperatures outside are high,
conden­
sate
can drip from the air conditioning evaporator and form a poo l
of water under the vehicle . This is normal and not an indication of a
leak!
When outside temperatures are low, the fan does not switch to a
higher speed until the coolant has reached an adequate tempera­
ture, with the exception of the defrost setting .
When accelerating at wide -open throttle, the air conditioning
compressor is temporarily switched off to maintain full engine
power .
I n order to ensure eng ine cooling under extreme engine loads, the
compressor is switched off if coolant temperatures climb too high. _,,,

Functions are set by turning the rotary knob or switched on and off
by tapping the buttons. The LED in the buttons illuminates when the
function is active .
Button(sl
Rotary knob 0
Rotary knob 0 @
Rotary knob©
(- .,; +]
-
Po llutant f ilter Me
aning
Temperature selection
Switch ai r conditioning
on/o ff
Fan
Air distribution
Rear window defogger
Heated seat* driver/pas ­
senger side
Recirculation
Switch on cooling sys ­
tem
P age
~ page 100
~ page 100
~ page 701
~ page 101
~ page 103
~ page 104
~ page 102
~ page 102
The pollutant filter (particle filter) ensures that contaminants in the
outside air (such as dust or po llen) are grea tly reduced or stopped.
T he air is also filtered in recirculation mode.
The pollutant fil ter e lement must be changed according to the inter ­
vals specified in the maintenance schedu le so that the air condi­
tioning system's performance is not adversely affected.
If the fil ter's effectiveness is weakened by driving the vehicle in
areas with heavi ly polluted outside air, the filter element should also
be changed in between the listed services .
Controls and equip ­
ment
W arm and cold
& WARNING
Fo r safet y rea sons , it is imp ort ant that all window s are free of ice,
snow , and condensati on . Only then i s good vi sibility en sured.
Pl eas e familiari ze yourself with the co rrect o peration of th e air
c ond itioning and how to dehum id ify /defro st the windows.
0 Note
• I f you suspect that the climate contro ls have been damaged ,
switch the system off to avoid damaging it , and have it inspected by
an authorized Audi dealer.
• Audi climate control system repairs require specia l expertise and
the proper tools. You shou ld contact an authorized Audi dealer in
the event of malfunct ions.
[ i ] Tip s
• To avoid adversely affecting heating and cooling performance
and to prevent condensation on the windows, the air intake in front
of the windsh ield must be free of ice, snow, and leaves.
• The air coming from the vents and circu lating through the en tire
interior is extracted through the out let slots in the side panels in the
luggage compartment. Make sure that the outlet slots are not
covered by clo th ing, etc.
• Climate control works most effectively if the windows are closed .
However , if the interior o f a parked vehicle is extremely hot from the
sun's rays, briefly opening the windows can speed up the cooling
process. •
I • •

• ..__w_ a_ r_m _ a_ n_d_ c_ o_ ld __________________________________________________ _
Setting temperature
Fig . 94 Rota ry k nob fo r
t e mp era tu re set ting
-Turn the rota ry knob ::::, fig . 94 to the desi red temperature
setting.
To set a lower temperature, turn the rotary knob to the left . To set a
high er temperature, turn the rotary knob to the right . Ther e ar e addi ­
tional intermedia te set tings available to adjust the temperature as
needed .a
Switching climate control on and off
Fi g. 95 Rota ry kn ob to
sw itch air cond itio nin g
on and o ff a nd to reg u­
l a te fan sp ee d
Swit ching th e climat e control system on and off
Turn the knob::::, fig . 95 to the right to switch climate
control on. The LED next to the word OFF goes out.
T u rn the knob::::, fig . 95 to the left to switch the climate
cont rol system off . The LED next to the word OFF comes
on .
Setting fan speed
~
T ur n th e knob::::, fig. 95 to the setting you want t o adjust
fan speed (air quant ity) .
In automatic mode the cl imate control system automatically regu ­
lates fan speed depending on interior temperature. You can adjust
the volume of air produced by the fan to meet your own require ­
men ts .
[ i ] Tips
If the diffe rence between the desired temperature set by you and
the vehicle's interior temperature is too great, the fan speed will
change automatically. This is done so that the desired temperature
setting is reach ed as quickly as possible .•

___________________________________________________ W_ a_ r_m _ a_ n_d_ c_ o_ ld _ __._

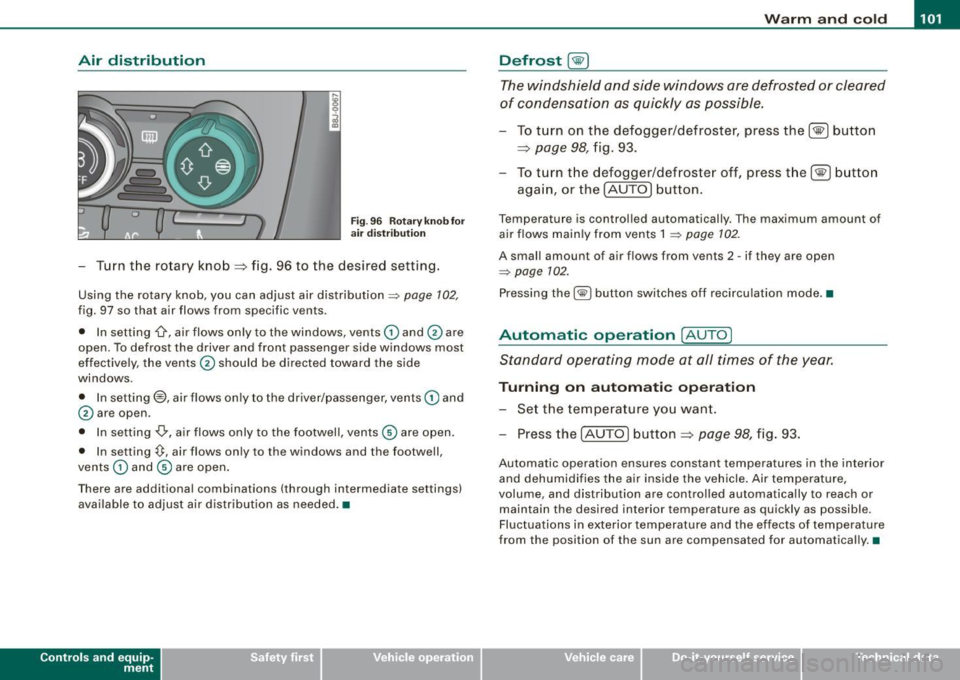

Air distribution
Fig . 96 Rotary k no b fo r
air dist rib utio n
- Tur n t he ro tary knob =:> fig . 96 to the desired setting.
Using the rotary knob, you can adjust air distribution~ page 102,
fig. 97 so that air flows from specific vents.
• In setting
-0-, air flows on ly to the windows, vents © and 0 are
open. To defros t the driver and front passenger side windows most
effectively, the vents 0 should be directed toward the side
windows .
• In setting@, air flows on ly to the driver/passenger, vents © and
0 are open .
• In setting
-0,, air flows only to the footwell, vents © are open.
• In setting~. air flows on ly to the windows and the footwell,
vents © and © are open .
There are additional combinations (through intermedia te settings)
available to adjust air distribution as needed .•
Con tro ls and eq uip­
ment
Defrost [@)
The windshield and side windows are defrosted or cleared
of condensation as quickly as possible.
To turn on the defogger/defroster, press the[@] button
=:>
page 98, fig. 93.
- To turn the defogger/defroster off, press the[@] button
aga in, or the (AU TO
I button.
Temperatur e is controlled automatically . Th e maximum amount of
air flows main ly from vents 1
~ page 102 .
A small amount of air flows from vents 2 -if they are open
~ page 102.
Pressing the (@I button sw itches off recircu lation mode. •
Automatic operation [AUTO]
Standard operating mode at all times of the year.
Turning on autom ati c operation
- Set the tempe rature you wan t.
- Press the (AUTO
I button =:> page 98, fig. 93.
Automatic operation ensures constant temperatures in the interior
and dehumidifies the air inside the vehicle . Air temperature,
volume, and distribution are controlled automatically to reach or ma intain the desired interior t empera ture as quickly as possible .
Fluctuations in exterior temperature and the effects of temperature
from the position of the sun are compensat ed for automatically. •
Vehicle care I I irechnical data

• ..__w_ a_ r_m _ a_ n_d_ c_ o_ ld __________________________________________________ _
Manual air recirculation mode[~]
The recirculation mode prevents polluted outside air from
entering the vehicle interior.
Switching on air recir culation
- Press the button [19.] ~ page 98, fig . 93 ~ & .
Swit ching off air recir culation
Press the butt on [19.] ag ain, o r
Press the
[AUTO I button, or
- Press the[@] button.
In recircu lation mode, air is drawn from the vehic le interior, filtered,
and recircu lated. We recommend that you se lect recircu lat ion mode
briefly ~ & under the fo llowing conditions:
When driving through a tunnel or i n a traffic jam so that exhaust
fumes and odors cannot enter the vehic le interior .
& WARNING
You should not u se the re circulat ion mode for an e xtended period
s ince no fre sh air i s drawn in , and with the air conditioning
s wit ched off the windows can fog up -this in crea se s the ris k of an
accident !•
A /C operation [AC)
Switching on A /C
- Press th e [AC] button~ page 98, fig. 93 .
Switching A /C off
- Press the [AC] button again.
The cooling system is switched on during A/C operation - the
heating and ven tilation system is controlled automatica lly.
I i ] Tips
If the LED in the switch stays on after A/C operation has been
switched off( = switching the A/C offl, there is a fau lt in an air condi ­
t ioning component. Please consult an authorized Audi dealer when
there is an operating prob lem .•
Air vents
Air d istribution determines the air flow fro m the indi ­
vi dual vents.
Fig . 97 Instrumen t pan el: Loc ation o f air vent s
Vents @and 0
- To open and close the outlets, t urn the adjusting ring.
