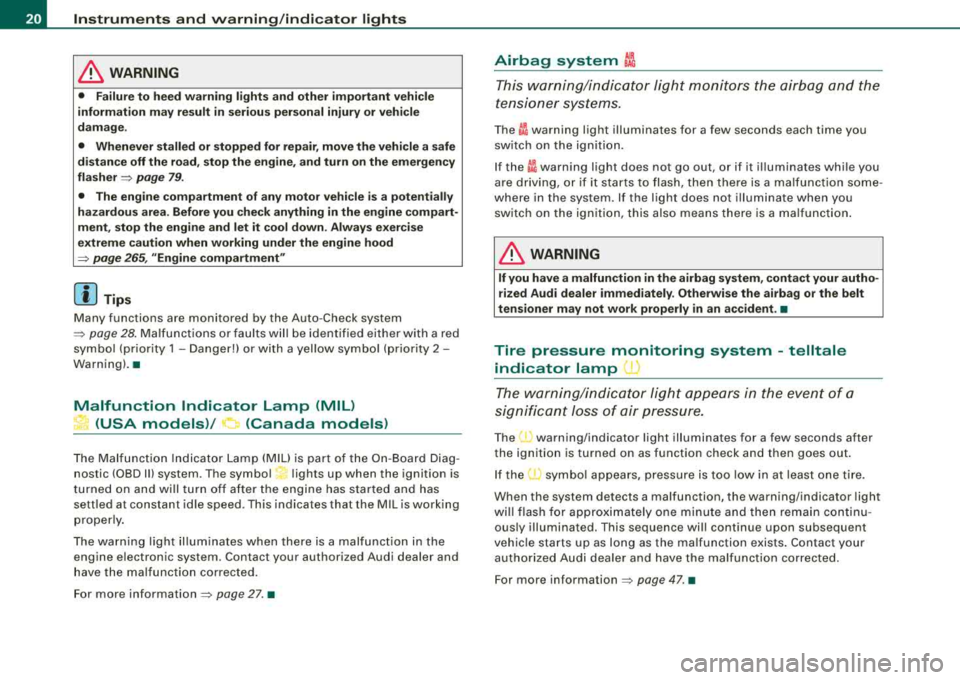

Instruments and warning/indicator lights
& WARNING
• Failure to heed warning lights and other important vehicle
information may result in serious personal injury or vehicle
damage .
• Whenever stalled or stopped for repair, move the vehicle a safe
distance off the road, stop the engine, and turn on the emergency
flasher
=> page 79.
• The engine compartment of any motor vehicle is a potentially
hazardous area. Before you check anything in the engine compart­
ment, stop the engine and let it cool down . Always exercise
extreme caution when working under the engine hood
=> page 265 , "Engine compartment"
[ i] Tips
Many functions are monitored by the Auto-Check system
=> page 28. Malfunctions or faults will be identified either with a red
symbol (priority 1 - Danger!) or with a yellow symbol (priority 2 -
Warning). •
Malfunction Indicator Lamp (MIL)
~ (USA models)/ 0 (Canada models)
The Malfunction Indicator Lamp (MIU is part of the On-Board Diag ­
nostic (OBD II) system. The
symbol ~ lights up when the ignition is
turned on and will turn off after the engine has started and has
settled at constant idle speed . This indicates that the MIL is working
properly.
The warning light illuminates when there is a malfunction in the
eng ine electronic system. Contact your authorized Audi dealer and
have the malfunction corrected.
For more information
=> page 27. •
Airbag system ~
This warning/indicator light monitors the airbag and the
tensioner systems.
The I warning light illuminates for a few seconds each time you
switch on the ignition.
If the
~i warning light does not go out, or if it illum inates while you
are driving, or if it starts to flash, then there is a malfunction some ­
where in the system. If the light does not illuminate when you
switch on the ignition, this also means there is a malfunction.
& WARNING
If you have a malfunction in the airbag system, contact your autho­
rized Audi dealer immediately. Otherwise the airbag or the belt
tensioner may not work properly in an accident. •
Tire pressure monitoring system -telltale
indicator lamp
U)
The warning/indicator light appears in the event of a
significant loss of air pressure.
The (1) warning/indicator light illuminates for a few seconds after
the ignition is turned on as function check and then goes out.
If the
(l) symbol appears, pressure is too low in at least one tire.
When the system detects a malfunction, the warning/indicator light
will flash for approximately one minute and then remain continu­
ously illuminated. This sequence will continue upon subsequent
vehicle starts up as long as the malfunction exists. Contact your
authorized Audi dealer and have the malfunction corrected.
For more information
=> page 47. •

______________________________________________ A_ l_,_ p _h_ a_ b_e _t_i c_ a_l _in _ d_e _ x _ ___.fflll
Partition screen .. ... .... ......... 111
Protective liner ..... .. .... ...... .. 113
Removing luggage compartment cov-
er /partition net ... .. .... .... .... 1 11
Retractable cover ... .. .... ... .... . 110
Side Compartment ... .... ... .... . 114
Ski sack . ...... .. .... .... ...... .. 114
Tie -down strap ...... .... ......... 109
See also Loading the luggage
compartment ... .... .... ....... . 173
Lumbar support .. ...... .... ....... ... 99
M
Maintenance ..... .. ...... .... .... .. 346
Malfunct ion Indicator Lamp (M IU . ... 20, 27
Manual transmission . ...... .... .... . 142
Gearshift lever .. ...... ... .... .... 142
Master key ........ .... .... .......... 53
Battery replacement . ...... .... .... 54
Menu button ..... .. .... .... ...... ... 42
Menu input switch . ...... .... .... .... 42
Mi le age
Average .... ... .. .... .... ...... ... 40
Ins tan taneous .... .... ...... .... .. 41
M iles to empty .. .. .. .... .... .... .... . 26
Mirrors Activating the digita l compass ..... . 93
Adjusting the a nti -g lare ...... .... .. 90
Automat ic d imm ing fo r the outside
m irrors . .... ...... .... .......... 92
Automat ically dimming inside mirror . 90
Inside rearview mirror . ...... .... ... 90
Inter ior mirror .... .... ...... .... .. 90
Controls and equip­
ment Safety first
Manual glare dimming
.......... ... 90
Outside mirrors .. .......... .... ... 91
Recalling position of outside mir rors 101
Storing posit ion of outs ide m irrors .. 101
Monitoring the Advanced Airbag System 198
multitronic™ Automatic Shift Lock (ASU 152
D riving the mu ltitronic™ .. ... .... .. 150
Dynamic shift prog ram ...... .. ... . 153
Fa il- sa fe mode .... ... .... .... .... 156
Kick-down .... .... .... .... .... ... 153
Manual shi ft program ... .. .... .... 154
Selector lever .... .... .... .... .... 1 51
Steering w heel wit h tiptronic® . .... 155
tiptron ic
154
N
Nat ural leather . ...... .... ....... .... 262
New tires and whee ls . ....... ... .. ... 305
NHTSA Contacting ..... .... .... ... .. .... 175
Number of sea ts ... .. .... .... .... ... 1 76
0
Occupant seat ing pos itio ns .. .. ... .... 1 68
Octane rating .... ...... .... .... .... . 267
Odom eter .... .... ... .... .... .... ... . 15
O il
See Eng ine oi l .... .... .... .... .... 275
O lder children and safety belts ..... .. . 219 On
-Board Diagnostic System .. ... .... .. 28
Electronic speed lim iter ... .... ..... 28
Malfunc tion Indicator Lamp (M IU .. .. 27
On -Board Diagnostic System (OBD) .... . 27
Data Link Connec tor (DLC) .. .... .... 27
Open door or rear lid warning ... .. .. . .. 26
Opening Power sunroof ....... ........... .. 68
Operate your vehicle economical ly and mini -
mize pol lution .... ... .... .... ... 245
Optional equipm ent
Mark ed with an asterisk ...... ....... 6
Out lets ...... .... .... ... .... .... ... 12 1
Outside air pollution How to prevent from enter ing the veh ic le
128
Ou ts ide mirrors ....... ... .... .... .... 91
Outside temperature display .. .... ..... 25
Owner's manual How the Owne r's Man ua l is o rganized . 6
Owner's literature storage .... .... .... 123
p
Paint
Touch -up ... .. .... .... ... .... .... 258
Pain t no ...... .. .... ...... .... .... . 340
Park assis t ... .... .... ... .... .... ... 139
Parking .. .. .. ...... .... ........... . 138
Automatic t ransmission (6 -speed) .. . 143
multitronic ™ ... .... ... .... .... ... 1 50
P arking brake ...... .... .... .... ... .. 137
Setting and re leasing . ...... .. .... 137
Vehicle operation Vehicle care Do-it-yourself service Technical data
