CHECKS
Levels
117
77
Cooling system
O n l y u s e t h e fl u i d r e c o m m e n d e d b y t h e
manufacturer.
Otherwise, you risk seriously damaging
your engine.
When the engine is warm, the
temperature of the coolant is controlled
by the engine fan. As this fan can
operate with the ignition key removed
and because the cooling system is
pressurised, wait for at least one hour
after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to
release the pressure to prevent any
risk of scalding. When the pressure
has dropped, remove the cap and top
up the level with coolant.
I f fl u i d h a s t o b e a d d e d f r e q u e n t l y ,
this indicates a failure which must be
checked by a PEUGEOT dealer as
soon as possible. Power steering fluid level
The vehicle must be parked on level
ground with the engine cold. Unscrew
the cap integrated with the gauge and
check the level which must be between
the MIN and MAX marks.
I n o r d e r t o r e g e n e r a t e t h e fi l t e r , y o u
are advised to drive at a speed higher
t h a n 4 0 m p h ( 6 0 k m / h ) f o r a t l e a s t fi v e
minutes as soon as possible, when
t r a f fi c c o n d i t i o n s p e r m i t ( u n t i l t h e
message disappears and the service
warning light is switched off).
During regeneration of the particle
e m i s s i o n fi l t e r , r e l a y n o i s e m a y b e
heard under the fascia.
If the message is still displayed and if
the service warning light remains on,
consult a PEUGEOT dealer .
Topping up
The level must be between the MIN
and MAX marks on the expansion
b o t t l e . I f m o r e t h a n 1 l i t r e o f fl u i d i s
required to top up the level, have
the system checked by a PEUGEOT
dealer . Windscreen wash and headlamp
wash level
For best quality cleaning and for your
safety, we would advise that you use
products of the PEUGEOT range.
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with water.
Capacity of the screenwash reservoir:
approximately 4.5 litres.
I f y o u r v e h i c l e i s fi t t e d w i t h h e a d l a m p
washers, the capacity of the reservoir
is 7.5 litres.
Diesel additive level
(Diesel with particle
emission filter)
The minimum level of this
additive is indicated by lighting of the
service warning light, accompanied by
an audible signal and a message on
the display.
When this occurs with the engine
running it is due to the start of
s a t u r a t i o n o f t h e p a r t i c l e e m i s s i o n fi l t e r
(exceptionally prolonged urban type
driving conditions: low speed, long
t r a f fi c j a m s , . . . ) . Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer
without delay.
Used oil
Avoid prolonged contact of used oil
with the skin.
B r a k e fl u i d i s h a r m f u l t o h e a l t h a n d
very corrosive.
D o n o t d i s p o s e o f u s e d o i l , b r a k e fl u i d
or coolant into drains or into the ground
but into the containers dedicated to this
use at PEUGEOT dealer .
Page 125 of 153
Fuel
120
FILLING WITH FUEL
Low fuel level T h e f u e l t a n k m u s t b e fi l l e d
with the
engine off .
- O p e n t h e f u e l fi l l e r fl a p .
- Insert the key, then turn it a quarter turn.
- Remove the cap and hook it onto the clip located on the inside of the
fl a p .
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used.
W h e n fi l l i n g t h e f u e l t a n k , d o n o t
continue after the 3 rd cut-off of the
nozzle. This could cause malfunctions.
The capacity of the fuel tank is
approximately 60 litres.
- A f t e r fi l l i n g t h e f u e l t a n k , l o c k t h e c a p a n d c l o s e t h e fl a p .
FUEL CIRCUIT DISARMED
In a serious collision, a mechanism
automatically prevents fuel from
reaching the engine.
T h e fl a s h i n g o f t h i s w a r n i n g
light is accompanied by a
message on the display.
Check that there is no odour or
leakage of fuel outside the vehicle and
re-establish the fuel supply:
-
switch off the ignition (STOP position).
- remove the key.
- put the key back in the ignition.
- switch on the ignition and start.
DIESEL REPRIMING PUMP
If you should run out of fuel, it is
necessary to re-prime the circuit:
- fi l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel,
- squeeze and release the manual re-priming pump, under the bonnet
under the protective cover,
- operate the starter until the engine starts.
Refer to the "Under the bonnet"
section of chapter 7.
W h e n fi l l i n g w i t h f u e l , w i t h t h e f u e l
fi l l e r fl a p o p e n , e n s u r e t h a t n o o n e
attempts to open the sliding side
door.
When the minimum fuel tank
level is reached, this warning
light comes on.
You then have
approximately 8 litres of
fuel remaining. Fill up without delay to
avoid running out of fuel.
Page 126 of 153
121
Battery
TROUBLESHOOTING
8
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off the ignition.
Never disconnect a terminal when the
engine is running.
N e v e r c h a r g e a b a t t e r y w i t h o u t fi r s t
disconnecting the terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
d i f fi c u l t i e s a r e e x p e r i e n c e d a f t e r t h i s ,
please contact a PEUGEOT dealer.
After changing bulbs, wait
approximately 3 minutes before
reconnecting the battery. I
t is advisable to disconnect the
battery if the vehicle is not to be used
for a period of more than one month.
ECONOMY MODE
To charge the battery using a
battery charger
- Disconnect the battery,
- Follow the instructions for use given by the battery charger
manufacturer,
- Reconnect starting with the negative (-) terminal,
- Check that the terminals and connectors are clean. If they are
covered with sulphate (white or
greenish deposit), disconnect them
and clean them.
To start the vehicle from
another battery
- Connect the red cable to the positive (+) terminals of the two
batteries,
- Connect one end of the green or black cable to the negative (-)
terminal of the slave battery,
- Connect the other end of the green or black cable to an earth point on
the broken down vehicle as far as
possible from the battery,
- Operate the starter, let the engine run,
- Wait for the engine to return to idle, then disconnect the cables. After the engine has stopped, with
the key in the ignition position, certain
functions (windscreen wiper, electric
windows, courtesy lights, audio
equipment, etc.) can only be used for a
cumulative duration of thirty minutes, to
prevent discharging of the battery.
Once the thirty minutes are over, the
active functions are put on standby
a n d t h e b a t t e r y w a r n i n g l i g h t fl a s h e s
accompanied by a message on the
display.
To resume the use of these functions
immediately, start the engine and let it
run for a few minutes.
The time available will then be double
the time for which the engine was left
running. However, this time will always
b e b e t w e e n fi v e a n d t h i r t y m i n u t e s .
A fl a t b a t t e r y w i l l p r e v e n t t h e e n g i n e
from starting.
Page 133 of 153
127
TROUBLESHOOTING
8
Changing a bulb
CHANGING A BULB
Type B
Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Type A
Entirely glass bulb: pull
g e n t l y a s i t i s fi t t e d b y
pressure.
Open the bonnet. To access the bulbs,
reach behind the headlamp unit.
Carry out the operations in reverse
o r d e r t o r e fi t e a c h b u l b a n d c h e c k t h a t
the bonnet is closed securely.
Type C
Halogen bulb: release
the retaining spring from
its housing.
Halogen bulbs must be changed
with the headlamp off. Wait a few
minutes (risk of serious burns).
Do not touch the bulb directly with your
fi n g e r s , u s e l i n t - f r e e c l o t h s .
It is normal for condensation to form
inside the headlamps. Regular use of
the vehicle eliminates this misting. The bulbs must be changed with
the ignition off or with the battery
disconnected. Wait approximately
3 minutes after changing the bulb
before reconnecting the battery.
Check that the lights operate correctly
after each operation.
High pressure washing
Types of bulb
Various types of bulb are installed on
your vehicle. To remove them:
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.
Page 139 of 153
133
TROUBLESHOOTING
8
Changing a fuse
FASCIA FUSES
Tilt the cover to gain access to the
fuses. Fuses
F Amperes
A Allocation
1 15 Rear wiper
2 - Spare
3 5 Air bag
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy light, front map reading light, roof
console
8 20 Audio equipment, CD changer, display, tyre under-
i n fl a t i o n d e t e c t i o n , a l a r m a n d s i r e n
9 30 Front and rear 12 V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and brightness sensor, air bag
13 5 Instrument panel
14 15 Parking assistance, automatic air conditioning
controls, hands-free kit
15 30 Locks
16 - Spare
17 40 Rear screen/mirrors de-icing
Page 140 of 153
134
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
for which the handbook cannot be
used as a technical support. Fuses F Amperes
A Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12 V supply
4 15 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 Hazard warning lights
Page 142 of 153

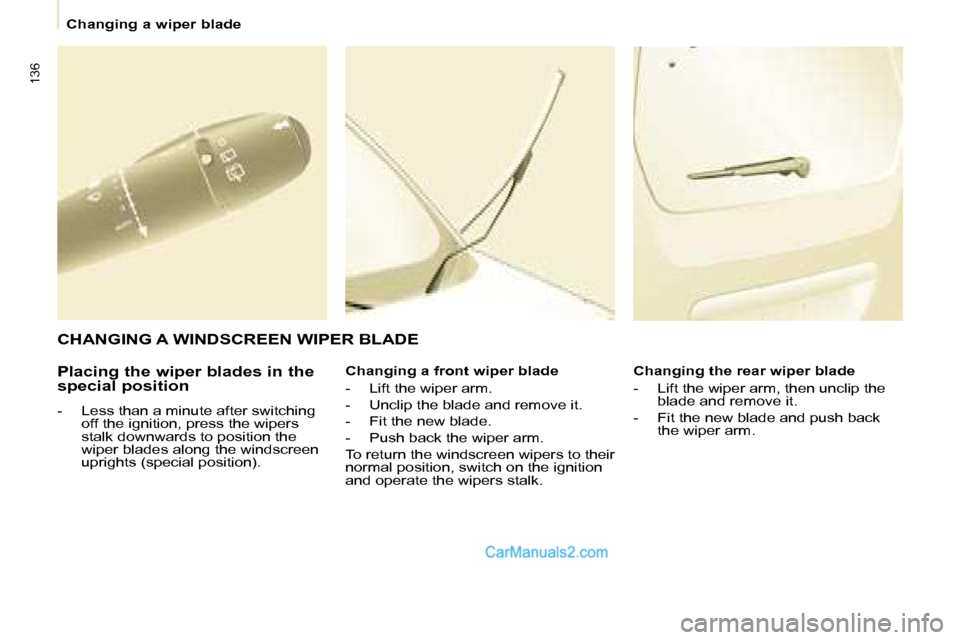

136
Changing a wiper blade
Placing the wiper blades in the
special position
- Less than a minute after switching off the ignition, press the wipers
stalk downwards to position the
wiper blades along the windscreen
uprights (special position). Changing a front wiper blade
- Lift the wiper arm.
- Unclip the blade and remove it.
- Fit the new blade.
- Push back the wiper arm.
To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wipers stalk. Changing the rear wiper blade
- Lift the wiper arm, then unclip the
blade and remove it.
- Fit the new blade and push back the wiper arm.
CHANGING A WINDSCREEN WIPER BLADE
