42
Steering wheel controls
If the brightness sensor
does not function
correctly , the lights come on
accompanied by the service
warning light, an audible
signal and a message on the display.
Consult a PEUGEOT dealer.
Follow-me-home lighting
The temporary maintaining of the
dipped headlamps lighting, with the
ignition off, makes the driver’s exit
easier when the light is poor.
HEADLAMP BEAM
Depending on the load in your vehicle,
the beam setting must be adjusted.
0 - No load.
1 - Partial load.
2 - Average load.
3 - Maximum authorised load.
Manual operation
- W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps within one minute after
switching off the ignition.
The follow-me-home lighting switches
off automatically after a set time.
Automatic operation
R e f e r t o t h e " D i s p l a y fl o w c h a r t "
section of chapter 4. Activate the function via the
" V e h i c l e c o n fi g " m e n u .
Initial setting is position 0.
Page 41 of 153
43
Steering wheel controls
ERGONOMICS and COMFORT
3
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
l Intermittent wipe.
0 Off.
Single wipe
(press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed.
WINDSCREEN WIPER STALK
Manual windscreen wipers Whenever the ignition has been
switched off for more than one
minute, with the windscreen wiper stalk
in position 2, 1 or I, the stalk must be
reactivated:
- move the stalk to any position,
- then move it back to the required
position.
Do not cover the rain sensor,
located in the centre of the
windscreen, behind the mirror. Activation
Press the control downwards. Activation
of the function is accompanied
by a message on the display.
Deactivation/Switching off
Place the windscreen wipers stalk in
position
I , 1 or 2 . Deactivation of the
function is accompanied by a message
on the display.
In the event of malfunction of the
automatic windscreen wipers, the
windscreen wipers will operate in
intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
In the
AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the rainfall.
When not in AUTO mode, for the
other positions, refer to the manual
windscreen wipers section.
The automatic windscreen wipers
function must be reactivated if the
ignition has been switched off for more
than one minute, by pressing the stalk
downwards.
When using an automatic car
wash, switch off the ignition to avoid
triggering of the automatic wiping.
In winter, it is advisable to wait for
the windscreen to completely clear of ice
before operating the automatic wipe.
Automatic windscreen wipers
Page 42 of 153
44
Steering wheel controls
Wash-wipe and headlamp wash
Pull the stalk towards you, the wash-wipe
is accompanied by a timed sweep of the
wipers.
The headlamp wash is linked with the
wash-wipe, it is triggered if the dipped
headlamps are on.
T u r n t h e r i n g p a s t t h e fi r s t
notch: the windscreen wash
then the windscreen wiper
o p e r a t e f o r a fi x e d t i m e .
In winter, in the event of a
considerable amount of snow
or ice, switch on the rear screen
demister. Once de-icing is complete,
remove the snow or ice which has
accumulated on the rear wiper
blade. You can then operate the rear
windscreen wiper.
To top up the levels, refer to the
"Levels" section of chapter 7.
Special position of the
windscreen wipers
In the minute following switching
off of the ignition, any action on the
stalk positions the wipers against the
windscreen uprights.
This action enables you to position
the wiper blades for winter parking,
cleaning or replacement.
Refer to the "Changing a windscreen
wiper blade" section of chapter 8.
To park the wipers in their normal
position after this has been done,
switch on the ignition and move the stalk. T u r n t h e r i n g t o t h e fi r s t n o t c h .
Rear windscreen wash
Rear windscreen wiper
Page 45 of 153
47
Steering wheel controls
ERGONOMICS and COMFORT
3
Changing the
programmed speed
There are two methods
of memorising a
speed higher than the
previous one: Switching the function off
Operating fault
The programmed speed is cleared then
replaced by three dashes. Contact a
PEUGEOT dealer to have the system
checked.
Cancelling the programmed
reference speed
When the vehicle becomes stationary,
after switching off the ignition, the
system no longer memorises a speed.
Without using the accelerator:
- press the
Set + button.
A brief press increases the speed
by 1 mph (km/h).
A maintained press increases
the speed in steps of 5 mph (km/h).
Using the accelerator:
- exceed the memorised speed until the speed required is reached,
- press the Set + or Set - button.
To memorise a speed lower than the
previous one:
- press the Set - button.
A brief press decreases the speed
by 1 mph (km/h).
A maintained press decreases the
speed in steps of 5 mph (km/h). - Place the dial in position
0 or switch
off the ignition to switch everything off. Good practice
When changing the programmed
reference speed by means of a
maintained press, pay attention as
the speed can increase or decrease
rapidly.
Do not use the cruise control on
s l i p p e r y r o a d s o r i n h e a v y t r a f fi c .
In the event of a steep slope, the cruise
control cannot prevent the vehicle from
exceeding the programmed speed.
In any event, the cruise control cannot
replace the need to observe the speed
limits, nor can it replace the need for
vigilance and responsibility on the part
of the driver.
It is advisable to leave your feet near
the pedals.
To avoid any jamming under the
pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- never place one mat on top of another.
Page 48 of 153
50
Steering wheel controls

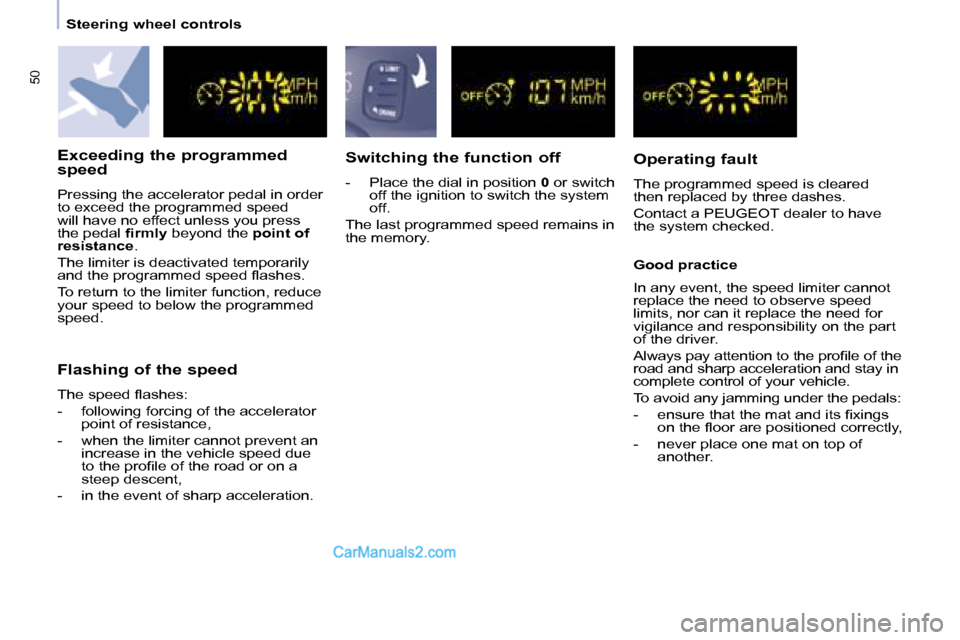

Exceeding the programmed
speed
Pressing the accelerator pedal in order
to exceed the programmed speed
will have no effect unless you press
the pedal fi r m l y beyond the point of
resistance .
The limiter is deactivated temporarily
a n d t h e p r o g r a m m e d s p e e d fl a s h e s .
To return to the limiter function, reduce
your speed to below the programmed
speed. Switching the function off
- Place the dial in position
0 or switch
off the ignition to switch the system
off.
The last programmed speed remains in
the memory. Operating fault
The programmed speed is cleared
then replaced by three dashes.
Contact a PEUGEOT dealer to have
the system checked.
Good practice
Flashing of the speed
T h e s p e e d fl a s h e s :
- following forcing of the accelerator point of resistance,
- when the limiter cannot prevent an increase in the vehicle speed due
t o t h e p r o fi l e o f t h e r o a d o r o n a
steep descent,
- in the event of sharp acceleration. In any event, the speed limiter cannot
replace the need to observe speed
limits, nor can it replace the need for
vigilance and responsibility on the part
of the driver.
A l w a y s p a y a t t e n t i o n t o t h e p r o fi l e o f t h e
road and sharp acceleration and stay in
complete control of your vehicle.
To avoid any jamming under the pedals:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s
o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- never place one mat on top of another.
Page 52 of 153
53
ERGONOMICS and COMFORT
33
Ventilation
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
LO is displayed or the value 27
by turning until HI is displayed.
On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance
to reach the comfort value set.
AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS
Automatic operation
AUTO comfort programme
This is the normal air conditioning
system operating mode. Driver or passenger side comfort
value
The value indicated on the display
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.
Turn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is usual.
Do not cover the sunshine sensor
located on the fascia.
Press this button, the AUTO
symbol is displayed.
In accordance with the comfort
value selected, the system
controls the distribution, the
fl o w a n d t h e i n t a k e o f a i r t o g u a r a n t e e
c o m f o r t a n d a s u f fi c i e n t c i r c u l a t i o n o f
air in the passenger compartment. No
further action on your part is required. When the engine is cold, to prevent
an excessive diffusion of cold air, the
air diffuser will reach its optimum level
gradually.
For your comfort, the settings are stored
when the ignition is switched off and are
reinstated the next time the vehicle
is started.
The automatic function will no longer
be maintained if you change a setting
manually (AUTO is cleared).
FOR THE DRIVER AND PASSENGER
Page 63 of 153
64
Practical information
Automatic switching on/off
The front courtesy light comes on when
the key is removed from the ignition,
when the vehicle is unlocked, when
one of the front doors is opened and for
location of the vehicle using the remote
control.
It switches off gradually after the
ignition is switched on and when the
vehicle is locked. Cab: comes on when one of
the front doors is opened.
These are switched on and off
by means of a manual switch,
with the ignition on.
Load space: comes on when
one of the rear doors
is opened.
If the doors remain open for
a few minutes, the courtesy
lights are switched off.
Permanently off.
Permanently on, ignition on. Front courtesy light
COURTESY LIGHTS
Rear courtesy light Front individual reading ligh
ts
Page 73 of 153
73
ERGONOMICS and COMFORT
33
Mirrors and windows
Electric exterior mirrors
- Move the control to the right or to the left to select the corresponding
mirror.
- Move the control in all four directions to adjust.
- Return the control to the central position. Electric folding/unfolding
The mirrors can be folded or unfolded
electrically from the inside, with the
vehicle parked and the ignition on:
- Place the control in the central
position.
- Turn the control downwards.
MIRRORS
Heated mirrors
Manual exterior mirrors
Move the lever in all four directions
to adjust.
When the vehicle is parked, the
exterior mirrors can be folded back
manually.
The mirrors are not equipped with
automatic de-icing.
The electric mirrors can be
heated. Press the rear screen
de-icing button.
