17
Accesses
READY TO SET OFF
2
When purchasing a second-hand
vehicle:
- have the keys memorised by a PEUGEOT dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a PEUGEOT dealer with the
vehicle’s V5 registration document and
y o u r i d e n t i fi c a t i o n d o c u m e n t .
A PEUGEOT dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered. The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time.
ALARM
I f fi t t e d o n y o u r v e h i c l e , t h i s p r o v i d e s
two types of protection:
- exterior protection: it sounds if a
front/rear door or the bonnet is
opened.
- interior protection: it sounds if the volume inside the passenger
compartment changes (breaking of
a window or a movement inside the
vehicle).
I f y o u r v e h i c l e i s fi t t e d w i t h a s e p a r a t i o n
partition, the interior protection is not
active in the load space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of the vehicle.
- S e t t h e a l a r m w i t h i n fi v e m i n u t e s o f getting out of the vehicle, by locking
or deadlocking using the remote
control. The red diode, located
o n t h e b u t t o n , fl a s h e s o n c e p e r
second.
Page 27 of 153
READY TO SET OFF
31 31
22
Instruments and controls
Warning light is indicates Solution - action
Particle
e m i s s i o n fi l t e r lit. a malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging,...). H a v e t h e fi l t e r c h e c k e d b y a P E U G E O T d e a l e r .
Chapter 7, "Levels" section.
Dipped
headlamps/
Daytime
lights
lit. a manual selection or
automatic lighting.
Turn the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is
switched on: daytime lights
(depending on the country in
which the vehicle is sold).
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped headlamps.
Direction
indicators fl a s h i n g w i t h
buzzer. a change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off on penalty of
being booked. "This light is a dazzling red."
Page 33 of 153
37
READY TO SET OFF
37
22
Gearboxes and steering wheel
GEARBOX
5-speed - reverse gear gearbox
To change gear easily, always press
the clutch pedal fully.
To prevent the mat from becoming
caught under the pedal:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
When driving, avoid leaving your hand
on the gear knob as the force exerted,
even if slight, may wear the internal
components of the gearbox over time. To engage reverse gear, wait until the
vehicle is stationary then push the gear
lever to the right then down.
The lever should be moved slowly to
reduce the noise on engaging reverse
gear.
When the vehicle is stationary, unlock
the steering wheel by pulling the lever.
Adjust the height and depth of the
steering wheel, then lock by pushing
the lever fully.
Page 36 of 153
40

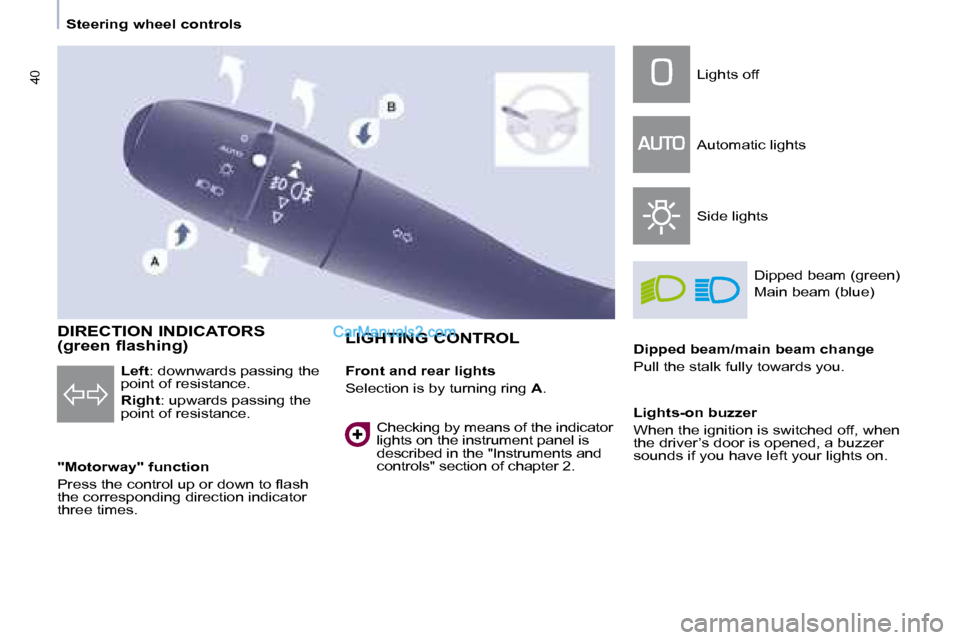

Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 37 of 153
40
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
the corresponding direction indicator
three times. LIGHTING CONTROL
Left : downwards passing the
point of resistance.
Right : upwards passing the
point of resistance. Front and rear lights
Selection is by turning ring
A . Lights off
Automatic lights
Side lights
Dipped beam (green)
Main beam (blue)
Dipped beam/main beam change
Pull the stalk fully towards you.
Lights-on buzzer
When the ignition is switched off, when
the driver’s door is opened, a buzzer
sounds if you have left your lights on.
Checking by means of the indicator
lights on the instrument panel is
described in the "Instruments and
controls" section of chapter 2.
Page 52 of 153
53
ERGONOMICS and COMFORT
33
Ventilation
Good practice
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the value 15 by turning until
LO is displayed or the value 27
by turning until HI is displayed.
On entering the vehicle, the inside
temperature may be much colder (or
warmer) than is comfortable. There is
no advantage in changing the value
displayed in order to quickly reach the
level of comfort required. The system
will use its maximum performance
to reach the comfort value set.
AUTOMATIC AIR CONDITIONING WITH SEPARATE ADJUSTMENTS
Automatic operation
AUTO comfort programme
This is the normal air conditioning
system operating mode. Driver or passenger side comfort
value
The value indicated on the display
corresponds to a level of comfort and
not a temperature in degrees Celsius
or Fahrenheit.
Turn this control to the left
or to the right to decrease or
increase the value. A setting
around the value 21 provides
optimum comfort. However,
depending on your requirements, a
setting between 18 and 24 is usual.
Do not cover the sunshine sensor
located on the fascia.
Press this button, the AUTO
symbol is displayed.
In accordance with the comfort
value selected, the system
controls the distribution, the
fl o w a n d t h e i n t a k e o f a i r t o g u a r a n t e e
c o m f o r t a n d a s u f fi c i e n t c i r c u l a t i o n o f
air in the passenger compartment. No
further action on your part is required. When the engine is cold, to prevent
an excessive diffusion of cold air, the
air diffuser will reach its optimum level
gradually.
For your comfort, the settings are stored
when the ignition is switched off and are
reinstated the next time the vehicle
is started.
The automatic function will no longer
be maintained if you change a setting
manually (AUTO is cleared).
FOR THE DRIVER AND PASSENGER
Page 76 of 153
76
Parking assistance
The audible and/or visual rear parking
assistance consists of four proximity
sensors, installed in the rear bumper.
The sensors detect any obstacle which
e n t e r s t h e fi e l d : p e r s o n , v e h i c l e , t r e e ,
fence, behind the vehicle during the
manoeuvre.
Certain objects detected at the
beginning of the manoeuvre will no
longer be detected at the end of the
manoeuvre due to the blind spots
between and below the sensors.
Examples: stake, roadworks cone or
pavement post. Engage reverse gear
Display on the screen
Stop the assistance
Change to neutral.
A n a u d i b l e s i g n a l c o n fi r m s t h e a c t i v a t i o n
of the system by engaging reverse gear.
The proximity information is indicated by
an audible signal which becomes more
rapid as the vehicle approaches
the obstacle.
When the distance between the rear
of the vehicle and the obstacle is less
than approximately thirty centimetres,
the audible signal becomes
continuous.
Page 84 of 153
84
11
22
11
22
33
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
O n a s i n g l e d i s c , t h e C D p l a y e r c a n r e a d u p t o 2 5 5 M P 3 fi l e s s p r e a d over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation.
CD
PLAYING AN MP3 COMPILATION *
CD CHANGER - not MP3 compatible
Insert the CDs in the changer one by one. Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the numeric keypad to select the corresponding CD. Press and hold one of the CD changer buttons to eject the corresponding CD.
Press one of the buttons to select a track on the CD. Press and hold one of the buttons for fast forwards or backwards play.
Playing a CD
* A c c o r d i n g t o l e v e l o f fi n i s h .
