Page 6 of 153
3
53
2
3
10
Interior
Storage compartments
These are placed under the front
seats. For greater ease, reach behind
the seat to access them.
The tool kit and the jack are stored
under the right-hand seat and can be
accessed from the rear.
Steering wheel
Adjust the height and depth of the
steering wheel.
Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.
1.
Forwards-backwards
adjustment.
2. Angle.
3. Height. 4. Head restraint
height and
angle.
Driver’s seat
57 63
37
73
97
SIT COMFORTABLY
Page 10 of 153
33
5
5
3
14
Interior VENTILATION
Heating Automatic air
conditioning
51 53
Air conditioning
CHILD SAFETY
Child seats
103
102
Air bag disarming
Recommended settings for the Manual Air Conditioning
For optimum use of the system, we recommend:
If
I require... Air
distribution
Temperature A i r fl o w Air
recirculation AC
Heating -
Cooling
De-icing
Demisting 55
With Automatic Air Conditioning, operation in AUTO mode is recommended
irrespective of the requirement.
Remember to switch the system off when the ambient air suits
your requirements.
Page 55 of 153

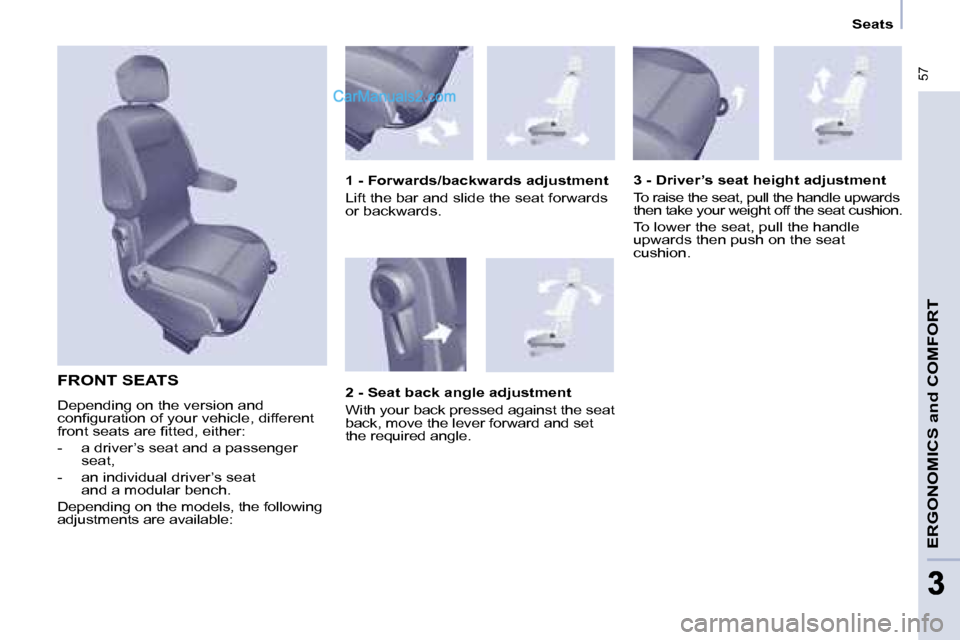

57
ERGONOMICS and COMFORT
33
Seats
FRONT SEATS
Depending on the version and
c o n fi g u r a t i o n o f y o u r v e h i c l e , d i f f e r e n t
f r o n t s e a t s a r e fi t t e d , e i t h e r :
- a driver’s seat and a passenger seat,
- an individual driver’s seat and a modular bench.
Depending on the models, the following
adjustments are available: 1 - Forwards/backwards adjustment
Lift the bar and slide the seat forwards
or backwards.
3 - Driver’s seat height adjustment
To raise the seat, pull the handle upwards
then take your weight off the seat cushion.
To lower the seat, pull the handle
upwards then push on the seat
cushion.
2 - Seat back angle adjustment
With your back pressed against the seat
back, move the lever forward and set
the required angle.
Page 56 of 153

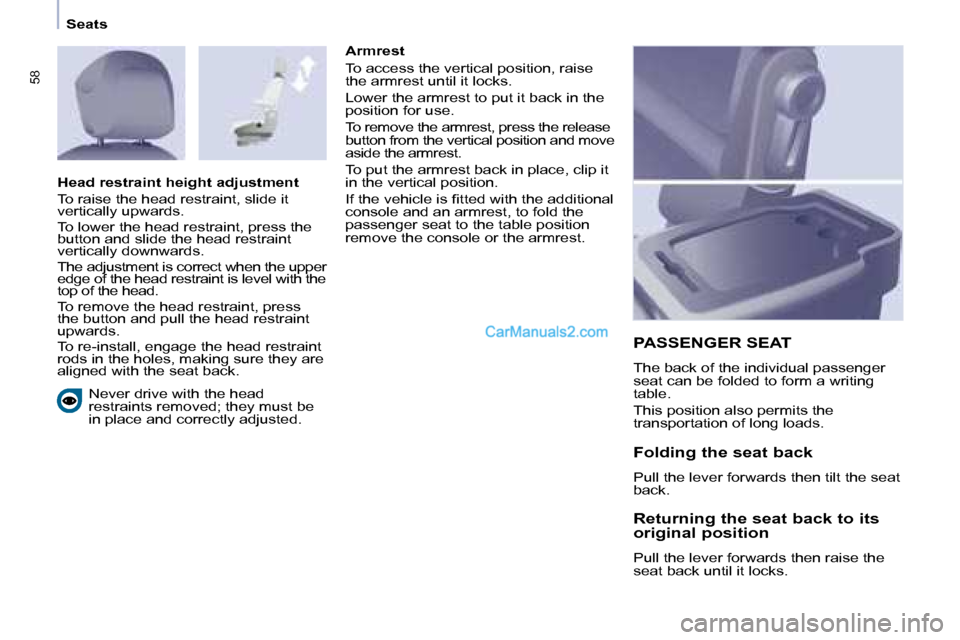

58
Seats Never drive with the head
restraints removed; they must be
in place and correctly adjusted. Armrest
To access the vertical position, raise
the armrest until it locks.
Lower the armrest to put it back in the
position for use.
To remove the armrest, press the release
button from the vertical position and move
aside the armrest.
To put the armrest back in place, clip it
in the vertical position.
I f t h e v e h i c l e i s fi t t e d w i t h t h e a d d i t i o n a l
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
PASSENGER SEAT
The back of the individual passenger
seat can be folded to form a writing
table.
This position also permits the
transportation of long loads.
Head restraint height adjustment
To raise the head restraint, slide it
vertically upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press
the button and pull the head restraint
upwards.
To re-install, engage the head restraint
rods in the holes, making sure they are
aligned with the seat back.
Folding the seat back
Pull the lever forwards then tilt the seat
back.
Returning the seat back to its
original position
Pull the lever forwards then raise the
seat back until it locks.
Page 57 of 153

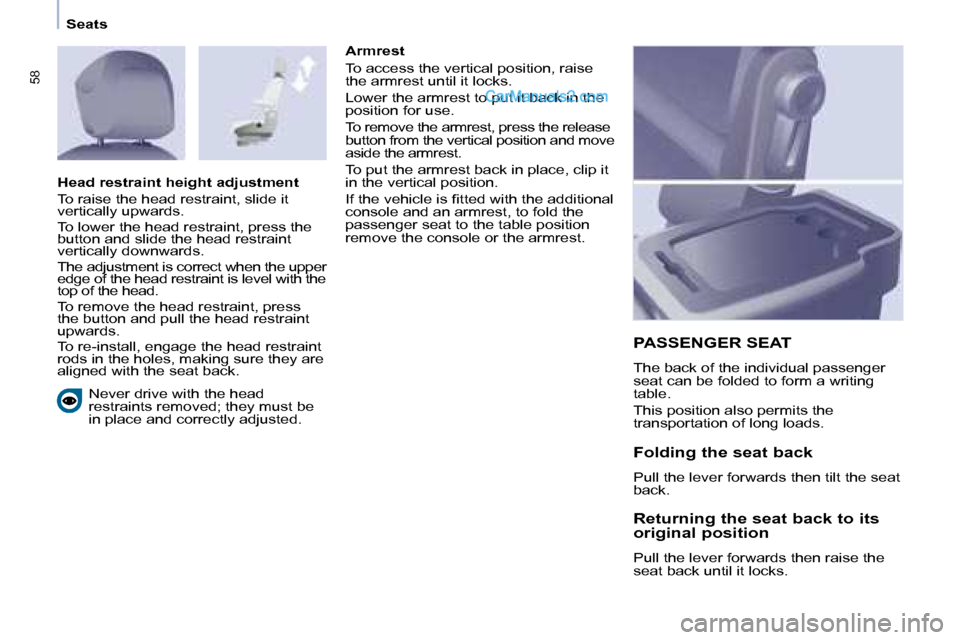

58
Seats Never drive with the head
restraints removed; they must be
in place and correctly adjusted. Armrest
To access the vertical position, raise
the armrest until it locks.
Lower the armrest to put it back in the
position for use.
To remove the armrest, press the release
button from the vertical position and move
aside the armrest.
To put the armrest back in place, clip it
in the vertical position.
I f t h e v e h i c l e i s fi t t e d w i t h t h e a d d i t i o n a l
console and an armrest, to fold the
passenger seat to the table position
remove the console or the armrest.
PASSENGER SEAT
The back of the individual passenger
seat can be folded to form a writing
table.
This position also permits the
transportation of long loads.
Head restraint height adjustment
To raise the head restraint, slide it
vertically upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically downwards.
The adjustment is correct when the upper
edge of the head restraint is level with the
top of the head.
To remove the head restraint, press
the button and pull the head restraint
upwards.
To re-install, engage the head restraint
rods in the holes, making sure they are
aligned with the seat back.
Folding the seat back
Pull the lever forwards then tilt the seat
back.
Returning the seat back to its
original position
Pull the lever forwards then raise the
seat back until it locks.
Page 58 of 153

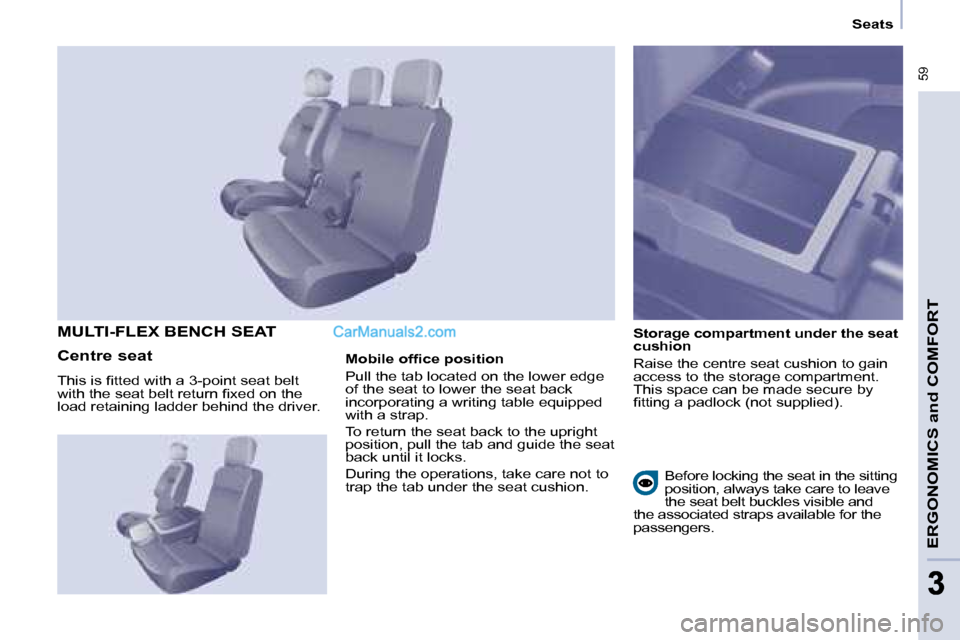

59
ERGONOMICS and COMFORT
33
Seats
Storage compartment under the seat
cushion
Raise the centre seat cushion to gain
access to the storage compartment.
This space can be made secure by
fi t t i n g a p a d l o c k ( n o t s u p p l i e d ) .
MULTI-FLEX BENCH SEAT
Centre seat
T h i s i s fi t t e d w i t h a 3 - p o i n t s e a t b e l t
w i t h t h e s e a t b e l t r e t u r n fi x e d o n t h e
load retaining ladder behind the driver. M o b i l e o f fi c e p o s i t i o n
Pull the tab located on the lower edge
of the seat to lower the seat back
incorporating a writing table equipped
with a strap.
To return the seat back to the upright
position, pull the tab and guide the seat
back until it locks.
During the operations, take care not to
trap the tab under the seat cushion.
Before locking the seat in the sitting
position, always take care to leave
the seat belt buckles visible and
the associated straps available for the
passengers.
Page 59 of 153

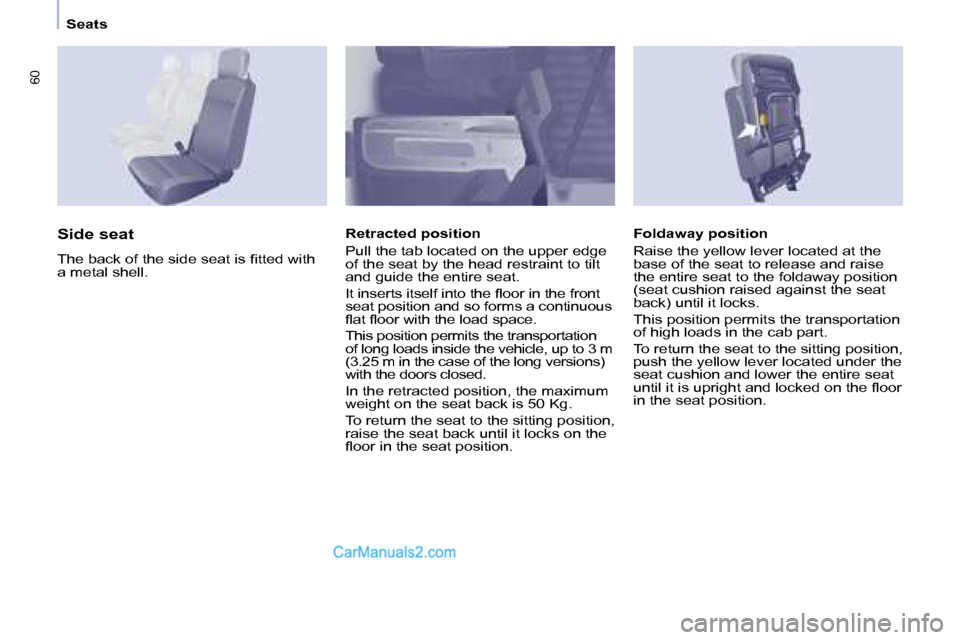

60
Seats
Foldaway position
Raise the yellow lever located at the
base of the seat to release and raise
the entire seat to the foldaway position
(seat cushion raised against the seat
back) until it locks.
This position permits the transportation
of high loads in the cab part.
To return the seat to the sitting position,
push the yellow lever located under the
seat cushion and lower the entire seat
u n t i l i t i s u p r i g h t a n d l o c k e d o n t h e fl o o r
in the seat position.
Side seat
T h e b a c k o f t h e s i d e s e a t i s fi t t e d w i t h
a metal shell.
Retracted position
Pull the tab located on the upper edge
of the seat by the head restraint to tilt
and guide the entire seat.
I t i n s e r t s i t s e l f i n t o t h e fl o o r i n t h e f r o n t
seat position and so forms a continuous
fl a t fl o o r w i t h t h e l o a d s p a c e .
This position permits the transportation
of long loads inside the vehicle, up to 3 m
(3.25 m in the case of the long versions)
with the doors closed.
In the retracted position, the maximum
weight on the seat back is 50 Kg.
To return the seat to the sitting position,
raise the seat back until it locks on the
fl o o r i n t h e s e a t p o s i t i o n .
Page 60 of 153

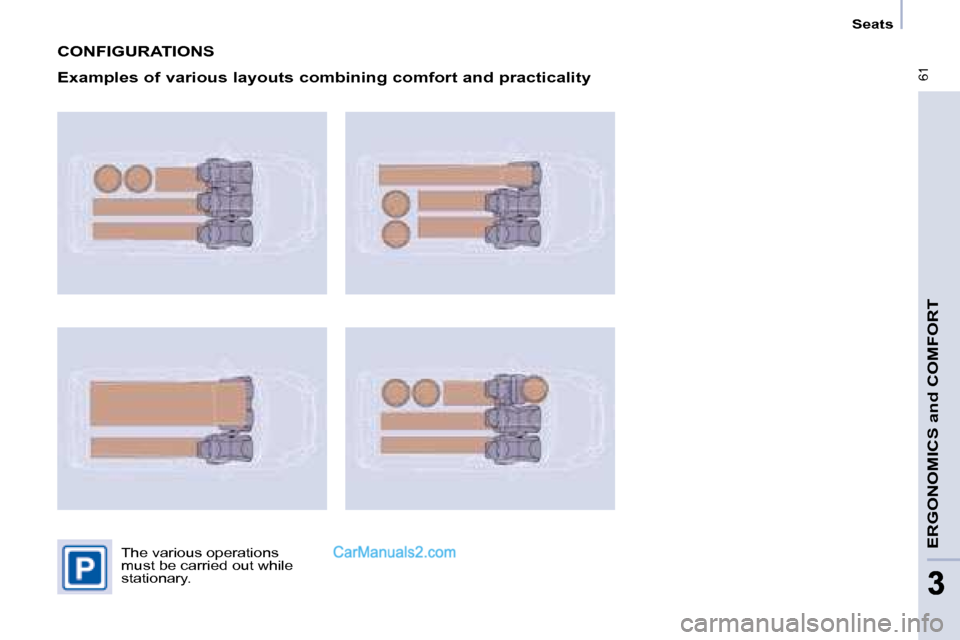

61
ERGONOMICS and COMFORT
33
Seats
CONFIGURATIONS
Examples of various layouts combining comfort and practicality
The various operations
must be carried out while
stationary.
