FAMILIARISATION
Exterior
20
22
R e a r r o o f fl a p
T h e r e a r r o o f fl a p i s o n l y
compatible with the hinged doors.
Changing bulbs 127
23
Tailgate and rear screen
Hinged rear doors
Spare wheel
The tools are located under
the right-hand seat.
Raise the carrier with the
w h e e l fl u s h a g a i n s t t h e fl o o r .
I n t h e c a s e o f a v e h i c l e fi t t e d
with a towbar, the vehicle
must be raised in order to
disengage the spare wheel
from the carrier. 122
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.
Useable dimensions 138
Parking assistance
76
Page 30 of 153
34
Instruments and controls Puncture
Stop immediately, avoiding any sudden
movement of the steering wheel and
the brakes.
Change the damaged (punctured or
v e r y d e fl a t e d ) t y r e , a n d h a v e t h e t y r e
pressure checked as soon as possible. Sensor(s) not detected
U n d e r - i n fl a t i o n d e t e c t i o n i s a b s e n t
from one (or several) tyre(s). Contact a
PEUGEOT dealer to replace the faulty
sensor(s).
This message is also displayed when
one of the tyres is away from the
vehicle (being repaired) or when a
w h e e l w i t h o u t a s e n s o r i s fi t t e d .
All repairs and changing of tyres on a
w h e e l fi t t e d w i t h t h i s s y s t e m m u s t b e
carried out by a PEUGEOT dealer.
T h e t y r e u n d e r - i n fl a t i o n d e t e c t i o n
system is a driving aid which does
not take the place of vigilance or the
responsibility of the driver.
This system does not remove the need
to have the tyre pressure checked
regularly (including the spare wheel), to
ensure that the dynamic performance
of the vehicle remains at its best and
to avoid premature wear of the tyres,
in particular in the case of arduous
driving (heavy load, high speed).
The system may temporarily be
disturbed by radio broadcasts on a
frequency close to it.
DETECTION
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides) or particles, detected by oxygen sensors placed
upstream and downstream of the
catalytic converters.
Therefore, the driver is warned of any
malfunction of this emission control
s y s t e m b y t h e l i g h t i n g o f t h i s s p e c i fi c
warning light on the instrument panel.
There is a risk of damage to the
catalytic converter. Have it checked by
a PEUGEOT dealer.
EMISSION CONTROL Flat tyre
Check the tyre pressure as soon as
possible.
Refer to the "Changing a wheel"
section of chapter 8.
If the damaged tyre is temporarily
stored inside the vehicle, it will again
emit this message to remind you of the
necessity of having it repaired. This will
prevent another warning of the same
type being displayed.
Sensors check the tyre pressure during
driving (speed higher than 12 mph
[20 km/h]) and trigger a warning in the
event of a malfunction or puncture. EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards
concerning authorised
emissions of:
Any anomaly detected
( fl a t o r p u n c t u r e d t y r e ,
malfunction of a sensor)
is indicated by visual
and audible information
and is accompanied by a
message on the display.
Page 127 of 153
122
Changing a wheel
1. PARKING THE VEHICLE
- It is imperative that you ensure that the occupants get out of the vehicle
and wait in a safe location.
- If possible, park the vehicle on level, stable and non-slippery
ground.
- Apply the handbrake, switch off the i g n i t i o n a n d e n g a g e fi r s t o r r e v e r s e
gear. - If available, place a chock under
the wheel diagonally opposite the
one to be changed.
I f t h e v e h i c l e i s fi t t e d w i t h a t o w b a r ;
it is sometimes necessary to raise
the vehicle slightly to make it easier
to remove the spare wheel from its
carrier.
On certain types of ground and/or
if considerable loads are being
transported, call a PEUGEOT dealer.

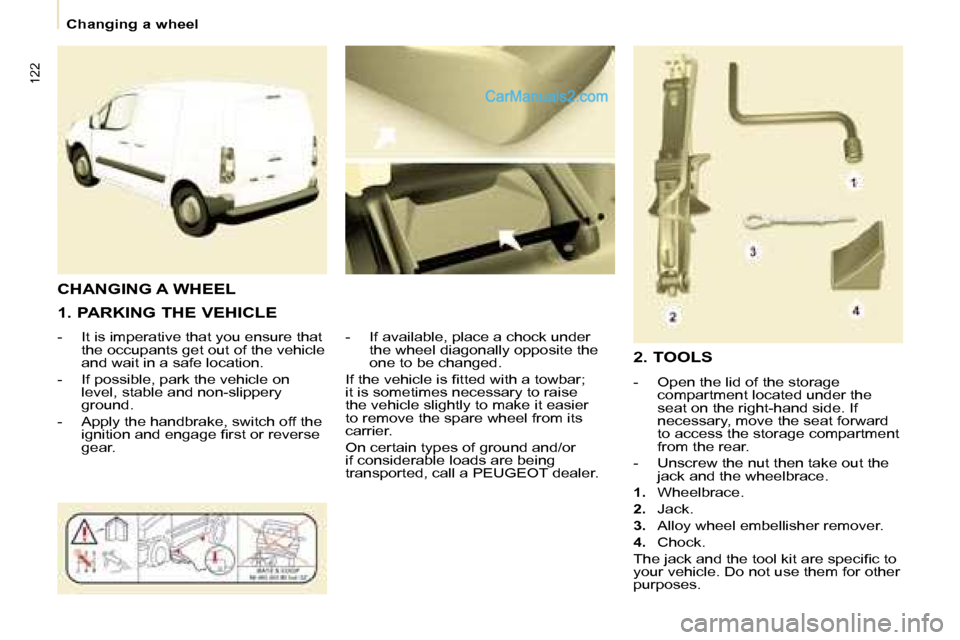

CHANGING A WHEEL
2. TOOLS
- Open the lid of the storage compartment located under the
seat on the right-hand side. If
necessary, move the seat forward
to access the storage compartment
from the rear.
- Unscrew the nut then take out the jack and the wheelbrace.
1. Wheelbrace.
2. Jack.
3. Alloy wheel embellisher remover.
4. Chock.
T h e j a c k a n d t h e t o o l k i t a r e s p e c i fi c t o
your vehicle. Do not use them for other
purposes.
Page 128 of 153
123
TROUBLESHOOTING
8
Changing a wheel

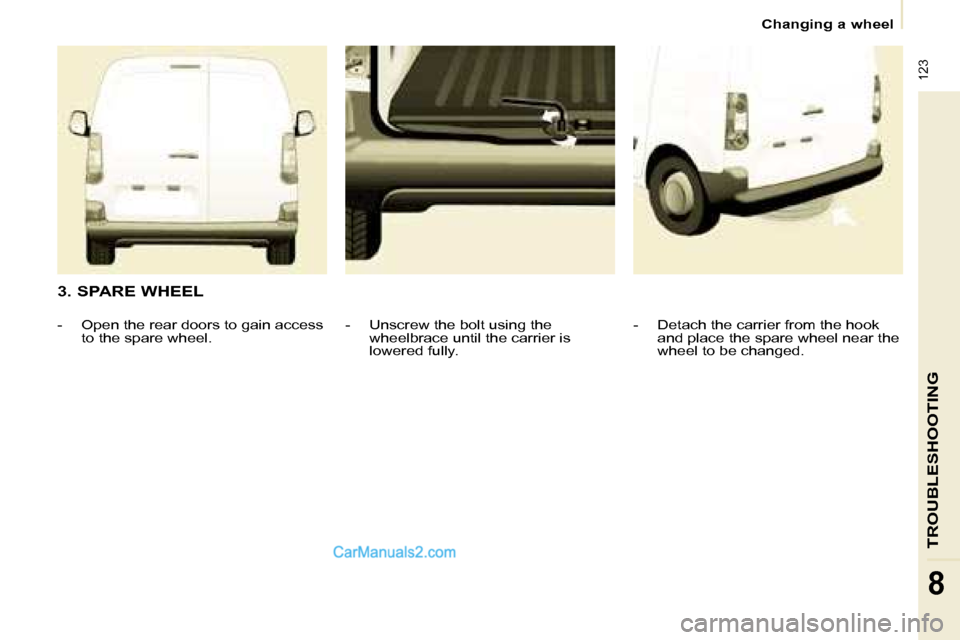

3. SPARE WHEEL - Detach the carrier from the hook and place the spare wheel near the
wheel to be changed.
- Unscrew the bolt using the
wheelbrace until the carrier is
lowered fully.
- Open the rear doors to gain access
to the spare wheel.
Page 130 of 153
125
TROUBLESHOOTING
8
Changing a wheel
- Lower the vehicle completely by folding the jack, then remove the
jack.
- Tighten the bolts again using the wheelbrace, tighten them fully
without forcing them.
- Place the wheel to be repaired in the carrier. - Secure the carrier on the hook then
raise the carrier using the bolt and
the wheelbrace.
Never go underneath a vehicle
that is supported only by a
jack (use a ramp). Never use
a screwdriver in place of the
wheelbrace

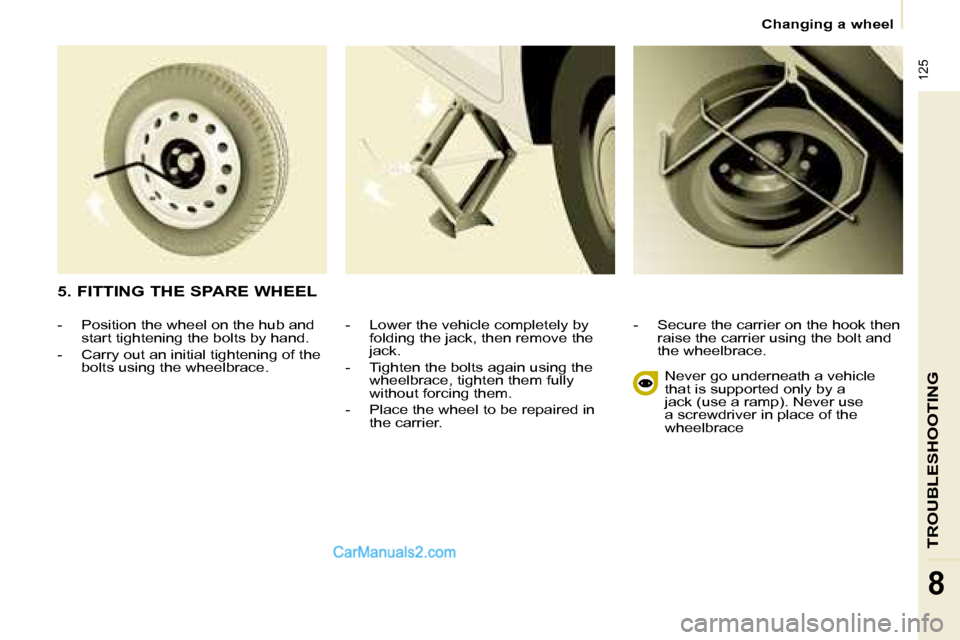

5. FITTING THE SPARE WHEEL
- Position the wheel on the hub and
start tightening the bolts by hand.
- Carry out an initial tightening of the bolts using the wheelbrace.
Page 131 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
Refer to the "Instruments and
controls" section of chapter 2,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
part, for recommendations after
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 9 to
locate the tyre label.

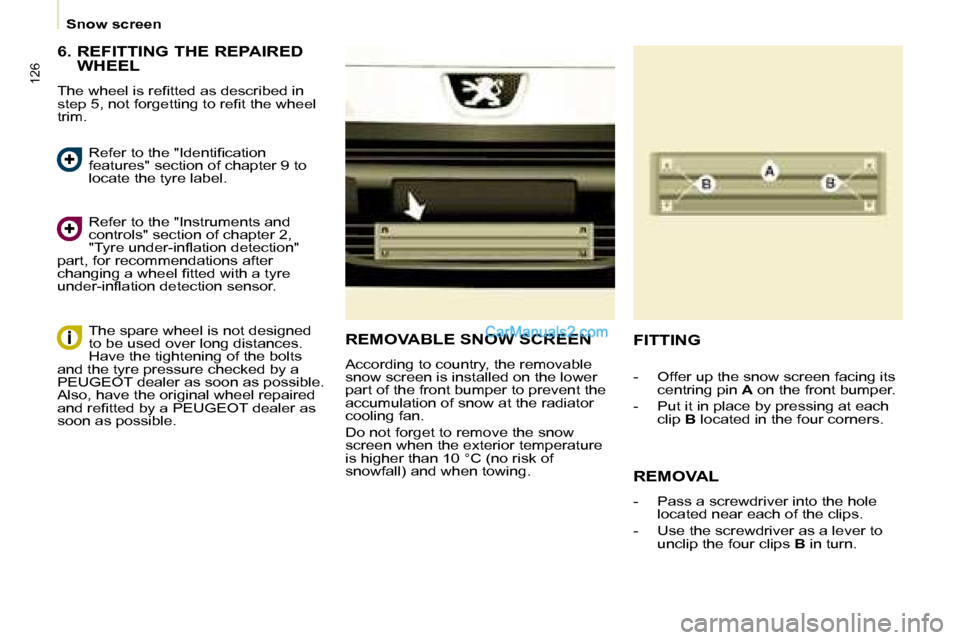

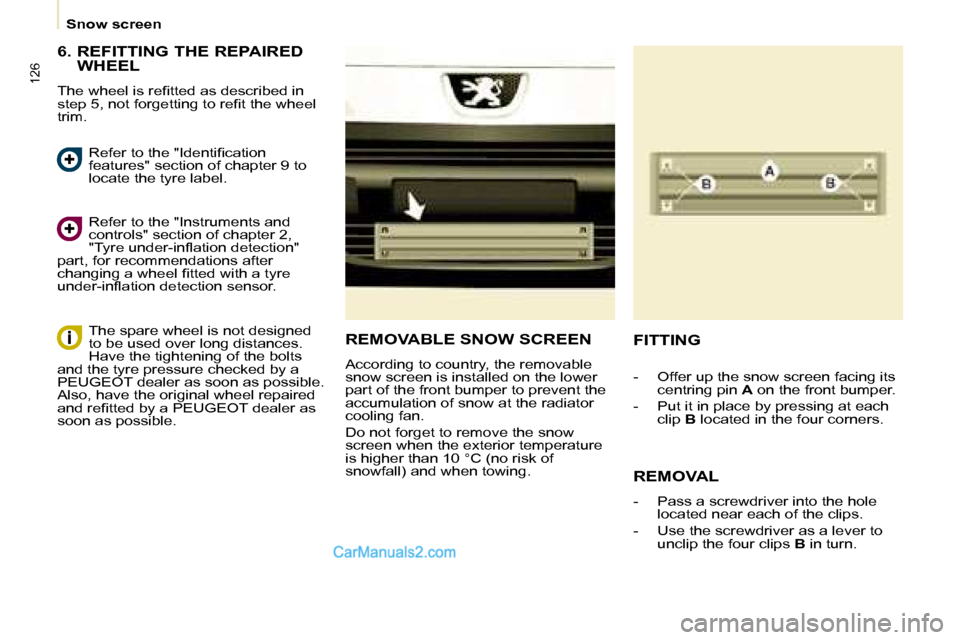

REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a P E U G E O T d e a l e r a s
soon as possible.
Page 132 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
Refer to the "Instruments and
controls" section of chapter 2,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
part, for recommendations after
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
features" section of chapter 9 to
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
screen when the exterior temperature
is higher than 10 °C (no risk of
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
located near each of the clips.
- Use the screwdriver as a lever to unclip the four clips B in turn.
- Offer up the snow screen facing its
centring pin A on the front bumper.
- Put it in place by pressing at each clip B located in the four corners.
The spare wheel is not designed
to be used over long distances.
Have the tightening of the bolts
and the tyre pressure checked by a
PEUGEOT dealer as soon as possible.
Also, have the original wheel repaired
a n d r e fi t t e d b y a P E U G E O T d e a l e r a s
soon as possible.
Page 141 of 153
135
TROUBLESHOOTING
8
Changing a fuse
FUSES UNDER THE BONNET
After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F Amperes
A Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear wash-wipe pump
4 20 Headlamp wash pump
5 15 Engine components
6 10 Steering wheel angle sensor, ESP
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Spare
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped headlamp
18 15 Left-hand dipped headlamp
