2008.5 Peugeot Partner tow bar
[x] Cancel search: tow barPage 3 of 153
4
2c
8a
8b
2e
2d9
2e
8b
2c
8a4
2d
97
1
FAMILIARISATION
Exterior
20
22
R e a r r o o f fl a p
T h e r e a r r o o f fl a p i s o n l y
compatible with the hinged doors.
Changing bulbs 127
23
Tailgate and rear screen
Hinged rear doors
Spare wheel
The tools are located under
the right-hand seat.
Raise the carrier with the
w h e e l fl u s h a g a i n s t t h e fl o o r .
I n t h e c a s e o f a v e h i c l e fi t t e d
with a towbar, the vehicle
must be raised in order to
disengage the spare wheel
from the carrier. 122
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.
Useable dimensions 138
Parking assistance
76
Page 9 of 153
3
3
3
3
5
13
1
FAMILIARISATION
Interior
LOAD SPACE
Stowing rings
We recommend that the load is
i m m o b i l i s e d b y s e c u r i n g i t fi r m l y u s i n g
t h e s t o w i n g r i n g s o n t h e fl o o r a n d t h a t
heavy objects are placed at the front
(towards the cab). Torch
Incorporated in the wall, this lights
the boot and can be removed when
changing a wheel, ...
68
70 65
Partitions
69
69
R e m o v a b l e fl a p
This can be removed to
permit the loading of long
objects.
Interior rack Maximum loads
Overhead storage compartment: 5kg.
Retractable seat, in the seat back folded
onto seat cushion position: 50 kg.
Transverse roof bars: 75 kg.
Interior rack: 10 kg per bar.
Roof rack: 120 kg.
Page 71 of 153
71
ERGONOMICS and COMFORT
33
Practical information

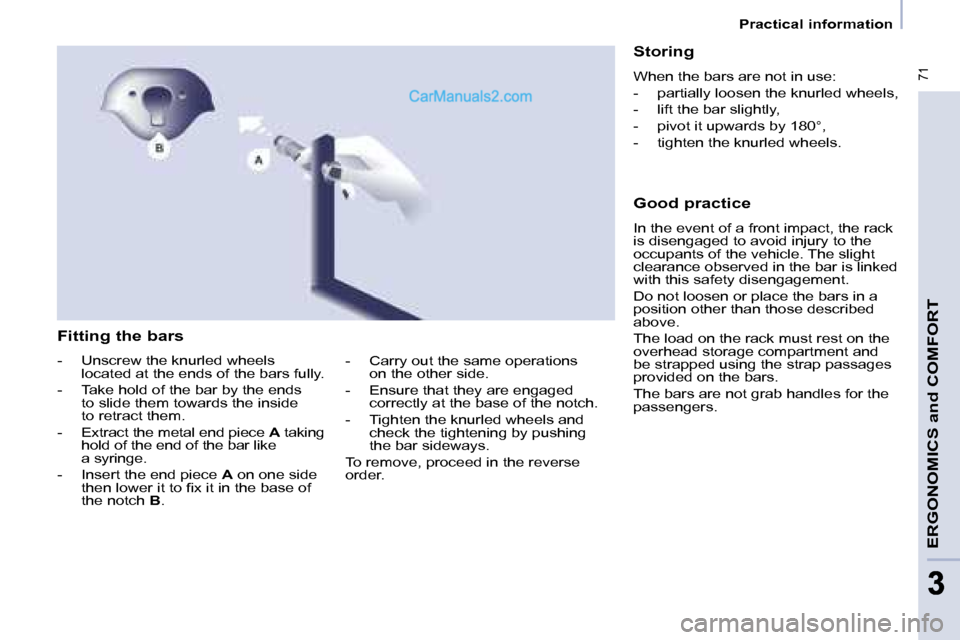

Fitting the bars
- Unscrew the knurled wheels located at the ends of the bars fully.
- Take hold of the bar by the ends to slide them towards the inside
to retract them.
- Extract the metal end piece A taking
hold of the end of the bar like
a syringe.
- Insert the end piece A on one side
t h e n l o w e r i t t o fi x i t i n t h e b a s e o f
the notch B . Storing
When the bars are not in use:
- partially loosen the knurled wheels,
- lift the bar slightly,
- pivot it upwards by 180°,
- tighten the knurled wheels.
Good practice
In the event of a front impact, the rack
is disengaged to avoid injury to the
occupants of the vehicle. The slight
clearance observed in the bar is linked
with this safety disengagement.
Do not loosen or place the bars in a
position other than those described
above.
The load on the rack must rest on the
overhead storage compartment and
be strapped using the strap passages
provided on the bars.
The bars are not grab handles for the
passengers.
- Carry out the same operations
on the other side.
- Ensure that they are engaged correctly at the base of the notch.
- Tighten the knurled wheels and check the tightening by pushing
the bar sideways.
To remove, proceed in the reverse
order.
Page 115 of 153
110
Towing a trailer
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.
Tyres: check the tyre pressures
of the towing vehicle (see the
" I d e n t i fi c a t i o n f e a t u r e s " s e c t i o n o f
chapter 9) and of the trailer, observing
the recommended pressure.
See the "Levels" section of chapter 7.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually. Towbar
We recommend the use of original
PEUGEOT towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer’s instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by PEUGEOT . Fitting
such equipment could result in the
failure of your vehicle’s electronic
system. Please contact a PEUGEOT
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
type of equipment. OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is
offered.
Range of professional
equipment
The parts department publishes an
accessories catalogue offering various
e q u i p m e n t a n d fi t t i n g s , s u c h a s :
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
w h i c h m u s t b e fi t t e d b y t h e P E U G E O T
network.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl o o r .
Protective grilles.
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing.
Another range is also available,
structured around comfort, leisure and
maintenance:
Page 116 of 153
110
Towing a trailer
Good Practice
In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power. In
this case, the automatic cutting off of
the air conditioning allows the engine
power to be recovered.
Tyres: check the tyre pressures
of the towing vehicle (see the
" I d e n t i fi c a t i o n f e a t u r e s " s e c t i o n o f
chapter 9) and of the trailer, observing
the recommended pressure.
See the "Levels" section of chapter 7.
If the coolant temperature
warning light comes on, stop
the vehicle and switch off the
engine as soon as possible.
Brakes
Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually. Towbar
We recommend the use of original
PEUGEOT towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi t t i n g o f t h i s e q u i p m e n t t o a P E U G E O T
dealer.
I f t h i s e q u i p m e n t i s n o t fi t t e d b y a
PEUGEOT dealer, it is imperative that
i t i s fi t t e d u s i n g t h e e l e c t r i c a l p r e -
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer’s instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
a t t e n t i o n t o t h e r i s k l i n k e d w i t h fi t t i n g
a towbar or electrical accessory not
recommended by PEUGEOT . Fitting
such equipment could result in the
failure of your vehicle’s electronic
system. Please contact a PEUGEOT
d e a l e r f o r i n f o r m a t i o n b e f o r e fi t t i n g t h i s
type of equipment. OTHER ACCESSORIES
These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and original parts is
offered.
Range of professional
equipment
The parts department publishes an
accessories catalogue offering various
e q u i p m e n t a n d fi t t i n g s , s u c h a s :
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
w h i c h m u s t b e fi t t e d b y t h e P E U G E O T
network.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl o o r .
Protective grilles.
Side wind
Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP
The ABS or ESP systems only control
the vehicle, not the trailer or caravan.
Rear parking assistance
The assistance does not function while
the vehicle is towing.
Another range is also available,
structured around comfort, leisure and
maintenance:
Page 138 of 153
132
Changing a fuse
CHANGING A FUSE
The fuse boxes are placed:
- in the lower part of the fascia on the left-hand side (behind the cover),
- under the bonnet (near the battery).
I f fi t t e d o n y o u r v e h i c l e , a n a d d i t i o n a l
fuse box is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
m o d i fi c a t i o n s . I t i s l o c a t e d o n t h e r i g h t
behind the load retaining partition.
The indications communicated are only
those fuses which can be changed
by the user using the pliers and the
spare fuses, located behind the fascia
storage compartment on the right-
hand side. For any other work, visit a
PEUGEOT dealer.
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
PEUGEOT will not accept
responsibility for the cost incurred in
repairing your vehicle or for rectifying
the malfunctions resulting from
the installation of accessories not
supplied and not recommended by the
PEUGEOT network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes.
For professionals: for complete
information concerning the fuses
and relays, consult the "Methods"
diagram via the Network.
Before replacing a fuse, the cause
of the incident must be found and
r e c t i fi e d .
- Use the pliers.
Page 140 of 153
134
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - Spare
2 20 Heated seats
3 - Spare
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
for which the handbook cannot be
used as a technical support. Fuses F Amperes
A Allocation
1 15 Spare
2 15 Ignition, generator operating relay
3 15 Trailer 12 V supply
4 15 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 Hazard warning lights
Page 143 of 153
137
TROUBLESHOOTING
8
Having your vehicle towed
Without lifting
(4 wheels on the road)
You should always use a towbar.
BEING TOWED From the front
- Unclip the cover by pressing the bottom part.
- Screw in the removable towing eye until it locks.
From the rear
- Unclip the cover using a coin or the fl a t p a r t o f t h e t o w i n g e y e ,
- Screw in the removable towing eye until it locks. When towing with the engine
switched off, there is no braking or
steering assistance.
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in neutral, failure to observe this
special condition may result in damage
to certain braking components and the
absence of braking assistance when
the engine is started again.
Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment.
The towing eye is stored in the tool kit,
located under the right-hand seat.
Vehicles fitted with a manual
gearbox (diesel version)
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to certain braking
components and the absence of
braking assistance when the engine is
started again.
