FAMILIARISATION
Exterior
20
22
Rear roof fl ap
The rear roof fl ap is only
compatible with the hinged doors.
Changing bulbs 127
23
Tailgate and rear screen
Hinged rear doors
Spare wheel
The tools are located under
the right-hand seat.
Raise the carrier with the
wheel fl ush against the fl oor.
In the case of a vehicle fi tted
with a towbar, the vehicle
must be raised in order to
disengage the spare wheel
from the carrier. 122
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.
Useable dimensions 138
Parking assistance
76

23
Accesses
READY TO SET OFF
2
TAILGATE
From outside
Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a fi nal press on the tailgate to close it
fully. From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl oor. To unlock the lock, move the
catch to the left then push the tailgate.
Tailgate screen
The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.
The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself.

70
Practical information
The two interior bars are covered
with rubber and incorporate a strap
passage to secure the loaded objects.
The interior rack consists of two bars
to be installed at the top of the space
leaving the lower area of the passenger
compartment free.
It permits the transportation of long loads
(2 metres maximum) with the doors or
tailgate closed. The long load must rest
on the overhead storage compartment
and the two bars. However, be sure to comply with
the loads and weights permitted.
Maximum load: 10 kilogrammes per bar.

111
ACCESSORIES
66
Equipment
Anti-theft alarm, window
engraving, fi rst aid kit, high
visibility safety jacket, rear
parking assistance, warning
triangle, ...
Front seat covers compatible
with air bags, bench, rubber
mats, carpet mats, snow chains,
blind, tailgate bicycle carrier, ...
Audio equipment, hands-free
kit, speakers, CD changer,
navigation, ...
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fi xings
are positioned correctly,
- never fi t one mat on top of another.
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints linked with the
fi tting of equipment of these families
of products mean that the special
features of the equipment and its
compatibility with the capacities of the
your vehicle’s standard equipment
must be taken into account. Please
contact a PEUGEOT dealer for
information before fi tting such
equipment. Maximum weights on bars
- Roof rack: 120 Kg.
- Transverse bars on roof: 100 Kg.
- Transverse bars on longitudinal
bars: 75 Kg.
Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a representative
of the PEUGEOT marque.
The PEUGEOT Network will inform you
of the specifi cations (frequency band,
maximum output power, aerial position,
specifi c installation conditions) of the
transmitters which can be fi tted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE).
Front mud fl aps, rear mud
fl aps, 15/17 inch alloy wheels,
wheelarch trim, leather steering
wheel, ...
Screenwash, interior and
exterior cleaning and
maintenance products,
replacement bulbs, ... The fi tting of electrical equipment
or accessories which are not
recommended by Automobiles
PEUGEOT may result in the failure
of your vehicle’s electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment and
accessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.
"Active Fleet Data" Telematic unit
Connected directly to the heart of the
vehicle (multiplexed network: "Full
CAN"), the telematic unit, by means of
a "ready to use" service, permits the
sending in real time of information such
as:
- distance travelled,
- distance remaining before the next service,
- warnings and faults (oil level, coolant level, oil temperature,
coolant temperature, etc...).
This enables "Fleet" managers
to optimise the monitoring and
management of their professional
vehicles.
According to country, contact
a PEUGEOT dealer for further
information.

130
Changing a bulb
For further information concerning the
bulbs, refer to the "Types of bulb".

1. Brake lights/side lights
Type B, P21/5 W - 21/5 W

2. Direction indicators
Type B, PY 21 W - 21 W (amber)

3. Reversing lights
Type B, P21 W - 21 W

4. Fog lamps
Type B, P21 W - 21 W - Identify the faulty bulb then open
the rear doors to 180°.
Refer to the "Accesses" section of chapter 2.
- Remove the two fi xing bolts using the screwdriver stored in the tool kit
under the right-hand seat.
- Pull the light unit from the outside.
- Holding the light, disconnect the electrical connector. - Move aside the 4 tabs then extract
the bulb holder.
- Remove the faulty bulb by pressing it lightly while turning it
anticlockwise.
- Change the bulb.

When removing the light unit:
- with tailgate, pull the light unit
towards the centre of the vehicle,
- with hinged doors, pull the light unit towards you.
When refi tting, take care to
reposition the tabs and the supply
wire correctly to avoid trapping the
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
more than approximately 2 minutes.
REAR LIGHTS
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging their
coating and their seal.

131
TROUBLESHOOTING
8
Changing a bulb
NUMBER PLATE LIGHTS
- Unscrew the two nuts.
- Push the pins.
- If necessary, disconnect the connector to remove the light.
- Change the bulb.
With tailgate
- Move aside the plastic lens using a
screwdriver.
- Change the bulb.
- Replace the plastic lens and press on it.
THIRD BRAKE LIGHT

Type A, W 16 W - 16 W
With hinged doors
- Unclip the interior trim.
- Disconnect the connector by moving aside its tab.
- Turn the bulb holder a quarter turn anticlockwise.
- Change the bulb.
- Put the bulb holder back in place and reconnect the connector.
- Put the trim back in place.

Type A, W 5 W - 5 W

140

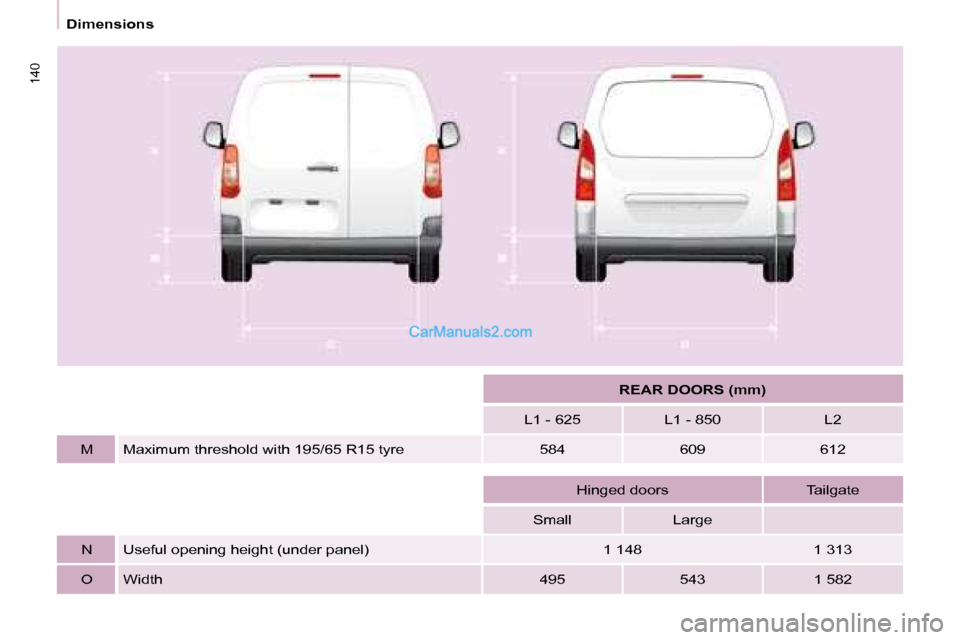

Dimensions
REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum threshold with 195/65 R15 tyre 584 609 612
Hinged doors Tailgate
Small Large
N Useful opening height (under panel) 1 148 1 313
O Width 495 543 1 582

Dimensions
TECHNICAL DATA
9

SLIDING SIDE DOOR (mm)
L1 L2
P Useful height 1 100
Q Useful width 650
- Height under raised tailgate 1 892
