2008.5 Citroen JUMPER DAG Owner's Manual

83
4
IN-CAR TECHNOLOGY
Audio equipment
Scroll the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you to…

IGN TIME 20 MIN 00 MIN
Set the audio equipment play time after turning the ignition key to the "STOP" position: - 20 MIN to play for 20 minutes, - 00 MIN to switch off immediately. Place the key in the "RUNNING" position to switch the audio equipment back on.

NO HICUT HICUT ON Select the dynamic reduction of the treble: - ON, - NO.

VOICE 22 21 ... OFF Select the volume setting: - 1 to 66, - OFF to cut off the sound.

SVC OFF SVC ON
Select the automatic control of the volume in relat ion to the vehicle speed: - ON, - OFF.

CD NAME

XYZ23ABC
ABCDEFG5 MENU
Select and programme the name of the CD, currently being played, on the display: - the name stored previously, - 8 dashes if it does not have a name. Use the 4 arrows to select letters then store using MENU. To clear the name, press and hold the "CLR" button .
If a CD has been inserted, this menu is displayed.
or
_ _ _ _ _
_ _ _

84
Audio equipment
Scroll the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you to…

SENS DX SENS LO
Set the sensitivity of automatic reception of the radio frequencies (tuner): - DX (high) for a search of all of the surrounding transmitters, - LO (low) for a search of the surrounding transmitters which have a strong signal.

MP3 DISP If your vehicle is equipped with MP3, this menu is displayed.
FILENAME TIME TAG
INFO DIR
Select the type of MP3 display for the current tra ck: - FILENAME for the name of the track (file), - TIME for the time elapsed, - TAG INFO for the title of the album and the name of the artist, - DIR for the name of the directory (folder).

CD DISP
NAME

Select the type of display for the current CD: - NAME for the name attributed to the CD, - TIME for the time elapsed since the beginning of the track. TIME

REG OFF REG ON
Select the reception of local or regional programmes (different from one region to another): - ON for local programmes, - OFF for no programmes.

85
4
IN-CAR TECHNOLOGY
Audio equipment
Scroll the display

Select

Display

Select

Display

Select

Display

Select

Display

Enables you to…

PRESET USER CLASSIC ROCK JAZZ
Select pre-defined equaliser settings. Select USER to set the equaliser manually then go to the EQ SET menu. Bass and Treble adjustments are always possible.

EQ SET If USER is selected in PRESET, this menu is displayed.
Programme the 7 bands of the equaliser manually. To store the settings, press MENU.

22
11
86
Audio equipment
CD The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio
Layer 3, is an audio compression standard which per mits the
recording of several tens of music files on a singl e disc.
MP3
In order to be able to play a recorded CDR or CDRW
, when
recording it is preferable to select standards ISO 9660
level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played
correctly.
It is recommended that the same recording standard is
always used for an individual disc, with as low a s peed as
possible (4x maximum) for optimum sound quality.
In the particular case of a multi-session CD, the Joliet
standard is recommended.
The audio equipment will only play files with the extension
".mp3" with a sampling rate of 22.05 KHz or 44.1 KH z.
No other type of file (.wma, .mp4, m3u...) can be p layed.
It is advisable to restrict file names to 20 chara cters without
using special characters (e.g.: " " ? ; ù) to avoid any playing
or displaying problems.
PLAYING A CD OR AN MP3 COMPILATION
Insert circular compact discs only.
Some anti-pirating systems, on original
discs or CDs copied using a personal
recorder, may cause faults which are no
reflection on the quality of the original player.
Insert a CD or an MP3 compilation in the player, p lay begins
automatically.
If the player already contains a disc,
press the source SRC button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.

87
4
IN-CAR TECHNOLOGY
Introduction
KEY
Indicates that a maintained press is required to start the action described.
Voice mode Press the control to start the voice recognition, an audible signal confirms that the function has be en activated, do not speak until
you hear this signal.
For further information regarding the voice comman ds, say "Help" or refer to the tables at the end of this document.
INTRODUCTION
This equipment chiefly enables you to:
- connect your Bluetooth
®
mobile telephone to your vehicle leaving your hand s free,
- play audio sources (mp3, wma, wav) from a port able player,
- use the voice commands.
Recommendations
If the battery is disconnected, the equipment can operate for a further 15 minutes (approximately).
The buttons "F1, F2, NAV, SOS" on the equipment’s control panel are not active.
HANDS-FREE SYSTEM

88

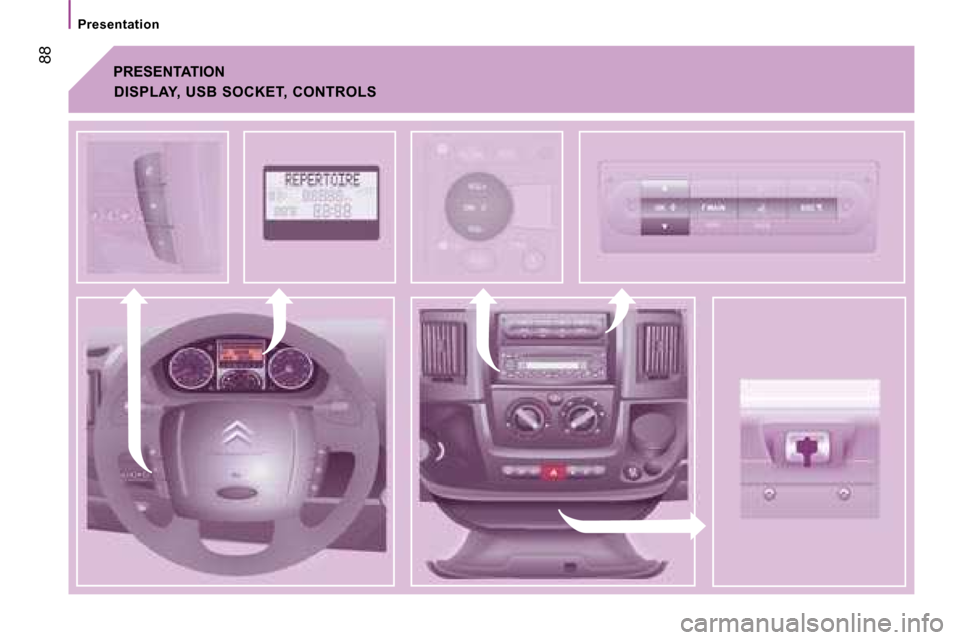

Presentation
PRESENTATION
DISPLAY, USB SOCKET, CONTROLS

1 F2
OSOSESC
NMOK
NAVF1
SOSSOSMAINOK
OK
NAV F1 F2
SOSSOSMAINESC
89
4
IN-CAR TECHNOLOGY
Presentation
PRESENTATION
Adjustment of the volume
of the functions: hands-
free, audio player, voice
announcements.
Pause/resume the file
being played (portable
player).
USB connection socket. Remove the plastic cover to

connect your portable player.
Displaying of the menus and directories of the fil
es being
played (portable player).
- Scrolling of the menu options.
- Selection of the files to be played (portable player). - Activation of the voice recognition.
- Interruption of the voice message in
order to issue a new voice command.
- Deactivation of the voice recognition.
- Interruption of the voice message.
- Exit from the main menu.
- Exit from a sub-menu and return
to the previous menu option.
- Exit without storing.
- Deactivation/reactivation of the microphone during a telephone
conversation.
- Confirmation of the current menu
option.
- Transfer of the telephone conversation from the hands-free
system to the mobile telephone and
vice versa.
- Declining of the incoming telephone call.
- Interruption of the current telephone
call.
- Activation of the main menu.
-
Confi rmation of the current menu option.
- Acceptance of the incoming call.
- Switching from one telephone conversation to another.
- Repeat of the last voice message.
DESCRIPTION OF THE CONTROLS

90
Mobile telephone with hands-free function
When prompted by the telephone, enter the
PIN displayed on the instrument panel.
If the pairing has been successful, the
system announces "Connecting".
The name of the telephone identified
appears on the instrument panel display,
pairing is confirmed.
Blue indicator light on
"Settings"\wait for a response\
"Pairing".
PIN
Pairing/matching a mobile telephone
The matching consists of setting your
vehicle's Bluetooth
®
system to recognise
your mobile telephone.
The pairing stores your mobile telephone so
that it can be recognised instantly. MOBILE TELEPHONE WITH HANDS-FREE FUNCTION
With the key in the MAR position,
activate the main menu.
Select SETTINGS.
Confirm.
Select PAIRING.
Confirm. This number, which permits
recognition of your mobile
telephone, is generated
randomly by the system.
It is communicated by the display on the
instrument panel and is repeated verbally by
the system.
This PIN is independent of your SIM card
and your mobile's access code.
Once your handset has been paired, there is
no need to keep a trace of this number.
If you change your mobile telephone, you
must repeat the matching procedure as you
will be given a new PIN. Look for the option which permits
displaying of the Bluetooth ®
system
detected by your telephone.
When the system has been
identified, a message appears on
your telephone (My car, ...). This indicates a good connection
between the telephone and the
system.
It is important to wait until the name of
the telephone is displayed.
Pressing MAIN or ESC during the pairing
phase may cancel the procedure.
If the pairing fails, an error message will
appear; in this case, repeat the procedure.
For further information regarding the
ignition switch MAR position, refer
to the "Starting and stopping" part of
section 2.
