Battery
TROUBLESHOOTING
8

A. Positive metal point on your vehicle

B. Slave battery

C. Earth on your vehicle CHARGING THE BATTERY USING
A CHARGER
- disconnect the battery,
- follow the instructions for use given by
the battery charger manufacturer,
- reconnect starting with the negative (-) terminal,
- check that the terminals and connectors are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them. The charging operation must be carried
out in a ventilated area away from naked
flames or any possible sources of sparks to
eliminate the risk of explosion and fire.
Do not attempt to charge a frozen battery: it
must first be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist
who will check that the internal components
have not been damaged and that the
container is not cracked, which could mean
that there is a risk of a leak of toxic and
corrosive acid.
BATTERY STARTING FROM ANOTHER BATTERY
- connect the red cable to the metal point
A
then to the positive (+) terminal of the
slave battery B ,
- connect one end of the green or black cable to the negative (-) terminal of the
slave battery B ,
- connect the other end of the green or black cable to the earth point C on your
vehicle,
- operate the starter, let the engine run,
- wait for the engine to return to idle, then disconnect the cables.

128
Battery
The batteries contain harmful
substances such as sulphuric acid and
lead. They must be discarded in accordance
with the provisions of the law and must not,
in any circumstances, be discarded with
household waste.
Take used batteries to a special collection
point. It is advisable to disconnect
the negative (-) terminal of the battery
if the vehicle is not to be used for
a period of more than one month.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Never disconnect a terminal when the
engine is running.
Never charge a battery without first
disconnecting the terminals.
Close the windows and doors before
disconnecting the battery.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight difficulties
are experienced after this, please contact a
CITROËN dealer.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:
- the display parameters (date, time, language, distance unit and temperature
unit),
- the radio stations,
- the central locking.
Some settings are cleared and must be
reprogrammed, consult a CITROËN.
If your vehicle is fitted with a
chronotachograph or an alarm,
disconnection of the negative (-) terminal
of the battery (located under the floor on
the left-hand side, in the cab) is
recommended if the vehicle is not
to be used for a period of more than 5 days.

129
TROUBLESHOOTING
8
Changing a wheel
1. PARKING THE VEHICLE
As far as possible, park the vehicle on level,
stable and non-slippery ground.
Apply the handbrake, switch off the ignition
and engage first gear.
If possible, place a chock under the
wheel diagonally opposite the wheel to be
changed. 2. TOOLS
These are located under the front passenger
seat cushion.
- Turn the button a quarter of a turn then
pull the box.
- After use, press the button then turn it a quarter of a turn to secure the box.
D. Towing hook.

E. Wheelbrace.

F. Screwdriver.
CHANGING A WHEEL
3. SPARE WHEEL
Chassis cab
The spare wheel retaining bolt is located on
the rear right side.
- Turn the bolt using the socket A and the
wrench B to release the wheel.

A. Extended socket.

B. Ratchet wrench.

C. Jack.

130
Changing a wheel
Van
The spare wheel retaining bolt is located on
the outer edge of the rear right floor.
- Open the rear doors.
- Unclip the protective cover.
- Insert the socket A in the hole then
unscrew the bolt, using the ratchet
wrench B , to lower the wheel. - Take out the spare wheel using the
wrench.
- Unscrew the handle G and remove the
support H .
- Release the spare wheel and place it near the wheel to be changed. - Position the jack
C at one of the four
locations provided on the underframe
near the wheels.
4. OPERATING PROCEDURE
- Remove the trim using the screwdriver F
as a lever.
- Release the bolts using the wheelbrace E . If you have a retractable sill, the jack must
be positioned at 45°.
- Extend the jack using the ratchet wrench
B
until the wheel is a few centimetres off
the ground.
- Unscrew the bolts fully and change the wheel.

131
TROUBLESHOOTING
8
Changing a wheel

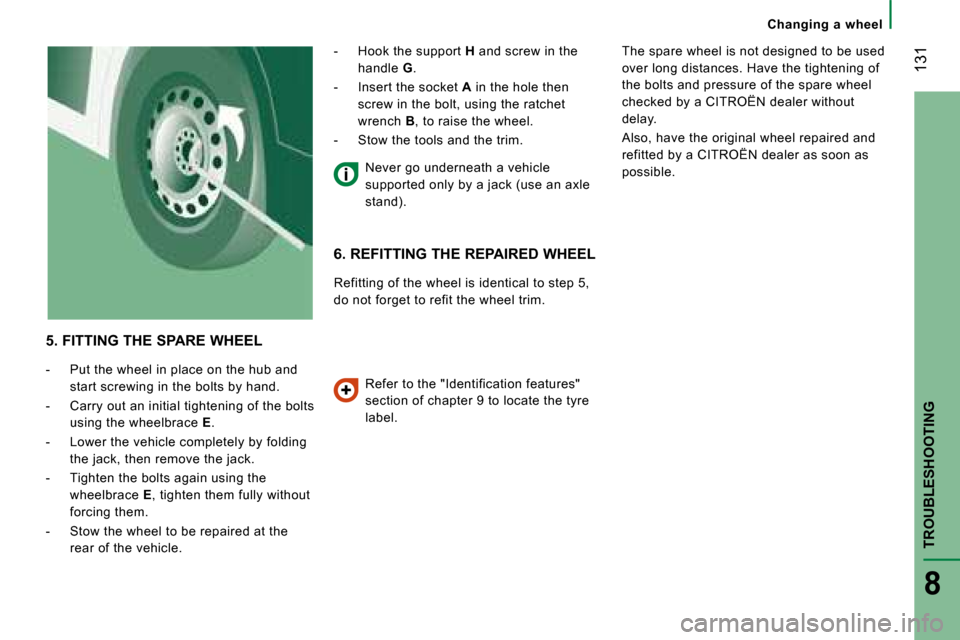

5. FITTING THE SPARE WHEEL
- Put the wheel in place on the hub and start screwing in the bolts by hand.
- Carry out an initial tightening of the bolts using the wheelbrace E .
- Lower the vehicle completely by folding the jack, then remove the jack.
- Tighten the bolts again using the wheelbrace E , tighten them fully without
forcing them.
- Stow the wheel to be repaired at the rear of the vehicle. - Hook the support
H and screw in the
handle G .
- Insert the socket A in the hole then
screw in the bolt, using the ratchet
wrench B , to raise the wheel.
- Stow the tools and the trim. The spare wheel is not designed to be used
over long distances. Have the tightening of
the bolts and pressure of the spare wheel
checked by a CITROËN dealer without
delay.
Also, have the original wheel repaired and
refitted by a CITROËN dealer as soon as
possible.
Never go underneath a vehicle
supported only by a jack (use an axle
stand).
6. REFITTING THE REPAIRED WHEEL
Refitting of the wheel is identical to step 5,
do not forget to refit the wheel trim.
Refer to the "Identification features"
section of chapter 9 to locate the tyre
label.

132
Changing a wheel
PUNCTURE REPAIR KIT
This kit is located at the front of the
passenger compartment.
It consists of:
- a puncture repair cartridge A , containing
the filling fluid, equipped with:

133
TROUBLESHOOTING
8
Changing a wheel

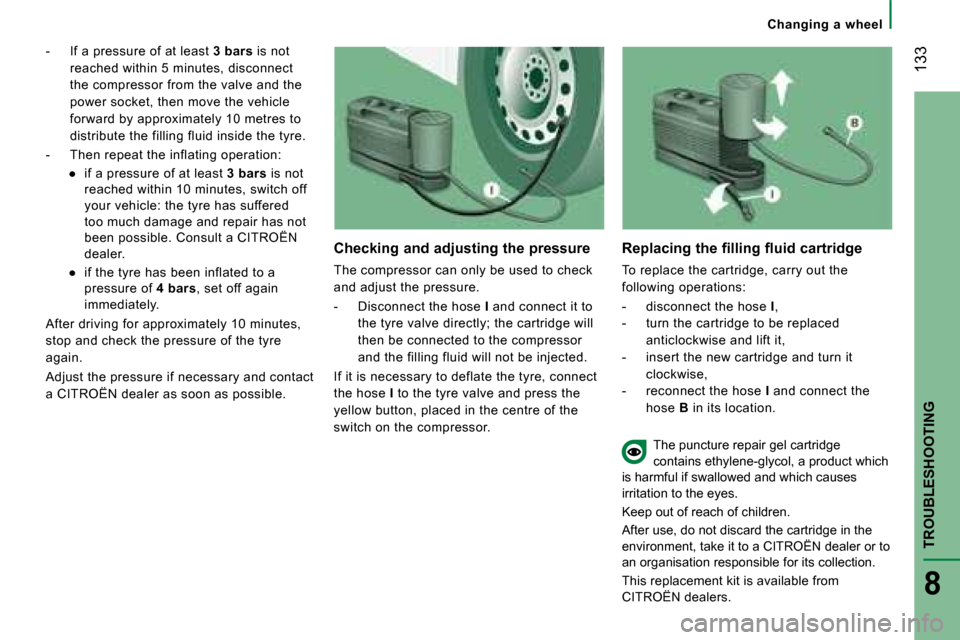

- If a pressure of at least 3 bars is not
reached within 5 minutes, disconnect
the compressor from the valve and the
power socket, then move the vehicle
forward by approximately 10 metres to
distribute the filling fluid inside the tyre.
- Then repeat the inflating operation:

134
Changing a bulb TYPES OF BULB
Various types of bulb are installed on your
vehicle. To remove them:
CHANGING A BULB

Type A Entirely glass bulb: pull gently
as it is fitted by pressure.

Type B Bayonet bulb: press on the bulb
then turn it anticlockwise.

Type C Cylindrical bulb: move aside
the contacts.

Type D - E Halogen bulb: release
the retaining spring from
its housing.
