2008.5 Citroen JUMPER DAG fog light

1
FAMILIARISATION
9
Familiarisation

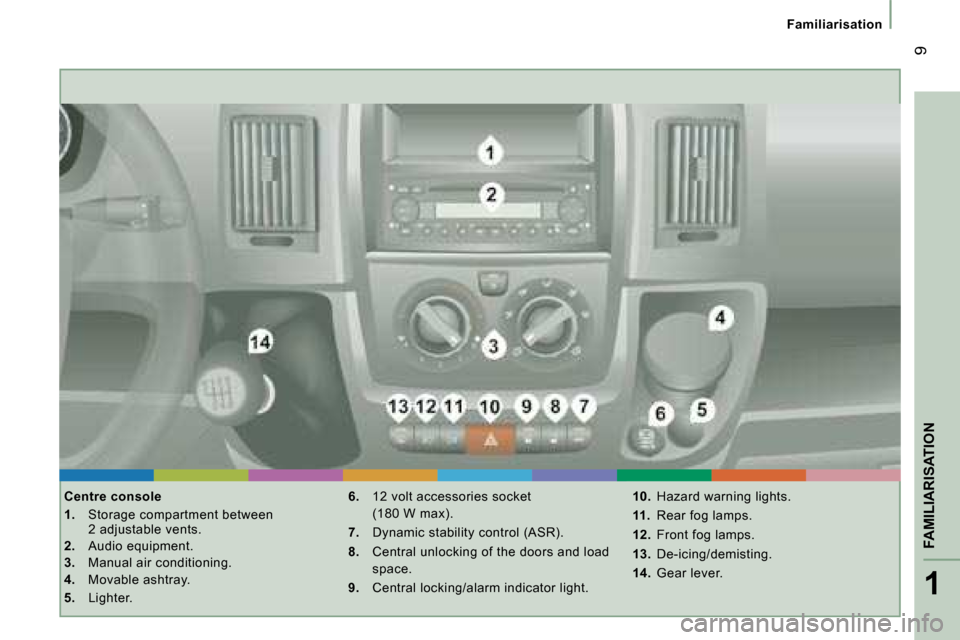

Centre console

1. Storage compartment between
2 adjustable vents.
2. Audio equipment.
3. Manual air conditioning.
4. Movable ashtray.
5. Lighter.
6. 12 volt accessories socket
(180 W max).
7. Dynamic stability control (ASR).
8. Central unlocking of the doors and load
space.
9. Central locking/alarm indicator light.
10. Hazard warning lights.
11. Rear fog lamps.
12. Front fog lamps.
13. De-icing/demisting.
14. Gear lever.

3331
FAMILIARISATION
13
Familiarisation
SEE CLEARLY
Lights Windscreen wipers
Front fog lamps and rear fog
lamps.
40 42 42
Automatic switching on of the
lights.
Lights off.
Side lights.
Dipped headlamps or main beam
headlamps.
A. Park.
B. Intermittent (4 speeds).
C. Slow continuous.
D. Fast continuous.
E. Single wipe.
Windscreen wash
Pull the control towards you, the windscreen
wash is accompanied by a timed sweep of
the wipers.

Instruments and controls
Warning light is indicates Solution - action
Direction
indicators flashing with
buzzer. a change of direction using the
lights stalk, to the left of the
steering wheel. To the Right: press the stalk upwards.
To the Left: press the stalk downwards.
Front fog lamps on. that the button on the centre
console has been pressed. Manual selection.
The fog lamps only operate if the side lights or di
pped
headlamps are on.
Rear fog lamps on. that the button on the centre
console has been pressed. Manual selection. The fog lamps only operate if th
e
side lights or dipped headlamps are on. When visibi lity
is normal, please switch the fog lamps off.
Cruise control on. that the cruise control has been
selected. Manual selection.
Refer to the "Steering wheel controls" section of
chapter 3.
Faulty bulb on.
accompanied by
a message on
the display
. that one or more bulbs have
blown.
Have the bulb changed.
Refer to the "Changing a bulb" section of chapter 8
or
contact a CITROËN dealer
Rear parking
assistance
on. failure of the system. The audible assistance is no longer active.
Have the system checked by a CITROËN dealer
without delay.

40
Steering wheel controls
LIGHTING CONTROL
Selection is by rotation of the white mark on
the ring. Side lights on
Direction indicators
(green flashing)
Left: downwards.
Right: upwards.
STEERING WHEEL CONTROLS
All lights off Dipped headlamps/main
beam headlamps on
Dipped headlamps/main beam
headlamps change
Pull the control fully towards you.
Headlamp flash
Pull the control towards you, regardless of
the position of the ring. Front fog lamps
Rear fog lamps
If your vehicle is fitted with fog lamps, these
operate with the side lights, the dipped
headlamps or the main beam headlamps.
Press one of these controls to switch on
the lights. The fog lamps should only be used in
fog or when snow is falling.
In clear weather or in rain, both day and
night, lit rear fog lamps dazzle and are
prohibited.
Do not forget to switch them off when they
are no longer necessary.

41
3
ERGONOMICS AND COMFORT
Steering wheel controls
AUTOMATIC LIGHTING
If your vehicle is fitted with this function,
the side lights and dipped headlamps are
switched on automatically if the light is
poor and when continuous operation of the
windscreen wipers is detected.
In fog or snow, the brightness sensor may
detect sufficient light. Therefore, the lights
will not be switched on automatically. If
necessary, you must switch on the dipped
headlamps manually.
They are switched off when the light returns
to a sufficient level or after the windscreen
wipers are switched off. HEADLAMP BEAM
You are advised to adjust the height of the
headlamp beams in accordance with the load in
your vehicle.
This function can be accessed in the dipped
headlamps and main beam headlamps position.
SIDE/PARKING LIGHTS
This system enables you to leave the side
lights on when parked; with the ignition off,
key in the
PARK position or key removed.
Activation
Turn the ring to this position.
The lights are switched off
automatically when the ignition is
switched off.
Do not cover the brightness sensor at
the top centre of the windscreen.
FOLLOW ME HOME LIGHTING
Ignition off or key in the STOP
position.
Within 2 minutes after switching
off the engine, position the
ignition key in the STOP position or remove it.
Pull the lights stalk towards the steering
wheel.
The indicator light comes on the
instrument panel.
Each action on the lights stalk, pulled
towards the steering wheel, prolongs the
follow me home lighting by 30 seconds up
to approximately 3 minutes. When this time
has elapsed, the lights are switched off
automatically.
Deactivate this control by keeping the stalk
pulled towards the steering wheel for more
than 2 consecutive seconds. Press this control turning the
key one notch in the opposite
direction to starting at the same
time. You can then remove
the key.
If your vehicle is fitted with
this function: when you leave
your vehicle with the automatic
switching on of the lights
activated (ring in position A), the side lights
and dipped headlamps remain on for the
selected duration (when leaving a car park
for example).
Press these controls, located
on the fascia panel, several
times in succession to adjust the
headlamps.
An indicator light on the display
indicates the adjustment position
selected (0, 1, 2, 3).

136
Changing a bulb
- Remove the bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.
DIRECTION INDICATOR SIDE
REPEATER

Type A, W 16 W F - 16 W
- Move the mirror glass to access the screws.
- Unscrew the two screws using the screwdriver supplied.
- Pull the bulb holder to release it from the dog points.
- Pull the bulb then change it.
Front/Rear
5 - Fog lamps

Type D, H1 - 55 W
- Turn the steering fully to the left.
- Unscrew the screw located in the wheel arch then open the flap.
- Remove the cover.
- Disconnect the electrical connector.
- Release the retaining spring by pressing on the two clips.
- Change the bulb taking care to align the metal part with the grooves on the light.
Halogen bulbs must b e changed after
the headlamp has been off for several
minutes (risk of serious burns). Do not touch
the bulb directly with your fi ngers, use lint-free
cloths.
When each operation has been completed,
check the operation of the lights.
When using a high pressure washer
on stubborn dirt, do not persist on the
headlamps, the lights and their periphery to
avoid damaging their varnish and seal. COURTESY LIGHTS

Type C, 12 V 10 W - 10 W
- Press the points, indicated by the arrows, then remove the courtesy light.
- Open the protective flap.
- Change the bulb moving aside the two contacts.
- Ensure that the new bulbs are secured correctly between the two contacts.
- Close the protective flap.
- Fix the courtesy light in its housing and ensure that it is secured correctly.

TROUBLESHOOTING
8
Changing a bulb
REAR LIGHTS
For further information concerning the bulbs,
refer to the table "Types of bulb". - Remove the two fixing nuts.
- Pull the lens block from the outside.
- Unscrew the three screws using the
screwdriver supplied (under the front
passenger seat) and extract the bulb
holder.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

1. Brake/side lights

Type B, P21/5 W - 5 W
THIRD BRAKE LIGHT

Type B, W 5 W - 5 W
- Unscrew the two screws.
- Remove the light.
- Remove the bulb holder moving aside the two tabs.
- Remove the faulty bulb by pressing it lightly while turning it anticlockwise.
- Change the bulb.

2. Direction indicators

Type B, PY 21 W - 21 W

3. Reversing lights

Type B, P21 W - 21 W

4. Fog lamps

Type B, P21 W - 21 W
- Identify the faulty bulb then open the rear doors.
- Disconnect the electrical connector. NUMBER PLATE LIGHTS

Type A, C 5 W - 5 W
- Press the point, indicated by the arrow, then remove the plastic lens.
- Change the bulb by moving aside the two contacts. - Ensure that the new bulbs are secured
correctly between the two contacts.
- Replace the plastic lens and press on it.

139
TROUBLESHOOTING
8
Changing a fuse
DRIVER'S SIDE FASCIA PANEL FUSES
- Remove the bolts and tilt the box to access the fuses.

Fuses A (amps)
Allocation

12 7.5 Right-hand dipped headlamp

13 7.5 Left-hand dipped headlamp - Headlamp height adj uster

31 7.5 Relay supply

32 10 Minibus interior lighting - Hazard warning ligh ts

33 15 Rear 12 V socket

34 - Not used

35 7.5 Reversing lights - Water in diesel sensor

36 20 Door locking/unlocking unit

37 10 Brake lights switch - Third brake light - Instr ument panel

38 10 Interior relays

39 10 Audio equipment - Diagnostics socket - Alarm siren
- Programmable additional heating controls -
Air conditioning controls - Chronotachograph

40 15 De-icing: rear screen (left-hand side), mirror (driver's side)

41 15 De-icing: rear screen (right-hand side), mirror (passenger side)

42 7.5 ABS control unit and sensor - ESP sensor - Brak e lights switch

43 30 Windscreen wiper motor

44 20 Lighter, front 12 V socket.

45 7.5 Electric window and mirror switches (driver's s ide) - Passenger electric window

46 - Not used

47 20 Driver's electric window motor

48 20 Passenger electric window motor

49 7.5 Rain/brightness sensor - Audio equipment - Driver'
s electric window motor - Alarm -
Instrument panel controls

50 7.5 Air bags and pre-tensioners unit

51 7.5 Chronotachograph - Cruise control - Air conditi oning controls

52 7.5 Passenger compartment relays

53 7.5 Instrument panel - Rear fog lamps
