C H I L D S A F E T Y
MANUAL CHILD LOCK
Locking

 Turn the red control one eighth
of a turn to the left using the ignition
key.
Unlocking

 Turn the red control one eighth
of a turn to the right using the
ignition key.
When the ignition is on, if the
child lock is activated for the two
rear doors, this warning light
comes on on the instrument
panel then switches off approximately
ten seconds after the engine is started.
Mechanical system to prevent open-
ing of the rear door using its interior
control.
The control is located on the edge of
each rear door. Remote control system to prevent
opening of the rear doors using their
interior controls and use of the rear
electric windows.
Activation

 Press button A .
The indicator light on button A comes
on, accompanied by a message on
the multifunction display.
This indicator light remains on until
the child lock is deactivated. Deactivation

 Press button A again.
The indicator light on button A
switches off, accompanied by a mes-
sage on the multifunction display.
This indicator light remains off until
the child lock is activated.
This system is independent and in
no circumstances does it take the
place of the central locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of a serious impact,
the electric child lock is deactivated
automatically to permit the exit of
the rear passengers. This warning light comes on
temporarily on the instru-
ment panel when the child
lock is activated.
It also comes on when the ignition
is switched on, then switches off ap-
proximately ten seconds after the
engine is started.
The control is located on the driver's
door, with the electric window con-
trols. Any other status of the indicator light
indicates a malfunction of the elec-
tric child lock. Have it checked by a
CITROËN dealer.

114
VIII
S A F E T Y
DIRECTION INDICATORS

 Lower the lights stalk fully when
moving to the left.

 Raise the lights stalk fully when
moving to the right.
HAZARD WARNING LIGHTS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, tow-
ing or accident.
Automatic lighting of hazard
warning lights
When braking in an emergency,
depending on the deceleration, the
hazard warning lights come on.
They will switch off automatically the
fi rst time you accelerate.

 If they do not, press button A to
switch the direction indicators off. HORN
Audible warning system to alert other
road users to an imminent danger.
Selection of the left or right direction
indicators to signal a change of direc-
tion of the vehicle.

 Press button A , the direction indi-
cators fl ash.
They can operate with the ignition off.
As a safety precaution in a traffi c
jam, switch on the hazard warn-
ing lights if you are the last in the
queue.
 Press at the lower part of the
fi xed centred controls steering
wheel.
Use the horn exclusively and mod-
erately in the following cases:
- immediate danger,
- approaching a location lacking visibility.

115
S A F E T Y
TYRE UNDER-INFLATION DETECTION
Sensors fi tted in each valve check
the tyre pressure during driving and
trigger a warning in the event of
malfunction (speed above 12 mph
(20 km/h)).
Flat tyre The tyre under-infl ation detection
system is an aid to driving which
does not replace the need for the
driver to be vigilant or to drive re-
sponsibly. Puncture
The service warning light
comes on on the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function display locating
the wheel concerned.
Check the tyre pressures as soon as
possible. This check must be carried
out when the tyres are cold. The
STOP warning light
comes on on the instru-
ment panel, accompanied
by an audible signal and
a message on the multi-
function display locating
the wheel concerned.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged wheel (punctured
or very defl ated tyre), and have the tyre
pressure checked as soon as possible.
Sensor(s) not detected or faulty
The service warning light
comes on on the instru-
ment panel, accompa-
nied by an audible signal
and a message on the
multifunction display lo-
cating the wheel or wheels which
are not detected or indicating a fault
in the system.
Have the faulty sensor(s) checked
by a CITROËN dealer. All repairs and changing of tyres
on a wheel fi tted with this system
must be carried out by a CITROËN
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a CITROËN
dealer.
This system does not eliminate
the need to have the tyre pres-
sure checked regularly (refer to the
"Technical data - § Identifi cation
features" section) to ensure that
the optimum dynamic perform-
ance of the vehicle is maintained
and prevent premature wear of the
tyres, particularly in arduous driv-
ing conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to radioelectric
emissions on a frequency close to
that used by the system.
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
The spare wheel is not fi tted with a
sensor.

116
VIII
S A F E T Y
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems
which help you to obtain optimum
braking in complete safety in emer-
gency situations:
- the anti-lock braking system (ABS),
- the electronic brake force distri- bution (EBFD),
- the emergency braking assist- ance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the
stability and manoeuvrability of your
vehicle when braking, in particular
on poor or slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
Normal operation of the ABS may
make itself felt by slight vibration of
the brake pedal. Operating fault
When braking in an emergency,
press very fi rmly without releasing
the pressure. If this warning light comes
on, accompanied by an au-
dible signal and a message
on the multi-function display,
it indicates a malfunction of the anti-
lock braking system which could re-
sult in loss of control of the vehicle
when braking.
If this warning light comes on,
together with the STOP and

ABS warning lights, accom-
panied by an audible signal
and a message on the multifunction
display, it indicates a malfunction of
the electronic brake force distribution
which could result in loss of control of
the vehicle when braking.

You MUST stop as soon as it is
safe to do so.
In both cases, contact a CITROËN
dealer.
When replacing wheels (tyres and
rims), ensure that they conform to
the manufacturer's recommenda-
tions. Emergency braking assistance
System which, in an emergency,
enables you to obtain the optimum
braking pressure more quickly, thus
reducing the stopping distance.
Activation
It is triggered by the speed at which
the brake pedal is pressed.
The effect of this is a reduction in
the resistance of the pedal and an
increase in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing the
pressure.

117
VIII
S A F E T Y
TRAJECTORY CONTROL SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme
(ESP)
The anti-skid regulation optimises
traction to prevent skidding of the
wheels, by acting on the brakes of
the driving wheels and on the engine.
The electronic stability programme
acts on the brake of one or more
wheels and on the engine to keep
the vehicle on the trajectory required
by the driver.
Activation
These systems are activated auto-
matically each time the vehicle is
started.
They come into operation in the
event of a grip or trajectory problem. This is indicated by fl ashing
of this warning light on the
instrument panel. Disarming
In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground, ...), it may
be advisable to disarm the ASR and
ESP systems, so that the wheels
can move freely and regain grip.

 Press the "ESP OFF" button, lo-
cated in the centre of the fascia. Reactivation
These systems are reactivated au-
tomatically each time the ignition is
switched back on or from 30 mph
(50 km/h).


Press the "ESP OFF" button again
to reactivate them manually.
If this warning light comes
on on the instrument panel
and the indicator light on the
button comes on, this indi-
cates that the ASR and ESP
systems are disarmed. Operating fault
If this warning light comes
on, accompanied by an au-
dible signal and a message
on the multifunction display,
this indicates a malfunction
of these systems.
Have the systems checked by a
CITROËN dealer.
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer’s recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
CITROËN assembly and operation
procedures.
After an impact, have these systems
checked by a CITROËN dealer.

118
VIII
S A F E T Y
SEAT BELTS
Front seat belts
The front seat belts are fi tted with a
pretensioning system and force limiter.
This system improves safety in the front
seats in the event of a front impact.
Depending on the seriousness of the
impact, the pretensioning system in-
stantly tightens the seat belt against
the body of the occupant. Fastening

 Pull the belt down in front of you
in a steady movement, making
sure that it does not become
twisted.

 Press the fastening into its buckle.

 Check that it is properly secured
and that the automatic locking
mechanism operates correctly
by pulling sharply on the belt
strap.

 The abdominal part of the strap
should be positioned as low
down as possible in the lap and
as tight as possible.

 The chest part should be posi-
tioned if possible in the channel
of the shoulder.
Each belt has a reel that adjusts its
length automatically to the girth of
the seat occupant. Height adjustment
The pretensioning seat belts are
active when the ignition is on.
The force limiter reduces the pressure
of the seat belt against the chest of
the occupant, so increasing his pro-
tection.
The correct positioning of the seat
belt reel is around mid-shoulder
level.

 To adjust the belt, pinch the con-
trol and slide it in the direction
required.
Unfastening

 To unfasten the belt, press on
the red button in the buckle.
The belt retracts automatically when
not in use.

119
VIII
S A F E T Y
Rear central seat belt
Installation of the seat belt
(C4 Picasso)

 Open the cover A .

 Remove the belt tongues from
their housing.

 Bring the belt tongues up to the
relay ring B .

 Insert the attachment, then pass
the tongues through the ring.

 Reclose the cover A . Make sure
that the belt is correctly posi-
tioned in the recess in the cover
provided for this purpose. Stowage of the belt tongues
(C4 Picasso)

 Operate in reverse order to stow
the belt tongues.
You may opt to leave the seat belt in
the relay ring even if not using it.
Routing of the seat belt
(C4 Picasso and C4 Grand Picasso)

 Insert the tongue C into the buck-
le on the right, then insert the
second tongue D into the buckle
on the left.
Unfastening the seat belt
(C4 Picasso and Grand C4
Picasso)

 Release the tongue C , then the
tongue D and guide the seat belt
to its stowing position.

Before use
For safety reasons, it is essential
that the seat belt passes through
the relay ring.
To prevent any damage to seat
belts and in order not to get them
jammed, take care to stow them on
the sides of the backrests.

120
VIII
S A F E T Y
Third row rear seat belts
(Grand C4 Picasso)
Requirements for the third-row
passenger seat belts

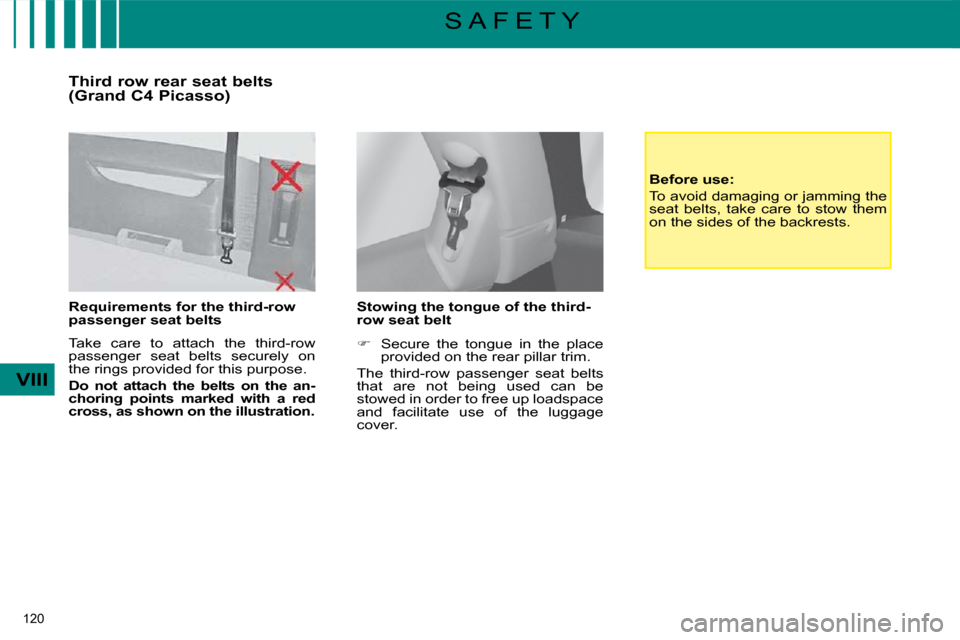

Take care to attach the third-row
passenger seat belts securely on
the rings provided for this purpose.

Do not attach the belts on the an-
choring points marked with a red
cross, as shown on the illustration.
Stowing the tongue of the third-
row seat belt

 Secure the tongue in the place
provided on the rear pillar trim.
The third-row passenger seat belts
that are not being used can be
stowed in order to free up loadspace
and facilitate use of the luggage
cover.
Before use:
To avoid damaging or jamming the
seat belts, take care to stow them
on the sides of the backrests.
