2008.5 Citroen C4 PICASSO Owner's Manual

197
XII
T E C H N I C A L D A T A

CONSUMPTION
Grand C4 Picasso and C4 Picasso
In accordance with directive 80/1268/CEE

Diesel engines Gearboxes
Model codes:
UA... UD... UF...
Urban driving
(litres/100 km)
Inter-urban
driving
(litres/100 km)
Mixed driving
(litres/100 km)
Emission of
CO 2 by weight
(g/km)

1.6 l. HDi
110 bhp
Manual 9HZ-C 7.3 5.1 5.9 155

Electronic
gearbox system
9HZ-H/P 6.8 5.1 5.7 150

2 l. HDi
138 bhp
Manual
RHR-H
RHE-8 -
- -
- -
- -
-

Electronic
gearbox system
RHJ-H/P 7.9 5.1 6.1 158

Auto. RHR-J 9.9 5.9 7.4 195
The consumption fi gures shown here correspond to the values commu nicated at the time of printing.
These consumption values were established in accordance with Di rective 80/1268/CEE. They may vary depending on the
style of driving, traffi c conditions, weather conditions, the load in the vehicle, the maintenance of the vehicle and the use
of the accessories.
Quality of the fuel used for Diesel engines
The Diesel engines are perfectly compatible with biofuels w hich conform to current and future European standards (diesel
fuel which complies with standard EN 590 mixed with a biofue l which complies with standard EN 14214) which can be
distributed at the pumps (possible incorporation of 0 to 7 % Fatty Acid Methyl Ester).
The use of any other type of (bio)fuel (vegetable or animal oils, domestic fuel...) is strictly prohibited (risk of damage to
the engine and fuel circuit).

194
T E C H N I C A L D A T A
*
Not available on C4 Picasso "Lounge" (4-seater).
** The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; w arning, towing with a lightly
loaded towing vehicle may have an adverse effect on its road holding.

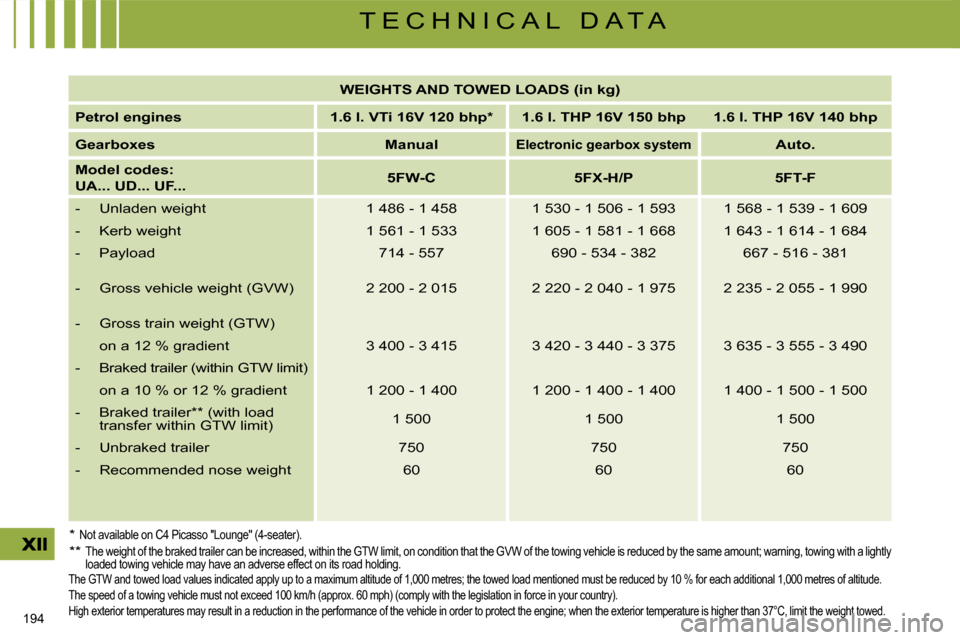

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines 1.6 l. VTi 16V 120 bhp * 1.6 l. THP 16V 150 bhp 1.6 l. THP 16V 140 bhp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UD... UF...
5FW-C 5FX-H/P 5FT-F
- Unladen weight 1 486 - 1 458 1 530 - 1 506 - 1 593 1 568 - 1 539 - 1 609
- Kerb weight 1 561 - 1 533 1 605 - 1 581 - 1 6 68 1 643 - 1 614 - 1 684
- Payload 714 - 557 690 - 534 - 382 667 - 516 - 381
- Gross vehicle weight (GVW) 2 200 - 2 015 2 220 - 2 040 - 1 975 2 235 - 2 0 55 - 1 990
- Gross train weight (GTW)
on a 12 % gradient 3 400 - 3 415 3 420 - 3 440 - 3 375 3 635 - 3 5 55 - 3 490
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 400 1 200 - 1 400 - 1 400 1 400 - 1 5 00 - 1 500
- Braked trailer ** (with load transfer within GTW limit) 1 500 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 60 60 60
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned must be reduced by 10 % for each additio nal 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle in order to protect the engine; when the exterior temperature is higher than 37°C, limit the weight towed.

195
XII
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up t o a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle in order to pr otect the engine; when the
exterior temperature is higher than 37 °C, limit t he weight towed.

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
2 l. 16V 143 bhp

Gearboxes
Auto.

Model codes:
UA... UD... UF...
RFJ-F
- Unladen weight 1 600 - 1 552 - 1 600
- Kerb weight 1 675 - 1 627 - 1 675
- Payload 660 - 538 - 470
- Gross vehicle weight (GVW) 2 260 - 2 090 - 2 070
- Gross train weight (GTW)
on a 12 % gradient 3 660 - 3 590 - 3 570
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 400 - 1 500 - 1 500
- Braked trailer ** (with load transfer within GTW limit) 1 500
- Unbraked trailer 750
- Recommended nose weight 60
** The weight of the braked trailer can be increased , within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

198
XII
T E C H N I C A L D A T A

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 l. HDi 110 bhp

Gearboxes
Manual Electronic gearbox system

Model codes:
UA... UD...
9HZ-C 9HZ-H/P
- Unladen weight 1 530 - 1 489 1 539 - 1 499
- Kerb weight 1 605 - 1 564 1 614 - 1 574
- Payload 720 - 561 711 - 561
- Gross vehicle weight (GVW) 2 250 - 2 050 2 250 - 2 060
- Gross train weight (GTW)
on a 12 % gradient 3 130 3 130
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 880 - 1 080 880 - 1 070
- Braked trailer * (with load transfer within GTW limit) 1 180 - 1 300 1 180 - 1 300
- Unbraked trailer 750 750
- Recommended nose weight 50 - 60 50 - 60
*
The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned must be
reduced by 10 % for each additional 1,000 metres of altitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reducti on in the performance of the vehicle in order to protect the engine; when the
exterior temperature is higher than 37°C, limit the weight towed.

199
T E C H N I C A L D A T A
The GTW and towed load values indicated apply up to a maximum altitude of 1,000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1,000 metres of a ltitude.
The speed of a towing vehicle must not exceed 100 km/h (approx. 60 mph) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
2 l. HDi 138 bhp

Gearboxes Manual

Electronic gearbox system
Auto.

Model codes:
UA... UD... UF...
RHR-H
RHE-8
RHJ-H/P RHR-J
- Unladen weight 1 613 - 1 610 - 1 630 1 620 - 1 581 - 1 615 1 650 - 1 640 - 1 655
- Kerb weight 1 688 - 1 685 - 1 705 1 695 - 1 6 56 - 1 690 1 725 - 1 715 - 1 730
- Payload 695 - 520 - 432 700 - 559 - 475 700 - 510 - 475
- Gross vehicle weight (GVW) 2 308 - 2 130 - 2 062 2 320 - 2 140 - 2 090 2 3 50 - 2 150 - 2 130
- Gross train weight (GTW)
on a 12 % gradient 3 508 - 3 530 - 3 562 3 620 - 3 540 - 3 490 3 5 50 - 3 550 - 3 530
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 1 200 - 1 400 - 1 500 1 300 - 1 400 - 1 400 1 2 00 - 1 400 - 1 400
- Braked trailer * (with load transfer with GTW limit) 1 400 - 1 600 - 1 700 1 500 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 70 70 - 60 - 60 70 - 60 - 60
**
The weight of the braked trailer can be increased , within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

200
XII
T E C H N I C A L D A T A
* Depending on suspensions and roof bars.
DIMENSIONS (IN METRES)
Exterior (Grand C4 Picasso and C4 Picasso)
Grand C4
Picasso
C4 Picasso

A 2.730 2.730

B 4.590 4.470

C 0.990 0.990

D 0.870 0.750

E 1.510 1.510

F 1.540 1.540

G * 1.660 to 1.710 1.660 to 1.680

H 2.100 2.100

I 1.830 1.830

201
XII
T E C H N I C A L D A T A

A 0.930

B 0.960/0.980

C 0.880/1.000

D 1.610/1.870
E 0.930

F 1.140

G 1.120

H 1.170
Interior (C4 Picasso)

202
XII
T E C H N I C A L D A T A Interior (Grand C4 Picasso)

E 0.880

F 1.070

G 1.160

H 1.170

A 0.920

B 0.990/1.000

C 1.030/1.160

D 1.800/2.060
