CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26410
Vehicle identification number
The vehicle identification number is
stamped into the frame.NOTE:
The vehicle identification number is
used to identify your vehicle and may
be used to register it with the licensingauthority in your area.
1. Key identification number
1
ZAUM0070
1. Vehicle identification numberZAUM0683
1
INDEX
AAcceleration and deceleration ................ 5-2
Air filter and V-belt case air filter
elements ............................................. 6-11
Auxiliary light bulb, replacing ................ 6-27BBattery .................................................. 6-21
Brake fluid, changing ............................ 6-17
Brake fluid level, checking .................... 6-16
Brake lever, front .................................... 3-7
Brake lever, rear ..................................... 3-8
Brake levers, lubricating ....................... 6-18
Braking ................................................... 5-2CCables, checking and lubricating .......... 6-18
Care ........................................................ 7-1
Catalytic converter .................................. 3-9
Centerstand and sidestand,
checking and lubricating ..................... 6-19
Coolant ................................................. 6-10
Coolant temperature gauge .................... 3-3
Cowlings and panels,
removing and installing......................... 6-5DDimmer switch ........................................ 3-7
Display, multi-function ............................ 3-3EEngine break-in ...................................... 5-3
Engine oil ................................................ 6-7
Engine trouble warning light ................... 3-2FFinal transmission oil .............................. 6-9
Front and rear brake lever free play ..... 6-15
Front and rear brake pads, checking .... 6-16Front fork, checking...............................6-19
Fuel ......................................................... 3-8
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-3
Fuel tank cap........................................... 3-8
Fuses, replacing .................................... 6-22
HHandlebar switches ................................. 3-6
Headlight bulb, replacing....................... 6-23
High beam indicator light......................... 3-2
Horn switch ............................................. 3-7IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-13
Indicator and warning lights .................... 3-2KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-27
Luggage hook ....................................... 3-12MMain switch/steering lock ........................ 3-1

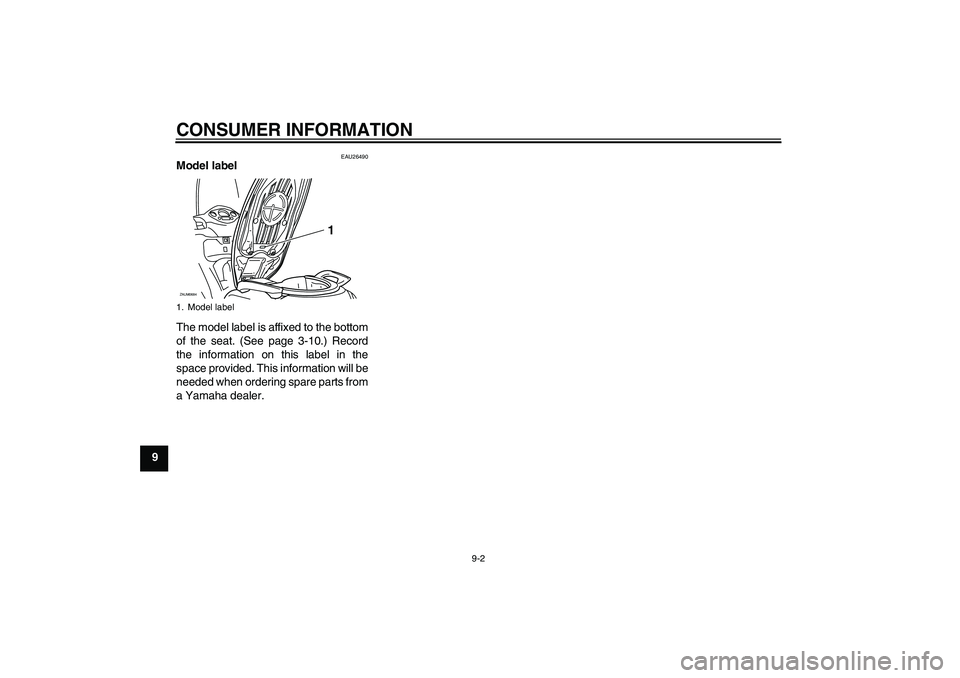

Model label .............................................. 9-2PParking ....................................................5-4
Part locations .......................................... 2-1
Periodic maintenance and lubrication
chart ......................................................6-2
Pre-operation check list........................... 4-2SSafe-riding points .................................... 1-4
Safety information ...................................1-1
Seat ....................................................... 3-10Shock absorber assemblies,
adjusting ............................................. 3-12
Sidestand .............................................. 3-13
Spark plug, checking .............................. 6-6
Specifications.......................................... 8-1
Speedometer .......................................... 3-2
Starting off .............................................. 5-2
Starting the engine.................................. 5-1
Start switch ............................................. 3-7
Steering, checking ................................ 6-20
Storage ................................................... 7-3
Storage compartment .................. 3-10, 3-11
TTail/brake light bulb or rear turn signal
light bulb, replacing............................. 6-26
Throttle cable free play, checking ......... 6-12
Throttle grip and cable,
checking and lubricating ..................... 6-18
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-27
Troubleshooting charts ......................... 6-28
Turn signal indicator lights ...................... 3-2
Turn signal light bulb (front),
replacing ............................................. 6-25
Turn signal switch ................................... 3-7VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-21
Wheels .................................................. 6-15
