2007 YAMAHA TTR50 Owners Manual

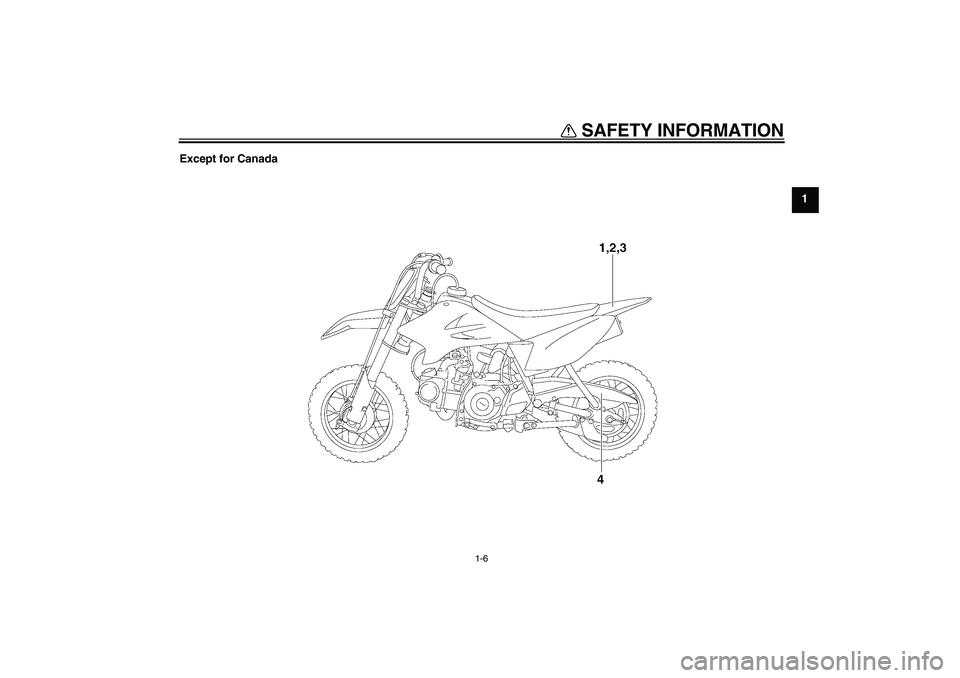

SAFETY INFORMATION
1-6
1 Except for Canada
U1P681E0.book Page 6 Tuesday, April 18, 2006 2:38 PM

SAFETY INFORMATION
1-7
1Except for Canada
U1P681E0.book Page 7 Tuesday, April 18, 2006 2:38 PM

DESCRIPTION
2-1
2
EAU10410
Left view
12 34 5
76
1. Fuel cock (page 3-5)
2. Throttle stop screw (page 6-11)
3. Air filter element (page 6-8)
4. Fuse (page 6-24)
5. Battery (page 6-22)
6. Engine oil drain bolt (page 6-6)
7. Shift pedal (page 3-2)
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM

DESCRIPTION
2-2
2
EAU10420
Right view
4 532 1
1. Seat (page 3-7)
2. Fuel tank cap (page 3-3)
3. Spark plug cap (page 6-5)
4. Brake pedal (page 3-3)
5. Engine oil filler cap (page 6-6)U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM

DESCRIPTION
2-3
2
EAU10430
Controls and instruments
14
5 2
6 3
1. Left handlebar switch (page 3-1)
2. Starter (choke) lever (page 3-6)
3. Main switch (page 3-1)
4. Brake lever (page 3-3)
5. Throttle grip (page 6-11)
6. Right handlebar switch (page 3-1)
U1P681E0.book Page 3 Tuesday, April 18, 2006 2:38 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU40340
Main switch The main switch controls the ignition
system. The main switch positions are
described below.
EAU10630
ON
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU12346
Handlebar switches Left
Right
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
1. Engine stop switch “/”
1. Start switch “”
1
U1P681E0.book Page 1 Tuesday, April 18, 2006 2:38 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU39860
Speed limiter Your motorcycle was delivered with an
adjustable speed limiter. The speed
limiter keeps the throttle from fully
opening, even when the throttle grip is
turned to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine
power available and the maximum
speed of the motorcycle, turn the
adjusting screw in direction (a). To
decrease the maximum engine
power available and the maximum
speed of the motorcycle, turn the
adjusting screw in direction (b).
3. Tighten the locknut.
WARNING
EWA14400
Improper adjustment of the speed
limiter and throttle could cause
throttle cable damage or improper
throttle operation. You could lose
control, have an accident or be in-
jured. Do not turn the adjusting
screw out more than 25 mm (0.98 in)
or the throttle cable could be dam-
aged. Always make sure the throttle
cable free play is adjusted to 3.0–5.0mm (0.12–0.20 in). (See page 6-11.)
EAU39850
Shift pedal This motorcycle is equipped with a con-
stant-mesh 3-speed transmission. The
shift pedal is located on the left side of
the engine. Neutral is at the bottom po-
sition.
1. Locknut
2. Adjusting screw
12
(b)
(a)
1. No more than 25 mm (0.98 in)
1
1. Shift pedal
U1P681E0.book Page 2 Tuesday, April 18, 2006 2:38 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
EAU12890
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU13180
Fuel tank cap To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, insert it into
the tank opening, and then turn it clock-
wise.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
1. Brake lever
1
1. Brake pedal
1
1. Fuel tank cap
1
U1P681E0.book Page 3 Tuesday, April 18, 2006 2:38 PM
