2007 VOLVO C70 CONVERTIBLE Owner´s Manual

2007 Volvo C70
WARNING
If your vehicle has been subjected to flood conditions (e.g. soaked car\
peting/standing water on the floor
of the vehicle) or if your vehicle has become flood-damaged in any way,\
do not attempt to start the
vehicle or put the key in the ignition before disconnecting the battery \
(see below). This may cause
airbag deployment which could result in personal injury. Have the vehicl\
e towed to a trained and
qualified Volvo service technician for repairs.
l Automatic transmission:
l Before attempting to tow the vehicle, use the following procedure to ove\
rride the shiftlock system to
move the gear selector to the neutral position:
- Switch off the ignition for at least 10 minutes and disconnect the bat\
tery
- Wait at least one minute.
- Insert the key in the ignition and turn it to position II.
- Press firmly on the brake pedal.
- Move the gear selector from Park (P) to the Neutral (N) position. See
page 135 for information on
manually overriding the shiftlock system.
18 01 Safety
Front airbags
The front airbag system
The front airbags supplement the three-point seat belts. For these airba\
gs to provide the protection
intended, seat belts must be worn at all times.
The front airbag system includes gas generators and the airbags. A decel\
eration sensor activates the gas
file:///K|/delme/2007_C70/07c70_01.htm (10 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
generators, causing the airbags to be inflated with nitrogen gas.
As the movement of the seats' occupants compresses the airbags, some of \
the gas is expelled at a
controlled rate to provide better cushioning. Both seat belt tensioners \
also deploy, minimizing seat belt
slack. The entire process, including inflation and deflation of the airb\
ags, takes approximately one fifth of
a second.
The location of the front airbags is indicated by "SRS AIRBAG" embossed \
on the steering wheel pad and
above the glove compartment, and by decals on both sun visors and on the\
front and far right side of the
dash.
l The driver's side front airbag is folded and located in the steering whe\
el hub.
l The passenger's side front airbag is folded behind a panel located above\
the glove compartment.
WARNING
l The airbags in the vehicle are designed to be a SUPPLEMENT to - not a re\
placement for - the three-
point seat belts. For maximum protection, wear seat belts at all times. \
Be aware that no system can
prevent all possible injuries that may occur in an accident.
l Never drive a vehicle with a steering wheel-mounted airbag with your han\
ds on the steering wheel
pad/airbag housing.
l The front airbags are designed to help prevent serious injury. Deploymen\
t occurs very quickly and
with considerable force. During normal deployment and depending on varia\
bles such as seating
position, one may experience abrasions, bruises, swellings, or other inj\
uries as a result from deployment
of one or both of the airbags.
l When installing any accessory equipment, make sure that the front airbag\
system is not damaged.
Any interference in the system could cause malfunction.
file:///K|/delme/2007_C70/07c70_01.htm (11 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
19 01 Safety
Front airbags
Front airbag deployment
l The front airbags are designed to deploy during certain frontal or front\
-angular collisions, impacts, or
decelerations, depending on the crash severity, angle, speed and object \
impacted. The airbags may also
deploy in certain non-frontal collisions where rapid deceleration occurs\
.
l The SRS sensors, which trigger the front airbags, are designed to react \
to both the impact of the
collision and the inertial forces generated by it, and to determine if t\
he intensity of the collision is
sufficient for the seat belt tensioners and/or airbags to be deployed.
However, not all frontal collisions activate the front airbags.
l If the collision involves a nonrigid object (e.g., a snow drift or bush\
), or a rigid, fixed object at a low
speed, the front airbags will not necessarily deploy.
l Front airbags do not normally deploy in a side impact collision, in a co\
llision from the rear or in a
rollover situation.
l The amount of damage to the bodywork does not reliably indicate if the a\
irbags should have deployed
or not.
NOTE
l Deployment of front airbags occurs only one time during an accident. In \
a collision where
deployment occurs, the airbags and seat belt tensioners activate. Some n\
oise occurs and a small amount
of powder is released. The release of the powder may appear as smoke-lik\
e matter. This is a normal
characteristic and does not indicate fire.
l Volvo's dual-threshold, dual-stage front airbags use special sensors tha\
t are integrated with the front
seat buckles. The point at which the airbag deploys is determined by whe\
ther or not the seat belt is being
used, as well as the severity of the collision.
l Collisions can occur where only one of the airbags deploys. If the impac\
t is less severe, but severe
enough to present a clear injury risk, the dual-stage airbags are trigge\
red at 70% of their total capacity.
If the impact is more severe, the dual-stage airbags are triggered at fu\
ll capacity.
Should you have questions about any component in the SRS system, please \
contact a trained and qualified
Volvo service technician or Volvo Customer Support:
In the USA
Volvo Cars of North America, LLC
Customer Care Center
file:///K|/delme/2007_C70/07c70_01.htm (12 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
P.O. Box 914 Rockleigh, New Jersey 07647-0914
1-800-458-1552
www.volvocars.us
In Canada
Volvo Cars of Canada Corp.
National Customer Service
175 Gordon Baker Road
North York, Ontario M2H 2N7
1-800-663-8255
www.volvocanada.com
WARNING
l Do not use child safety seats or child booster cushions/backrests in the\
front passenger's seat. We also
recommend that occupants under 4 feet 7 inches (140 cm) in height who \
have outgrown these devices
sit in the rear seat with the seat belt fastened
1.
l Never drive with the airbags deployed. The fact that they hang out can i\
mpair the steering of your
vehicle. Other safety systems can also be damaged.
l The smoke and dust formed when the airbags are deployed can cause skin a\
nd eye irritation in the
event of prolonged exposure.
1See also the Occupant Weight Sensor information on page 21.
20 01 Safety
Front airbags
file:///K|/delme/2007_C70/07c70_01.htm (13 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70

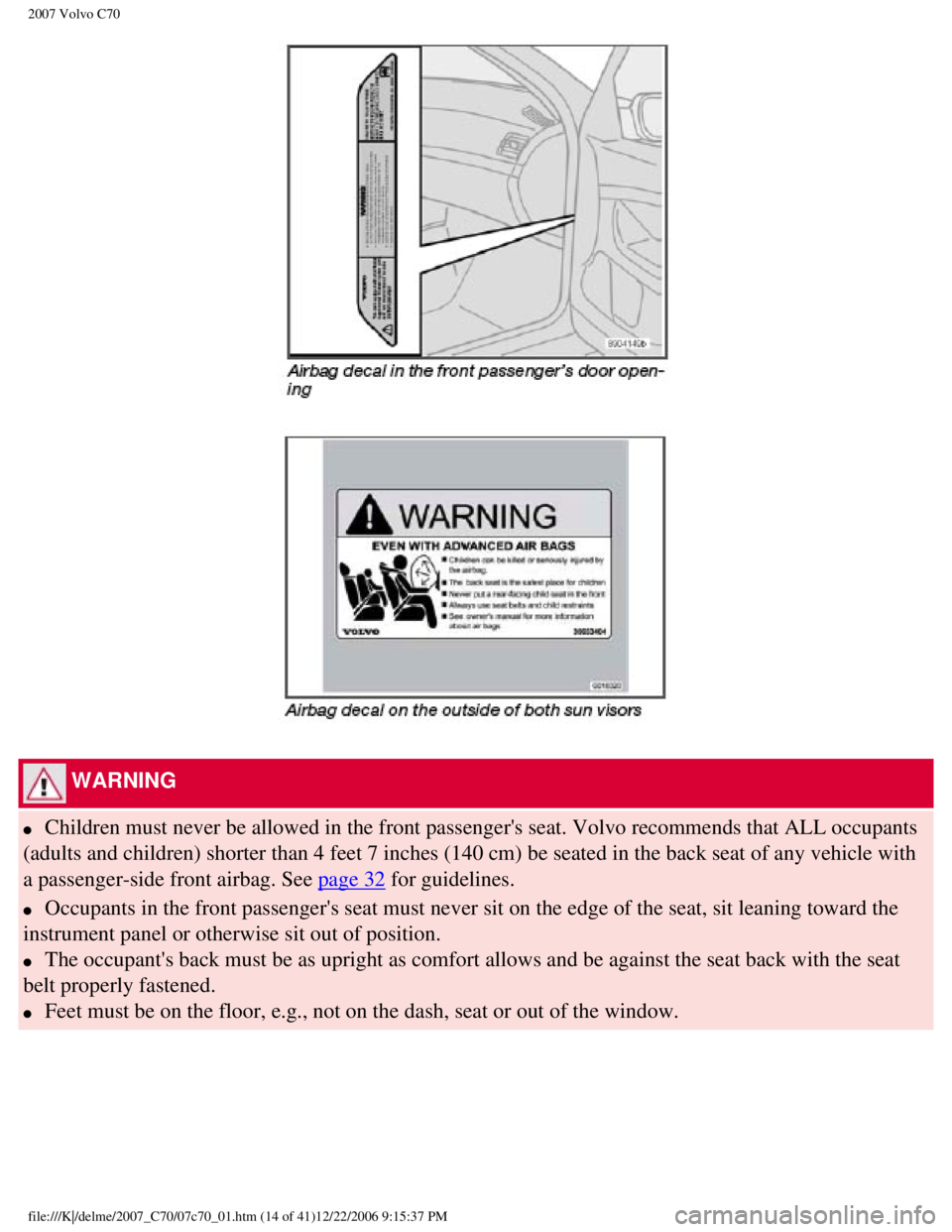

WARNING
l Children must never be allowed in the front passenger's seat. Volvo reco\
mmends that ALL occupants
(adults and children) shorter than 4 feet 7 inches (140 cm) be seate\
d in the back seat of any vehicle with
a passenger-side front airbag. See
page 32 for guidelines.
l Occupants in the front passenger's seat must never sit on the edge of th\
e seat, sit leaning toward the
instrument panel or otherwise sit out of position.
l The occupant's back must be as upright as comfort allows and be against \
the seat back with the seat
belt properly fastened.
l Feet must be on the floor, e.g., not on the dash, seat or out of the win\
dow.
file:///K|/delme/2007_C70/07c70_01.htm (14 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
WARNING
l No objects or accessory equipment, e.g. dashboard covers, may be placed \
on, attached to, or installed
near the air bag hatch (the area above the glove compartment) or the a\
rea affected by airbag deployment
(see the illustration on
page 18).
l There should be no loose articles, e.g. coffee cups, on the floor, seat,\
or dashboard area.
l Never try to open the airbag cover on the steering wheel or the passenge\
r's side dashboard. This
should only be done by a trained and qualified Volvo service technician.\

l Failure to follow these instructions can result in injury to the vehicle\
occupants.
21 01 Safety
Occupant Weight Sensor
Disabling the passenger's side front airbag
file:///K|/delme/2007_C70/07c70_01.htm (15 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
Volvo recommends that ALL occupants (adults and children) shorter than\
4 feet 7 inches (140 cm) be
seated in the rear seat of any vehicle with a passenger's side front air\
bag, and be properly restrained.
Children should always be seated in child restraints appropriate for the\
ir size and weight. See also the
child safety recommendations beginning on
page 30.
The Occupant Weight Sensor (OWS) is designed to meet the regulatory re\
quirements of Federal Motor
Vehicle Safety Standard (FMVSS) 208 and is designed to disable (will \
not inflate) the passenger's side
front airbag under certain conditions.
The OWS works with sensors that are part of the front passenger's seat a\
nd seat belt. The sensors are
designed to detect the presence of a properly seated occupant and determ\
ine if the passenger's side front
airbag should be enabled (may inflate) or disabled (will not inflate)\
.
The OWS will disable (will not inflate) the passenger's side front air\
bag when:
l the front passenger's seat is unoccupied, or has small/medium objects in\
the front seat,
l the system determines that an infant is present in a rear-facing infant \
seat that is installed according to
the manufacturer's instructions,
l the system determines that a small child is present in a forward-facing \
child restraint that is installed
according to the manufacturer's instructions,
l the system determines that a small child is present in a booster seat,
l a front passenger takes his/her weight off of the seat for a period of t\
ime,
l a child or a small person occupies the front passenger's seat.
The OWS uses a PASSENGER AIRBAG OFF indicator lamp which will illuminate\
and stay on to
remind you that the passenger's side front airbag is disabled. The PASSE\
NGER AIRBAG OFF indicator
lamp is located in the overhead console, near the base of the rearview m\
irror.
NOTE
The PASSENGER AIRBAG OFF indicator lamp will illuminate for a short peri\
od of time when the
ignition is turned on to confirm it is functional. When the front passen\
ger's seat is not occupied (empty
seat) or in the event that the passenger's side front airbag is enabled\
(may inflate), the PASSENGER
AIRBAG OFF indicator lamp will be off.
However, if a fault is detected in the system:
l The OWS indicator light will stay on
l The SRS warning light (see page 17) will come on and stay on
The message PASS. AIRBAG OFF SERVICE URGENT will be displayed in the inf\
ormation display.
file:///K|/delme/2007_C70/07c70_01.htm (16 of 41)12/22/2006 9:15:37 PM\

2007 Volvo C70
22 01 Safety
Occupant Weight Sensor
WARNING
l If a fault in the system is detected and indicated as explained on the p\
receding page, be aware that the
passenger's side front airbag will not deploy in the event of a collisio\
n. In this case, the SRS system and
Occupant Weight Sensor should be inspected by a trained and qualified Vo\
lvo service technician as
soon as possible.
l Never try to open, remove, or repair any components in the OWS system. T\
his could result in system
malfunction. Maintenance or repairs should only be carried out by an a t\
rained and qualified Volvo
service technician.
l The front passenger's seat should not be modified in any way. This could\
reduce pressure on the seat
cushion, which might interfere with the OWS system's function.
The OWS is designed to disable (will not inflate) the passenger's side\
front airbag when a rear facing
infant seat, a forward-facing child restraint, or a booster seat is dete\
cted. The PASSENGER AIRBAG
OFF indicator lamp will illuminate and stay on to remind you that the pa\
ssenger's side front airbag is
disabled (see the following table).
file:///K|/delme/2007_C70/07c70_01.htm (17 of 41)12/22/2006 9:15:37 PM\
